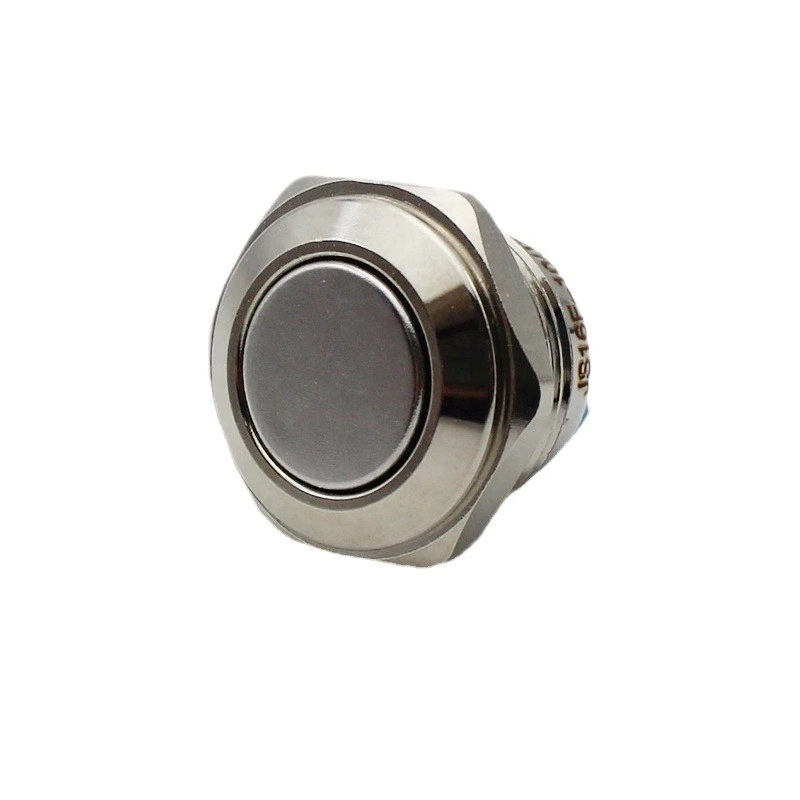

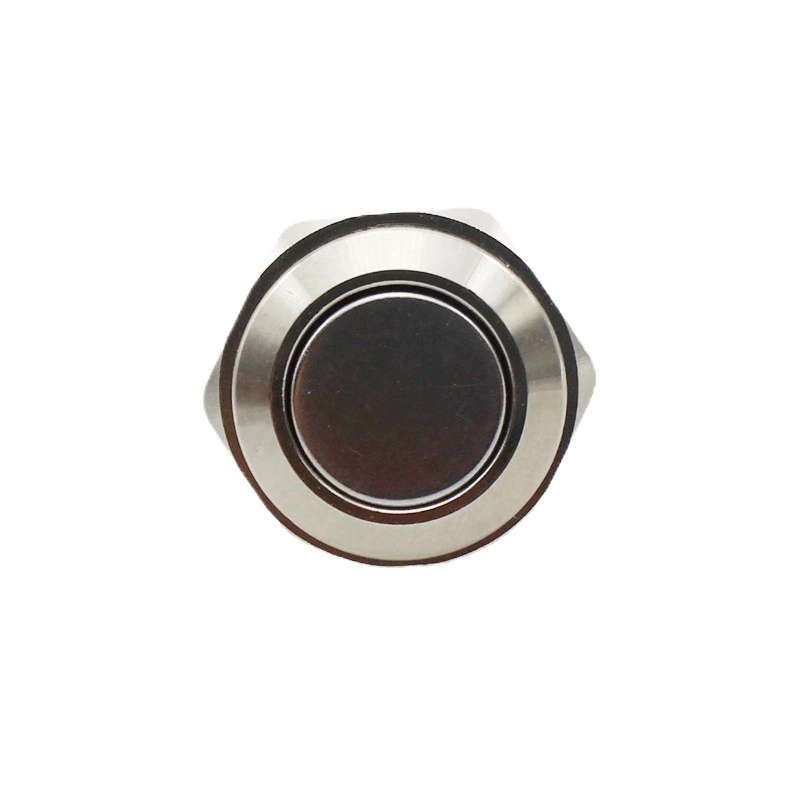

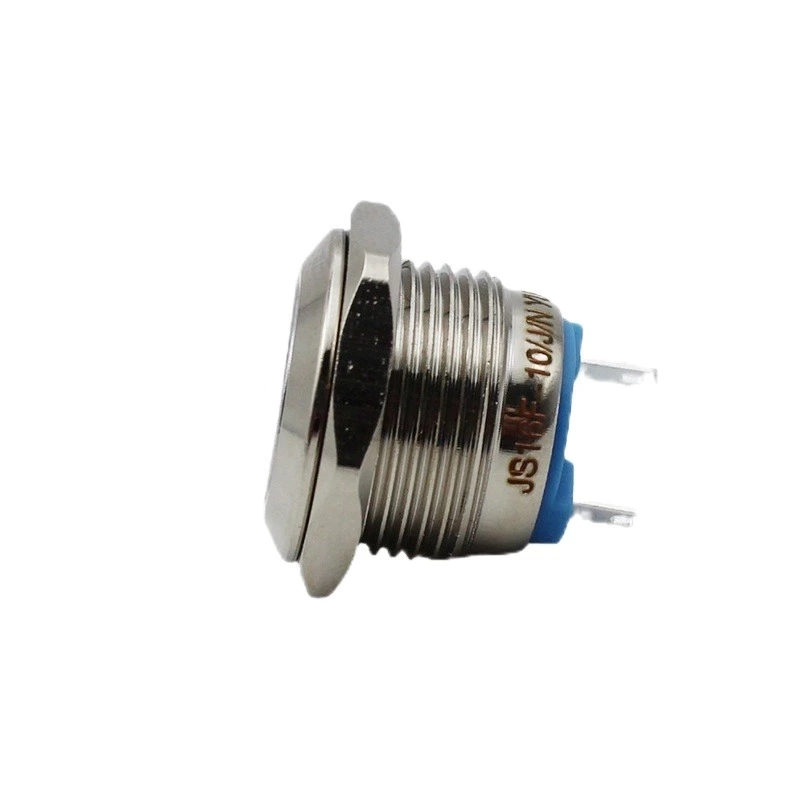

JS16F-10JN waterproof push button switch push on off switch push button start switch
- Model:
- JS16F-10JN
Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
JS16F-10JN waterproof push button switch push on off switch push button start switch
Features
-
16mm diameter
-
Switch Rating:2A/36VAC
-
Contact Configuration:1NO
-
Operation Type:Momentary
-
The Front Shape:Domed
-
The Crust Material:stainless Steel
-
IP Degree:IP65

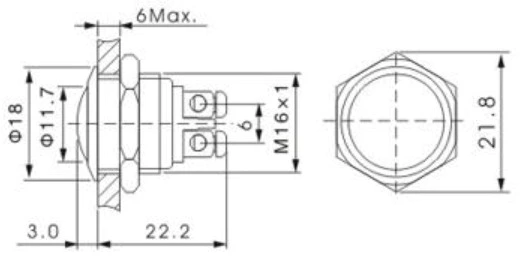

Dimensions
Product Description
echnical Specifications
| Specification | JS16F-10JN | |
| The Front Shape | Domed | |
| Terminal Type | Screw Termlnls | |
| Max.Switch Rating | 2A/36VDC | |
| Contact Resistance | ≤50mΩ | |
| Insulating Resistance | ≥1000MΩ | |
| Dielectic Strengh | 2000VAC | |
| Operating Temp | -20℃~+55℃ | |
| Mechanical life | 1,000,000cycles | |
| Eictical life | 200, 000cycles | |
| Panel Thickness | 1~6mm | |
| Tortque | 5~ 14Nm | |
| Operation Pressure | About 4N | |
| Operation Distance | About 1.5mm | |
| IP Degree | IP65 | |
| Material | Contrct | Silver Alloy |
| Button | Stanless Steel | |
| Body | Stanless Steel | |
| Base | PBT | |
