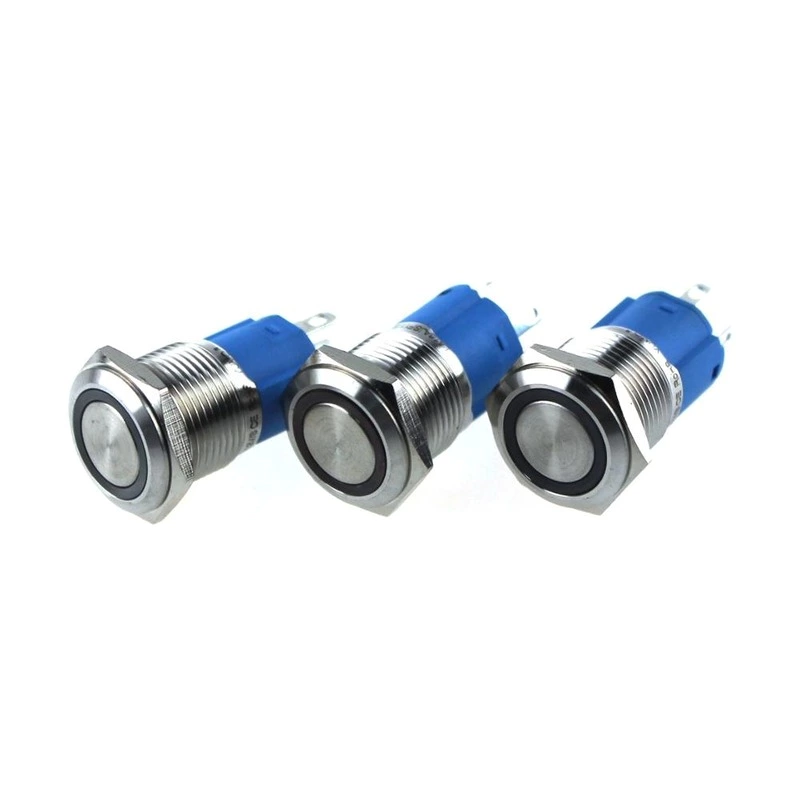

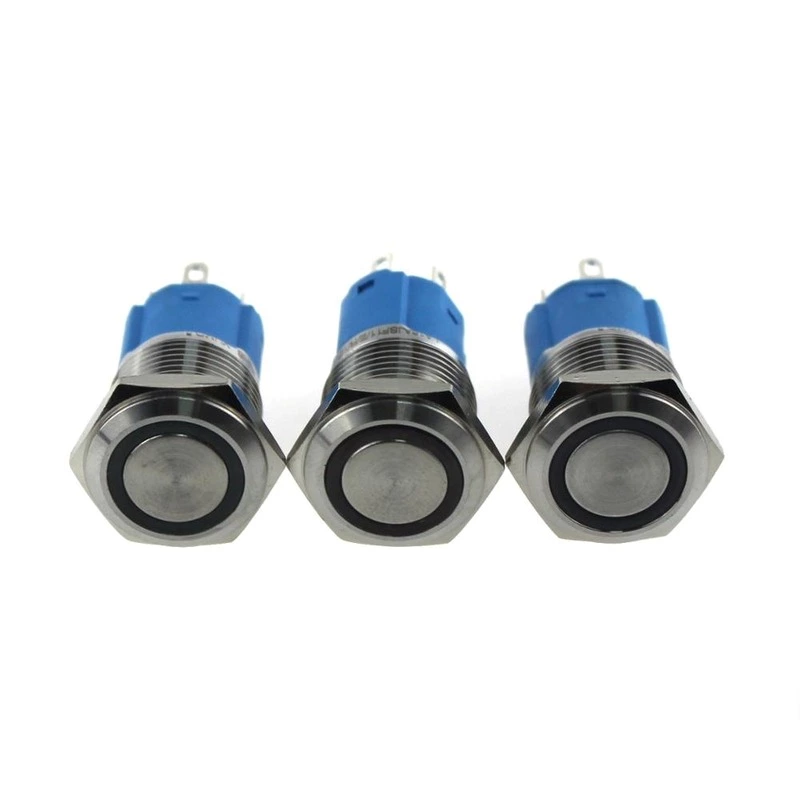

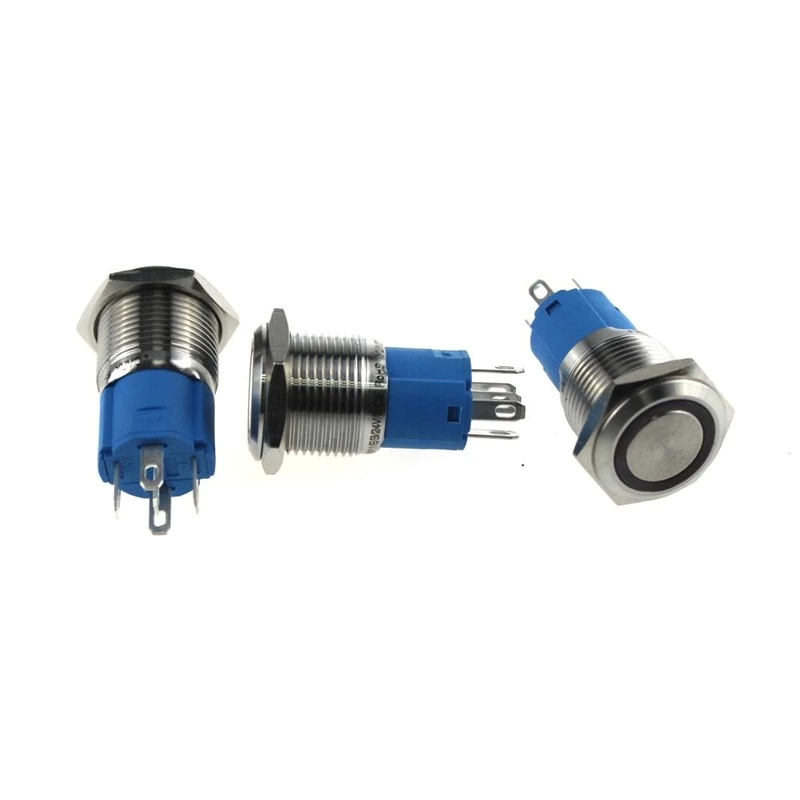

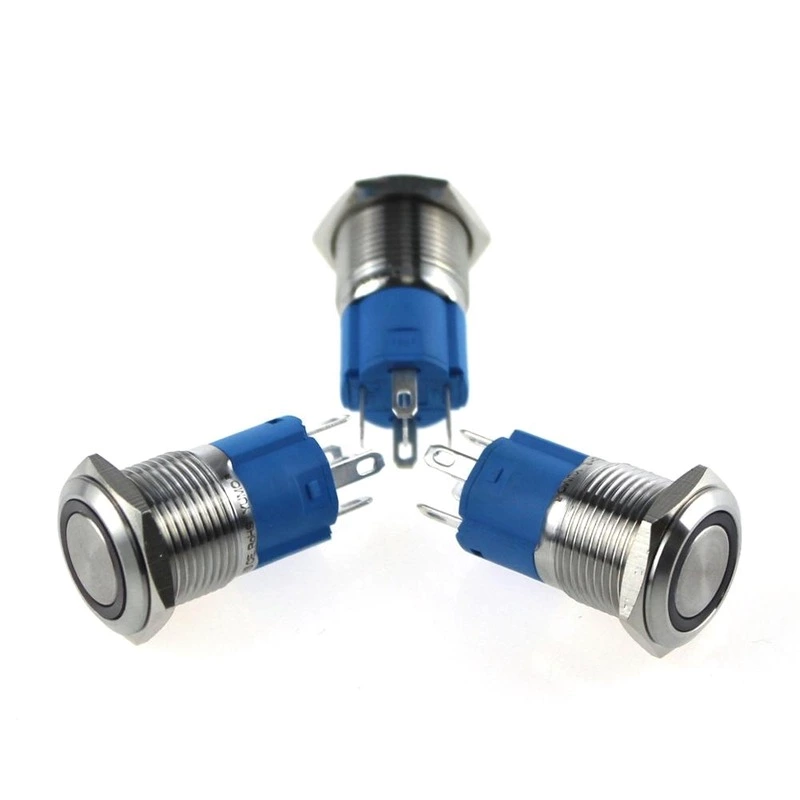

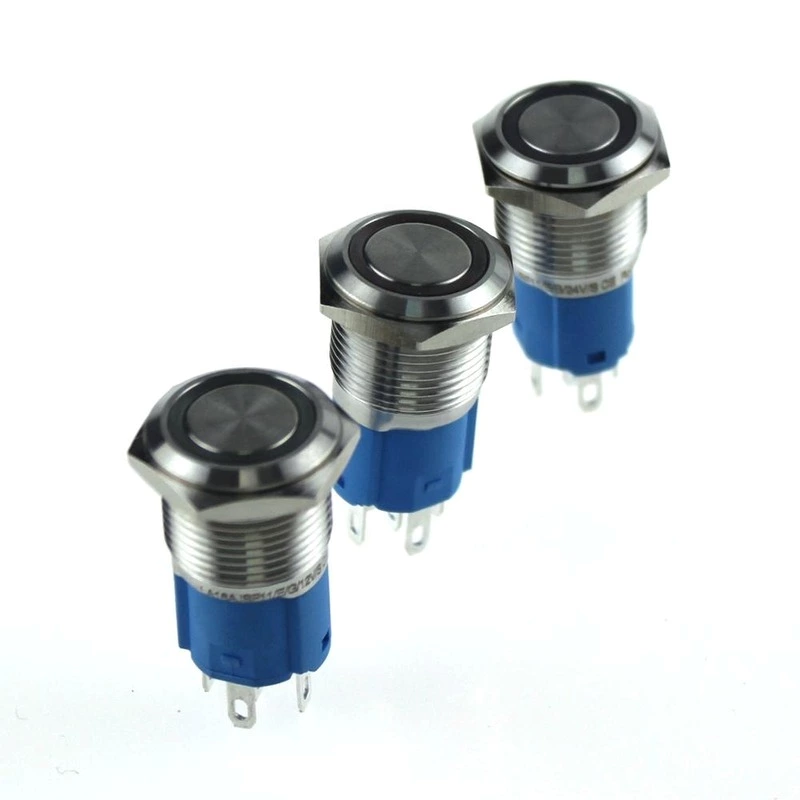

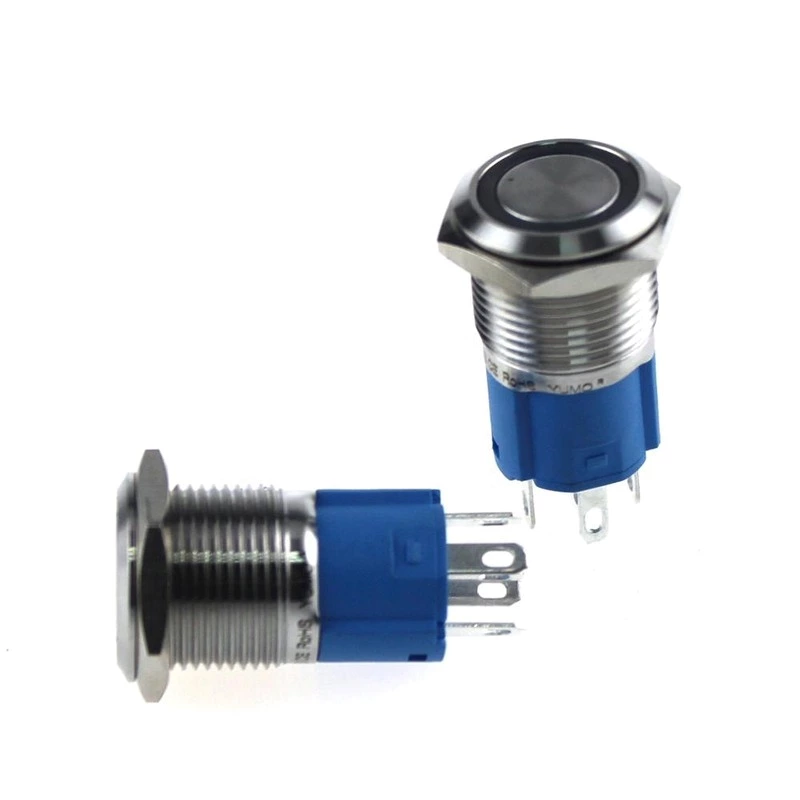

LA16JSF-11E blue push button monetary with LED lamp
- Model:
- LA16JSF-11E
Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
LA16JSF-11E blue push button monetary with LED lamp
Features:
-
16mm diameter
-
Switch Rating:3A/250VDC
-
Contact Configuration:1NO 1NC/2NO 2NC
-
Operation Type:Momentary/Alternate
-
The Front Shape: Flat Round
-
The Crust Material:Stanless Steel/Brass(Nickel Plated )
-
Ring lluminated
-
IP Degree:IP40/67

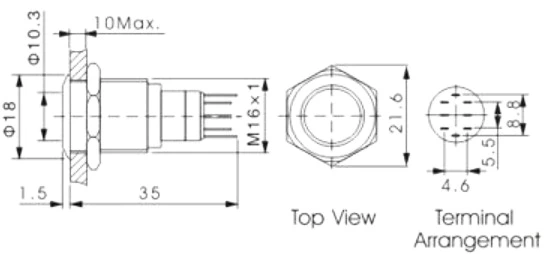

Dimemsions:
Technical Specifications
| Specification | LA16JSF-E | |
| The Front Shape | Flat Round | |
| Terminal Type | Pin Terminal(1.8x0.4mm) | |
| Switching | NO.3 | |
| Max.Switch Rating | lth:3A Ui:250VAC | |
| Contact Resistance | ≤50mΩ | |
| Insulating Resistance | ≥1000MΩ | |
| Dielectic Strengh | 2000VAC | |
| Operating Temp | -20℃~+55℃ | |
| Mechanical life | 1,000,000cycles | |
| Eictical life | 50, 000cycles | |
| Panel Thickness | 1~10mm | |
| Tortque | 5~ 14Nm | |
| Operation Pressure | 2.5~4N | |
| Operation Distance | About 2.8mm | |
| IP Degree | IP40/IP67 | |
| Material | Contrct | Silver Alloy |
| Button | Stanless Steel | |
| Body | Stanless Stee/Brass(Nickel Plated) | |
| Base | PBT | |
| LED Specl | Type | Dot lluminated(LED) |
| Rated voltage | 6V/12V/24V/36V/110V/220V | |
| Color | R G Y O B W | |
| Life | 40000 hours | |
