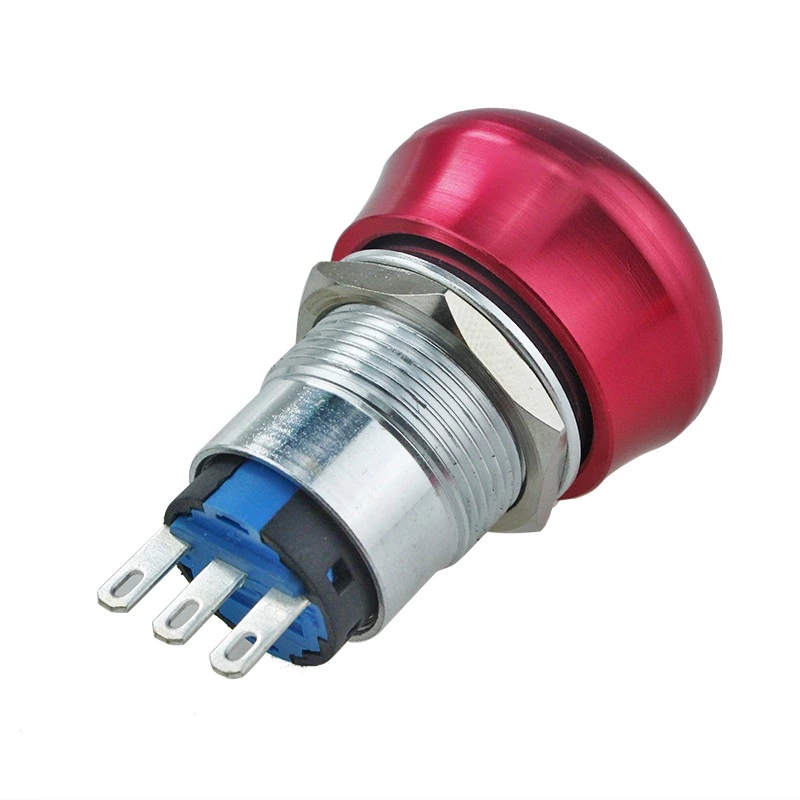

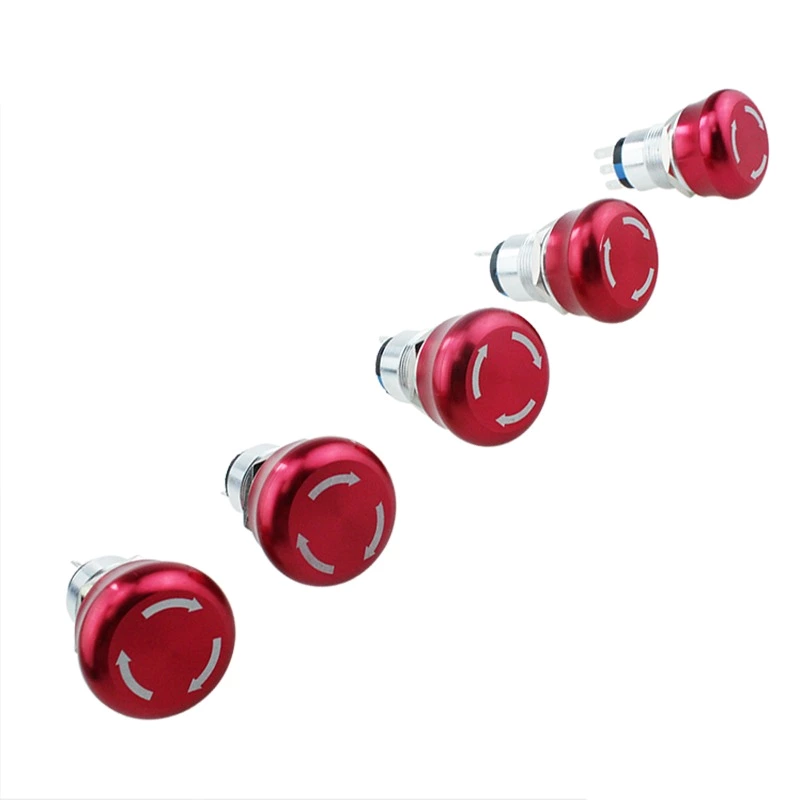

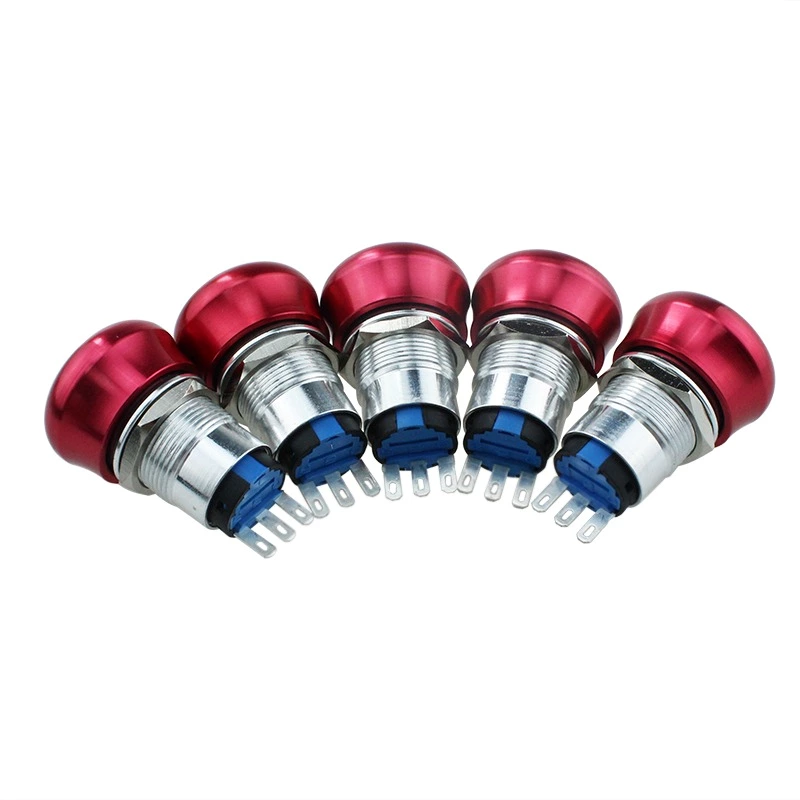

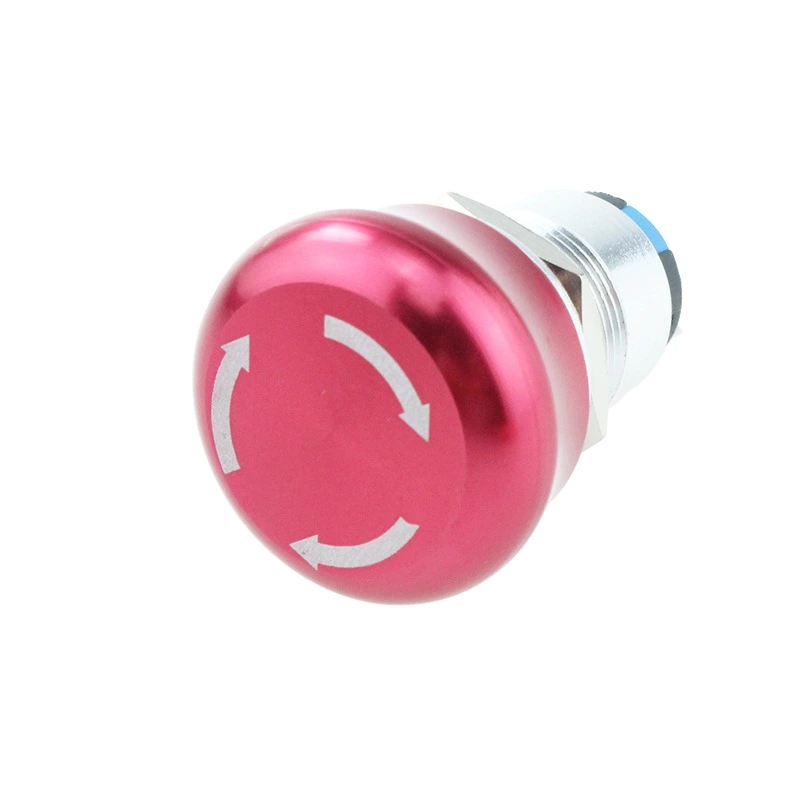

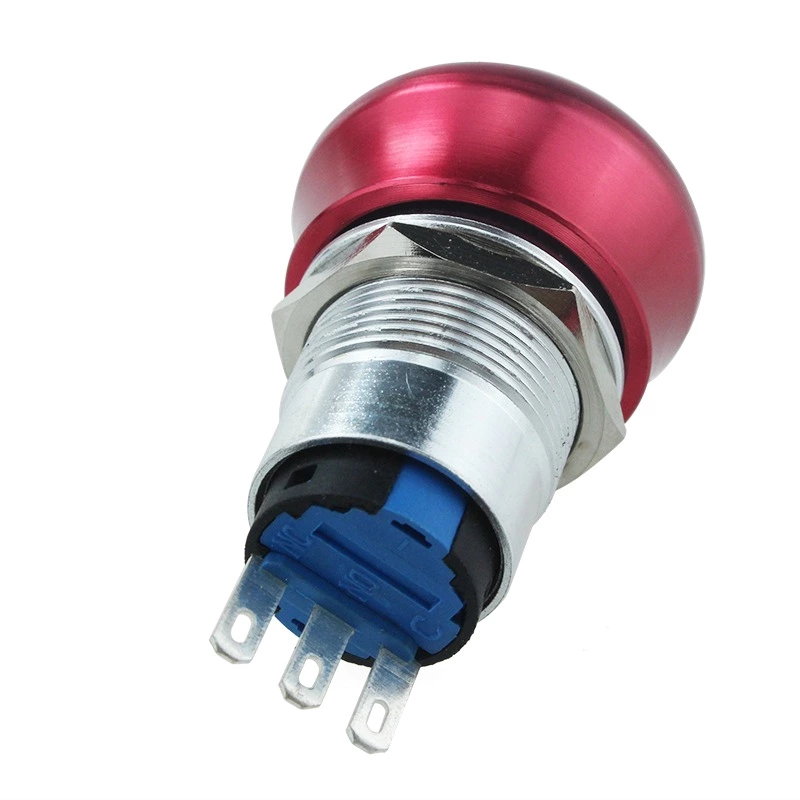

19mm Momentary E-stop Mushroom Push Button Switch

Model:

ABS19A-M11

Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.

19mm momentary E-stop mushroom push button switch

ABS	Size	Material	Head type	Switch combination	Work type	Lamp type	Lamp color	Lamp voltage
Metal Switch	06mm 08mm 12mm 16mm 19mm 22mm 25mm	C:Chromium plated brass A:Zinc alloy plated chromium S:Stainless steel P:Plastics	P:flat G:High Q:Ball M:Mushroom	11:1NO1NC 22:2NO2NC 1:1NO/1NC (Welding) 10:2NO2NC(Welding) 0:1NO/1NC (terminal) 00:2NO2NC(terminal)	Z:Maintained :Momentary	D:Center point E:Ring lamp C:Power mark T:Custom patterm	R:Red G:Green Y:Yellow B:Blue W:White	AC/DC 3V 6V 12V 24V 36V 48V 110V 120V

Switching Operation
Type	Diagram	sign	Explanation
1NO			Double breakpoint slow moving contact switch with two terminals
1NO 1NC			Single breakpoint snap change contact switch with three terminals
1NO 1NC			Double breakpoint snap change contact switch with four terminals

Switching Operation
Rated insulation Voltage			250
Heating current Ith			Temperature does not exceed the maximum allowed current
Rated voltage			12V	24V	110V	220V
Rated current	AC 50/60Hz	Resistive load	-	-	5A	3A
		Inductive load	-	-	3A	2A
	DC	Inductive load	5A	5A	1A	0.5A
		Inductive load	2A	2A	0.2A	0.1A
Contact material			Silver Plated Gold
