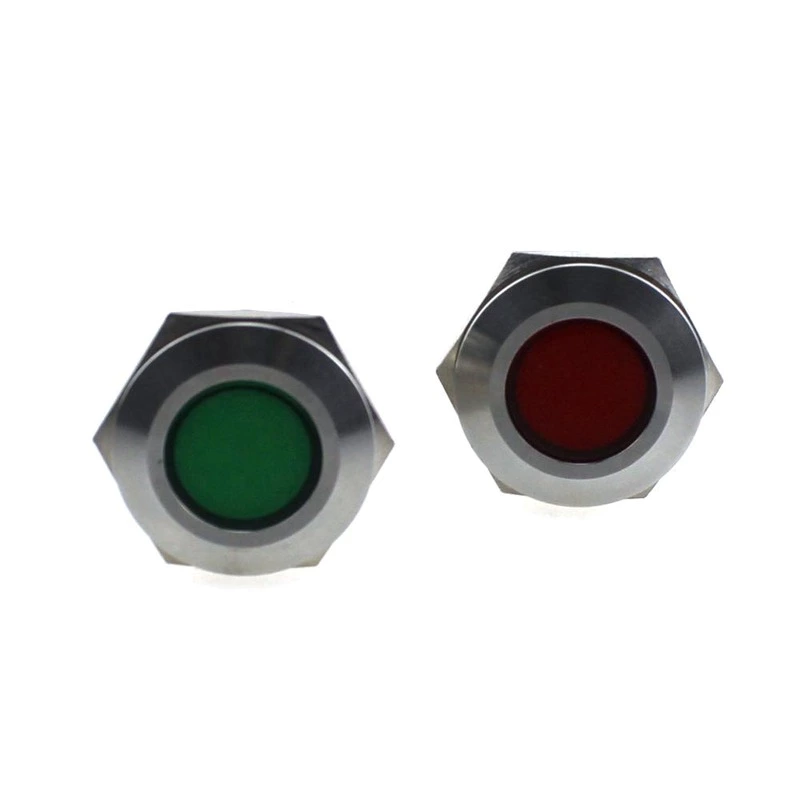

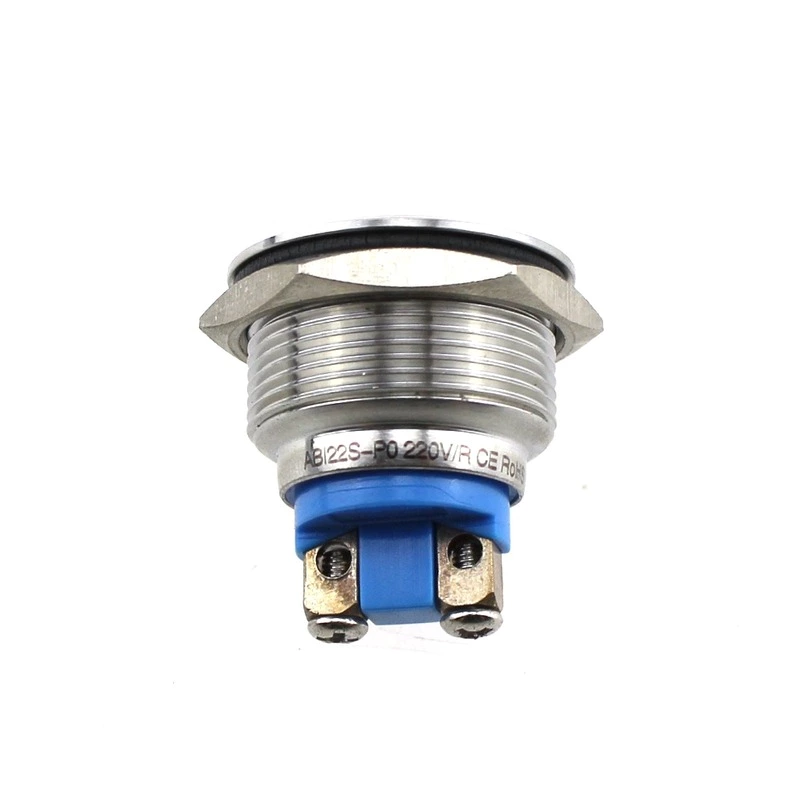

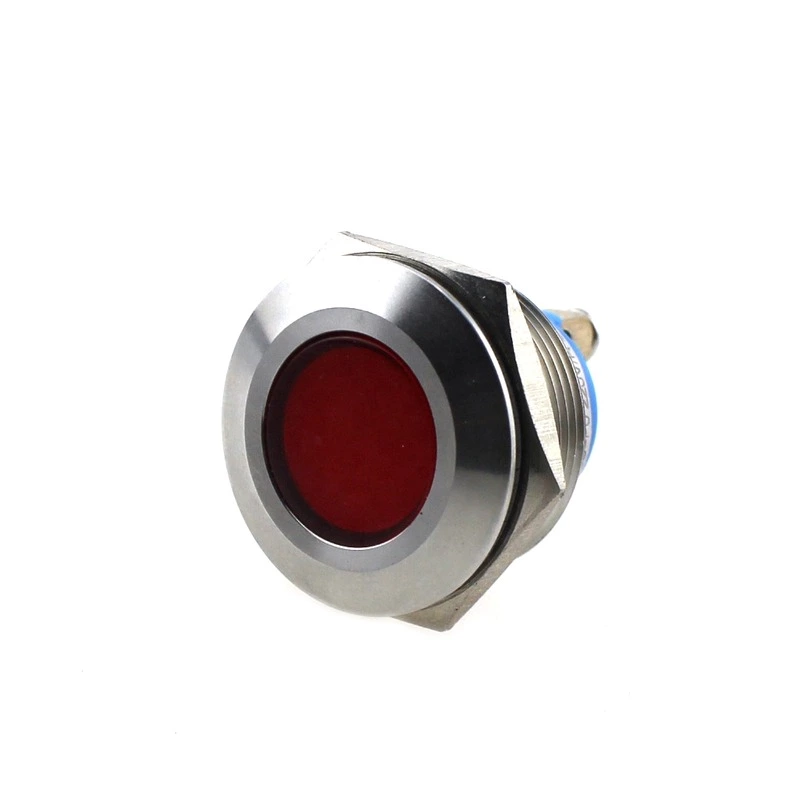

ABI22S-P0 RED LED IP67 metal Indicator signal lamp metal push button switch
- Model:
- ABI22S-P0
Appearance design beautiful
By highlighting the long life-span LED
Internal resistance
Ultra short installation size, installation diameter is complete
ABI22S-P0 RED LED IP67 metal Indicator signal lamp metal push button switch
Metal Switch Features
1.With the stability of the connection performance,the use of security equipment.
2.Beautiful,high end ,fashion design
3.Medical grade imported stainless stell material,environmental is beautiful with no rust.
4.Protection performance IP67,waterproof,dust can be competent for the harsh environment.
5.Compact design,compact size,can be used for any small equipment.
| ABI | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
| Single code | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
| 08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
| 12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
| 16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
| 19mm | C:Power mark | W:White | 24V | ||||
| 22mm | 00:Four bit terminal | 36V | |||||
| 25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
| 110V | |||||||
| P:Plastics | 120V |
| Parameter | ABI22S-P0 |
| Diameter | 22mm |
| Type | LED |
| Color | R G Y O B W P RG RB |
| Voltage Rating | ≤220V |
| Rated Current | About 15mA |
| The Crust Material | S/Stainless steel |
| IP Degree | IP68, IK10 |
