ABS22S-P11 22mm Maintained Type Metal Push Button Switch with LED lamp
- Model:
- ABS22S-P11
Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
ABS22S-P11 22mm Maintained Type Metal Push Button Switch with LED lamp
Features
-
With the stability of the connection performance, the use of security equipment
-
Beautiful, high end, fasion design
-
Medical grade imported stainless steel material, environmental protection is beautiful with no rust
-
Protection performance IP67, waterproof, dusct can be conpetent for the harsh environment
-
Compact design, compact size, can be used for any small euipment
Metal Push Button Switch
Product information
| model number | ABS22S-P11 |
| hole diameter(mm) | 22 |
| material | stainless steel |
| key type | flat |
| switch combination | 1NO 1NC |
| lamp type | ring lamp |
| lamp color | blue |
| lamp voltage | 5V |
| contacts | DPDT |
| protection | IP67 |
| action | momentary |

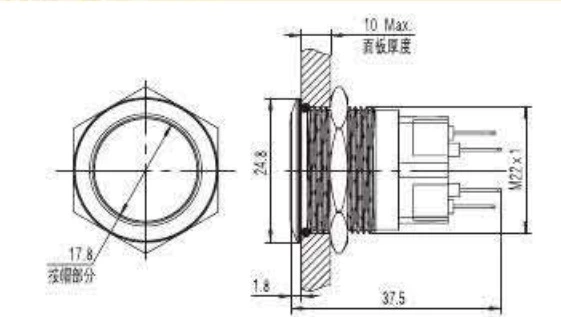

Dimensions(mm)
