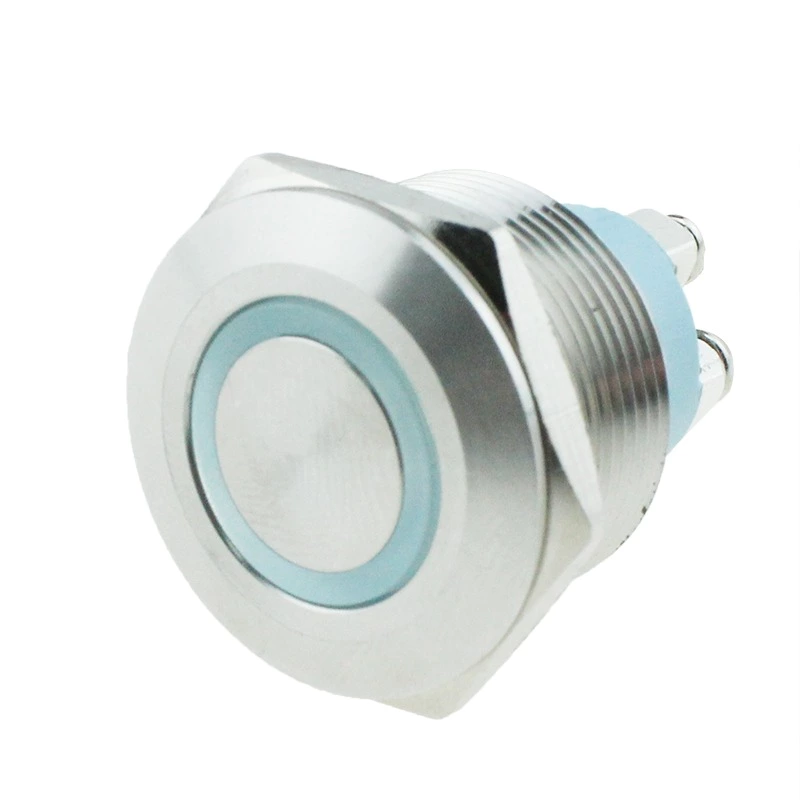

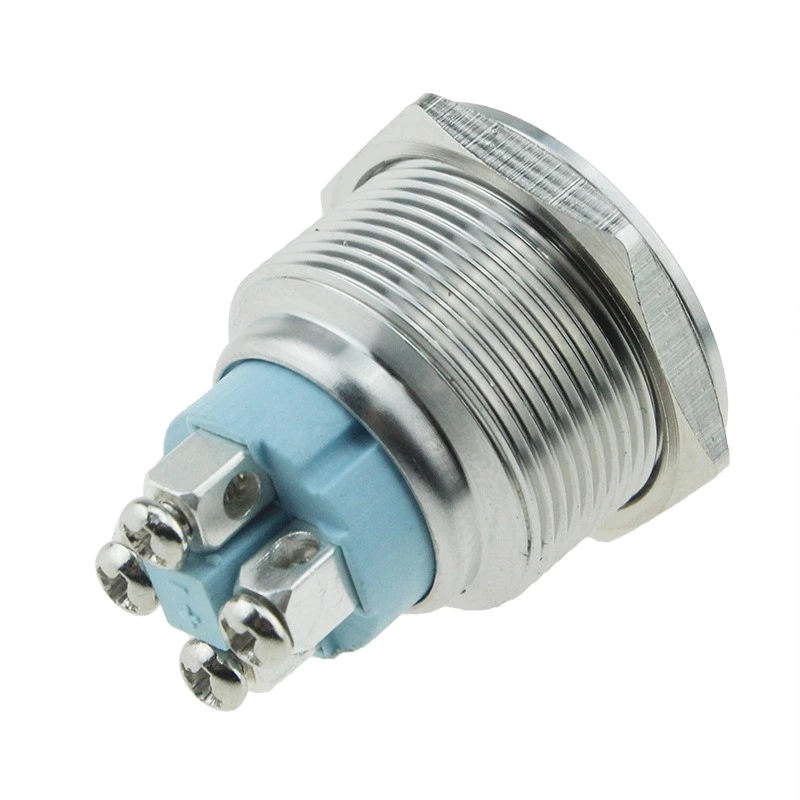

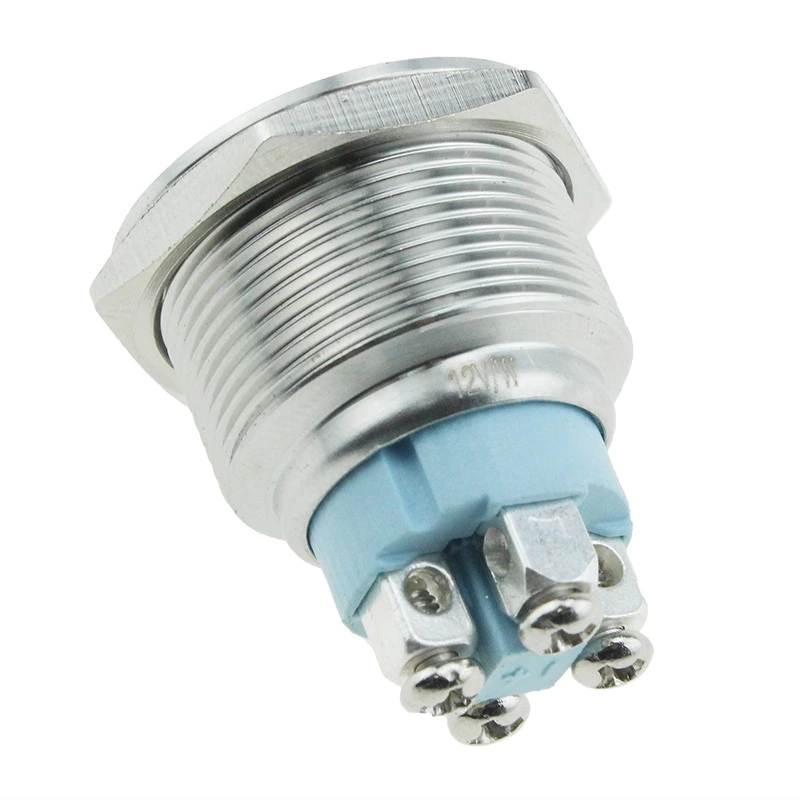

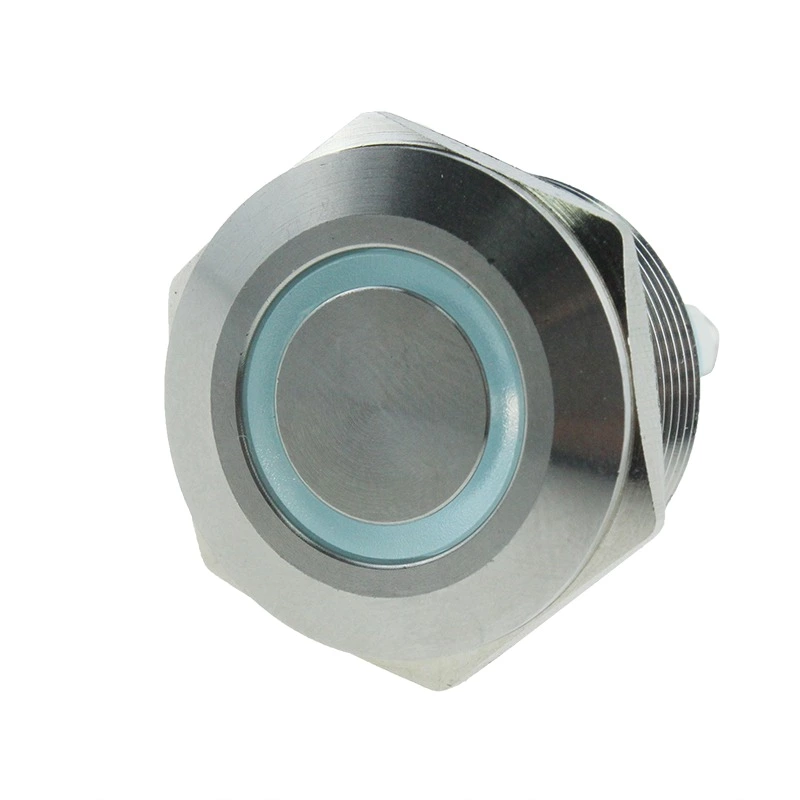

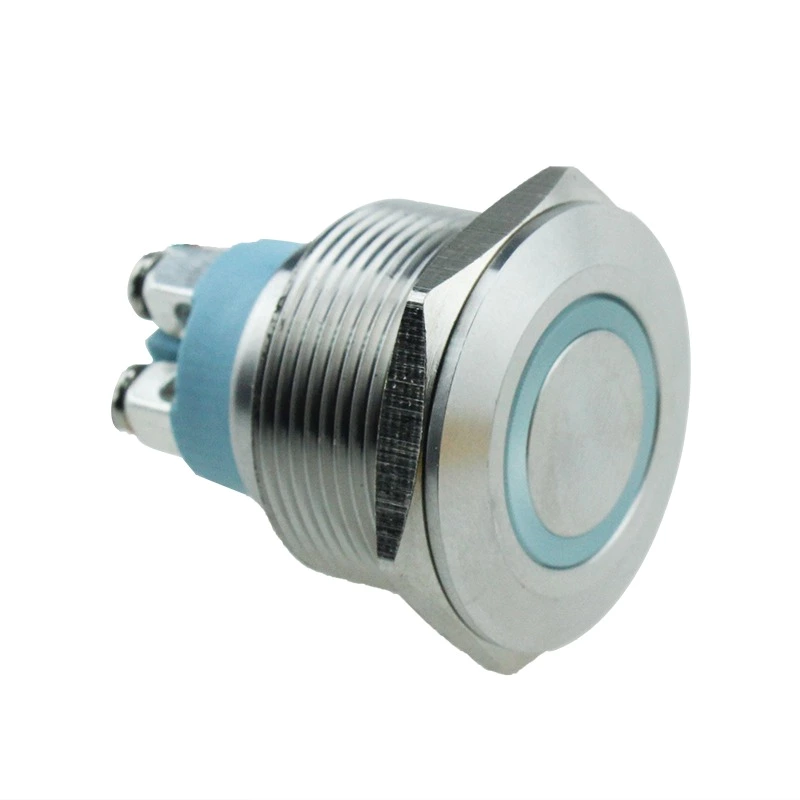

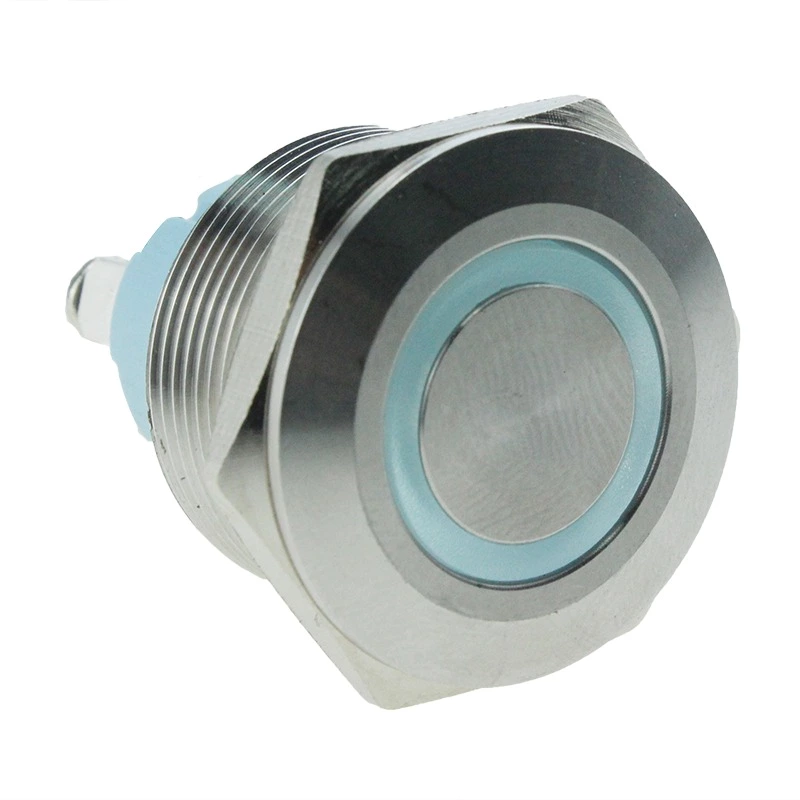

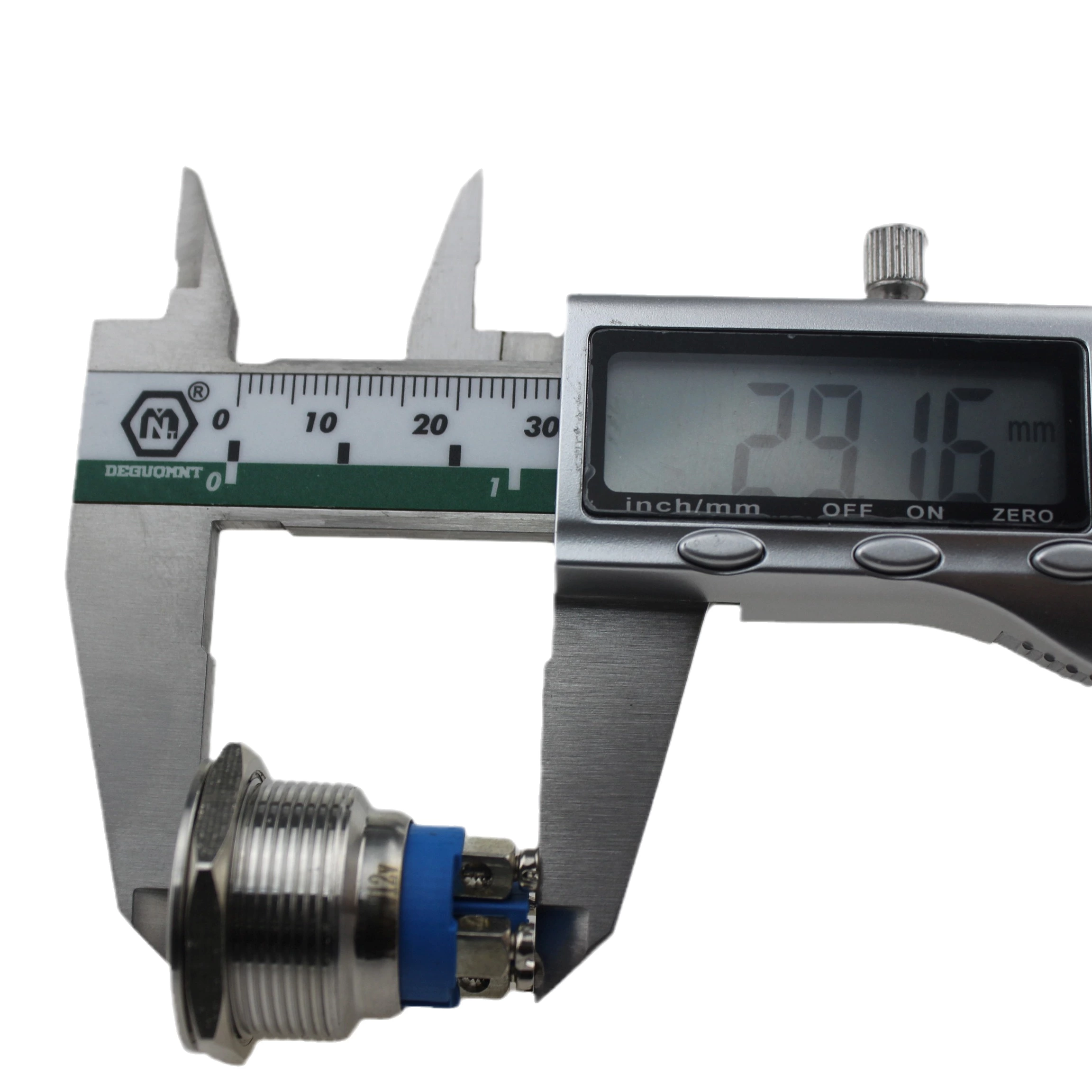

Metal push button JS22F-11E-W-12V-S Selevator equipment waterproof LED button
- Model:
- JS22F-11E-W-12V-S
Metal Switch Features
1,With the stability of the connection performance,the use of security equipment.
2,Beautiful,high end ,fashion design
3,Medical grade imported stainless stell material,environmental is beautiful with no rust.
4,Protection performance IP65,waterproof,dust can be competent for the harsh environment.
5,Compact design,compact size,can be used for any small equipment.
Metal push button JS22F-11E-W-12V-S Selevator equipment waterproof LED
| The Front Shape | Flat Round | |
| Terminal Type | Pin Terminal(2.8x0.5mm) | |
| Switching | NO.2 | |
| Max.Switch Rating | Ith:5A Ui:250VAC | |
| Contact Resistance | ≤50mΩ | |
| Insulating Resistance | ≥1000MΩ | |
| Dielectic Strengh | 2000VAC | |
| Operating Temp | -20℃-+55℃ | |
| Mechanical life | 1,000,000cycles | |
| Eictical life | 50, 000cycles | |
| Panel Thickness | 1~8mm | |
| Tortque | 5~ 14Nm | |
| Operation Pressure | About 5.5N | |
| Operation Distance | About 2.5mm | |
| IP Degree | IP65 IK10 | |
| Material | Contrct | Silver Alloy |
| Button | Stanless Steel | |
| Body | Stanless Steel | |
| Base | PA | |
| LED Specl | Type | Ring Illuminated(LED) |
| Rated voltage | 6V/12V/24V/36V/110V/220V | |
| Color | R G Y O B W | |
| Life | 40000 hours | |
