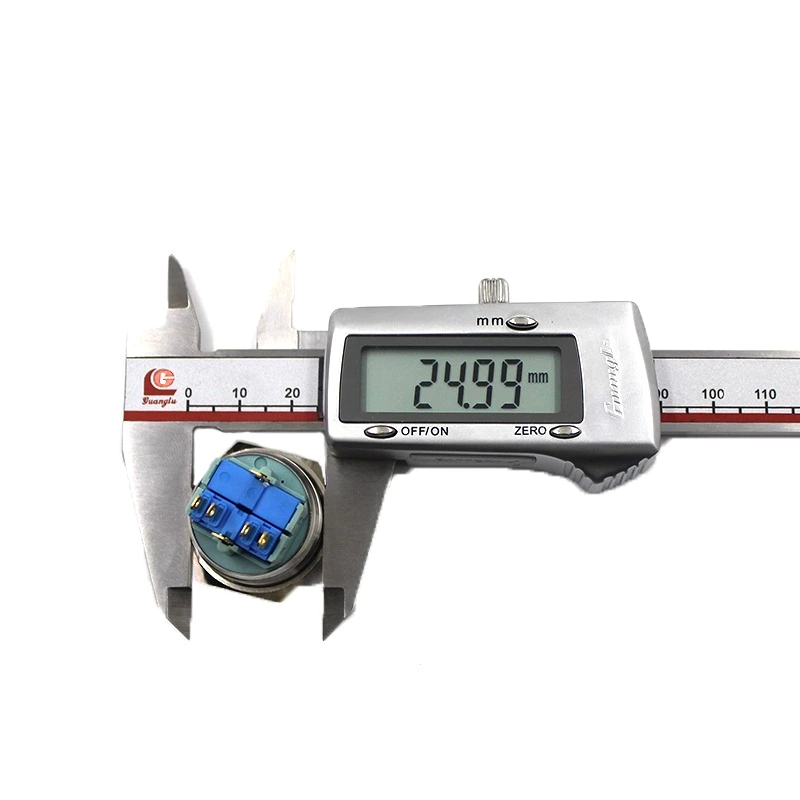

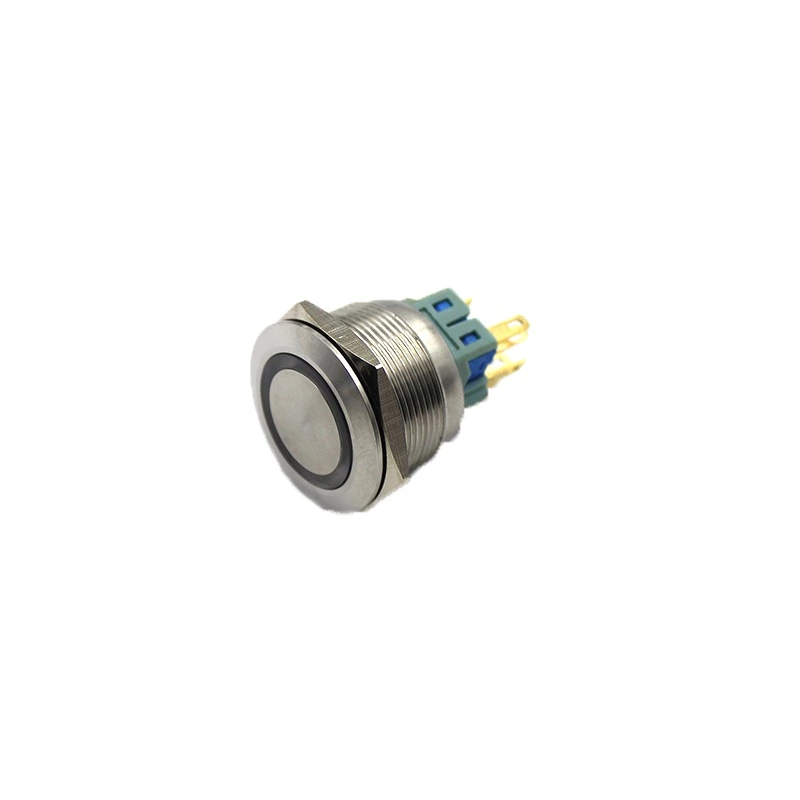

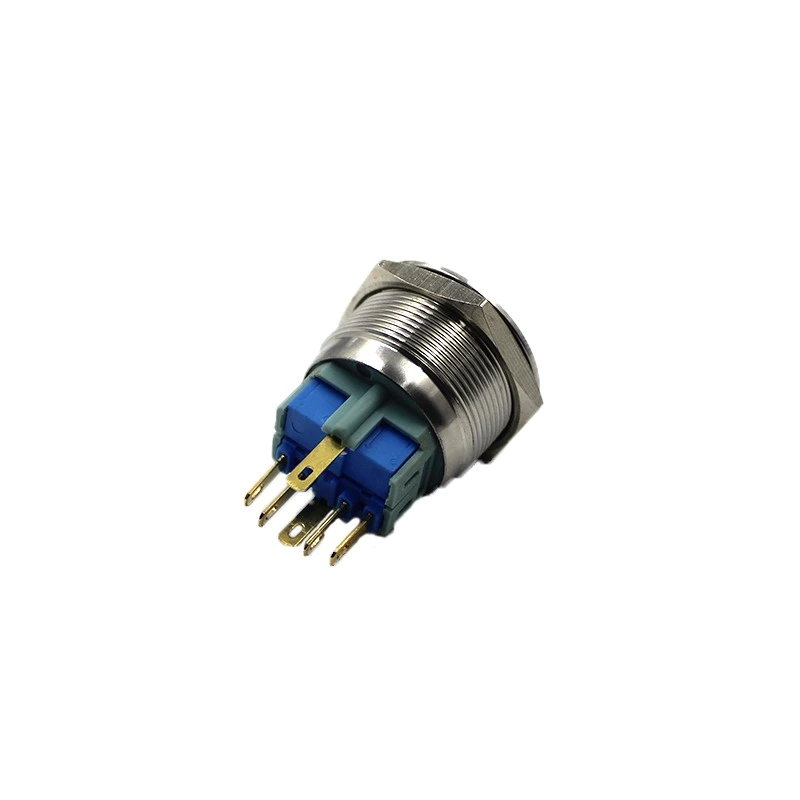

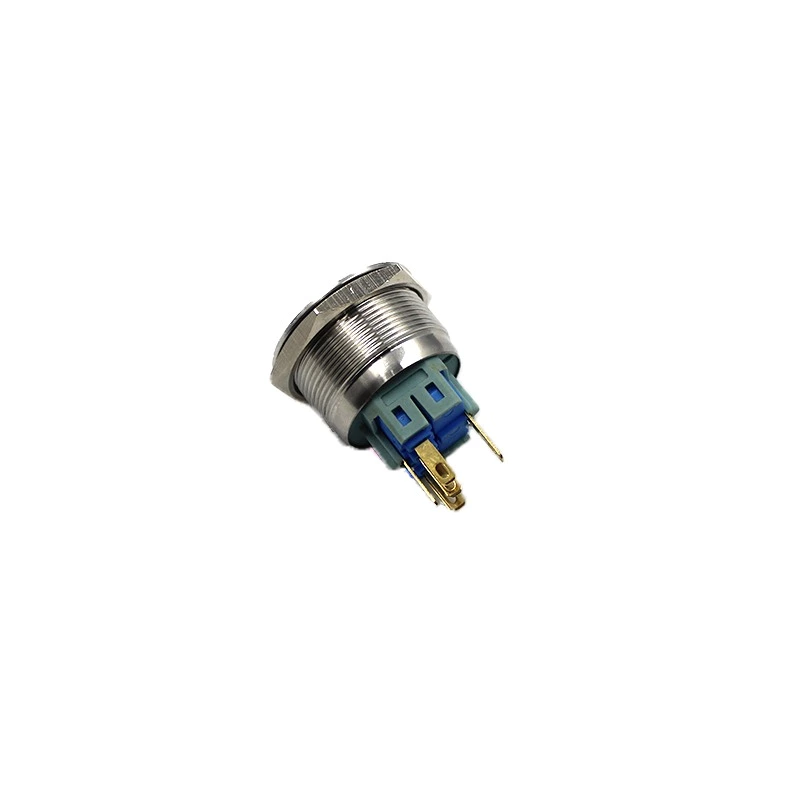

25mm IP67 Momentary metal push button push button starter switch mechanical momentary push button
- Model:
- ABS25S-P11-E
Metal Switch Features
With the stability of the connection performance,the use of security equipment.
Beautiful,high end ,fashion design
Medical grade imported stainless stell material,environmental is beautiful with no rust.
Protection performance IP67,waterproof,dust can be competent for the harsh environment.
Compact design,compact size,can be used for any small equipment.
25mm IP67 Momentary metal push button push button starter switch mechanical momentary push button
Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance ,graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on .
| Model | ABS25S-P11-E | Contact Resistance | ≤30MΩ |
| Dielectric strengh | 2000VAC | Insulating Resistance | ≥1000 MΩ |
| LED color | / | Operation pressure | 3-6N |
| LED voltage | / | IP degree | IP67 IK10 |
| Mechanical life | 1000000 cycles | Electrical life | >500000 cycles |
| work temperture | -40℃--70℃ | Material | Stanless Steel/Brass (Nickel plated) |
| Work humidity | 10%-99% | Terminal type | Pin terminal |
| Input voltage | 3-250VDC/AC | Operation type | Momentary |
| Input current | ≤5A | welding temperature | 260℃/3” |
