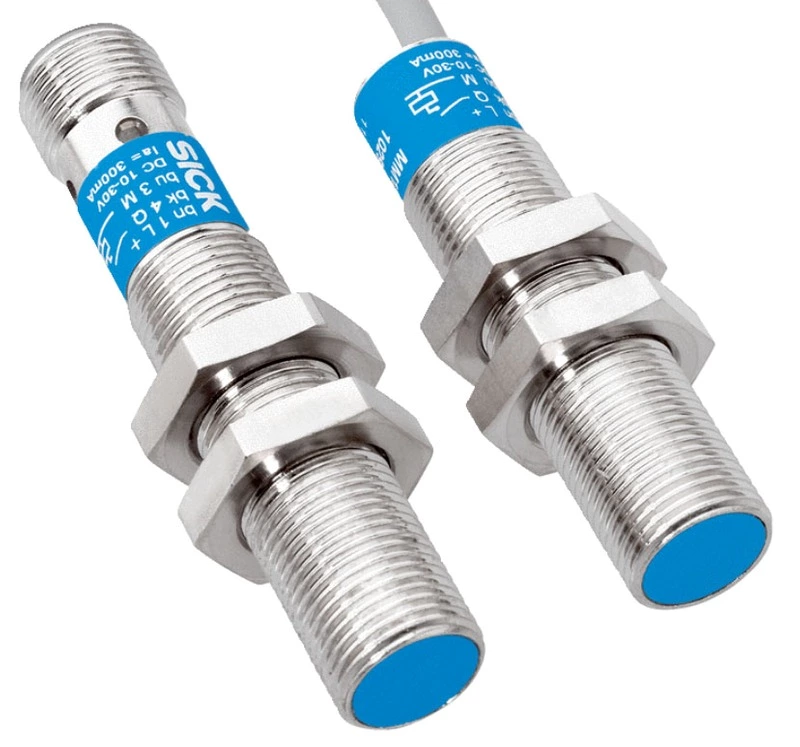

Magnetic proximity sensors MM12-90APS-ZCO sick Cylinder Threaded-M12 integrated circuits Sensor

Magnetic proximity sensors MM12-90APS-ZCO  sick Cylinder Threaded-M12 integrated circuits Sensor

• Features

  Housing	Cylindrical thread design
  Housing	Advanced
  Thread size	M12 x 1
  Diameter	Ø 12 mm
  Sensing range Sn	5 mm ... 90 mm 1)
  Safe sensing range Sa	72.9 mm
  Magnetic sensitivity	≤ 0.6 mT
  Switching frequency	1,000 Hz

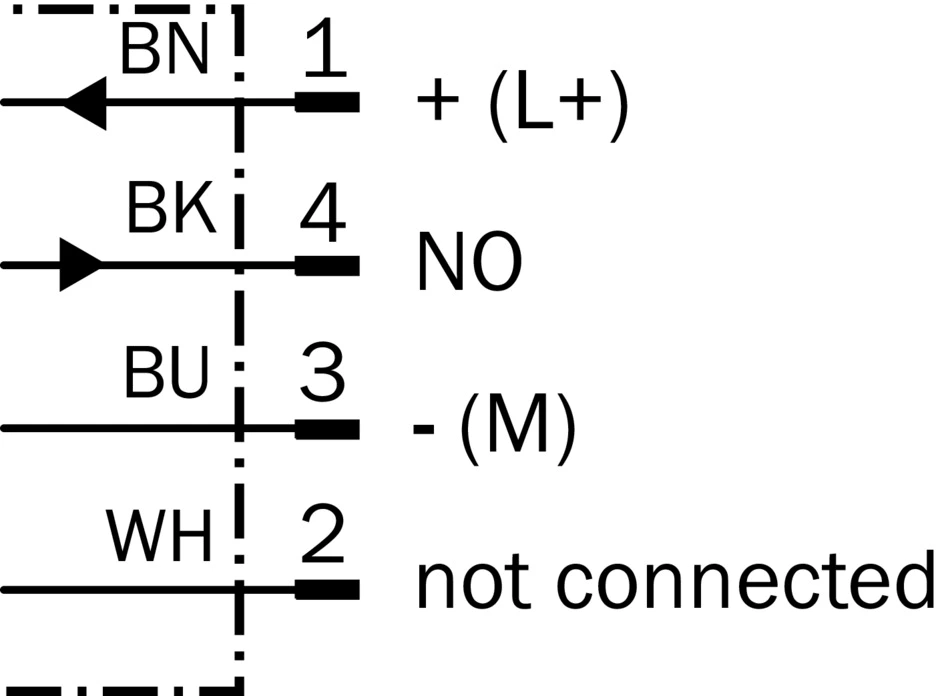

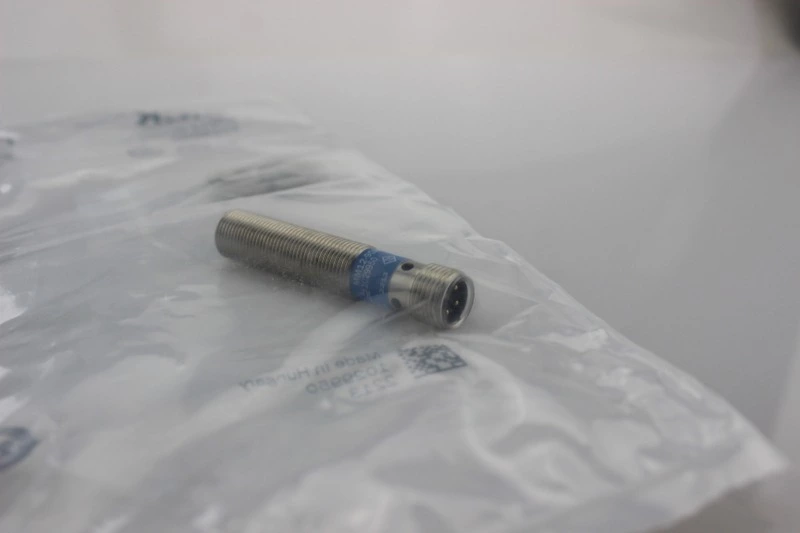

  Connection type	Male connector M12, 4-pin
  Switching output	PNP
  Output function	NO
  Electrical wiring	DC 3-wire
  Magnetic alignment	Axial
  Enclosure rating	IP67 2)

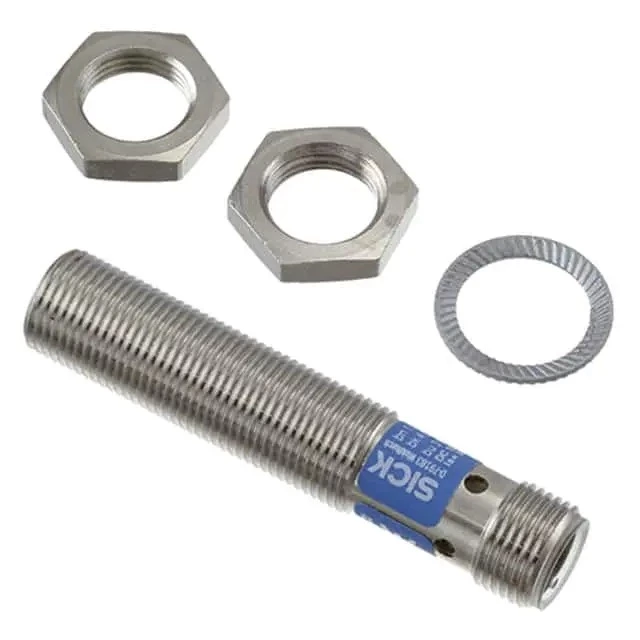

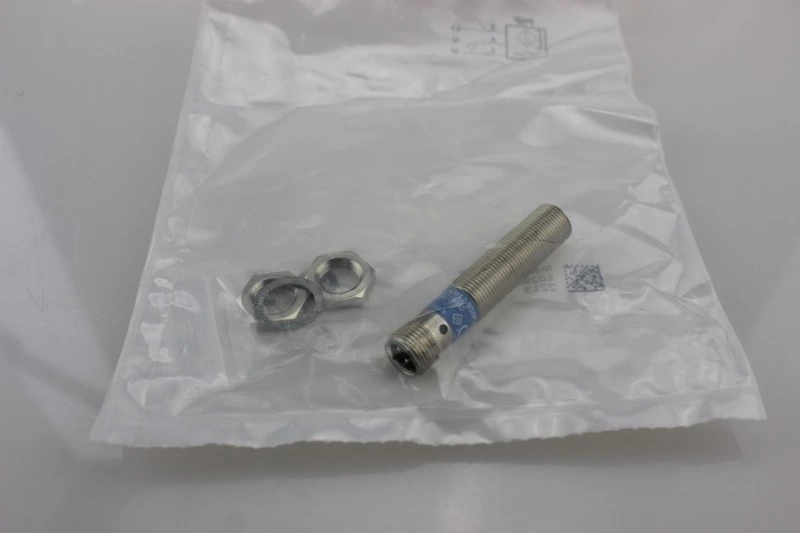

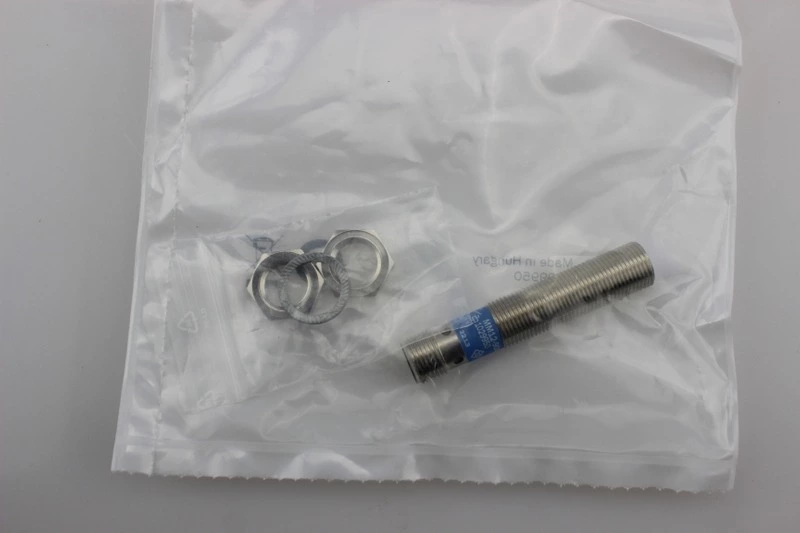

  Items supplied	Mounting nut, brass, nickel-plated (2x)

  • 1) Sensing range based on installation in non-magnetic material using Magnet MAG-3010-B (M4.0).

  • 2) According to EN 60529.

• Mechanics/electronics

  Supply voltage	10 V DC ... 30 V DC
  Ripple	≤ 10 % 1)
  Voltage drop	≤ 2.2 V 2)
  Current consumption	10 mA 3)
  Time delay before availability	≤ 30 ms
  Hysteresis	≤ 25 %
  Reproducibility	≤ 1 % 4)
  Temperature drift (of Sr)	± 10 %
  EMC	According to EN 60947-5-2
  Continuous current Ia	≤ 200 mA
  Short-circuit protection	✔ 5)
  Reverse polarity protection	✔
  Power-up pulse protection	✔
  Shock and vibration resistance	30 g, 11 ms / 10 ... 55 Hz, 1 mm
  Ambient operating temperature	–25 °C ... +75 °C
  Housing material	Metal, Nickel-plated brass
  Housing length	62.5 mm
  Thread length	40 mm
  Tightening torque, max.	≤ 7 Nm

  • 1) Of VS.

  • 2) At Ia max.

  • 3) Without load.

  • 4) Von Sr (VS und Ta constant).

  • 5) Pulsed.
