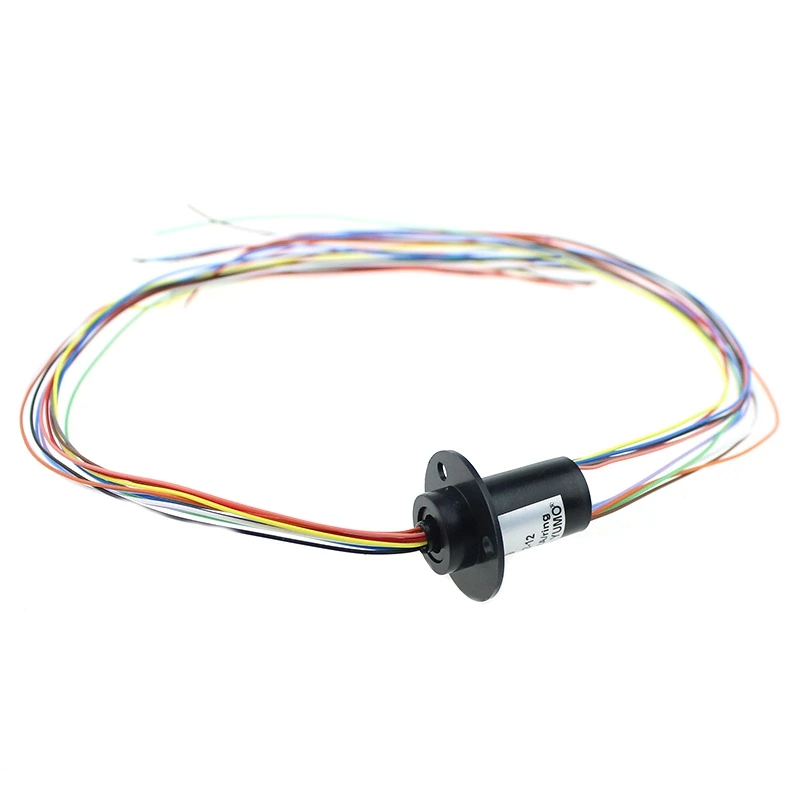

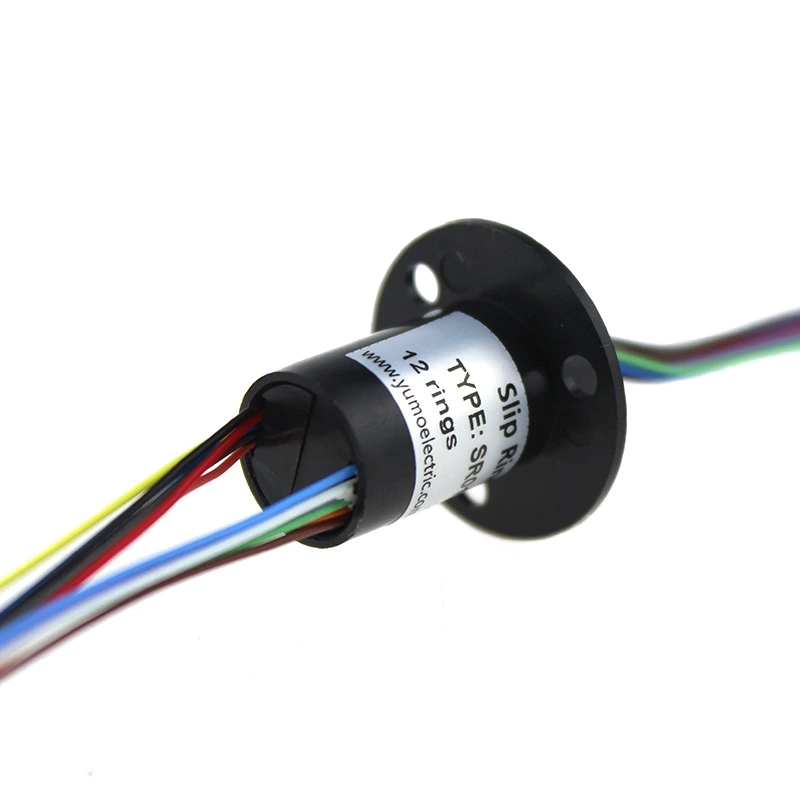

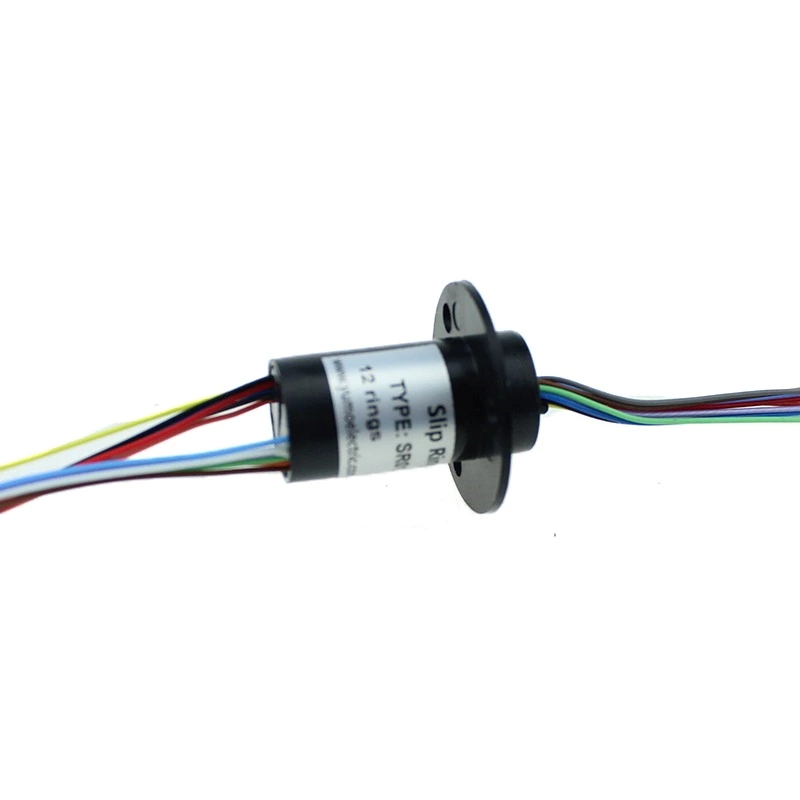

SR012-12 2A Electrical Motor Slip Ring

Model:

SR012-12

The carbon brush holder for slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The carbon brush holder for slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

SR012-12 2A Electrical Motor Slip Ring

Description

The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

The SR Series find typical applications in

*CCTV pan/tilt cameras and pedestals

*Robots and downhole inspection equipment

*Test and measuring equipment

*Manufacturing and process control equipment

*Computer peripherals

*Display equipment Medical equipment

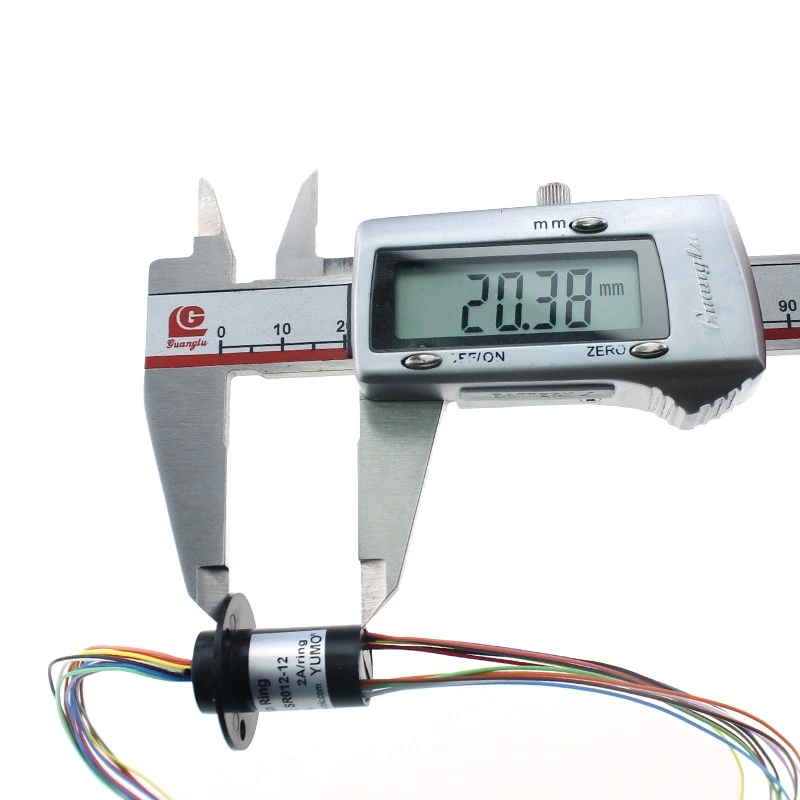

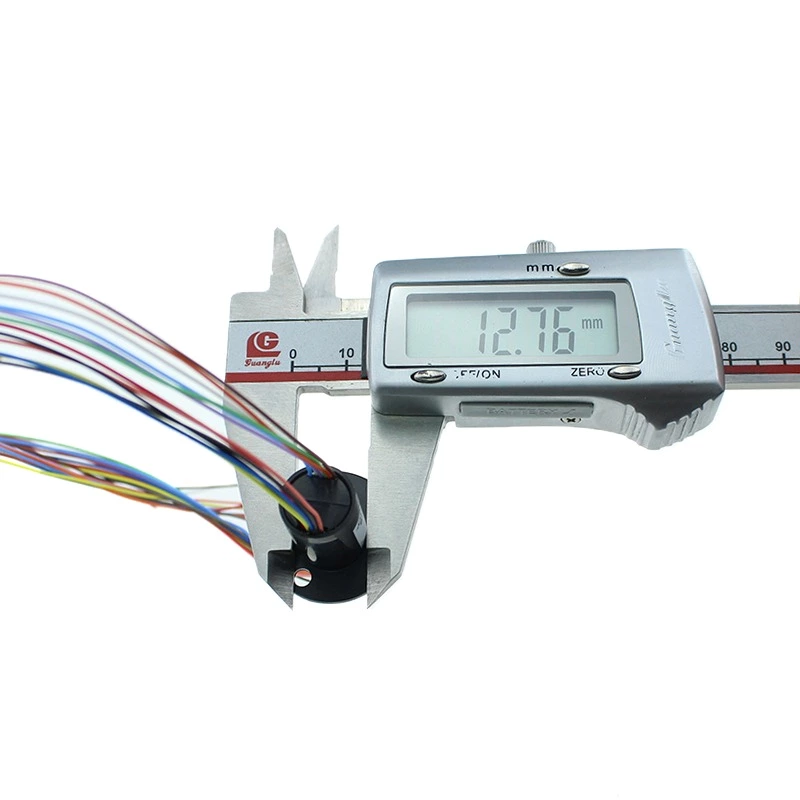

Specification List
Type	#Rings	D1A *LG
SR012-6	6	Φ12.5*17
SR012-12	12	Φ12.5*27
Mechanical data
Specification	Unit
Operate Speed	250 rpm
Temperature range	-20℃~+80℃
Contact material surface	Gold - gold
The steel bearing	The precise small steel ball bearing
Electric data
Specification	Unit
Voltage	240VDC-240VAC
Currrent	2A/ring
Lead size	Colour coded FPE insulated lead wires
Standard Lead length	250mm(other lengths on request)
High pot	500VAC@60Hz 60S
Insulation Resistance	1000MΩ/500VDC
Dynamic contact Resistance	<0.01OΩ
