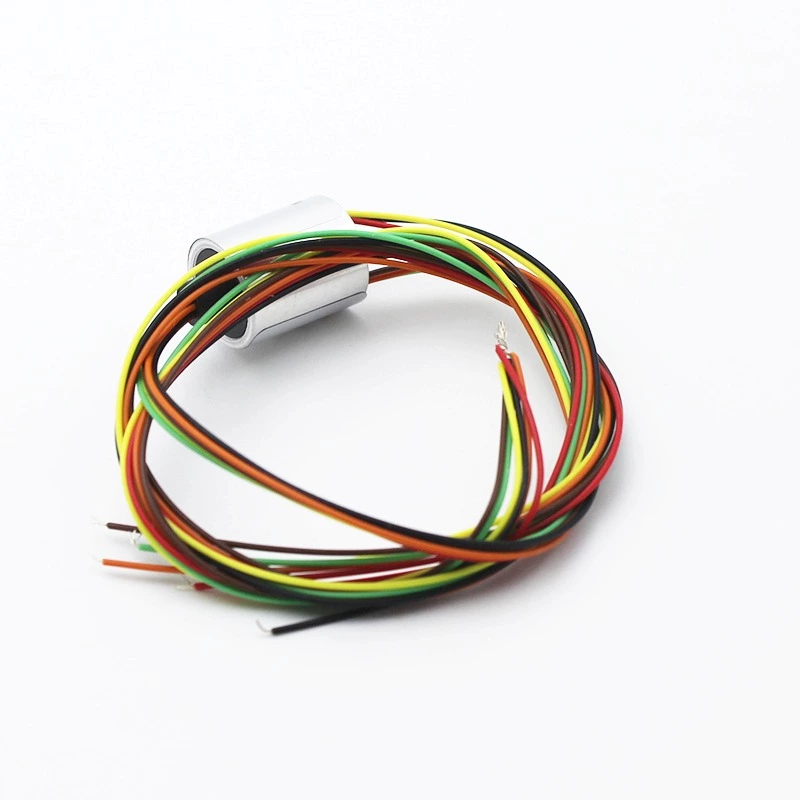

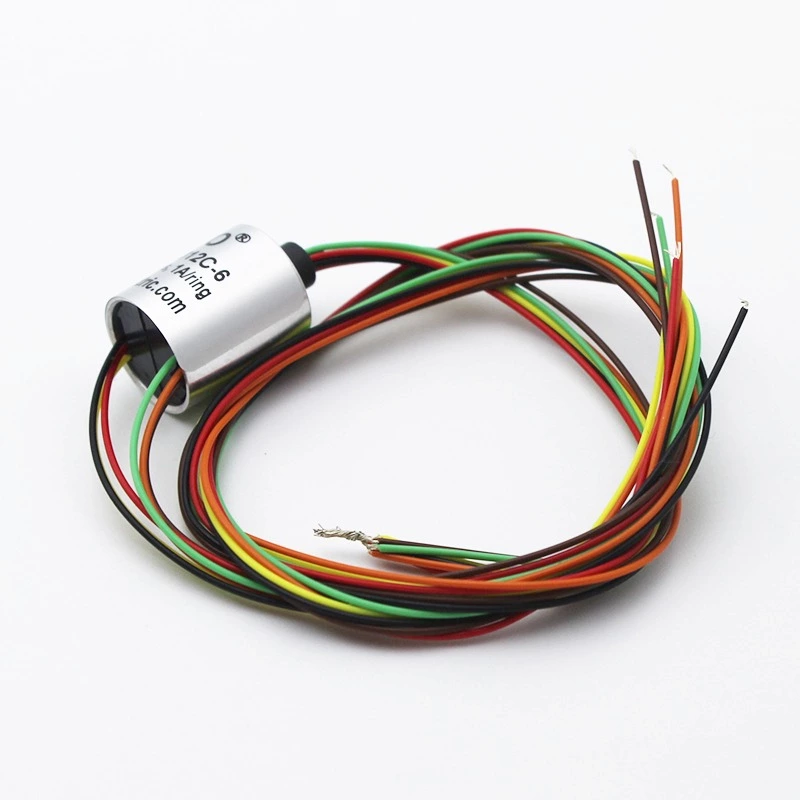

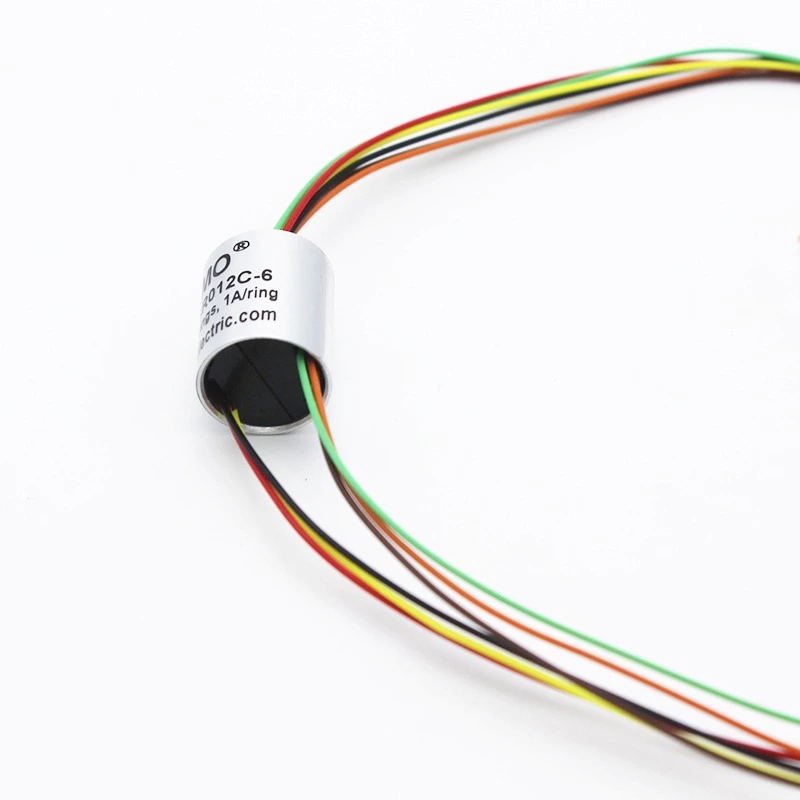

SR012C-6 Connector OD12mm 6wires Electric Swivel Slip Ring
- Model:
- SR012C-6
The SR012C-6 with 6 wires, 2A/ring, is our newest design and smallest physical package.uses fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.
Hot Sales SR012C-6 Connector OD12mm 6wires Electric Swivel Slip Ring
The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
The SR Series find typical applications in
*CCTV pan/tilt cameras and pedestals
*Robots and downhole inspection equipment
*Test and measuring equipment
*Manufacturing and process control equipment
*Computer peripherals
*Display equipment Medical equipment
| Specification List | ||
| Type | Rings | D1A *LG |
| SR012C-6 | 6 | Φ12.5*17 |
| Mechanical data | ||
| Specification | Unit | |
| Operate Speed | 250 rpm | |
| Temperature range | -20℃~+80℃ | |
| Contact material surface | Gold - gold | |
| The steel bearing | The precise small steel ball bearing | |
| Electric data | ||
| Specification | Unit | |
| Voltage | 240VDC-240VAC | |
| Lead size | Colour coded FPE insulated lead wires | |
| Standard Lead length | 250mm(other lengths on request) | |
| High pot | 500VAC@60Hz 60S | |
| Insulation Resistance | 1000MΩ/500VDC | |
| Dynamic contact Resistance | <0.01OΩ | |
