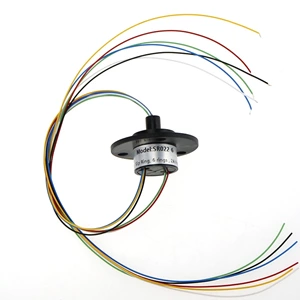

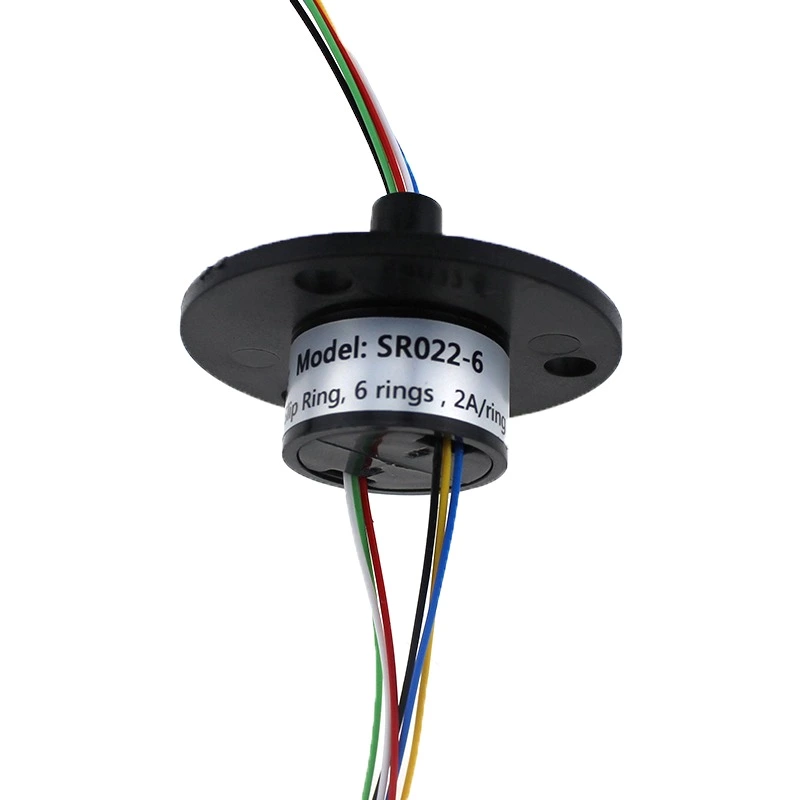

SRC022-6 Capsule Slip Ring
- Model:
- SRC022-6
The carbon brush holder for slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The carbon brush holder for slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
SRC022-6 Capsule Slip Ring
Description
The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
The SRC Series find typical applications in
*CCTV pan/tilt cameras and pedestals
*Robots and downhole inspection equipment
*Test and measuring equipment
*Manufacturing and process control equipment
*Computer peripherals
*Display equipment Medical equipment
| Specification List | |||||
| Model | #Rings | Continous | DIA*LG | ||
| 2 | 6 | 10 | |||
| SR022 SERIES | |||||

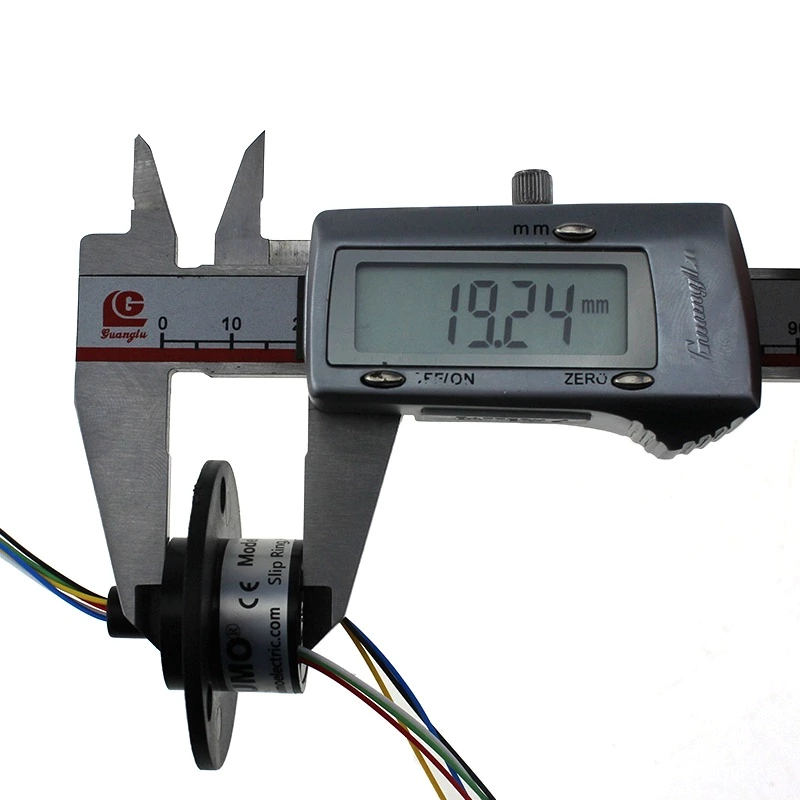

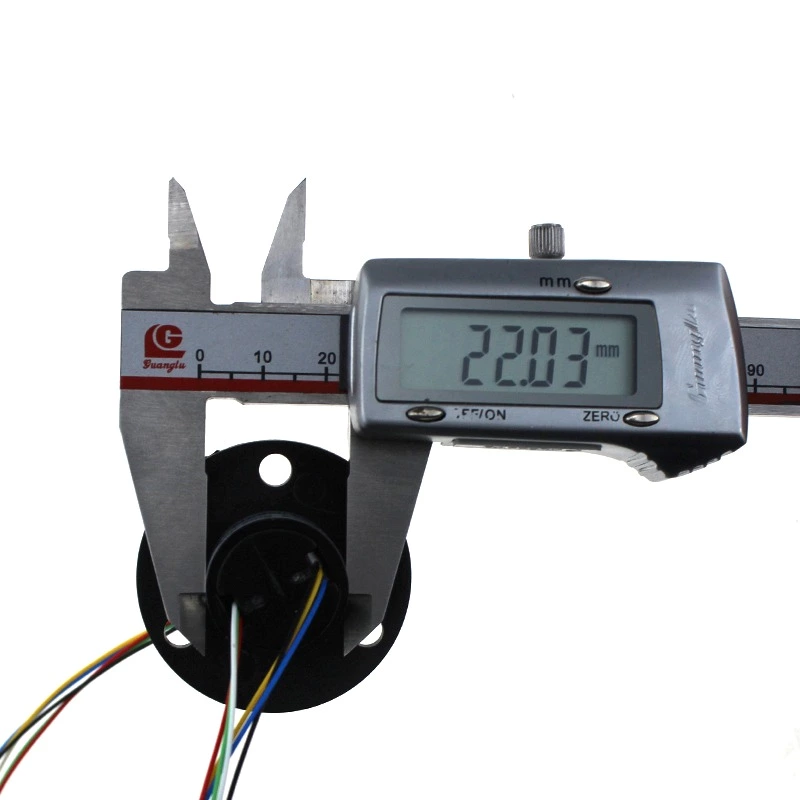

| SR022-6 | 6 | 6 | φ22*19 | ||
| SR022-12 | 12 | 12 | φ22*28 | ||
| SR022-12-2P/2S | 4 | 2 | 2 | φ22*28 | |
| SR022-15 | 15 | 2 | φ22*29.5 | ||
| SR022-18 | 18 | 18 | φ22*33.4 | ||
| SR022-18-3P | 3 | 3 | φ22*33.4 | ||
| SR022-24 | 24 | 24 | φ22*41.2 | ||
| SR-022-24-4P/6S | 10 | 6 | 4 | φ22*41.2 | |
| Mechanical data | |||||
| Specification | Unit | ||||
| Operate Speed | 250 rpm | ||||
| Temperature range | -20℃~+80℃ | ||||
| Contact material surface | Gold - gold | ||||
| The steel bearing | The precise small steel ball bearing | ||||
| Electric data | |||||
| Specification | Unit | ||||
| Voltage | 240VDC-240VAC | ||||
| Currrent | Standard 2A 2 rings per ring combined with 4A | ||||
| Lead size | Colour coded FPE insulated lead wires | ||||
| Standard Lead length | 250mm | ||||
| High pot | 500VAC@60Hz 60S | ||||
| Insulation Resistance | 1000MΩ/500VDC | ||||
| Dynamic contact Resistance | <0.01Ω | ||||
