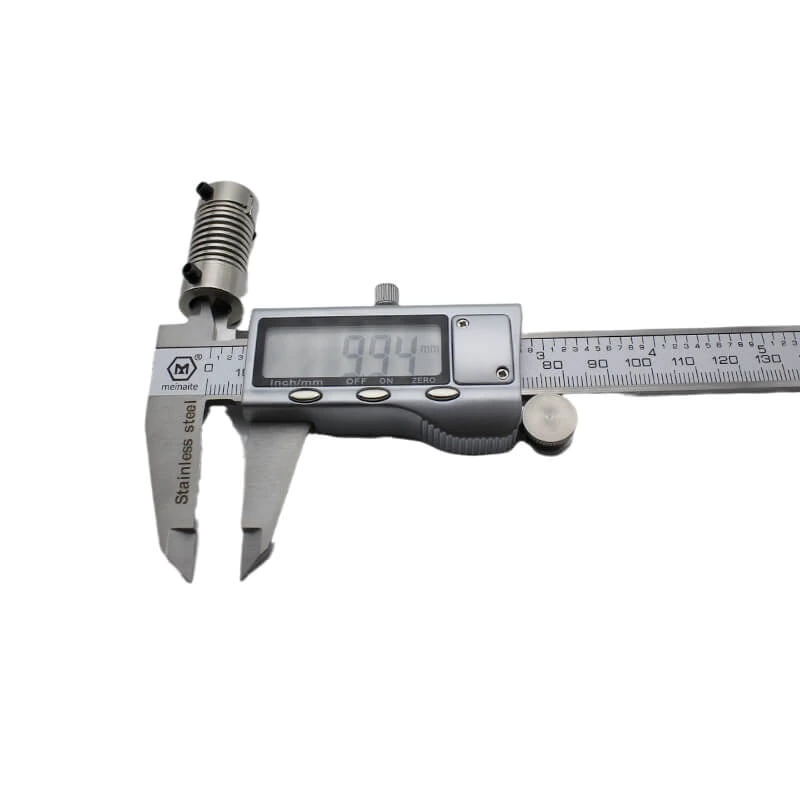

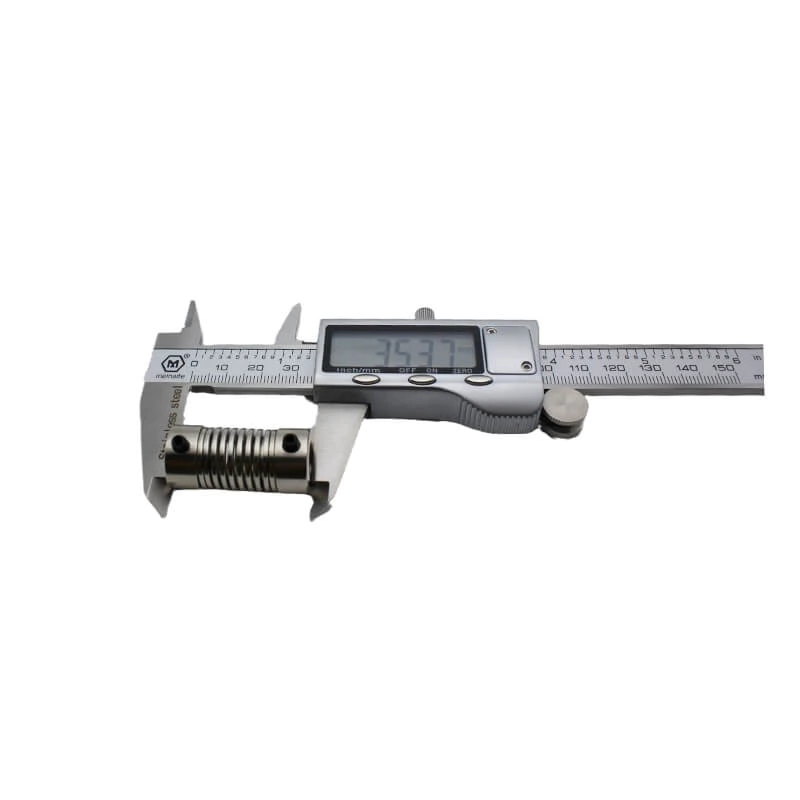

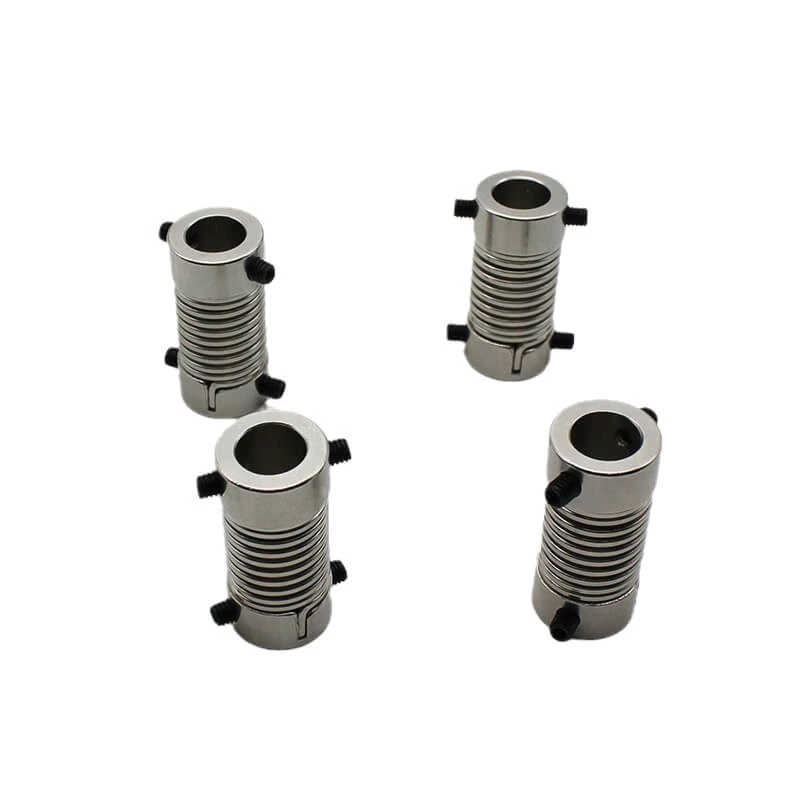

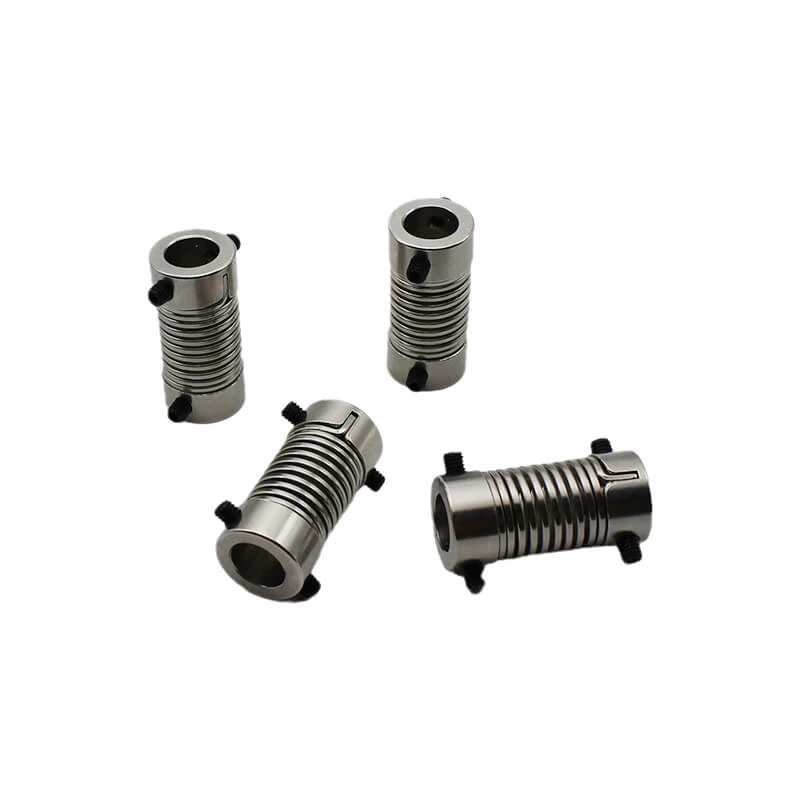

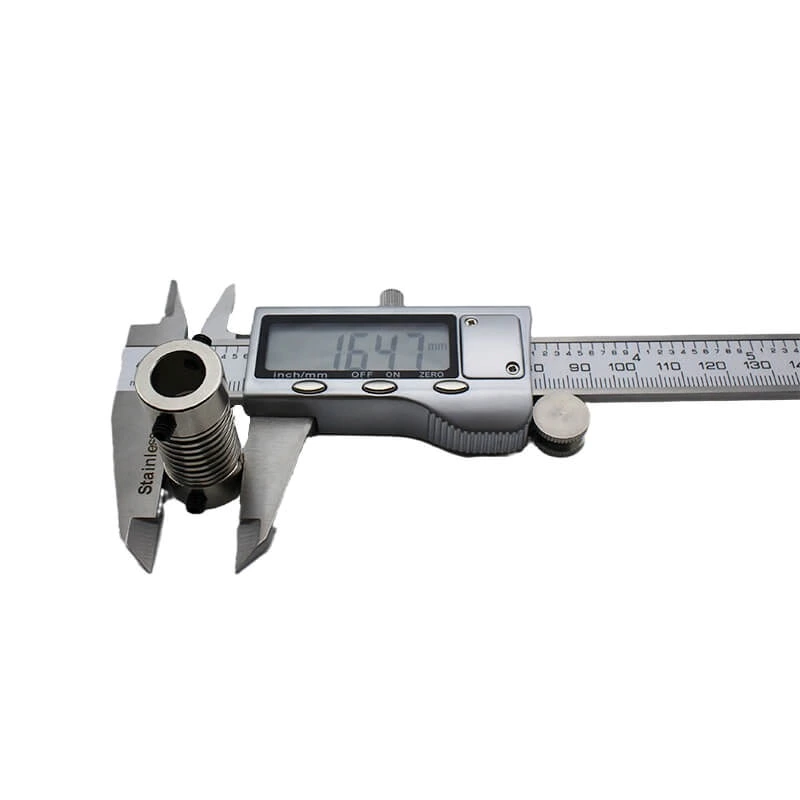

LP-D-D16L35 Top Thread Type Absorb Shock Spring Coupling

Model:

LP-D-D16L35

◆introduction Flexible couplings are offered in the industrys largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications. Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors. ◆Applications 1. Widely used in various mechanical and hydraulic fields 2. Small dimension, low weight, high transmitted torque 3. Elastomers made of polyurethane with shore hardness between 80-98 4. Compensating the axial relative drift, buffer and vibration reduction 5. Material: cast iron, steel and aluminum alloy

LP-D-D16L35 Top Thread Type Absorb Shock Spring Coupling

Use and characteristics
High torque, high torsional rigidity, high response.
Zero gap.
The presence of bias can also maintain constant velocity motion.
Softness, stainless steel spring can tolerate eccentricity, deflection angle and axis deviation wide error, adjustable.
Standardization of products with different diameters at both ends.

Applications
1. Widely used in various mechanical and hydraulic fields
2. Small dimension, low weight, high transmitted torque
3. Elastomers made of polyurethane with shore hardness between 80-98
4. Compensating the axial relative drift, buffer and vibration reduction
5. Material: cast iron, steel and aluminum alloy

Size control table

Model	D(mm)	(mm)	D1-D2(mm)	M(mm)	L2(mm)	L3(mm)	Screw tightening torque (n.m)
LP-D-D16L25	16	25	4-10	M4.0	4	13	2.5
LP-D-D16L35	16	35	4-10	M4.0	4	13	2.5
LP-D-D26L38	26	38	5-16	M5.0	6	18	5
LP-D-D26L55	26	55	5-16	M5.0	6	18	5

Technical parameter

Model	Maximum shaft hole (mm)	Rated torque (n.m)	Maximum torque (n.m)	Maximum speed (rpm)	Moment of inertia (kg.m)	Allowable eccentricity (mm)	Allowable deflection angle (+)	weight(g)
LP-D-D16L25	10	0.3	0.6	3000	2.5*10	1	5	30
LP-D-D16L35	10	0.25	0.5	3000	5.8*10	2	6	70
LP-D-D26L38	16	0.6	1.2	3000	1.8*10	1.5	6	110
LP-D-D26L55	16	0.45	0.9	3000	4.7*10	2.5	10	130
