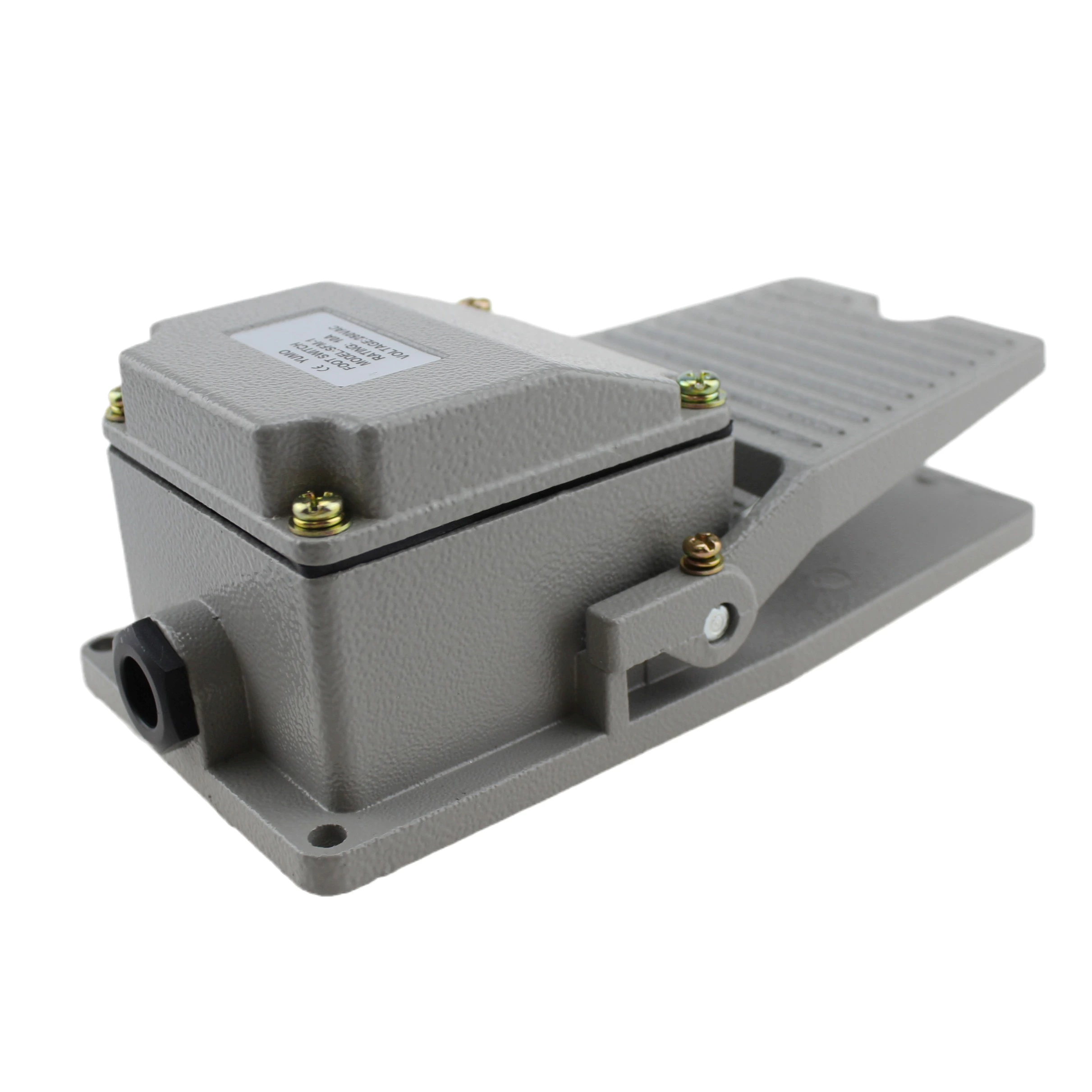

Antislip Electric Pedal Approved Foot Switch SFM-1
- Model:
- SFM-1
It can also be used to control the output current of the switch. The foot switch is a switch that controls the on-off of the circuit by stepping or stepping on it. It is used in the control circuit that cannot be touched by both hands to replace both hands to achieve the purpose of operation.
Features
-
Low cost foot switch for light to medium duty application
-
Increased size 10% bigger than competitors product for easy operation
-
Available in standard model and ergonomic (front hinged) model
-
Black painted steel housing with nonskid base pad and foot treadle pad
-
Switch rating: 10A (1/2HP) 110/250V AC
-
Operating temperature range: -20℃~80℃(-4F~176 F)
-
UL/cUL approved (E240199)
-
IP20 for standard version
-
Stainless housing and Water-proof to IPX8 Available on special request
Specifications
| Item | Specification |
| Insulation resistance | ≥100MΩ (Above)DC500V |
| Contact resistance | ≤25mΩ (initial value) |
| Withstand voltage | ≥2000VAC |
| Electrical life | ≥100,000 times above |
| Mechanical life | ≥1,000,000 times above |
| Temperature | -20-70°C |
| Humidity | ≤85% |

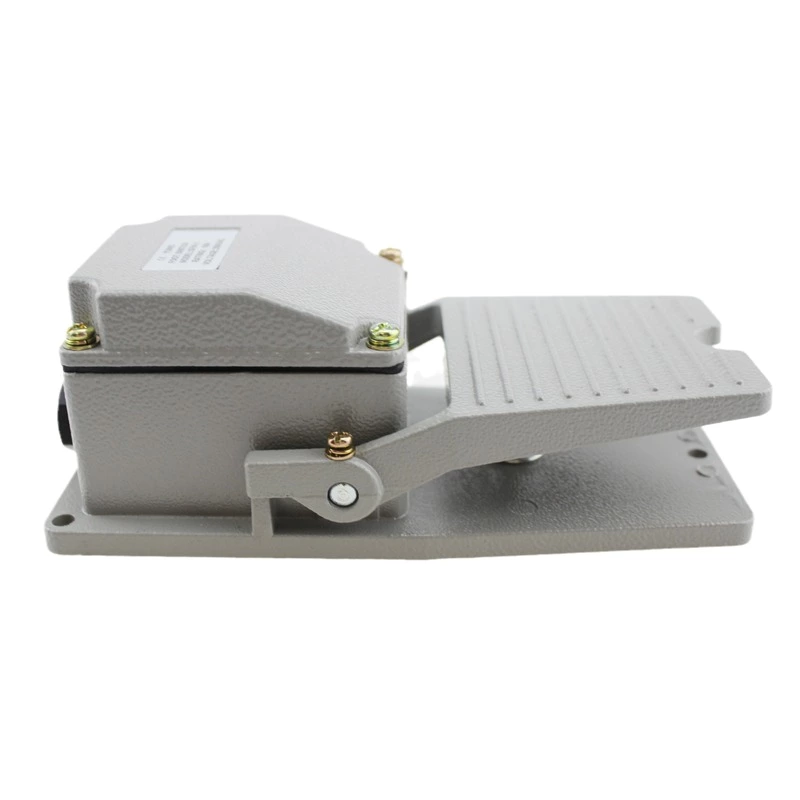

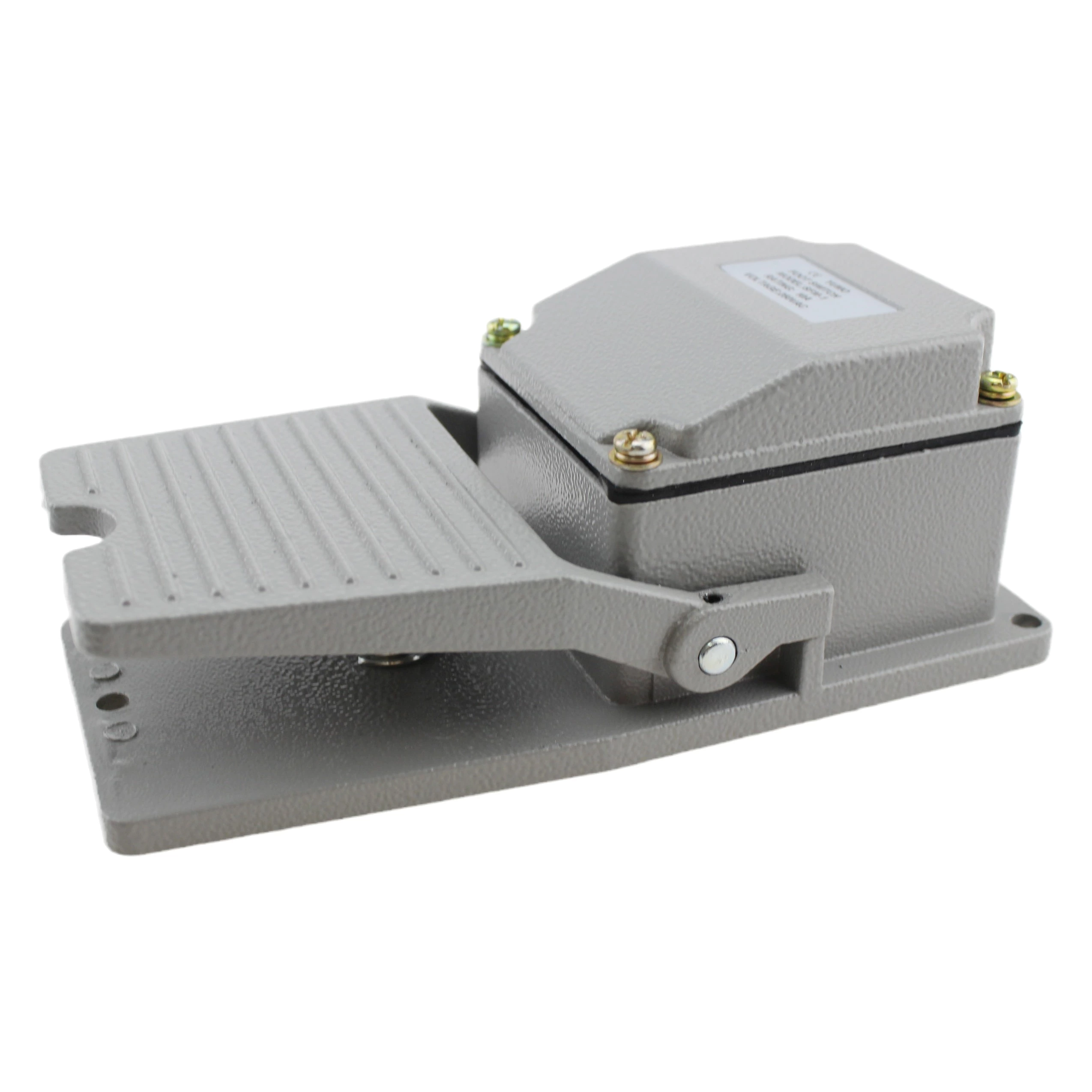

Photos
