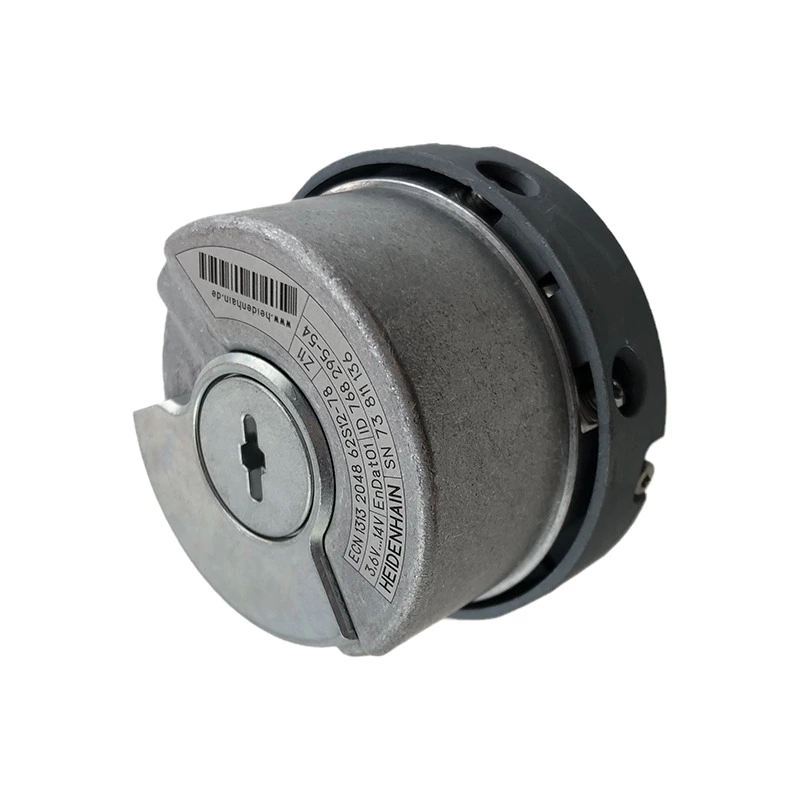

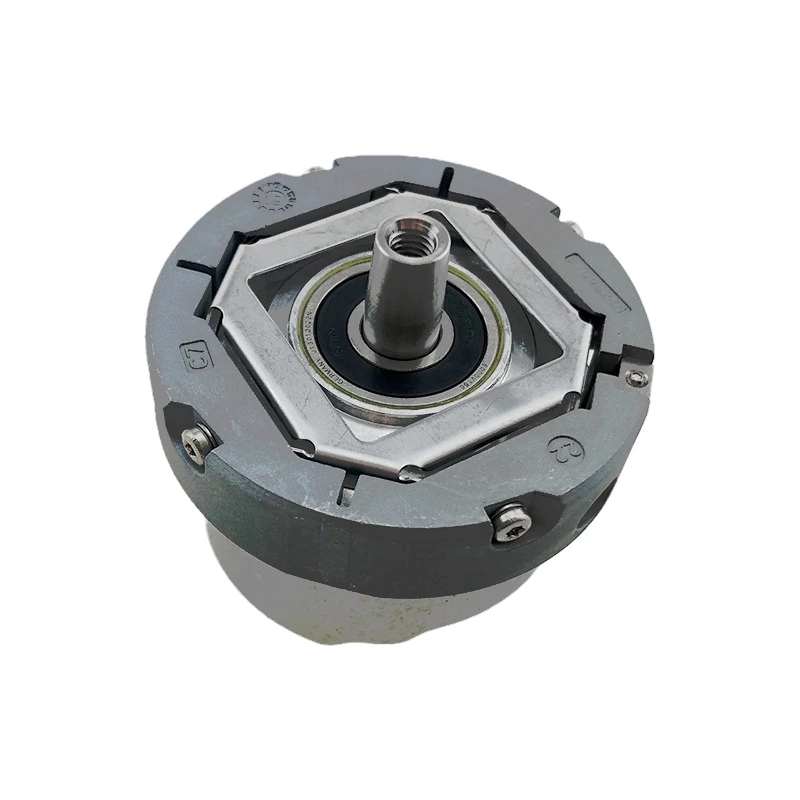

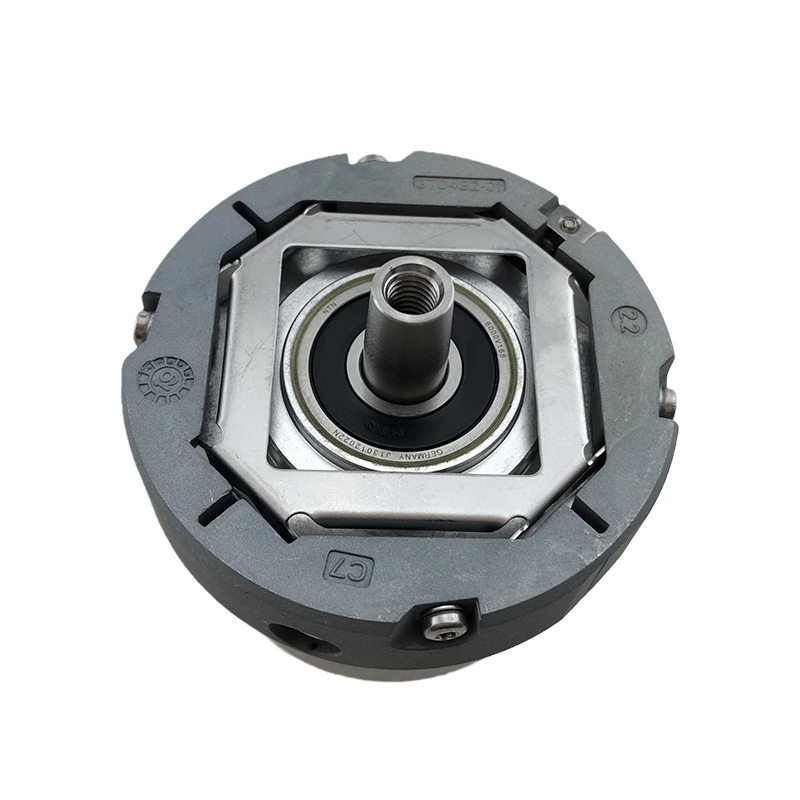

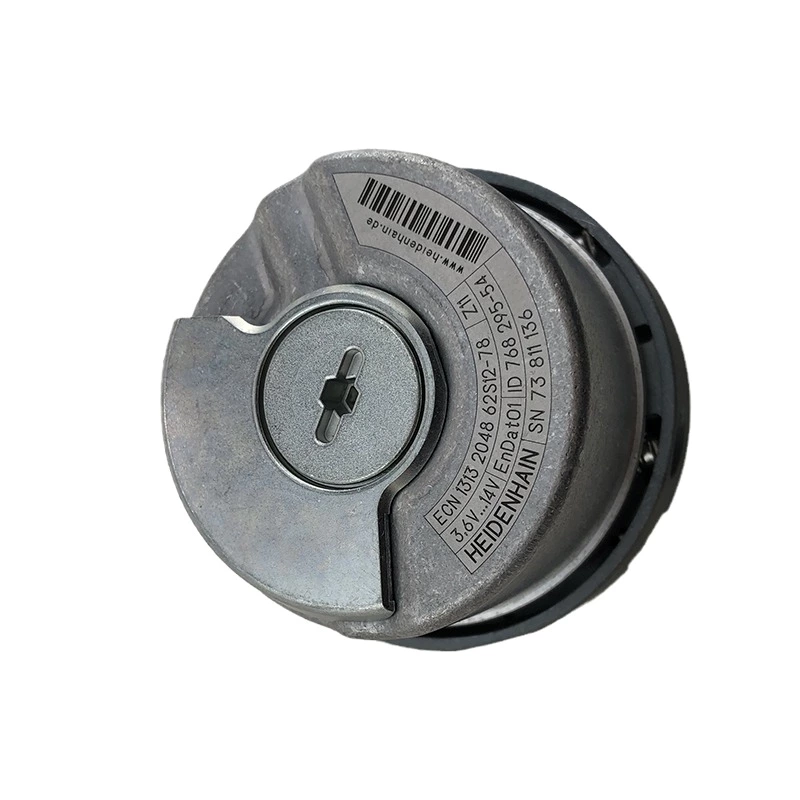

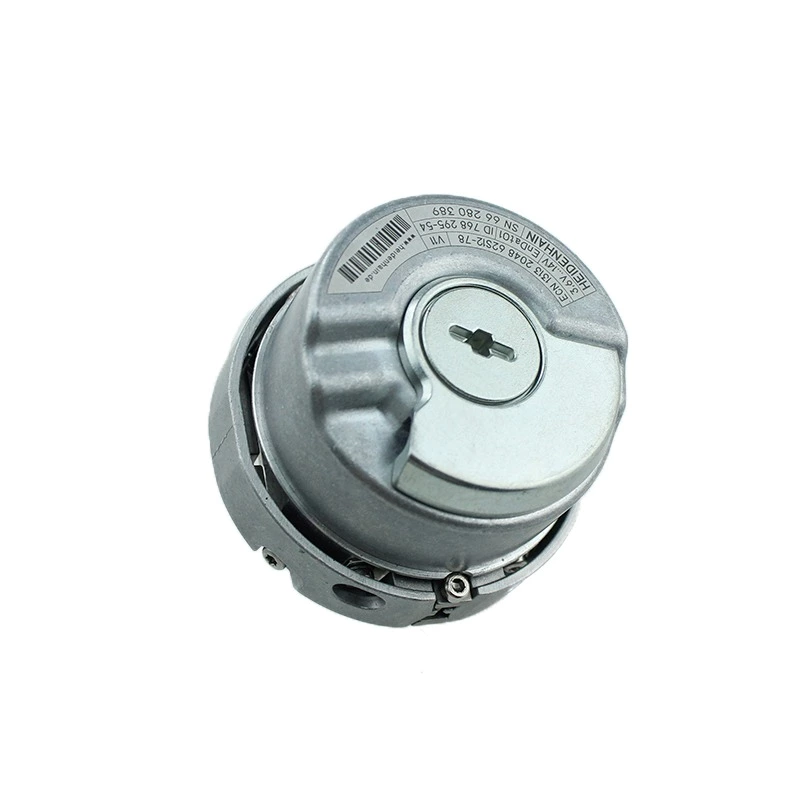

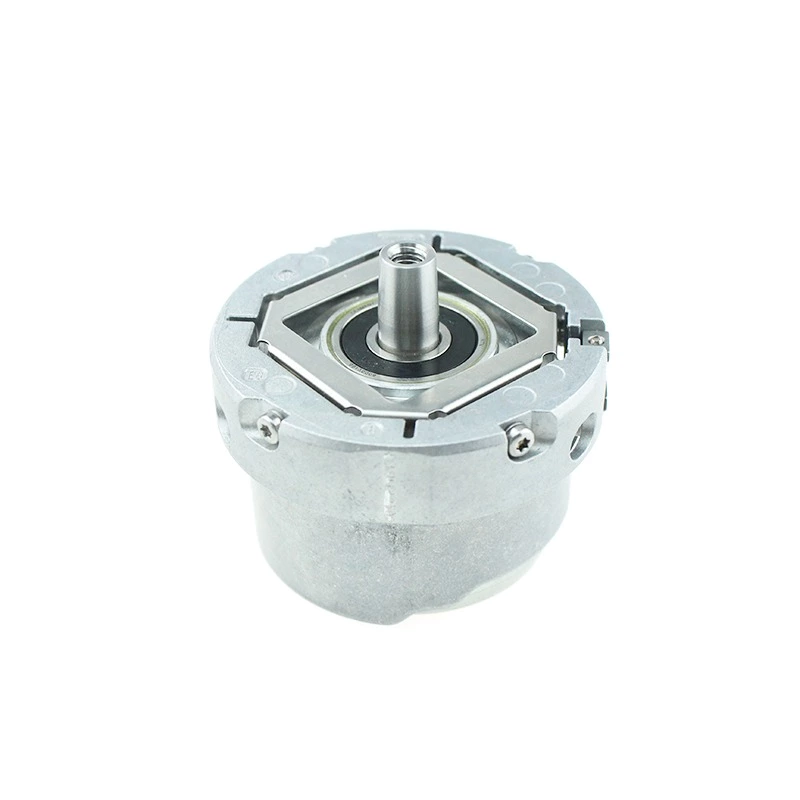

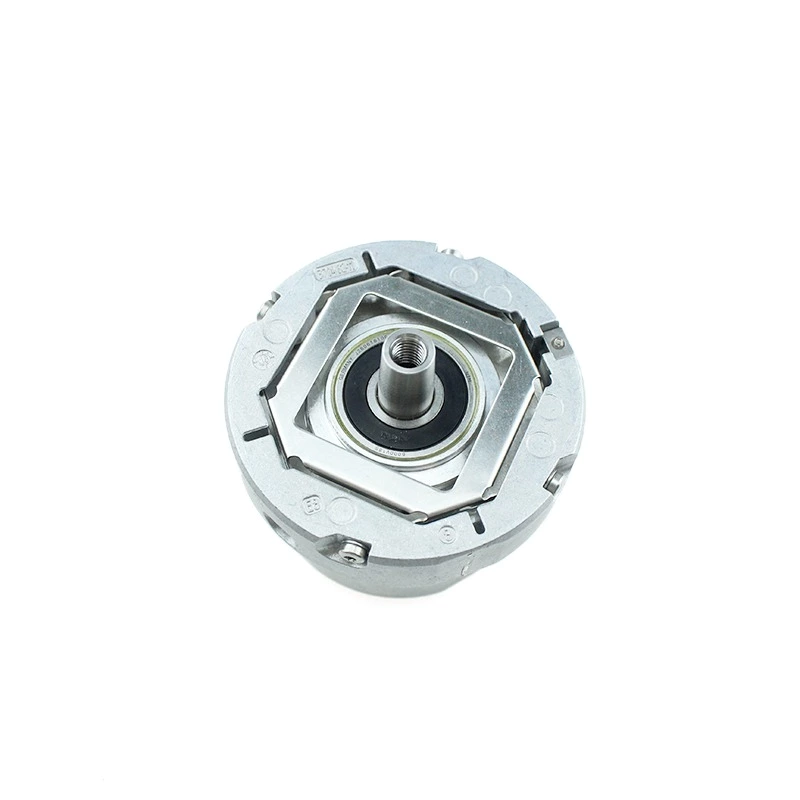

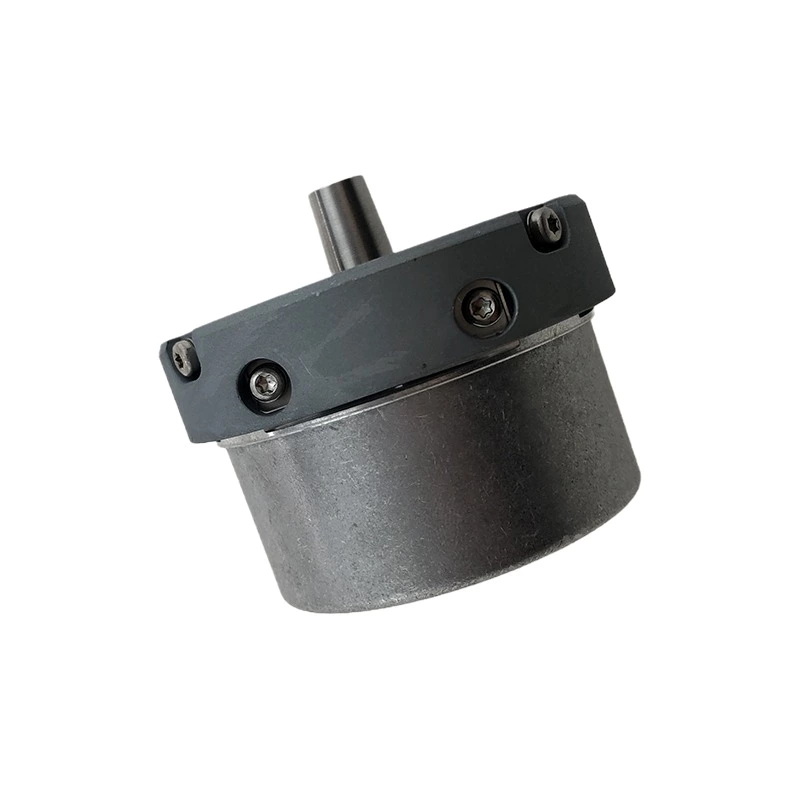

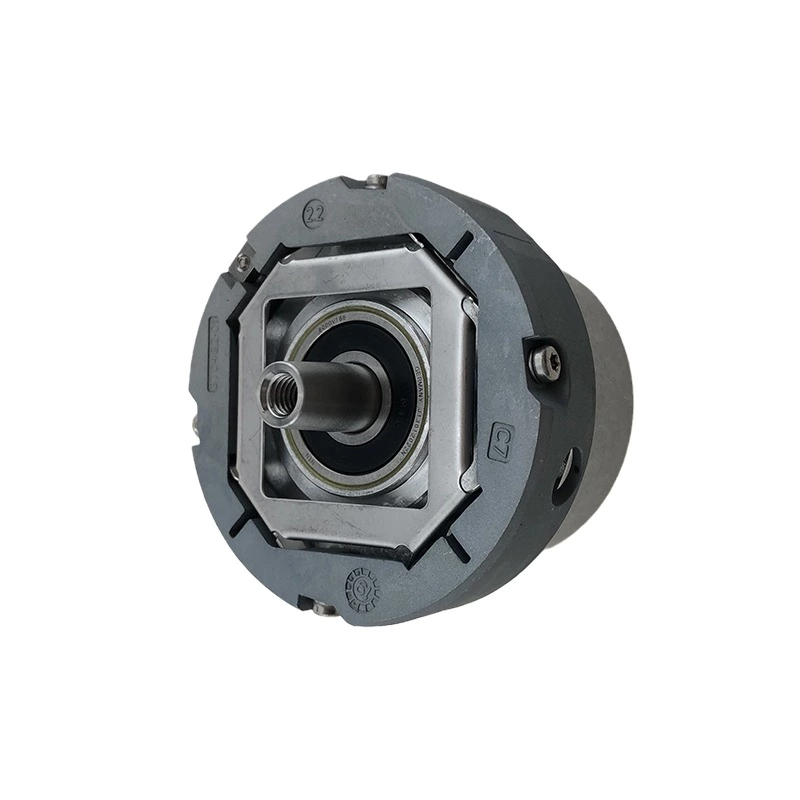

Encoder Heidenhain ECN 1313 2048 Escalator Elevator Traction Machine Encoders ECN 1313 2048 62S12-78 Hollow Shaft Encoder
- Model:
- ECN 1313 2048 62S12-78
It is suitable for automated measurement and automatic control system. it can measure angular displacement and placed speed. And can be measured values in circulation binaries or natural binaries to output

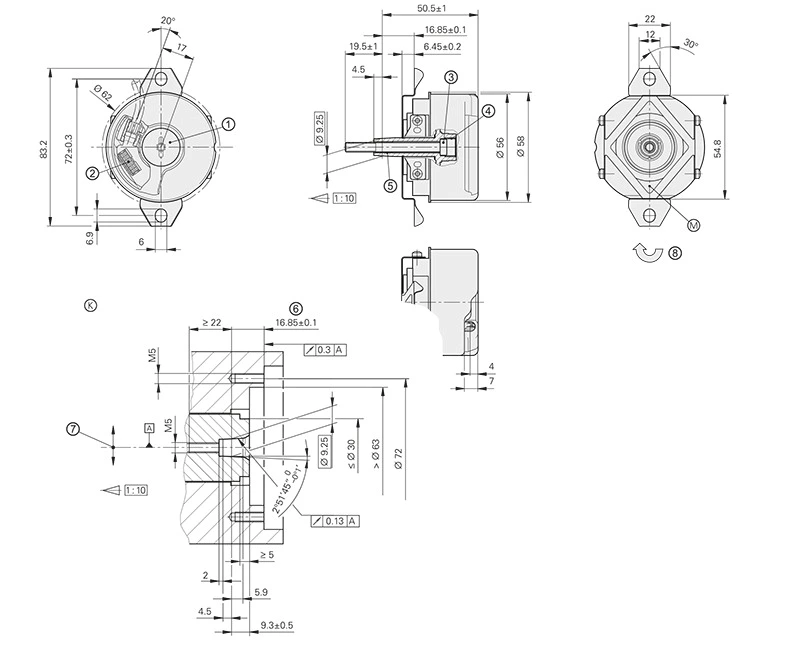

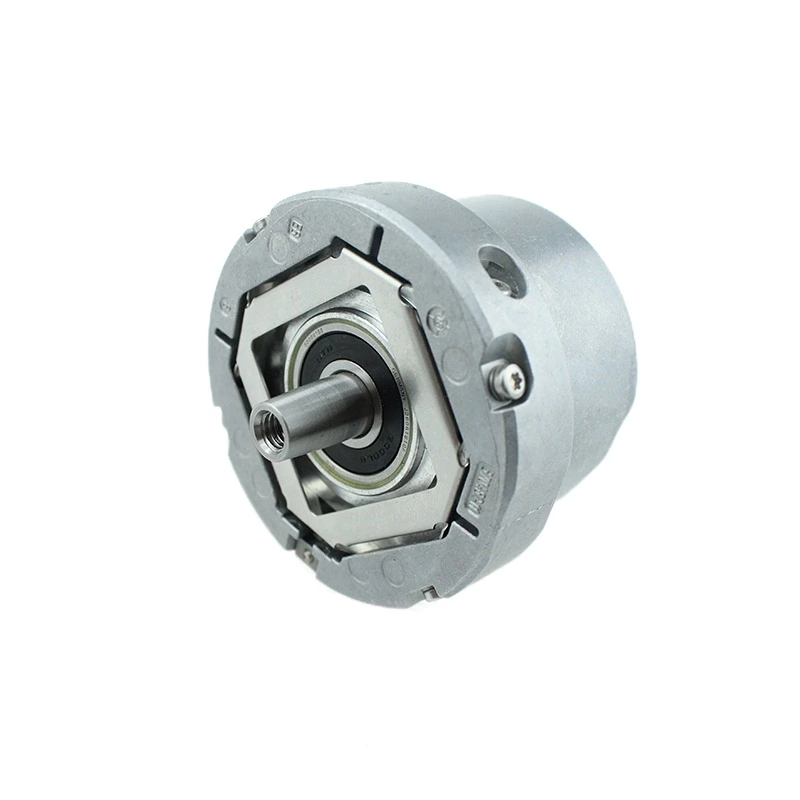

Encoder Heidenhain ECN 1313 2048 Escalator Elevator Traction Machine Encoders ECN 1313 2048 62S12-78 Hollow Shaft Encoder
| Code | ECN1313 |
| Position values/revolution | 8192 (13 bits) |
| Electtically permissible speed/error |
1500 rpm/±1 LSB 12 000 rpm/±50 LSB |
|
Calculation time Clock frequency |
≤9 µs ≤2MHz MHz |
| Incremental signals | 1Vpp |
| Line count/system accuracy | 2048/±20“ |
| Reference mark | – |
| Cutoff frequencu -3dB | ≥400 kHz |
|
Electrical connection Via PCB connector |
12-pin |
| Voltage supply | DC 3.6V to 14V |
| Power consumption (maximum) |
3.6 V:≤600 mW 14 V:≤700 mW |
| Current consumption | 5 V: 85 mA (typical, without load) |
| Stator coupling | Plane-surface coupling |
| Shaft | Taper shaft φ9.25mm;taper 1:10 |
| Mech. permiss. speed n | ≤2000 rpm |
| Starting torque | ≤0.01 Nm(at 20℃) |
| Moment of inertia of rotor | 2.6·10–6 kgm^2 |
| Permissible axial motion of measured shaft | ±1.5 mm |
| Radial runout of the measured shaft | 0.13 mm |
|
Vibration 55 Hz to 2000 Hz Shock 6 ms |
≤300 m/s^2 ≤2000 m/s^2 |
| Operating temperature | –40℃ to +115℃ |
| Protection EN 60 529 | IP40 when mounted |
