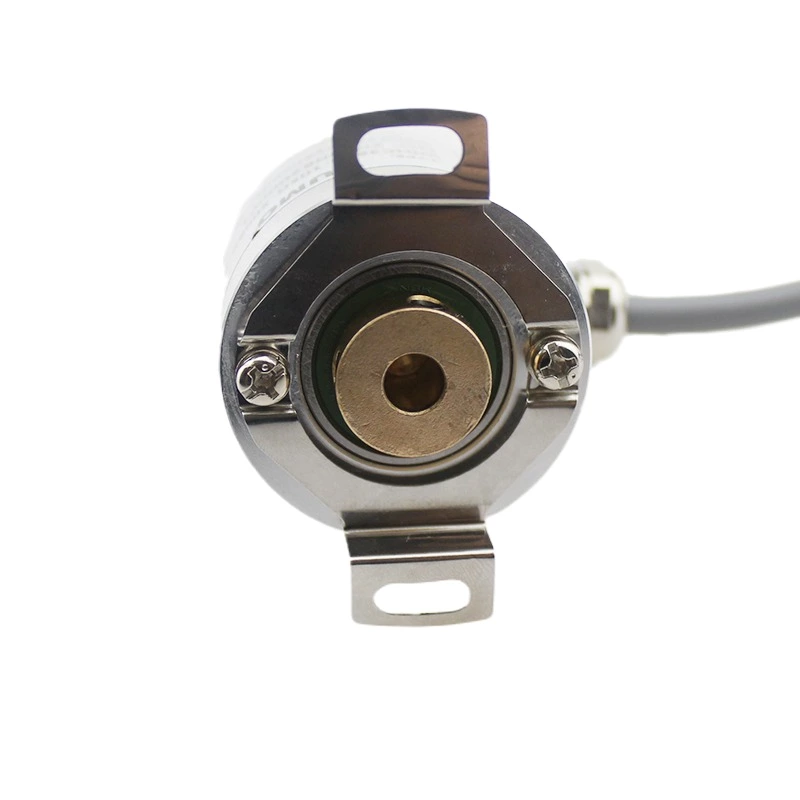

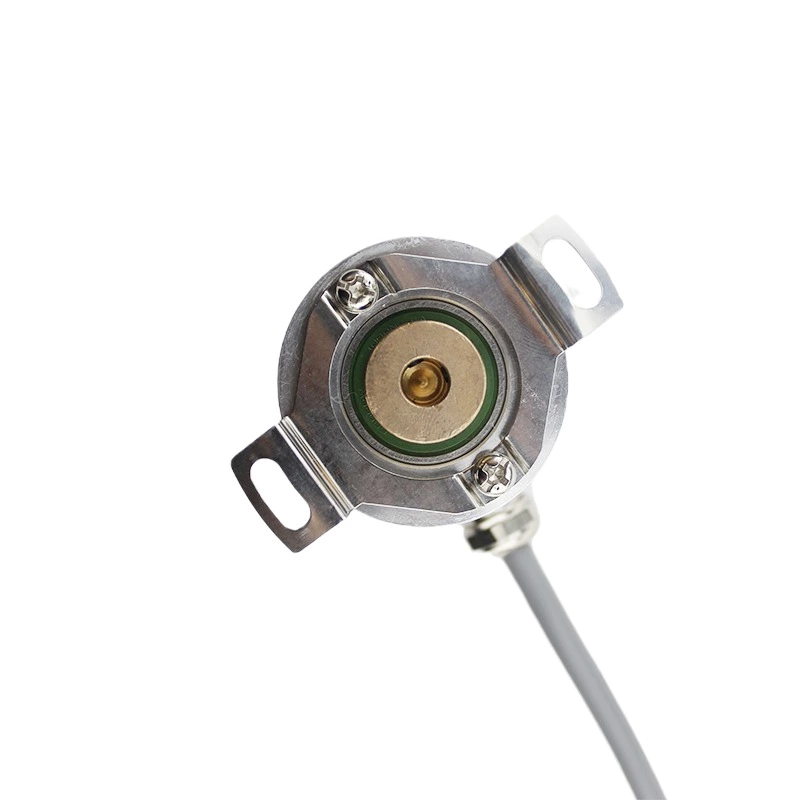

500P/R 6mm Incremental Shaft Hollow Shaft Rotary Encoder
- Model:
- WIHC3806-105G-500BZ-5-26F
Application：
Automatic control, measurements, robotic X-Y labor and printing machines.
Features：
High reliability, long life, strong anti-interference ability and wide range of temperature adaption.
500P/R 6mm Incremental Shaft Hollow Shaft Rotary Encoder
| the number of pulses | 500p/r |
| Voltage output | 5~30V |
| the output signals | A phase. B-phase. Z phase |
| the output format | Open collector output, voltage output, push-pull output |
| the maximum response frequency | 200kHz |
| maximum speed | 6000r/min 10, temperature: -10 °C +70 °C |
