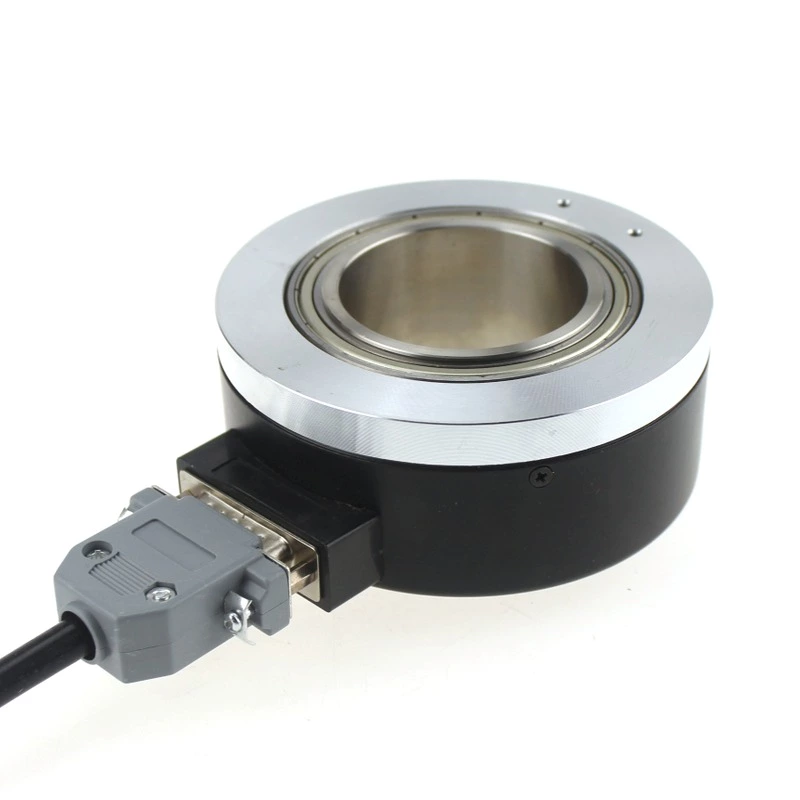

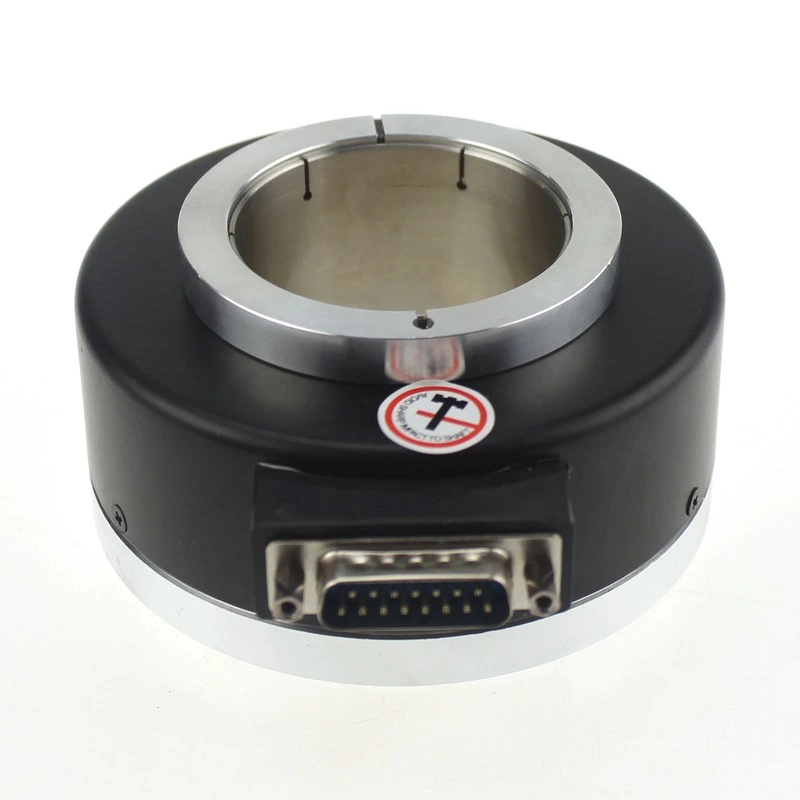

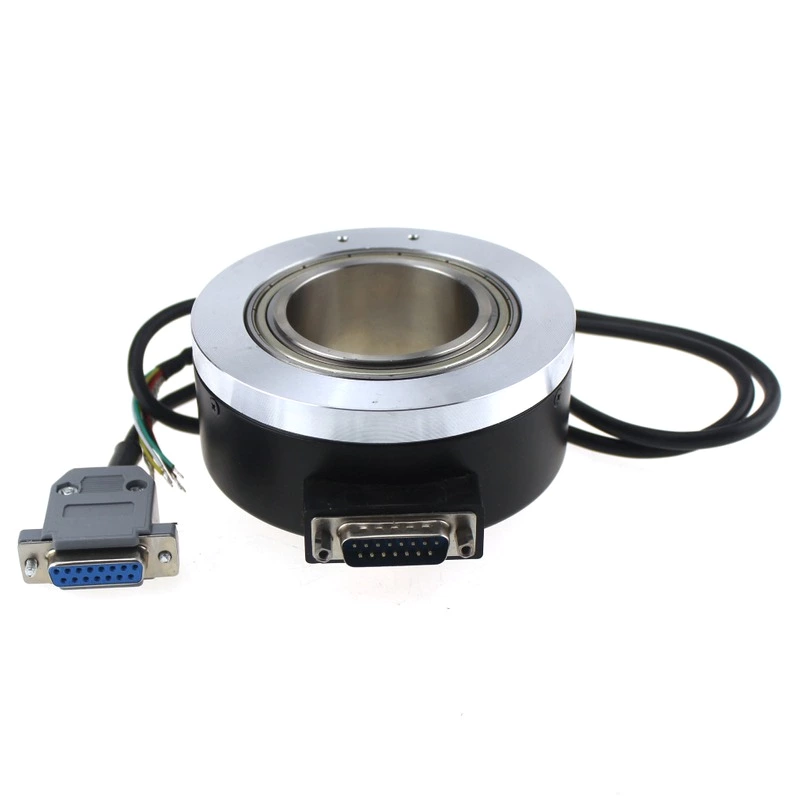

IHA1050 Outer Diameter 100mm hollow shaft encoder
- Model:
- IHA1050
Features ● 2 quadrature output channel (A&B) + index signal ● Resolution up to 2500 cpr ● Housing size: 100mm, hollow shaft dia: 50mm
Note

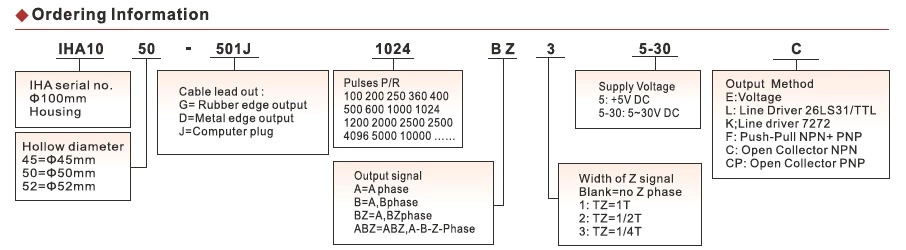

1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5-30V DC option

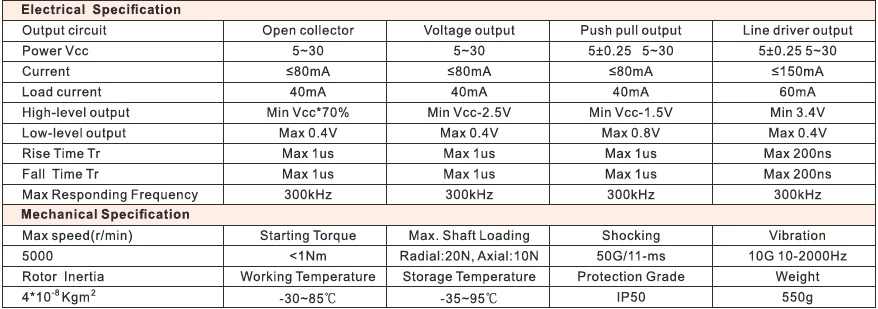

Technical Specifications
Connection Table
Dimension

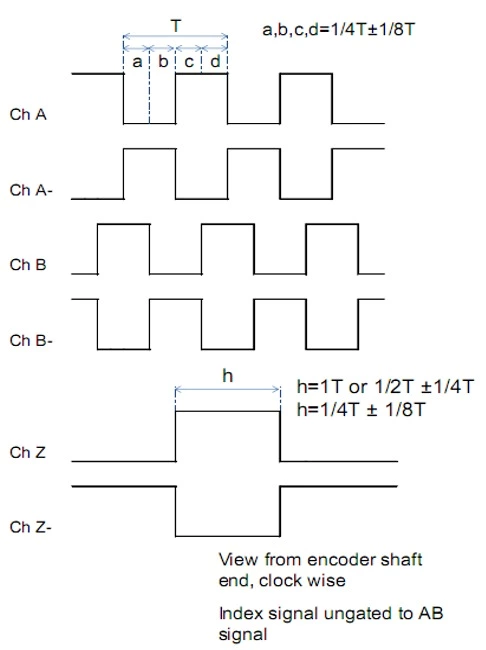

Output Waveform
