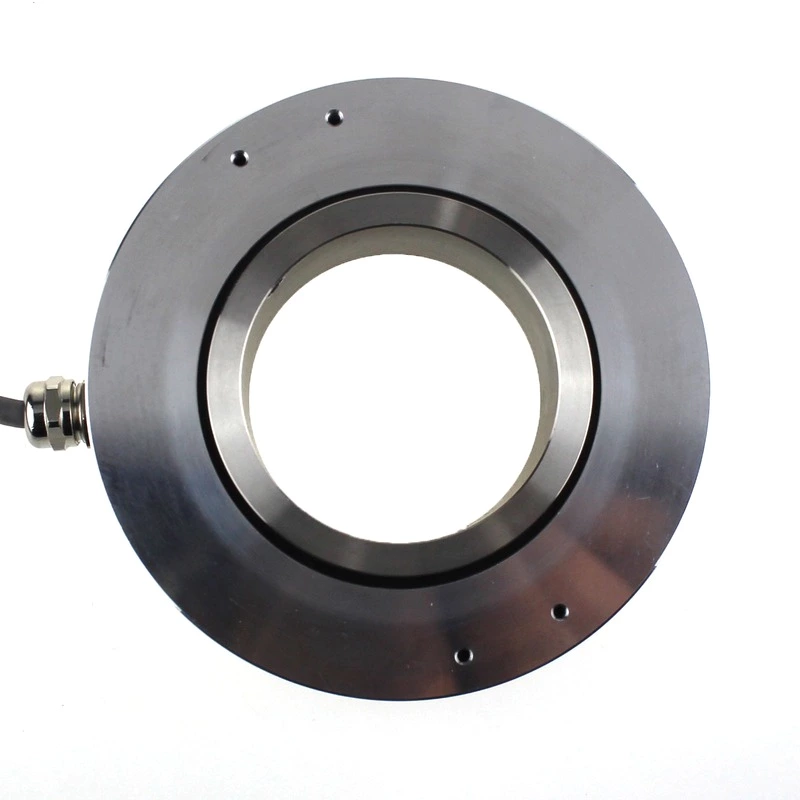

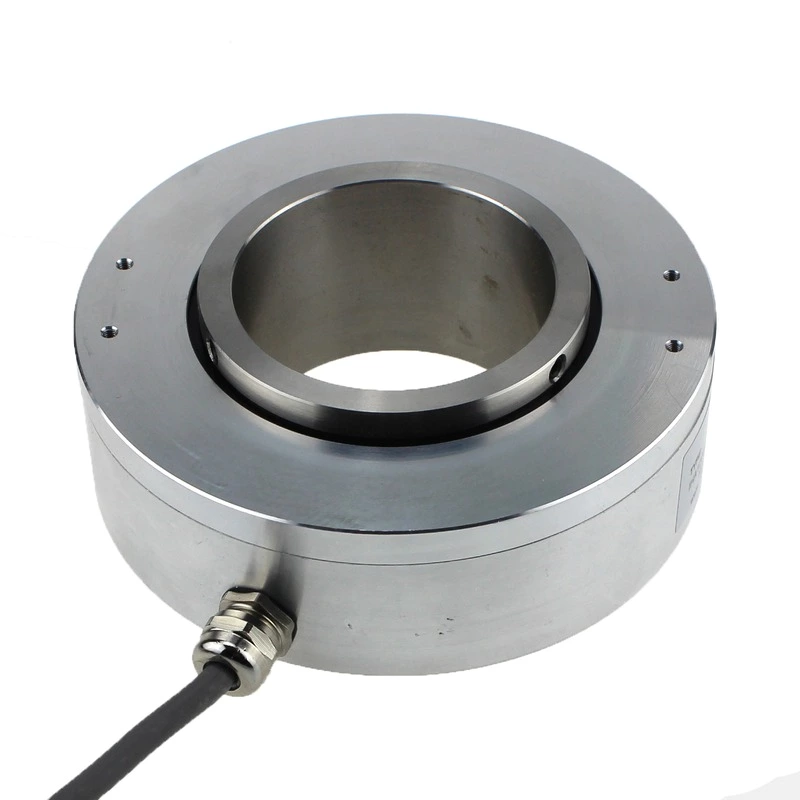

IHA12060 Outer Diameter 120mm hollow shaft encoder

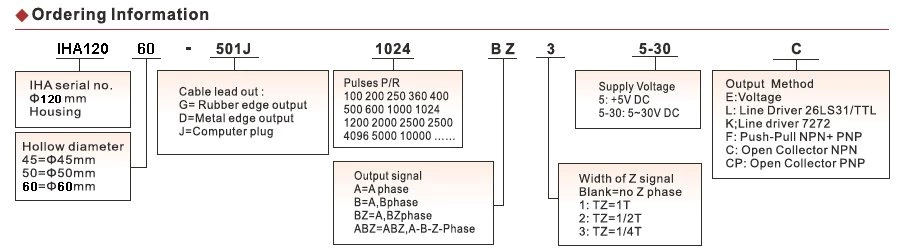

- Model:
- IHA12060-001G-8192BZ3-5L
Features ● 2 quadrature output channel (A&B) + index signal ● Resolution up to 8192 cpr ● Housing size: 120mm, hollow shaft dia: 60mm
Note
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5-30V DC option

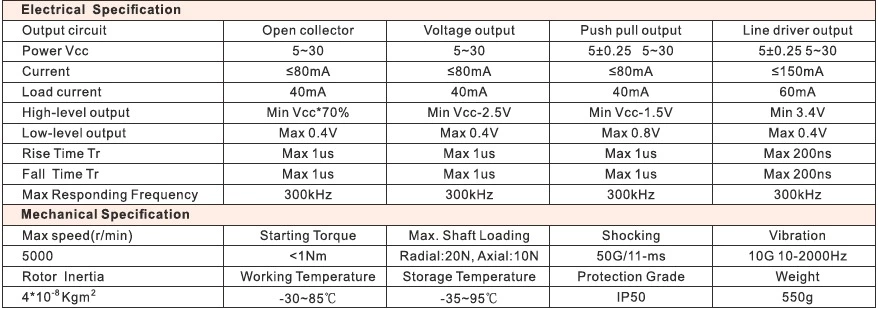

Technical Specifications
Connection Table
Dimension

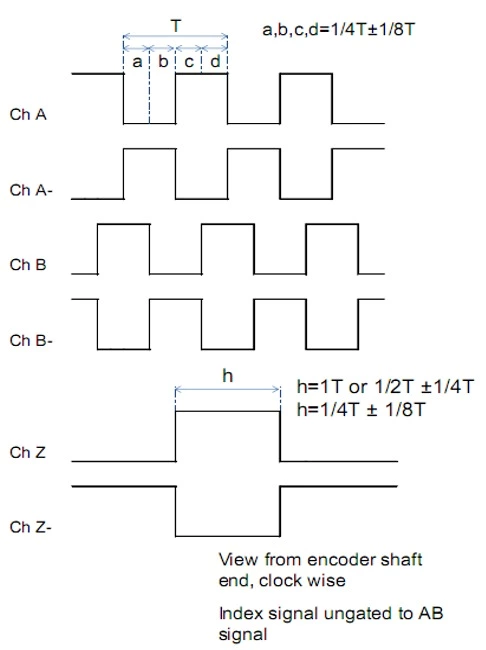

Output Waveform
