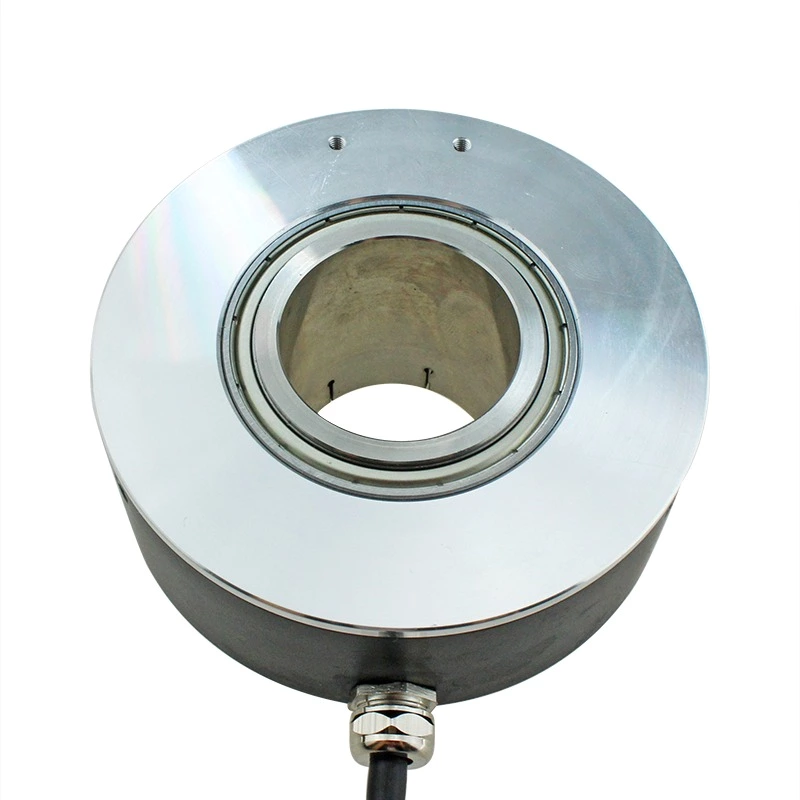

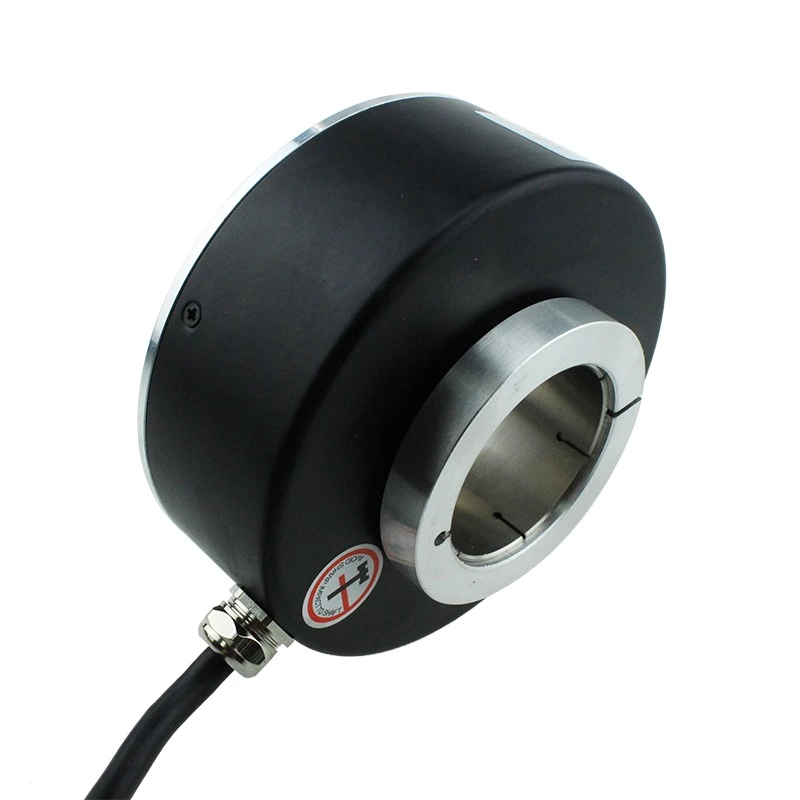

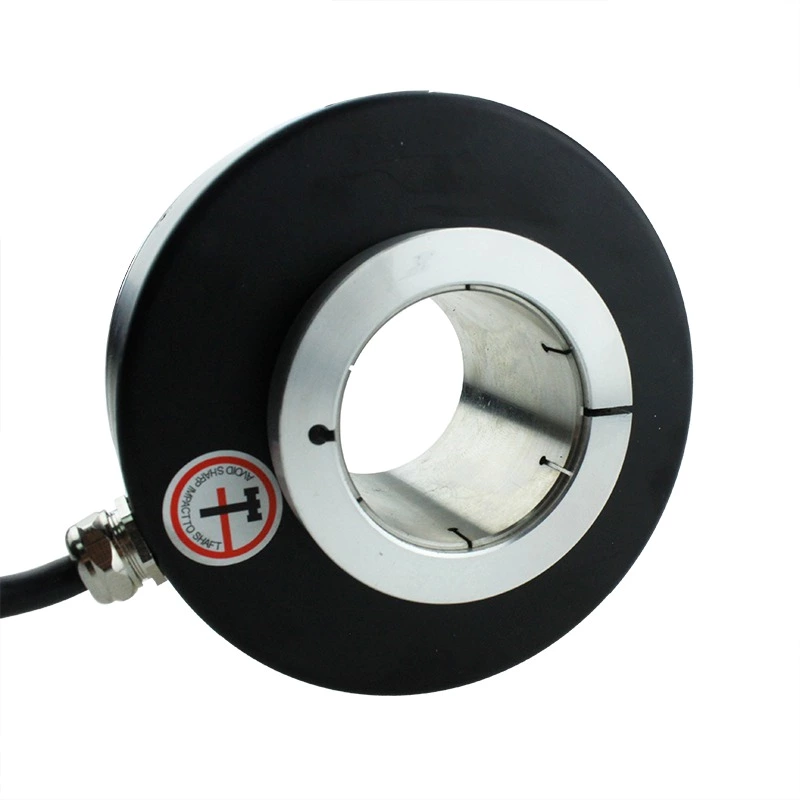

IHA9035 1024ppr Line Driver Output Encoder Hollow Shaft
- Model:
- IHA9035-302G-1024-ABZ-5-24K
High reliability, long life, strong anti-interference ability and wide range of temperature adaption. Keyway fixation, easy to install and inner diameter changeable.
Application
Used in area of automatic control, measurements, elevator, television, and printing and packing.
Feature
High reliability, long life, strong anti-interference ability and wide range of temperature adaption.
Keyway fixation, easy to install and inner diameter changeable.
product description
| Type | IHA9035-302G-1024-ABZ-5-24K |
| Shaft diameter | 35mm |
| Output form | Line Driver7272 |
| Output signal | ABZ,A-B-Z phases |
| Cable lead out | Rubber edge output |
| Pulses | 1024P/R |
| Supply voltage | 5-24VDC |
| Load current | 60mA |
| Protection grade | IP50 |

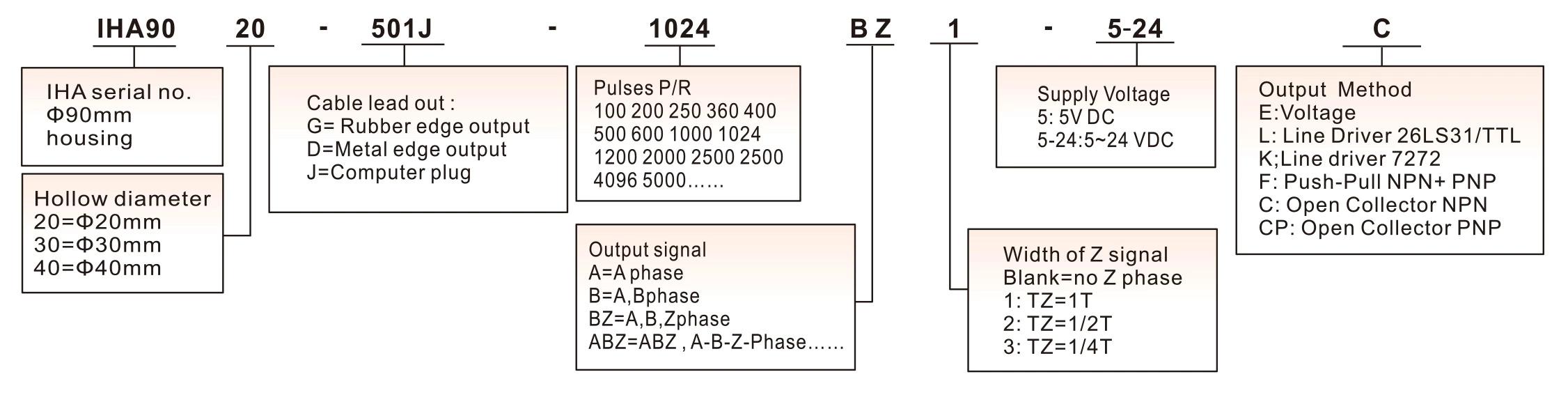

Ordering Information
Technical Specifications
| Electrical Specification | ||||
| Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
| Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.25 5~30 |
| Current | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
| Load current | 40mA | 40mA | 40mA | 60mA |
| High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
| Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
| Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Max Responding Frequency | 300kHz | 300kHz | 300kHz | 300kHz |
| Mechanical Specification | ||||
| Max speed(r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
| 5000 | <1Nm | Radial:20N, Axial:10N | 50G/11-ms | 10G 10-2000Hz |
| Rotor Inertia | Working Temperature | Storage Temperature | Protection Grade | Weight |
| 4*10-8Kgm2 | -30~85℃ | -35~95℃ | IP50 | 500g |
Output Phase Shift
 |
Wave Ratio: a+b=0.5T±0.1T c+d=0.5T±0.1T Z signal Width: Tz=1T±0.5T A,B phase absolute angle deviation ≤0.2T | Periodic Deviation ≤0.05T T=360°/N (N is the exact number of impulse of each spin ) |
Connection Table
| Signal | A | B | Z | A(-) | B(-) | Z(-) | Vcc | GND | Block |
| Color | Green | White | Yellow | Brown | Gray | Orange | Red | Black | Copper Web |
| DB15 plug | 4 | 2 | 9 | - | - | - | 7 | 5 | 8 |
| DB15 plug | 5 | 3 | 2 | 7 | 6 | 8 | 1 | 4 | 9 |

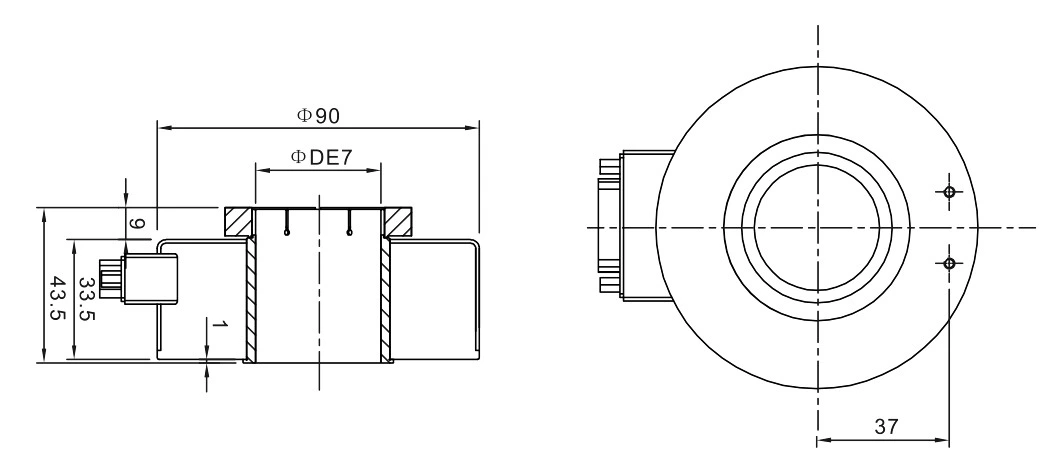

Dimensions(mm)
