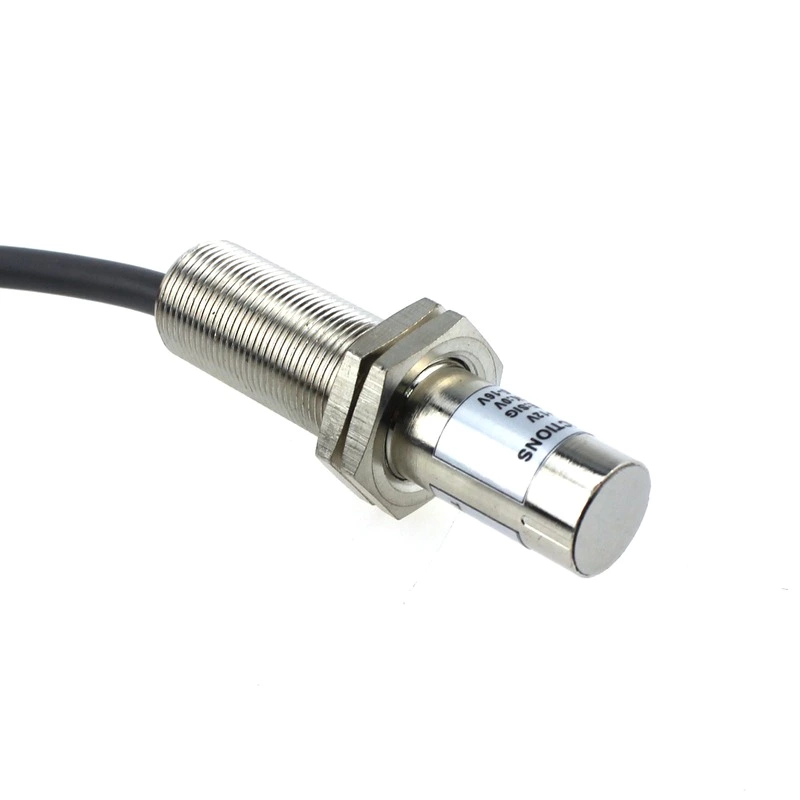

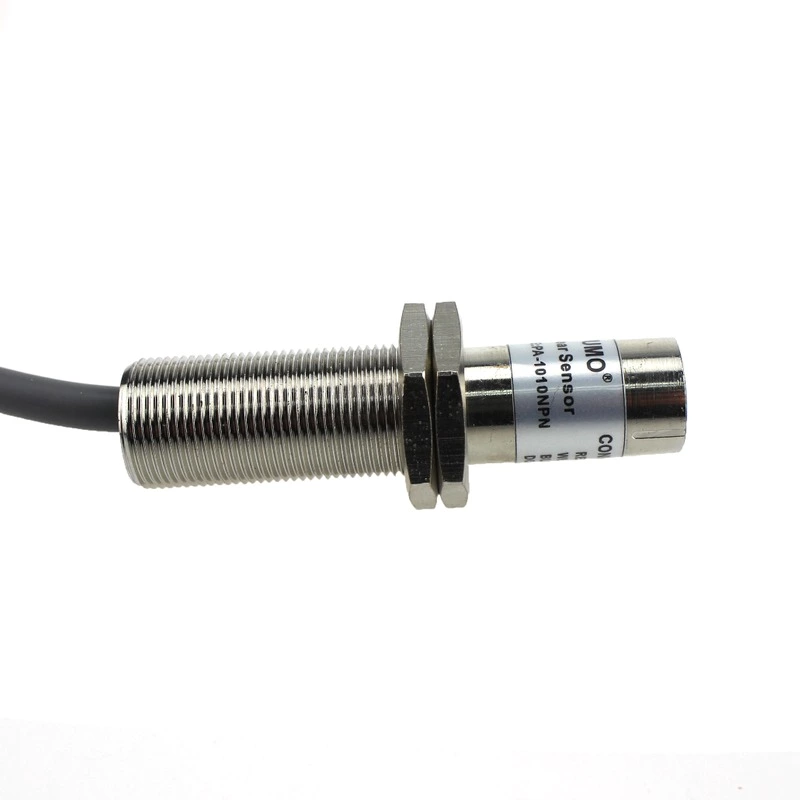

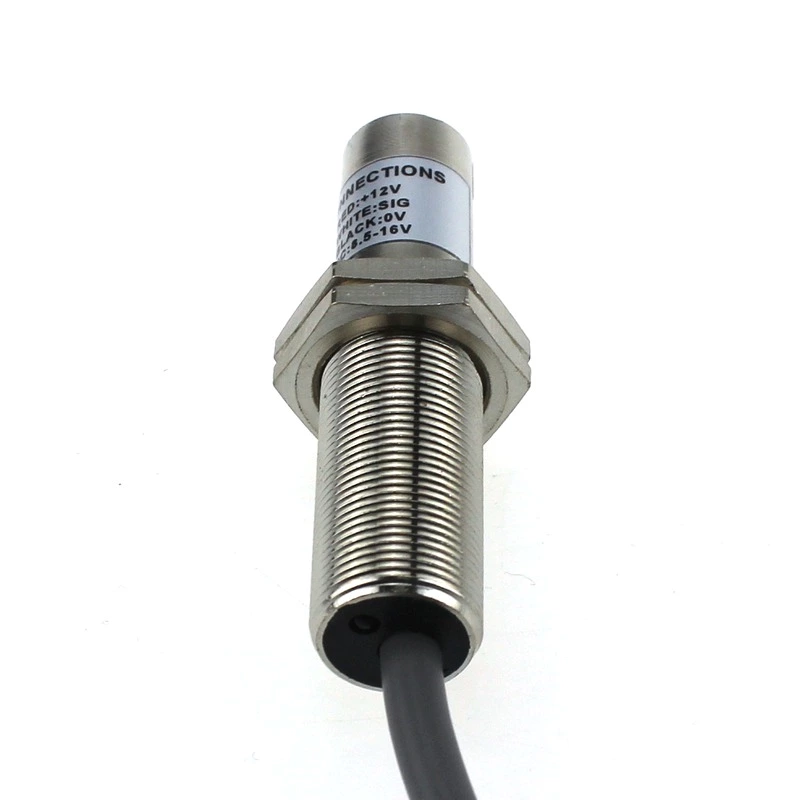

PA-1010NPN Inductive Proximity Switch Sensor
- Model:
- PA-1010NPN
Proximity switches is the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1”~2”metal object . China Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc. Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch , will be your best choice .
PA-1010NPNinductive proximity switch
Outside diameter 15mm cylinder inductive proximity switch, sensing range from 0.2mm~3mm . China offer customized design!
| Feature Description | Item Code | PA-1010 | |
| No touch detection | Replace of Nemicon PA1010 | ||
| Quick Response and high frequency | |||
| Surge protection | |||
| Housing Material:Copper | |||
| IP Grade:IP64 | |||
| Specification | |||
| Operation voltage | 10…30VDC | ||
| Installation type | non-flush | ||
| Detection distance | 0.2-3mm | ||
| Size | 16*60 | ||
| Output type | NPN | ||
| Leakage current | <0.01mA | ||
| Setting diatance | 0.1...3mm | ||
| Standard detected object | Rack, gear | ||
| Operating frequency | 15000Hz | ||
| Consumption current | ≤15mA | ||
| Load current | 100mA | ||
| Voltage drop | ≤1.8V | ||
| Lag | 1...15% | ||
| Repeat accuracy | ≤2% | ||
| LED display | LED(red) | ||
| Protection | |||
| Operating Temperature | -25...70ºC | ||
| Temperature drift | <±10% | ||
| IP grade | IP67 | ||
| Housing Material | copper | ||
| Surface material | copper | ||
| Weight | 152g | ||
