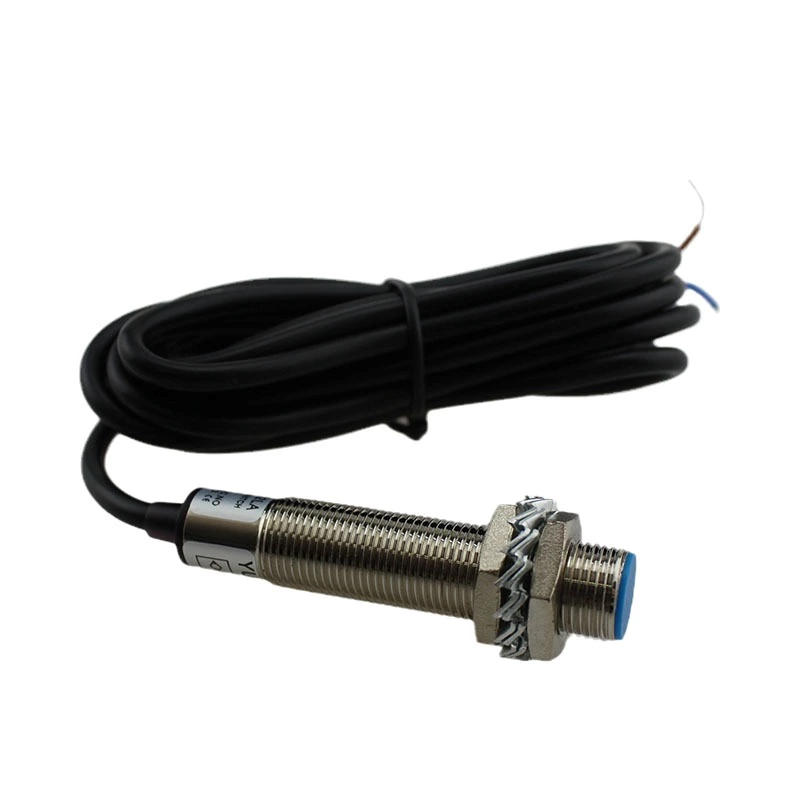

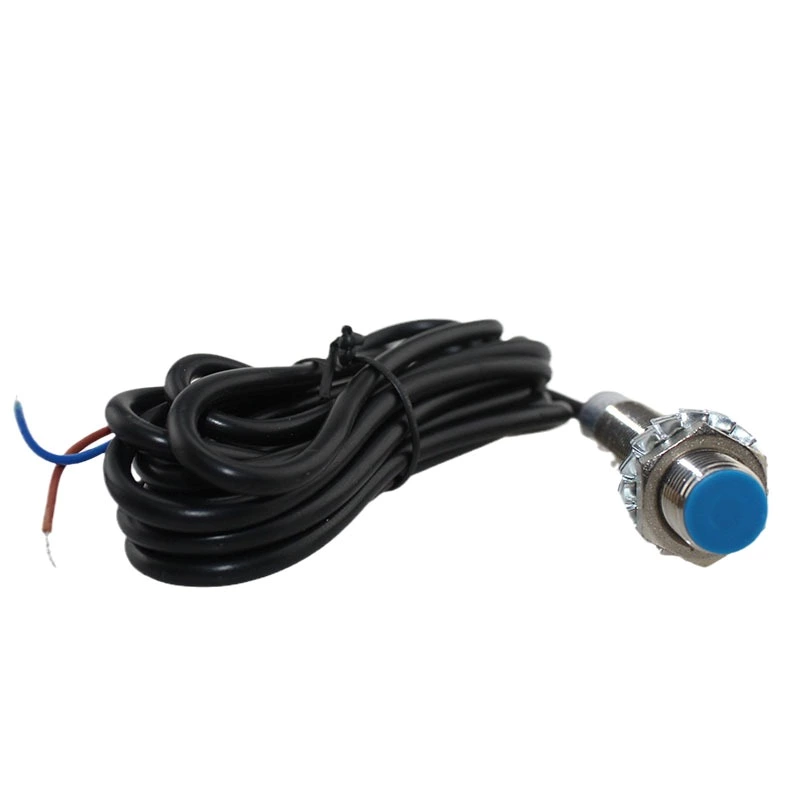

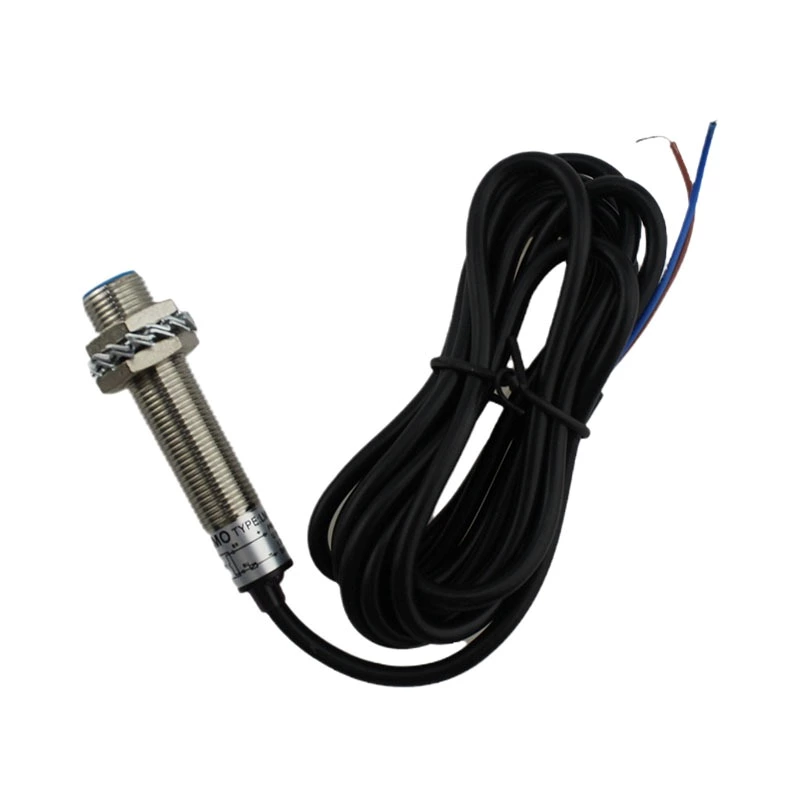

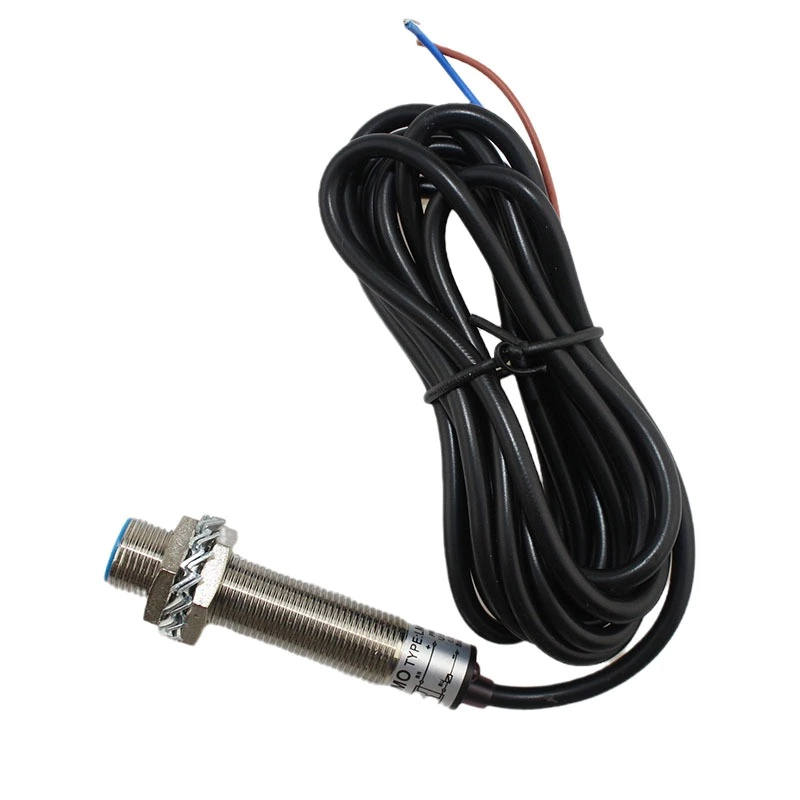

sensor LM12-3002LA IP67 two wire system NO connector inductive proximity switch sensor
- Model:
- LM12-3002LA
Inductive proximity sensor
Used in harsh working environment, it can withstand all kinds of cutting fluids and has the effects of waterproof and oil proof. Protection grade IP67. Installed in metal, flush or non flush.There are various models, and the power supply voltage can be 6-36v/15-36 DC power supply; 380V, 20 ~ 250V, 90 ~ 250V AC power supply, 20 ~ 250V AC and DC power supply. Solid brass, nickel plated shell / plastic shell, inner shell sealed with process polymer.
sensor LM12-3002LA IP67 two wire system NO connector inductive proximity switch sensor
Product Description
Main Features of proximity switch
1.Compact volume
2.High precision of repeated location
3.Diversified exterior structures
4.Good performance of anti-interference
5.Many output forms
6.High on-off frequency
7.Wide voltage range
8.Dust proof, vibtation proof, water proof and oil proof
9.With short-circuit protection and inverted connecting protection
10.Long service life
| M12 Inductive proximity sensor switch | |||||||
| Detecting rang 2mm | part no. | other part no. | OMRON Omron part no. | Autonics Part no. | |||
| Flush | DC | NPN | NO | LM12-3002NA | LJ12A3-2-Z/BX | E2E-X2E1 | PR12-2DN |
| NC | LM12-3002NB | LJ12A3-2-Z/AX | E2E-X2E2 | PR12-2DN2 | |||
| NO+NC | LM12-3002NC | LJ12A3-2-Z/CX | |||||
| PNP | NO | LM12-3002PA | LJ12A3-2-Z/BY | E2E-X2F1 | PR12-2DP | ||
| NC | LM12-3002PB | LJ12A3-2-Z/AY | E2E-X2F2 | PR12-2DP2 | |||
| NO+NC | LM12-3002PC | LJ12A3-2-Z/CY | |||||
| 2 Wires | NO | LM12-3002LA | LJ12A3-2-Z/EX | ||||
| NC | LM12-3002LB | LJ12A3-2-Z/DX | |||||
| AC | SCR | NO | LM12-2002A | LJ12A3-2-J/EZ | E2E-X2Y1 | PR12-2AO | |
| NC | LM12-2002B | LJ12A3-2-J/DZ | E2E-X2Y2 | PR12-2AC | |||
| NO+NC | |||||||
| Relay output | |||||||
| Detecting rang 4mm | |||||||
| Non-flush | DC | NPN | NO | LM12-3004NA | LJ12A3-4-Z/BX | E2E-X5ME1 | PR12-4DN |
| NC | LM12-3004NB | LJ12A3-4-Z/AX | E2E-X5ME2 | PR12-4DN2 | |||
| NO+NC | LM12-3004NC | LJ12A3-4-Z/CX | |||||
| PNP | NO | LM12-3004PA | LJ12A3-4-Z/BY | E2E-X5MF1 | PR12-4DP | ||
| NC | LM12-3004PB | LJ12A3-4-Z/AY | E2E-X5MF2 | PR12-4DP2 | |||
| NO+NC | LM12-3004PC | LJ12A3-4-Z/CY | |||||
| 2 Wires | NO | LM12-3004LA | LJ12A3-4-Z/EX | ||||
| NC | LM12-3004LB | LJ12A3-4-Z/DX | |||||
| AC | SCR | NO | LM12-2004A | LJ12A3-4-J/EZ | E2E-X5MY1 | PR12-4AO | |
| NC | LM12-2004B | LJ12A3-4-J/DZ | E2E-X5MY2 | PR12-4AC | |||
| NO+NC | |||||||
| Relay output | |||||||
| Sensor Characteristics | |||||||
| Output current | DC | 200mA | |||||
| SCR/relay | 300mA | ||||||
| Output voltage drop | DC(NPN;PNP)type <3V;2wires type:<3.9V;AC type: AC <10VDC< 3V ;AC< 10V | ||||||
| Consumption current | DC(NPN;PNP) DC 12V 8mA;24V 15mA; AC type: AC <10mA DC<15mA;AC<10mA | ||||||
| Standard detected object | 15×15×1(A3 Iron) | ||||||
| Repeated precision | 0.01 | ||||||
| Response Frequency | 400Hz/25Hz | ||||||
| Working environment temperature | -25℃ ~+75℃ | ||||||
| Insulation resistance | ≥50MΩ | ||||||
| Shell material | Metal | ||||||
| Protection grade | IP67 | ||||||
| Alternative model | E2E-X5M* | ||||||

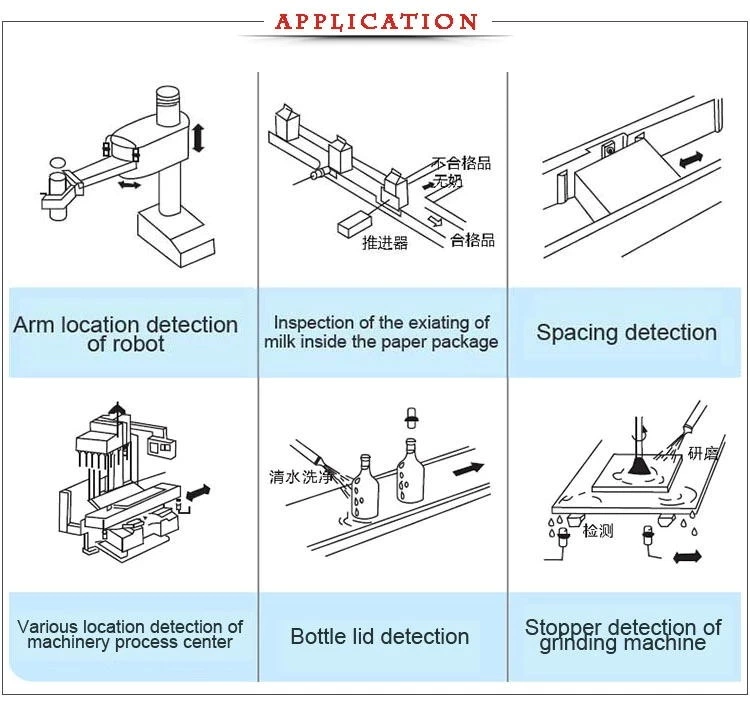

Application
