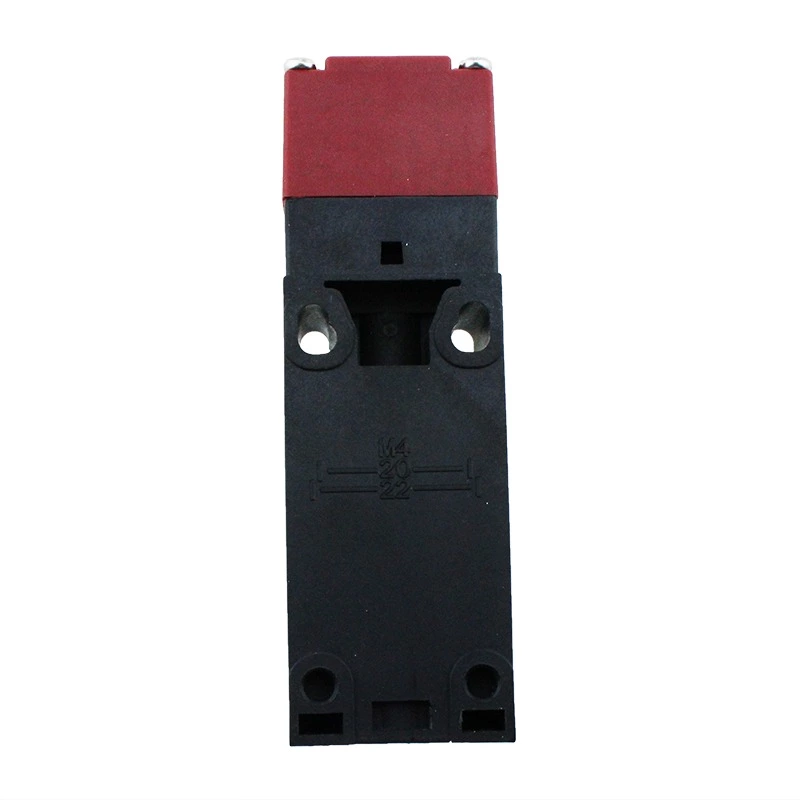

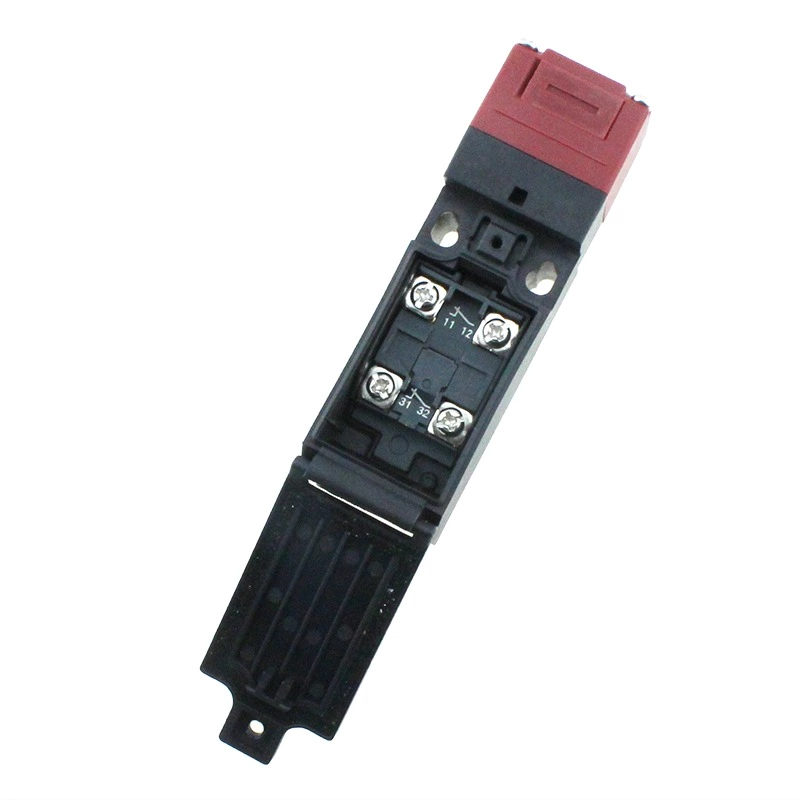

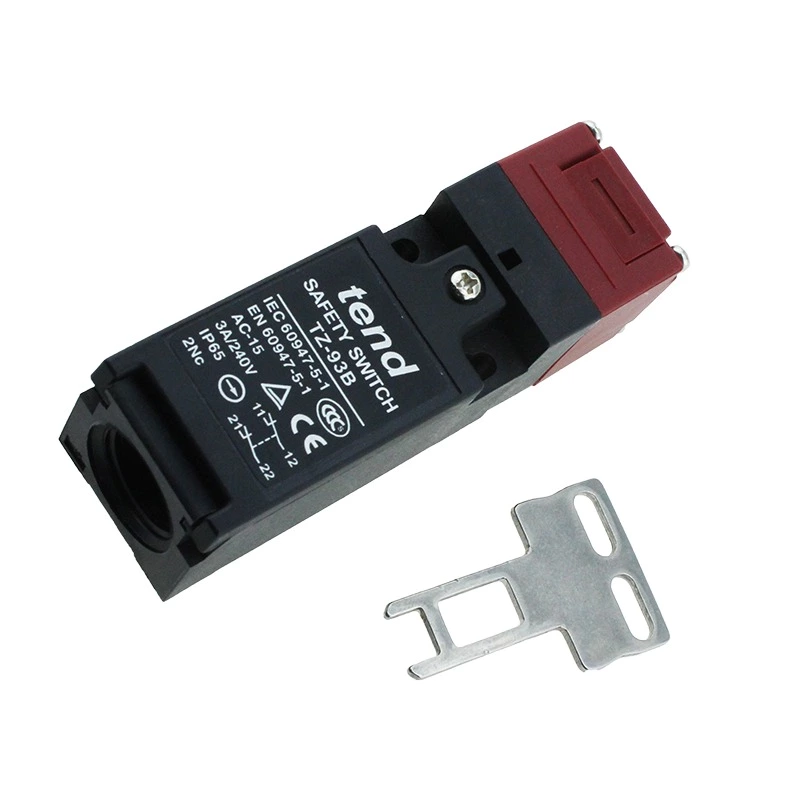

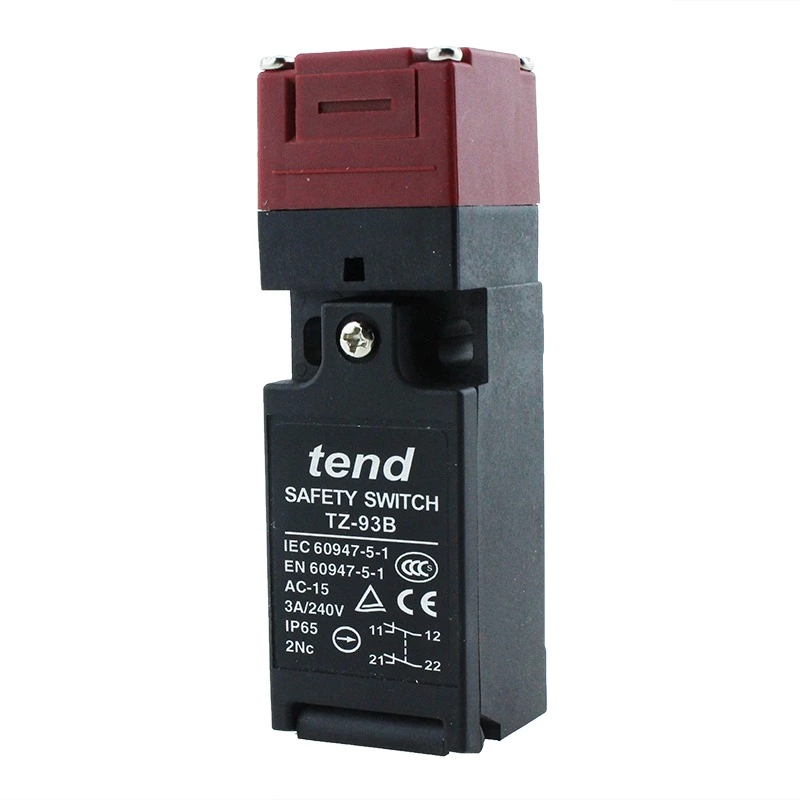

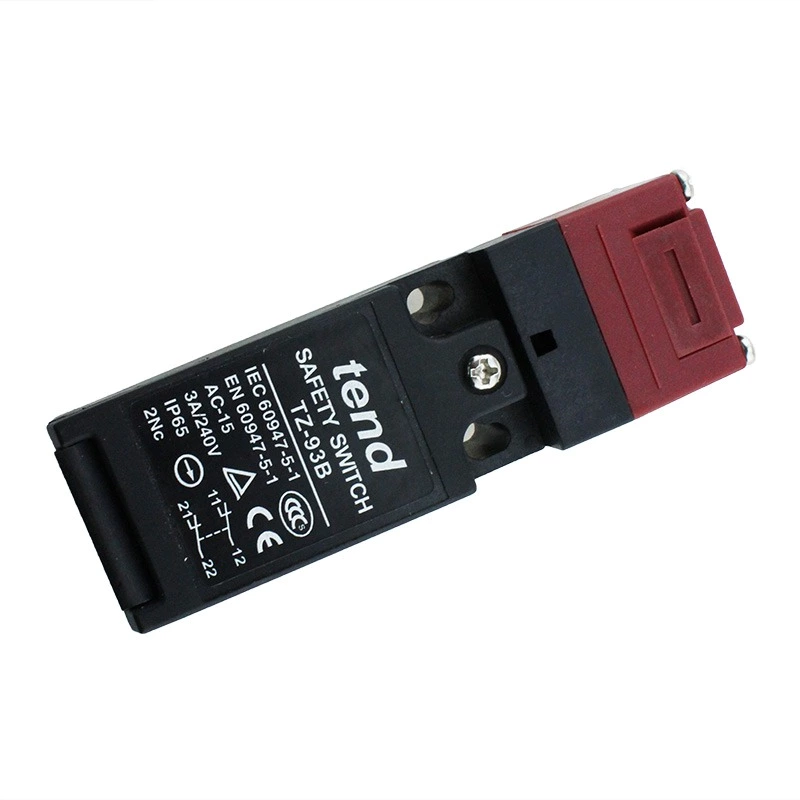

TZ-93B Taiwan Tend Double Pole Safety Key Interlock Switch Limit Switch
- Model:
- TZ-93B
- Brand:
- Tend
The safety switch is a switch that can prevent people from entering the dangerous area before all safety conditions are met. It has various types, including pin switch, safety magnetic switch, safety door lock switch, safety rope switch, emergency stop button, hinge interlock switch, safety enable switch, safety limit switch, explosion-proof switch, etc.
Technical Specifications
| Operating speed | 0.1m-0.5m/s |
| Contact resistance | 25mΩ or less |
| Applied edge resistance | Above 100MΩ (under 500VDC) |
| Insulation voltage | 400V |
| Withstand voltage | AC2500V/Umip 4KV |
| vibration | Maloperation durability:10-50Hz, 0.65mm amplitude |
| Shock | Mechanical durability :1.000m / s 2 ~ above (above 100G) |
| Maloperation durability:300m / s ~ or more (about 30G or more) | |
| Use week temperature | -30 ° C- + 70 * C |
| humidity | 95% RH |
| Service life | Machinery: 1 million times or more |
| Electrical: more than 150,000 times | |
| waterproof level | IP65 (EN60947-5-1) |
| Short circuit protection | Fuse 10A |
Dimensions(mm)
