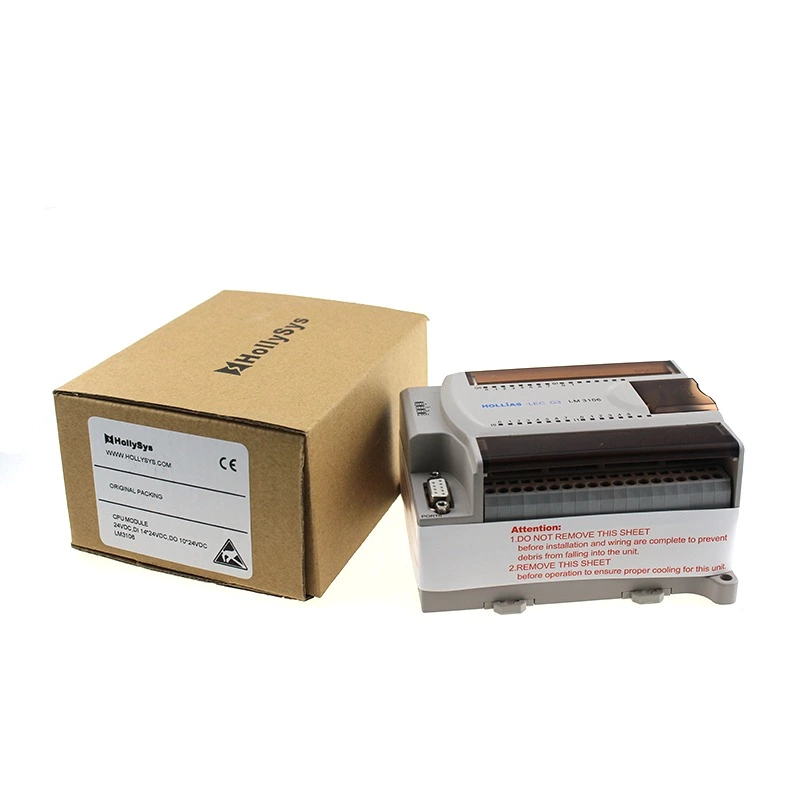

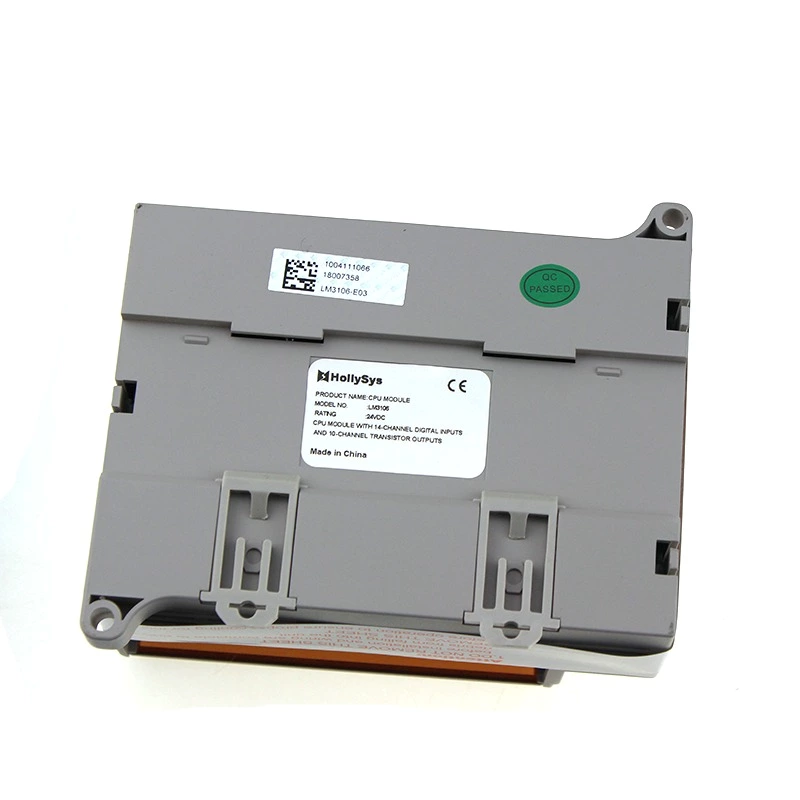

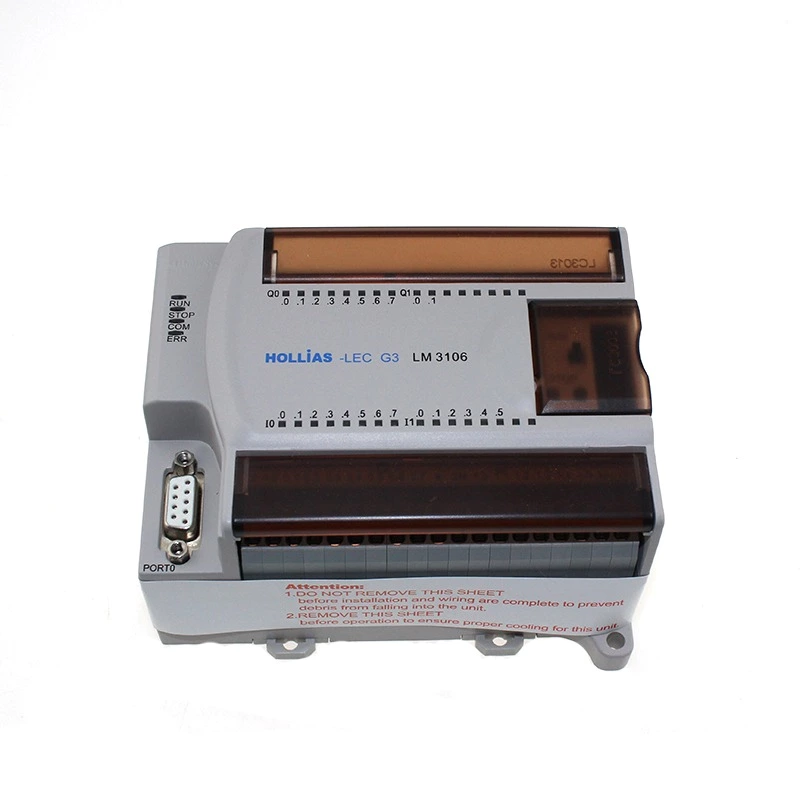

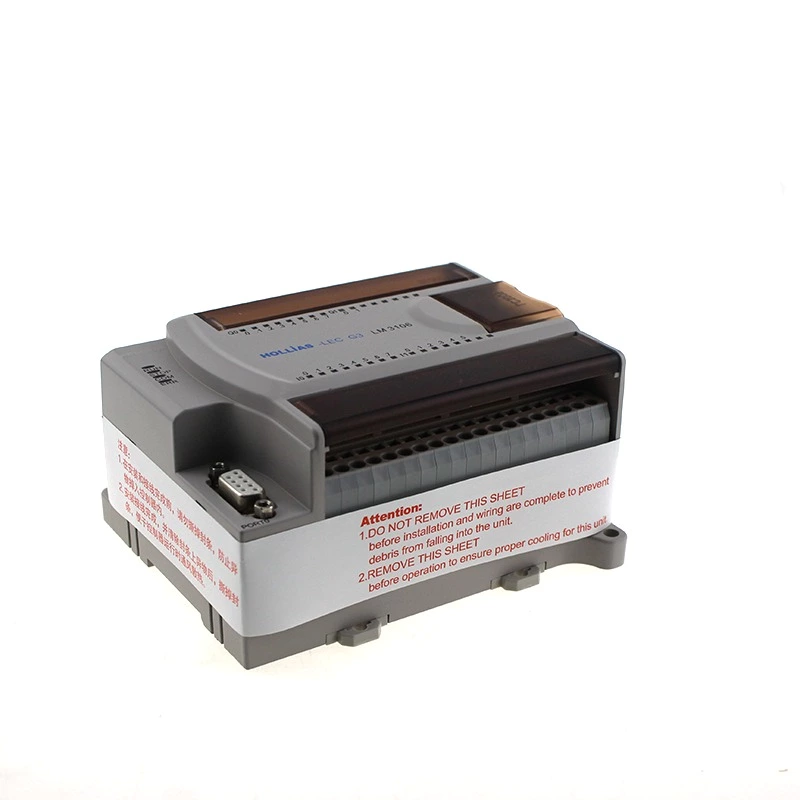

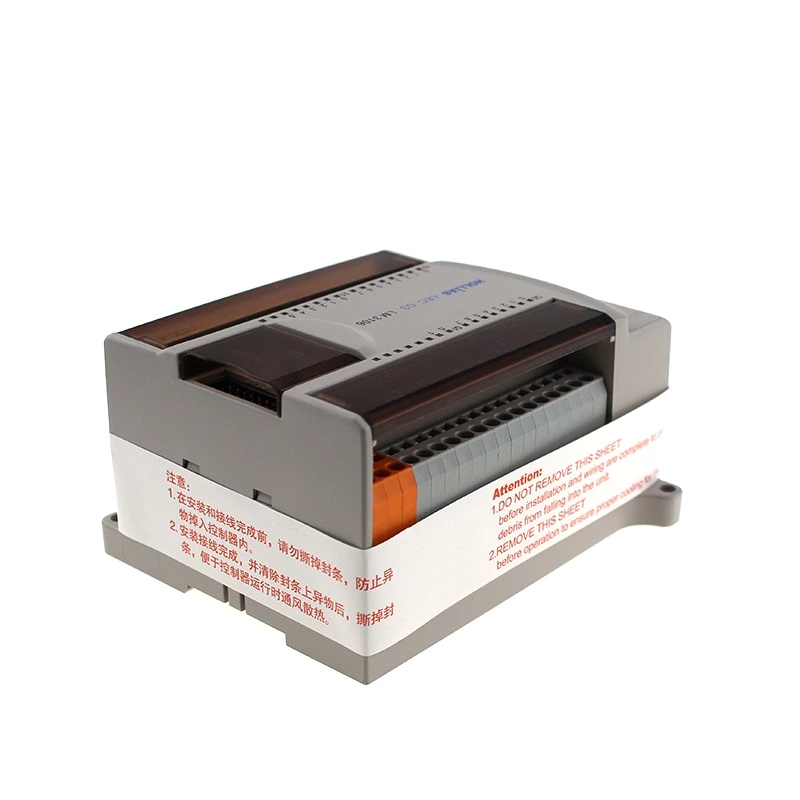

LM3106 Programmable Logic Controller PLC for Intelligent Control
- Model:
- LM3106
DC24V power supply, 14 Channels DC24V DI,10 Channels Transisitor DO
LM3106
DC24V power supply, 14 Channels DC24V DI,10 Channels Transisitor DO
Output Features
| Output type | Transistor |
| Output voltage | 24V DC |
| Allowed range | 20.4V DC~28.8V DC |
| Transistor conduction voltage drop | <0.5V (Output logic “1”, current 1A) |
| Contact impedance | <0.2Ω |
| Logic “1” single point output maximum current | 1A |
| Logic “0” maximum leaking current | 1mA |
| Common end output current total | <4A |
| Isolation mode | Photocoupler isolation |
| Isolation group | 2 groups |
| Maximum Isolation Voltage | 1500VAC |
| Response time (status “0” to “1” or “1” to “0”) | Common output<1ms High-speed pulse output<10us |
Input Features
| Input type | Sink/Source |
| Input voltage rated value | 24V DC |
| Allowed range | 0V DC~30V DC |
| Logic 1 signal | 15~30V DC, allowed minimum current 3mA |
| Logic 0 signal | 0~5V DC, allowed maximum current 1mA |
| Input delay time | <0.6ms (Rated input voltage) |
| Isolation mode | Photocoupler isolation |
| Isolation group | 2 groups |
| Maximum Isolation Voltage | 1500VAC |
Physical Features
| Dimensions | 75mm(L)×90mm(W)×70mm (H) | |
| Weight | <200g | |
| Power Consumption | +24VDC (Provided by expansion bus) | 0mA |
| +24VDC (External supply) | 80mA | |
| +5VDC (Provided by expansion bus) | 60mA | |
