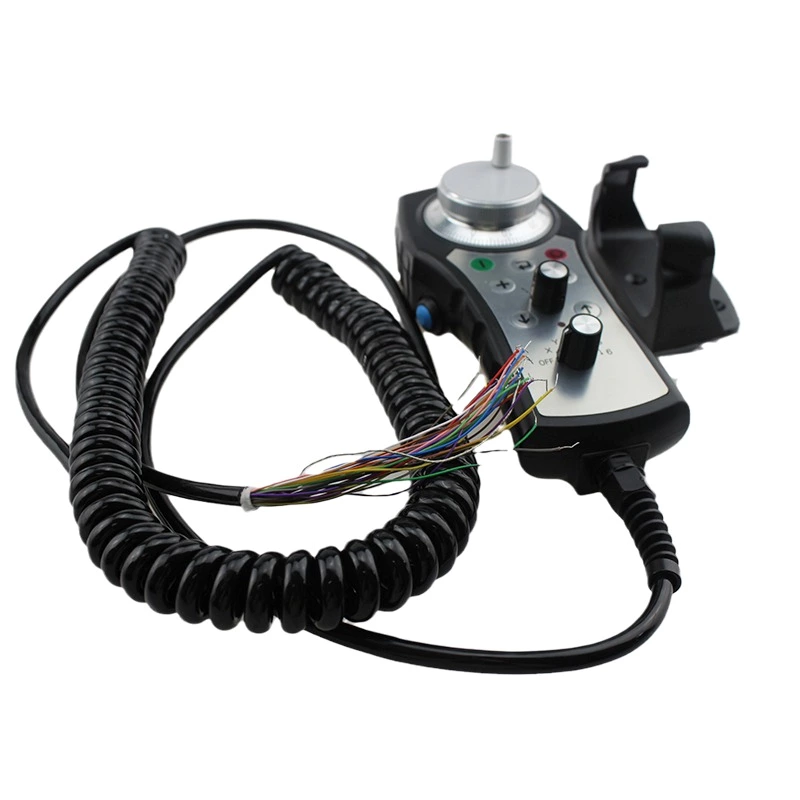

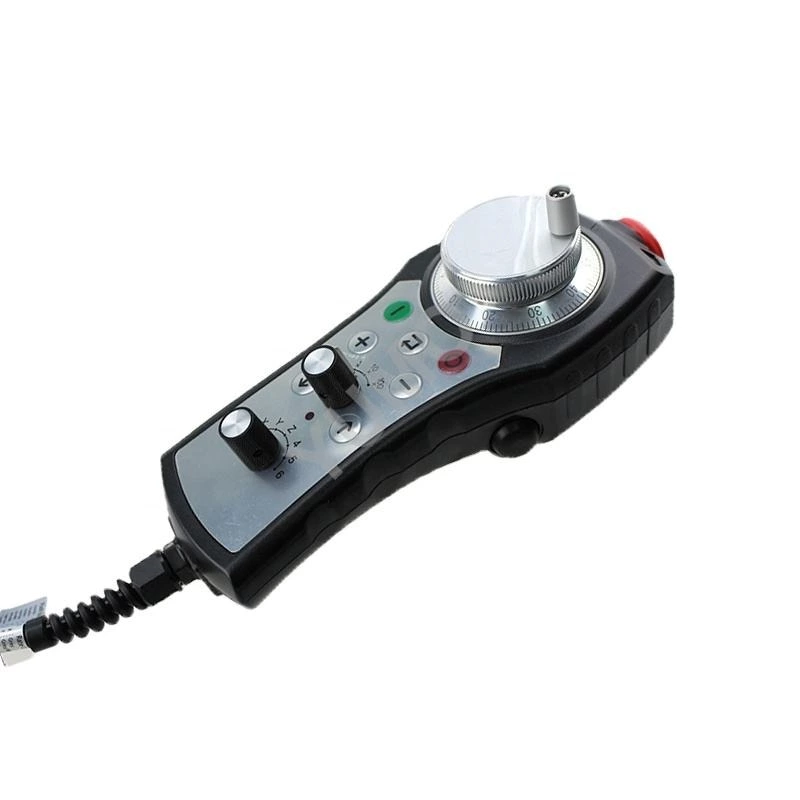

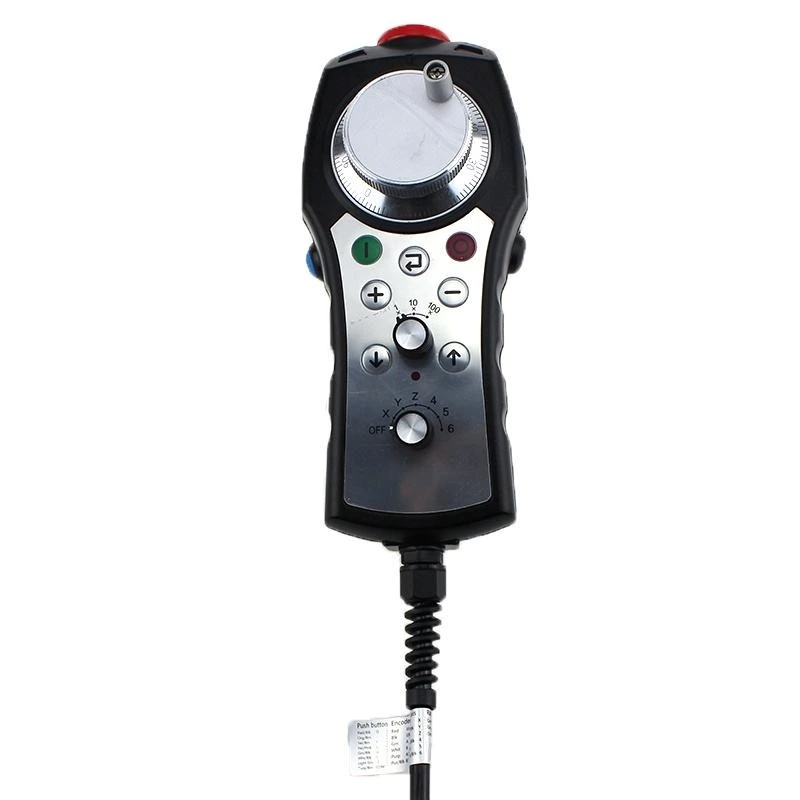

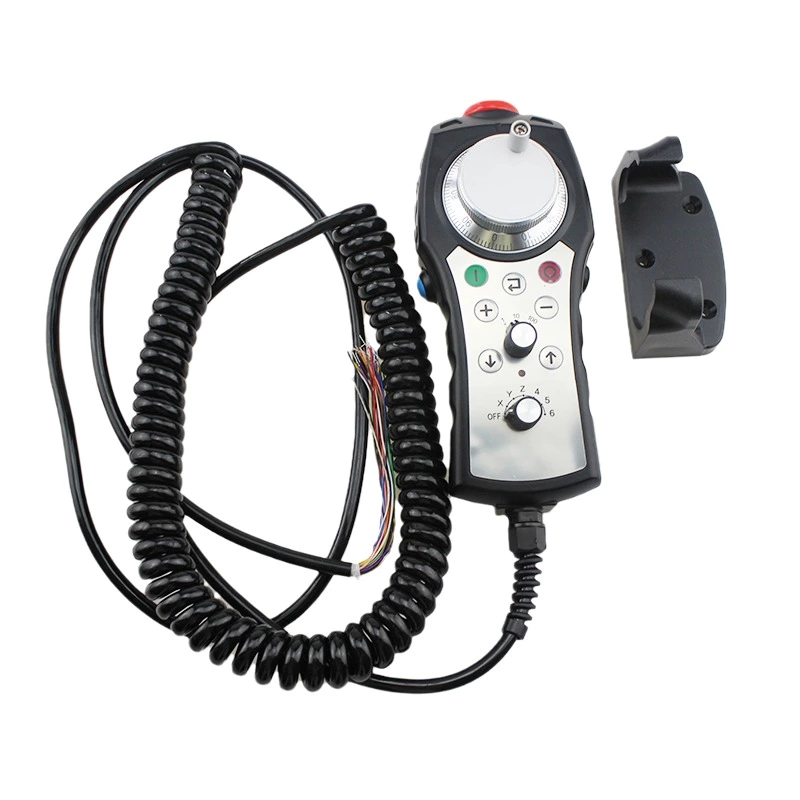

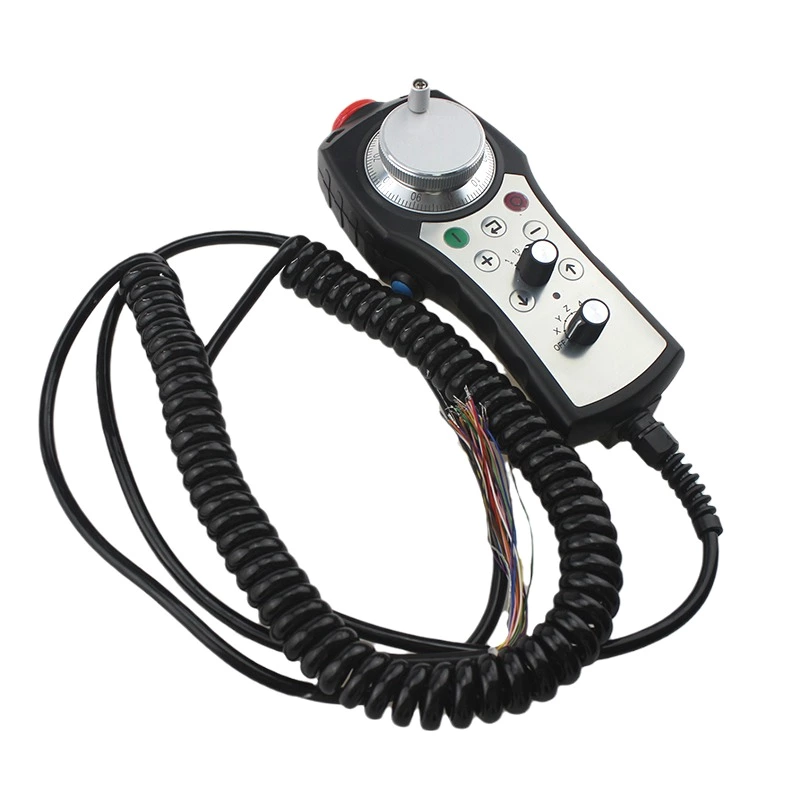

ISMM2189 CNC machine Fanuc System Mpg Manual Pulse Generator
- Model:
- ISMM2189-001E-100B-24E
YUEQING ELECTRIC CO.,LTD is a China CNC Manual Pulse Generator,milling machine encoder,Manual Encoder,Manual Pulse Generator,mpg manufacturer and supplier,we provide you with cheap ISMM2189 CNC machine Fanuc System Mpg Manual Pulse Generator products and good price.Welcome to buy ISMM2189 CNC machine Fanuc System Mpg Manual Pulse Generator products from us in wholesale business.
ISMM2189-001E-100B-24E 100 pulse 24V CNC machine Manual Pulse Generator MPG
ISMM2189-001E-100B-24E Manual Pulse Generator
Suitable for manual pulses input type such as CNC or milling machine, plastic case, high electrical resistance. Shaft switching trigger, oil sealed design.
Incremental encoder applications:
Industrial tolling machinery, zero correction of printing machinery or signal cutting, numerical control machine or signal dividing.
Note:
1.Please contact sales representative to confirm the correctness and availability of the part number;
2. Line Drive is only available with 5V DC, 12VDC option.
Technical Specifications
| Electrical Specification | ||||
| Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
| Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.25 12V |
| Current | ≤100mA | ≤100mA | ≤100mA | ≤120mA |
| Load current | 40mA | 40mA | 40mA | 60mA |
| High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
| Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
| Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 20ns |
| Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 20ns |
| Max Responding Frequency | 20kHz | 20kHz | 20kHz | 20kHz |
| Mechanical Specification | ||||
| Max speed(r/min) | Working Temperature | Storage Temperature | Protection Grade | Weight |
| 600 | -25~70ºC | -30~85ºC | IP50 | 750g |
Connection Table
| Item | Wire color | Signal | Note | |
| 1 | Red/Black | 1 | Push button | ○ |
| 2 | Orange/Brown | 2 | - | |
| 3 | Yellow/Brown | 3 | ↑ | |
| 4 | Yellow/Pink | 4 | ||
| 5 | Green/Black | 5 | + | |
| 6 | White/Black | 6 | ↓ | |
| 7 | Light Green | 7 | I | |
| 8 | Purple/Brown | C | Com port | |
| 9 | Red | Vcc | MPG Pulses Generator |
|
| 10 | Black | Gnd | ||
| 11 | Green | A | ||
| 12 | White | B | ||
| 13 | Purple | A- | Line driver | |
| 14 | Purple/Black | B- | ||
| 15 | Yellow | X | Axis selection | |
| 16 | Yellow/Black | Y | ||
| 17 | Brown | Z | ||
| 18 | Brown/Black | 4 | ||
| 19 | Pink | 5 | ||
| 20 | Pink/Black | 6 | ||
| 21 | Grey | X1 | Selection multiple | |
| 22 | Grey/Black | X10 | ||
| 23 | Orange | X100 | ||
| 24 | Blue | NC1 |
Brake | |
| 25 | Blue/black | NC2 | ||
| 26 | Orange/Black | Com | Com port | |
