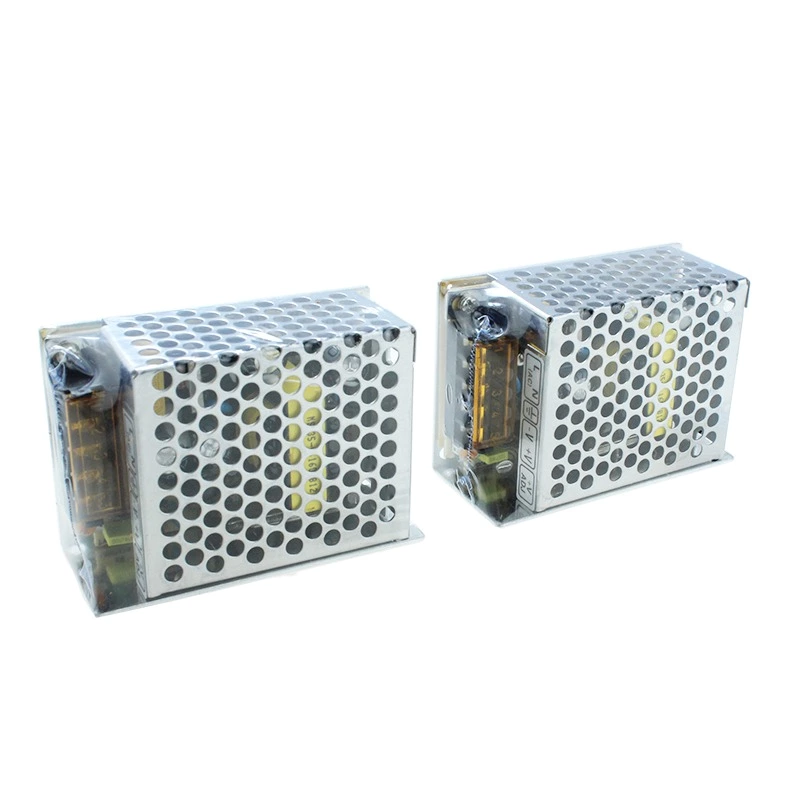

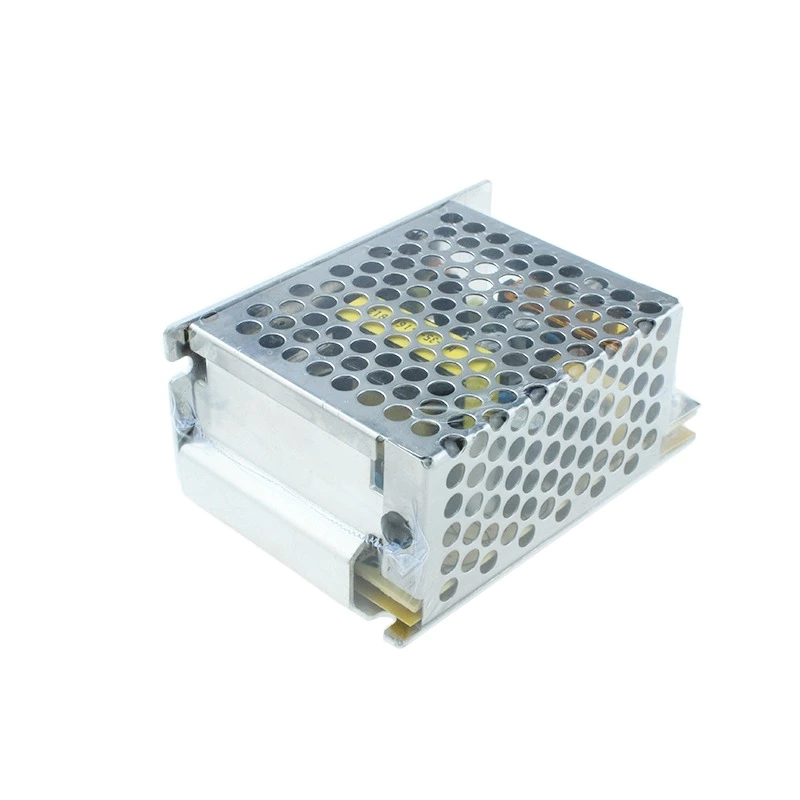

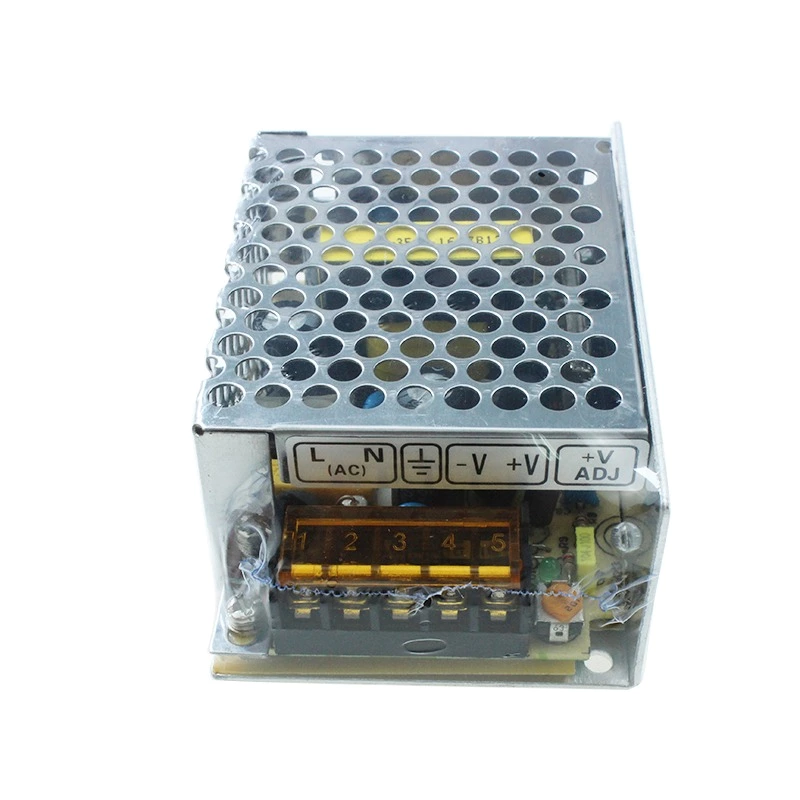

MS-15-5 15W DC Mini Size Switching Power Supply
- Model:
- MS-15-5
Switching power supply products are widely used in industrial automation control, military industry equipment, scientific research equipment, LED lighting, industrial control equipment, communications equipment, electrical equipment, instrumentation, medical equipment, semiconductor refrigeration and heating, air purifier, electronic refrigerator, LCD, LED lamps and lanterns, communications equipment, audio and video products, security monitoring, LED lights belt, computer case, digital products and instruments, etc.
MS-15-5 15W DC Mini size Switching Power Supply
Features:
Low price and high reliability
105ºC output capacitor
AC input power suitable for the world
High Efficiency and low operation temperature
Soft-strat current can reduce the AC input impact effecticly
With-short-circuit and overload protection
Compact size, light weight
100% full load burn-in test
Installed with EMI filter, minimum mave
| Model | MS-15-5 | MS-15-12 | MS-15-24 |
| DC output voltage | 5V | 12V | 24V |
| Output voltage tolerance | ±2% | ±1% | ±1% |
| Rated output current | 3A | 1.3A | 0.7A |
| Output current range | 0-3A | 0-1.3A | 0-0.7A |
| Ripple and noise | 50mVp-p | 50mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±0.5% | ±0.5% |
| DC output power | 15W | 15.6W | 16.8W |
| Efficiency | 65% | 68% | 72% |
| Output voltage adjustment range | ±10,-5% | ±10 | ±10 |
| AC input voltage range | AC100-264V 47~63Hz 240-370VDC | ||
| Input current | 0.5A/115V 0.25A/230V | ||
| AC impulse current | Cold-start current 15A/115V 30A/230V | ||
| Leakage current | <0.5mA/240VAC | ||
| Overload protection | 105%~150% Type:Pulsing hiccup shutdown Reset:auto recovery | ||
| Over-voltage protection | .......... | ||
| High-Temperature protection | .......... | ||
| TEMP. coefficient | ±0.02%°C(0~50°C) | ||
| Setup rise hold up time | 200ms 100ms 30ms | ||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | ||
| Withstand voltage | Input and ouput intemal:1.5KVAC Input and enclosure:1.5KVAC Output and enclosure:0.5KVAC | ||
| Isolation resistance | Input and ouput intemal:input and enclosure Input and enclosure:500vdc/100MΩ | ||
| Working temperature and humidity | -10°C~+60°C,20~90%RH | ||
| Store temperature and humidity | -20°C~+85°C,10~95%RH | ||
| Overall dimension | 120*46*32mm | ||
| Weight | 0.3Kgs | ||
| Safety standards | Meet UL 1012 requirement(Not apply for the mark) | ||
| EMC standards | Meet FCC PART15 J Conduction class B | ||
