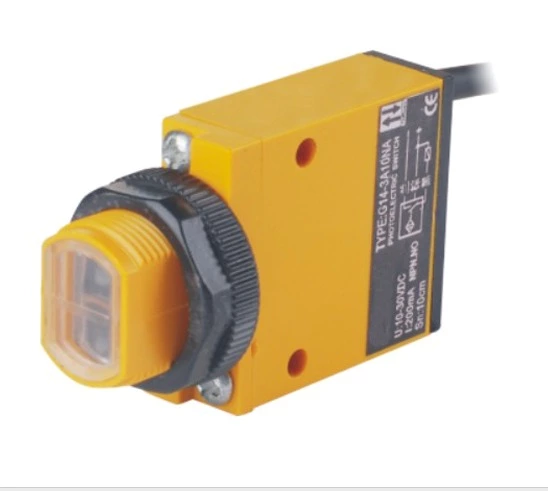

G14 Infrared ray Photoelectric Switch Sensor

Model:

G14

The mechanical quantity to be measured, such as displacement, pressure change into an electrical capacitance sensor. Therefore, capacitive sensors can be divided into pole pitch change type, area change type, change the media type categories. Pole pitch change type is generally used to measure the tiny lines or due to force displacement, pressure, vibration caused by the pole pitch changes (see capacitive pressure sensor). Area change type is generally used to measure the angular displacement or larger linear displacement. Change media type commonly used in level measurement and a variety of medium temperature, density determination and humidity.

G14 Detection 10cm Diffusse reflection square photoelectric switch

Technique parameter:

1. G: Photoelectric sensor
2. Sub code No. (18, 50, 76...)
3. Operating voltage(2: 90-250VAC; 3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)
9. Other photoelectric sensor models: G12, G13, G14, G15, G16, G17, G18, G23, G24, G25, G26, G28, G30, G33, G35, G36, G40, G44, G50, G54, G55, G64, G68, G70, G71, G72, G180, G74, G75, G76, G77, G78, G80, G85, G86, G90, G100, G110, G139, G56, G60, G63, G65, G57, E3F, E3JK and so on.
10. More details, please contact us.
Electrical Datasheet

Diffuse type	Detection distance			10cm
	10-30VDC	NPN	NO	G14-3A10NA
			NC	G14-3A10NB
			NO+NC	G14-3A10NC
		PNP	NO	G14-3A10PA
	90-250VAC		NC	G14-3A10PB
			NO+NC	G14-3A10PC
Retroreflective type	Detection distance			1m
	10-30VDC	NPN	NO	G14-3B1NA
			NC	G14-3B1NB
			NO+NC	G14-3B1NC
		PNP	NO	G14-3B1PA
	90-250VAC		NC	G14-3B1PB
			NO+NC	G14-3B1PC
Through beam	Detection distance			3m
	10-30VDC	NPN	NO	G14-3C3NA
			NC	G14-3C3NB
			NO+NC	G14-3C3NC
		PNP	NO	G14-3C3PA
	90-250VAC		NC	G14-3C3PB
			NO+NC	G14-3C3PC
		SCR Contro Hable silicon	NO
			NC
		Relay output
DC/SCR Control output				DC:200mA
DC/AC Consumption current				DC<15mA
DC/AC Response time				Dc<2ms
Directional angle				3 . -10 .
Detected object				transparent or opaque body
Working environment temperature				25~+55ºC
Intensity of illumination of working environment				Sunlight under 1000LX incandescent lamp under 3000LX
Shell material				Metal
Protection grade				IP54
