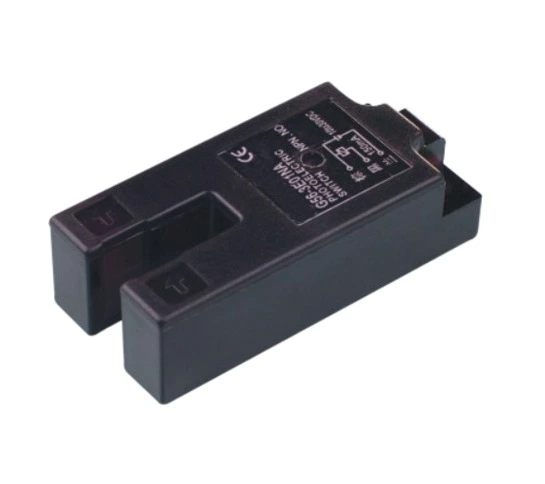

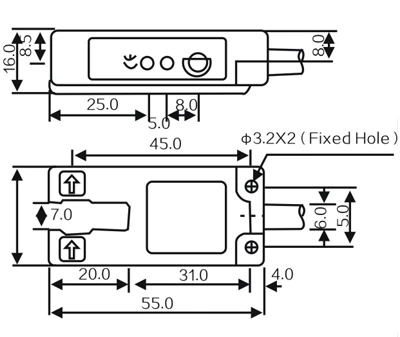

G56 Infrared ray Photoelectric Switch Sensor

Model:

G56

The mechanical quantity to be measured, such as displacement, pressure change into an electrical capacitance sensor. Therefore, capacitive sensors can be divided into pole pitch change type, area change type, change the media type categories. Pole pitch change type is generally used to measure the tiny lines or due to force displacement, pressure, vibration caused by the pole pitch changes (see capacitive pressure sensor). Area change type is generally used to measure the angular displacement or larger linear displacement. Change media type commonly used in level measurement and a variety of medium temperature, density determination and humidity.

Model explanation of Photoelectric Sensor

1. G: Photoelectric sensor
2. Sub code No.(18, 50, 76.....)
3. Operating voltage(2: 90-250VAC ;3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm ; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)

Feature

1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . High on-off frequency
7 . Dust proof,vibration proof,water proof and oil proof.
8 . With short-circuit protection and inverted connecting protection.
9 . Long service life

Technical Parameter

Model				G56
Diffuse Type	Dectection Distance
	DC 10~30VDC	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
	AC 90~250VAC	SCR Controllable Silicon	NO
			NC
		Relay Output
Retroreflictive Type	Dectection Distance
	DC 10~30VDC	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
	AC 90~250VAC	SCR Controllable Silicon	NO
			NC
		Relay Output
Through beam Type	Dectection Distance			17mm
	DC 10~30VDC	NPN	NO	G56-3E01NA
			NC	G56-3E01NB
			NO+NC	G56-3E01NC
		PNP	NO	G56-3E01PA
			NC	G56-3E01PB
			NO+NC	G56-3E01PC
	AC 90~250VAC	SCR Controllable Silicon	NO
			NC
		Relay Output
Output Current		DC		200MA
		AC		300MA
Consumption Current				lower than 15MA
DC/AC Response time				lower than 2MS
Directional Angle				3°~10°
Standard Detected Object				Transparent or Opaque body
Working Temperature				“-25 deg C~+55 deg C
Intensity of illumination				Sunlight under 10000LX, Incandescent lamp under 3000LX
Shell Material				Plastic
Protection Grade				IP54
