G68 Infrared ray Photoelectric Switch Sensor
- Model:
- G68
The mechanical quantity to be measured, such as displacement, pressure change into an electrical capacitance sensor. Therefore, capacitive sensors can be divided into pole pitch change type, area change type, change the media type categories. Pole pitch change type is generally used to measure the tiny lines or due to force displacement, pressure, vibration caused by the pole pitch changes (see capacitive pressure sensor). Area change type is generally used to measure the angular displacement or larger linear displacement. Change media type commonly used in level measurement and a variety of medium temperature, density determination and humidity.
G68 Photoelectric sensor switch
Model explanation of Photoelectric Sensor
1. G: Photoelectric sensor
2. Sub code No.(18, 50, 76.....)
3. Operating voltage(2: 90-250VAC ;3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm ; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)
Technical Parameter
|

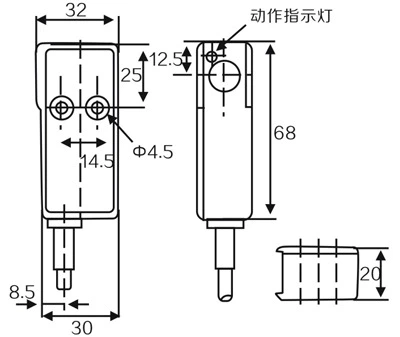

OVERALL DIMENSIONS |
 |
|||
|
D i f f u s e T y p e |
Detection distance | 30cm | ||
|
10- 10 VDC |
NPN |
NO | G68-3A30NA | |
| NC | G68-3A30NB | |||
| NO+NC | G68-3A30NC | |||
|
PNP |
NO | G68-3A30PA | ||
|
90～ 250 VAC |
NC | G68-3A30PB | ||
| NO+NC | G68-3A30PC | |||
|
SCR ControHable silicon |
NO | |||
| NC | ||||
| Relay output | ||||
|
R e t r o r e f l i c t i v e |
Detection distance | 2m | ||
|
10- 10 VDC |
NPN |
NO | G68-3B2NA | |
| NC | G68-3B2NB | |||
| NO+NC | G68-3B2NC | |||
|
PNP |
NO | G68-3B2PA | ||
|
90～ 250 VAC |
NC | G68-3B2PB | ||
| NO+NC | G68-3B2PC | |||
|
SCR ControHable silicon |
NO | |||
| NC | ||||
| Relay output | ||||
|
T r o u g h b e a m |
Detection distance | 5m | ||
|
10- 10 VDC |
NPN |
NO | G68-3C5NA | |
| NC | G68-3C5NB | |||
| 一开一闭NO+NC | G68-3C5NC | |||
|
PNP |
NO | G68-3C5PA | ||
|
90～ 250 VAC |
NC | G68-3C5PB | ||
| NO+NC | G68-3C5PC | |||
|
SCR ControHable silicon |
NO | |||
| NC | ||||
| Relay output | ||||
| DC/SCR／Control output | DC:200mA、AC：300mA | |||
| DC/AC Consumption current | DC<15mA、AC:<10mA | |||
| DC/AC Response time | Dc<2ms、AC<20ms | |||
| Directional angle | 3。-10。 | |||
| Detected object | transparent or opaque body | |||
| WoJrking envlrOnment temDerature | -25℃～+55℃ | |||
| Intensity ofillumination of working environment | Sunlight under 1000LX /incandescent lamp under 1000LX | |||
| Shell materia | Plastic | |||
| Protection grade | IP54 | |||
