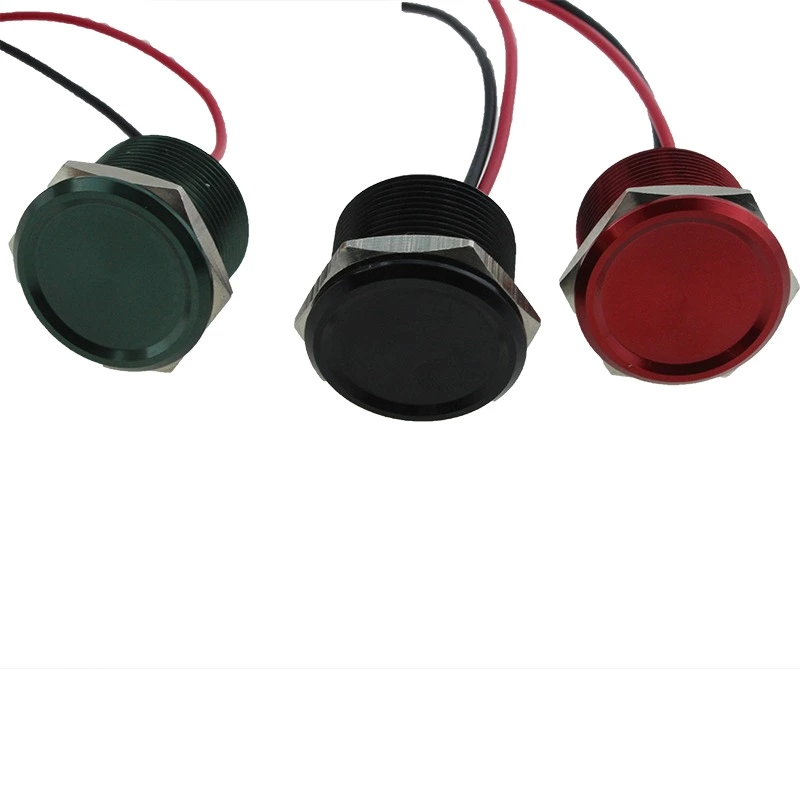

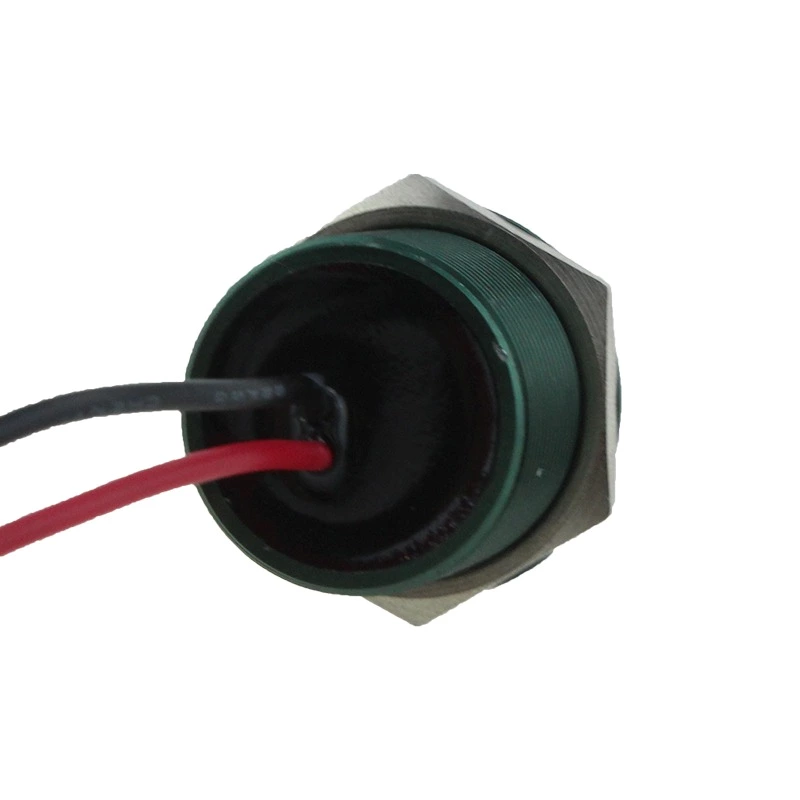

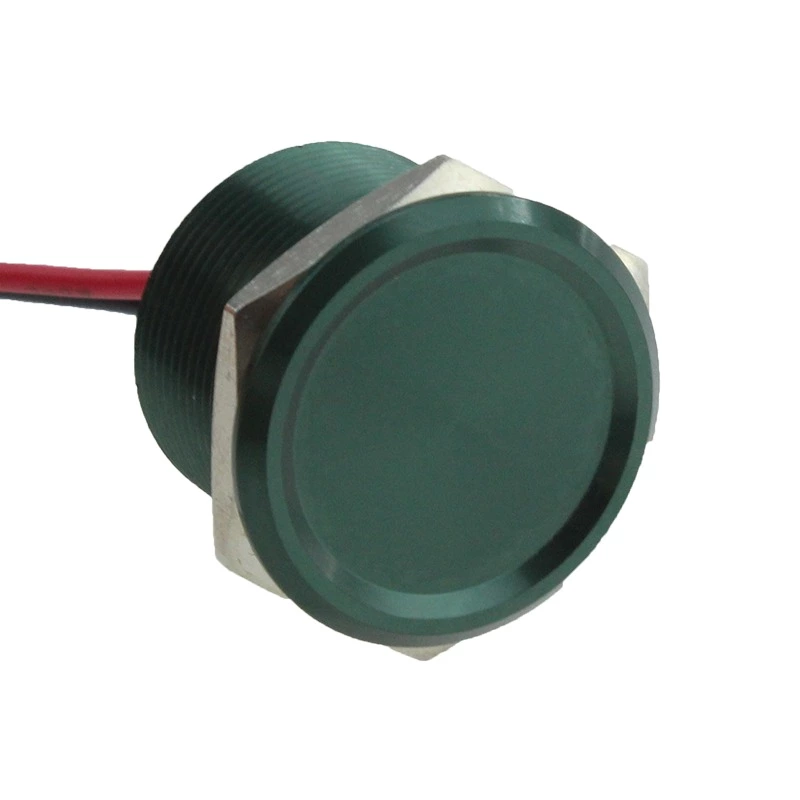

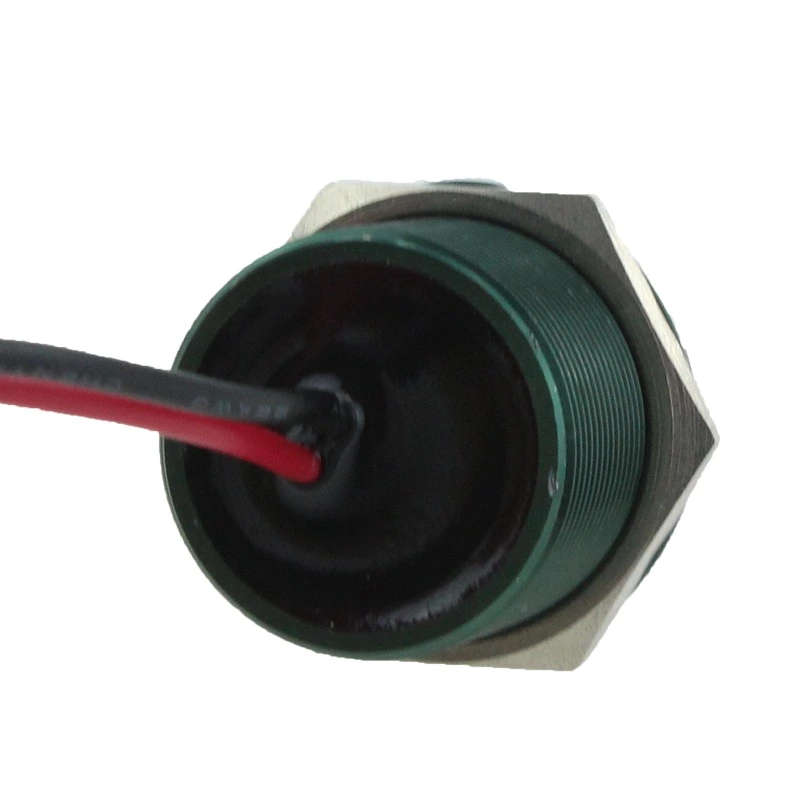

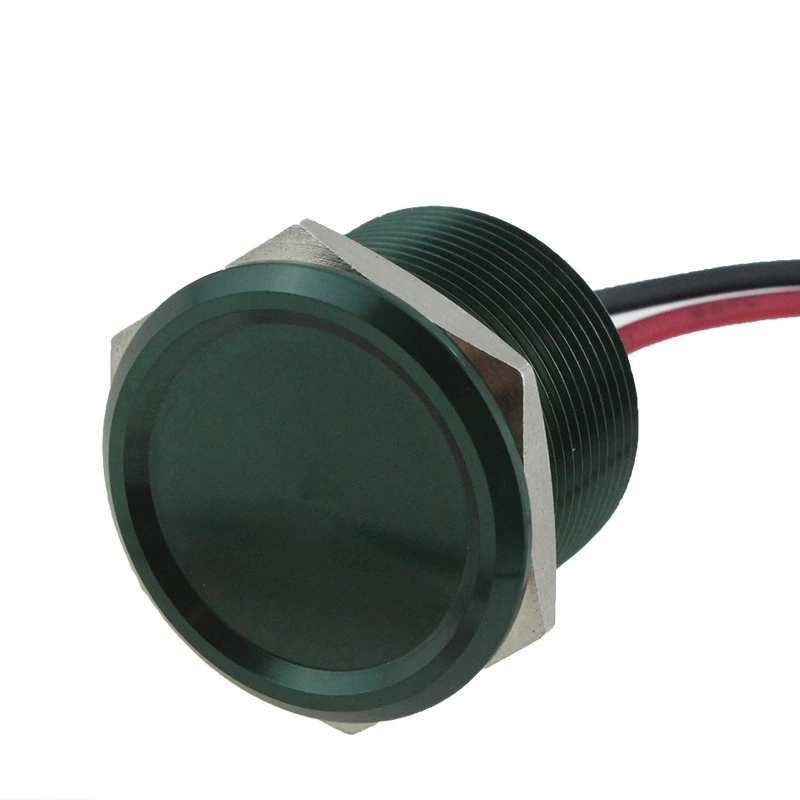

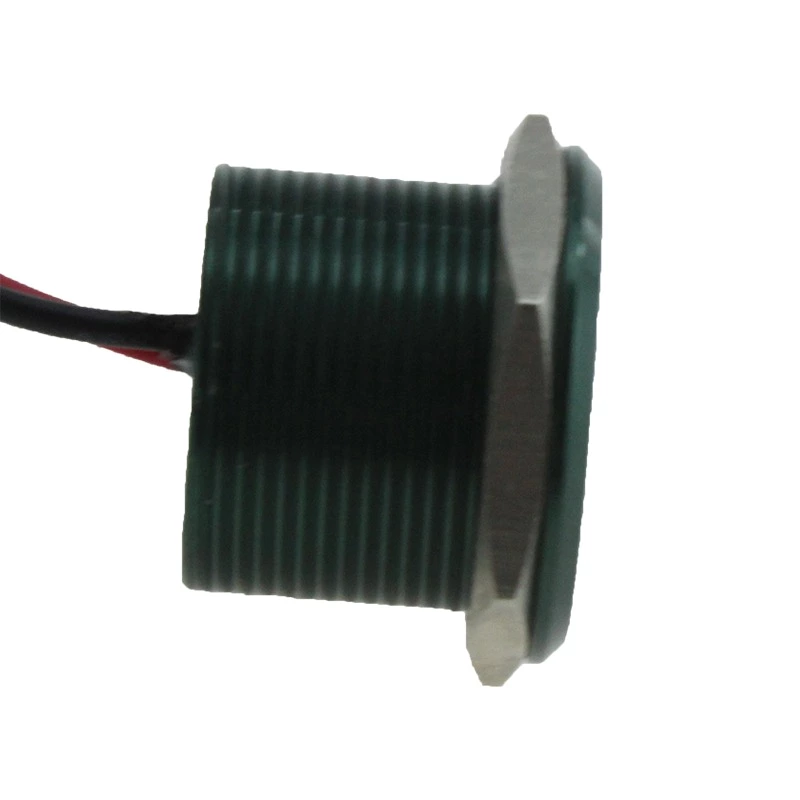

Good price of 22mm push button piezo switch with high quality
- Model:
- YD22-10G
Sealed to IP 68 and IP69K (switches mounted on panel)
Easy to clean metal surface
Very long life expectancy
Ring or dot illumination
Good price of 22mm push button piezo switch with high quality
Application scope：
Winning equipment Cleanroom interface
Access control system Household appliance
Medical equipment Electromechanical instrument
Industrial cabinet Elevator control system
Emergency call systems
| Working temperature | T:-40C-70°C |
| Storage temperature | T:-40C-70°C |
| Working humidity | 10%- 99% |
| Input voltage | 3-24V/DC |
| The input current | ≤100mA |
| Contact resistance | < 50mΩ |
| Pulse time | < 50MS |
| Working pressure | 3-8N |
| Protection Grade | IP68IEC529 |
| Operating life | >200000cycles |
| Material | Aluminum |
| The type of connection | 0.22Square wire(Line length can be customized) |
