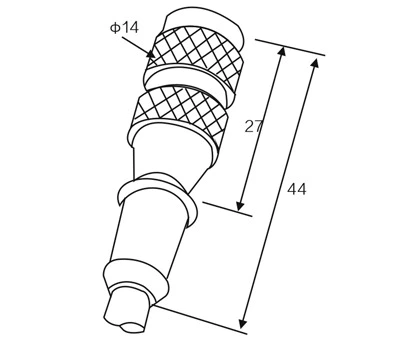

RK02-1-3/RK02-1-4/RK02-2-2 M12 straight sensor connector
- Model:
- RK02-1-3/RK02-1-4/RK02-2-2
Sensor connector commonly used are M12 connector, M8 connector, solenoid valve connector. M12 connector is M12 * 1, the connection is screw connection, the enclosure protection class IP67, with cable and cable without cable, cable optional PVC (ordinary) or PUR (oil wear) material, cable length The cable is M8 * 1, the connection is screw connection, protection class IP67, with cable and cable without cable, optional PVC (ordinary) or PUR (oil and wear) materials, cable Length can be customized according to user requirements; solenoid valve connector locking method for the center of the screw, the connection for the screw, the enclosure protection class IP65.Connectors are widely used in sensors, detection equipment, electronic instrumentation, electronic machinery, communications, aviation, navigation, computers, LED, automotive, engineering machinery.
RK02-1-3/RK02-1-4/RK02-2-2 M12 straight sensor connector
|
CONTACT VIEW |
 |
|||||||||
| APPLICATION |
NPN/PNP NO/NC |
NPN/PNP NO/NC |
DC AC NO/NC |
NPN NO/NC |
PNP NO/NC |
NPN NO/NC |
PNP NO/NC |
NPN/PNP NO/NC |
NPN/PNP NO/NC |
|
| Skin color | black | |||||||||
| Coupling nut material | Cuzn,nickel plated | |||||||||
| Over-current value [A] | 4.0 | |||||||||
| Ratedvoltage[V] | 250 | |||||||||
| Wire Length | 2m | |||||||||
| Cable jacket material | PVC | |||||||||
| output display [LED] |
bn,bu,bk 3x0.5 |
bn,bu,bk,wh 4x0.34 |
YES | YES | YES | YES | YES | YES | YES | |
| insulation resistance | ≥-109Ω | |||||||||
| envronment temperature scope[℃] | -25-+65 | |||||||||
| environment temperature scope[℃] | -25-+65 | |||||||||
| protection level | lP67 | |||||||||
| Capacitance | 250VAC/300VDC,Gr.C | |||||||||
