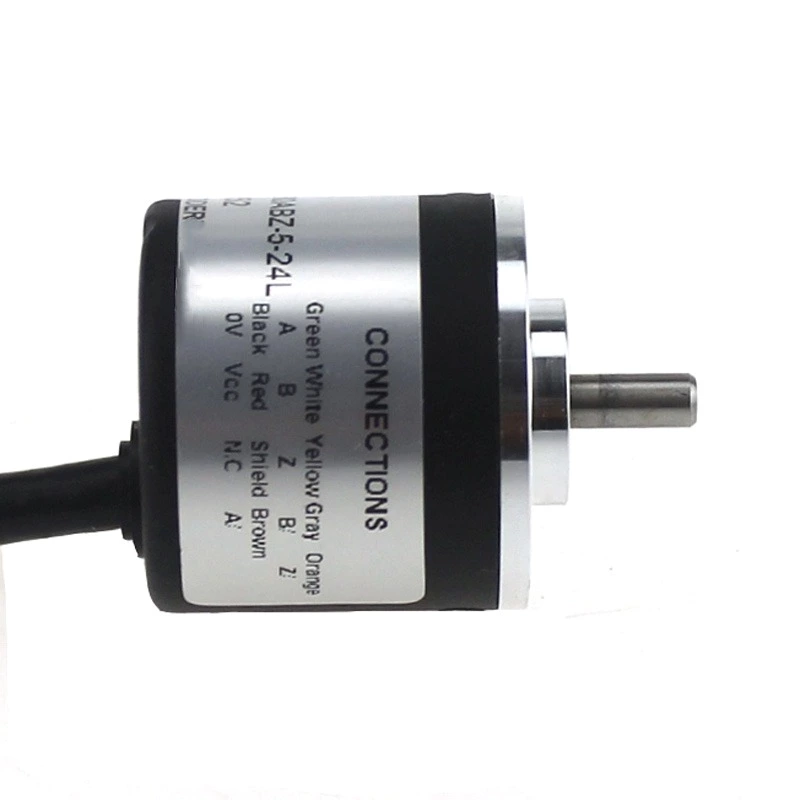

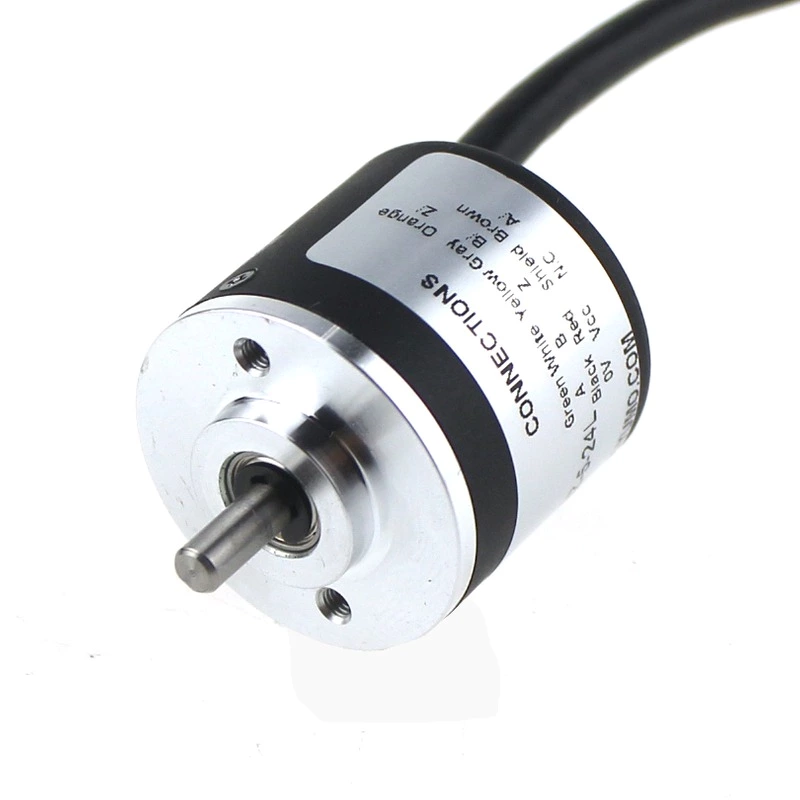

ISC2504 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder

Model:
ISC2504

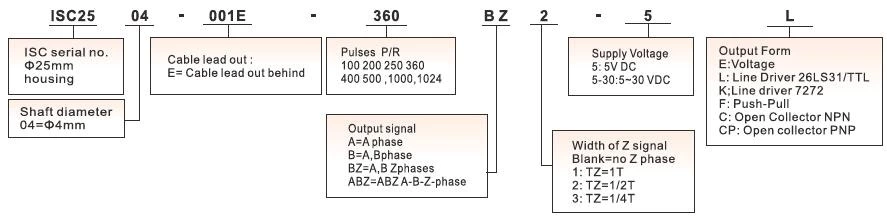

◆ Features ● Miniature size, easy assembling ● 2 quadrature output channel (A&B) ● Housing size 25mm, shaft dia. 4mm

ISC2504 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder
ISC2504 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder

ISC2504 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder

Note

1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5V DC option

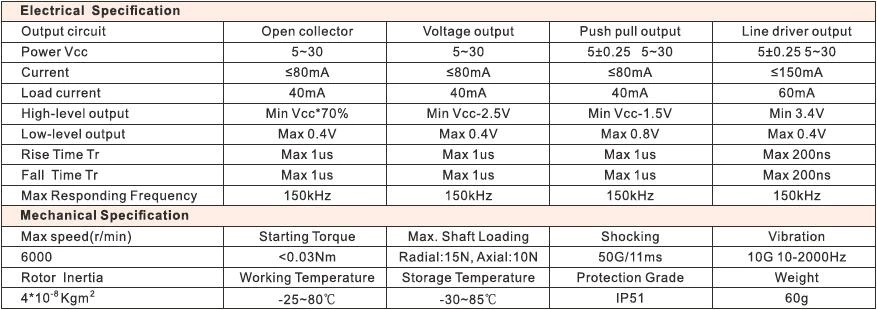

Technical Specification

ISC2504 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder
Connection Table



Signal A B Z A(-) B(-) Z(-) Vcc GND
Color Green White Yellow Brown Grey Orange Red Black




Dimension

ISC2504 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder

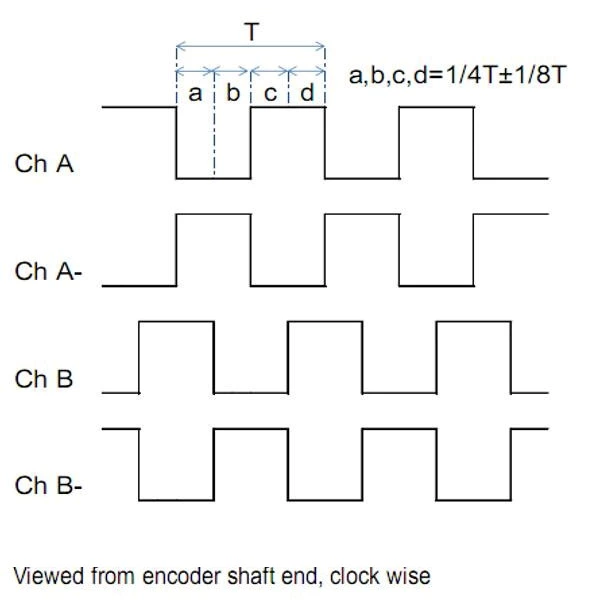

Output Waveform

ISC2504 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder
