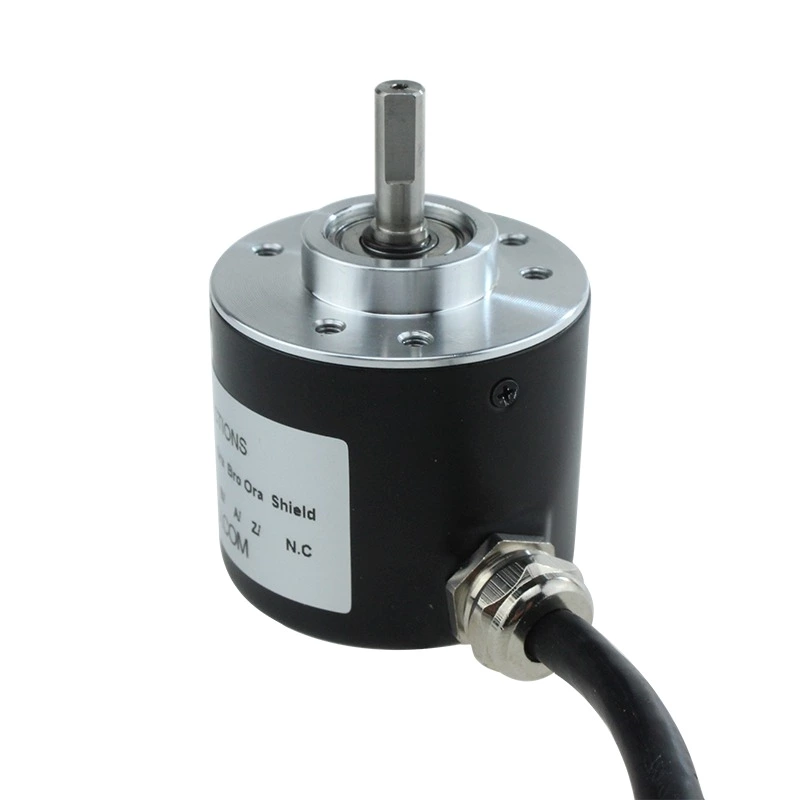

ISC3805 720ppr 5VDC Line Drive Output Optical Encooder
- Model:
- ISC3805-001G-720-ABZ1-5L
ISC3805 Optical Encoder Shaft diameter 5 mm, clamping flange, housing diameter 38 mm ¦. Low price at high performance, small volume, light weight, easy for installing Optical encoder Applications. Measure the distance, stop dog positioning, Curtained door, textile machinery
Application
Measure the distance, automatic control , robot, X-Y labor ,printing, curtained door, shoe machine , textile machine and etc.
Features
Miniature size, easy assembling
2 quadrature output channel (A&B) + index signal
ISC3808 SERIES
Shaft diameter 6mm or 8mm,clamping flange,housing diameter 38mm.
Low price at high performance,small volume,light weight,easy for installing

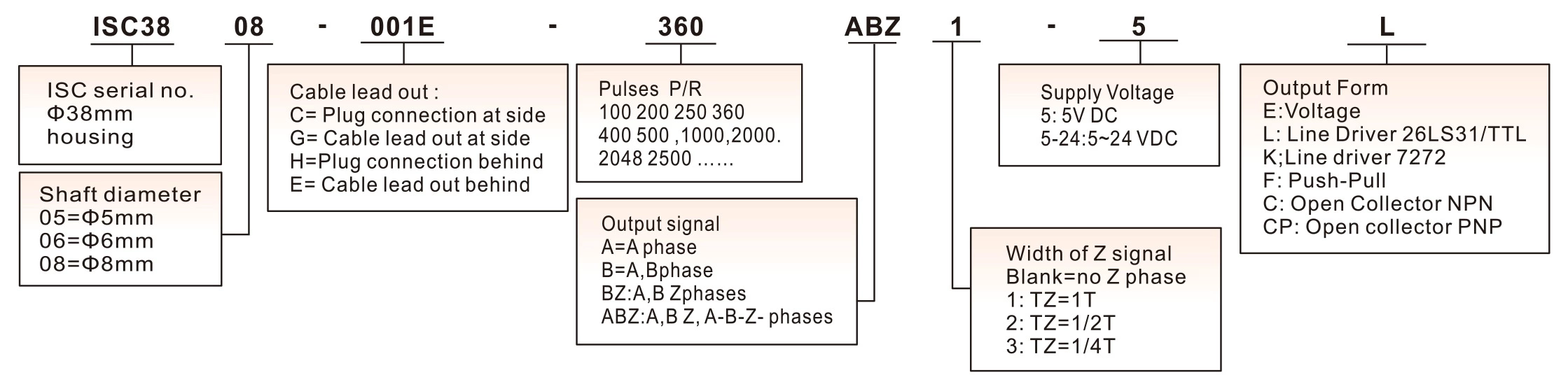

Ordering information
Technical Specifications
| Electrical Specification | ||||
| Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
| Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.25 5~30 |
| Current | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
| Load current | 40mA | 40mA5 | 40mA | 60mA |
| High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
| Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
| Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Max Responding Frequency | 200kHz | 200kHz | 200kHz | 200kHz |
| Mechanical Specification | ||||
| Max speed(r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
| 6000 | <0.03Nm | Radial:15N, Axial:10N | 50G/11ms | 10G 10-2000Hz |
| Rotor Inertia | Working Temperature | Storage Temperature | Protection Grade | Weight |
| 4*10-8Kgm2 | -30~90ºC | -35~95ºC | IP51 | 100g |
Output Phase Shift
 |
Wave Ratio: a+b=0.5T±0.1T c+d=0.5T±0.1T Z signal Width: Tz=1T±0.5T Signal position accuracy : A,B phase absolute angle deviation ≤0.2T |
Periodic Deviation ≤0.05T T=360°/N (N is output pulse number of each spin ) |
Connection Table
| Signal | A | B | Z | A(-) | B(-) | Z(-) | Vcc | GND |
| Color | Green | White | Yellow | Brown | Grey | Orange | Red | Black |

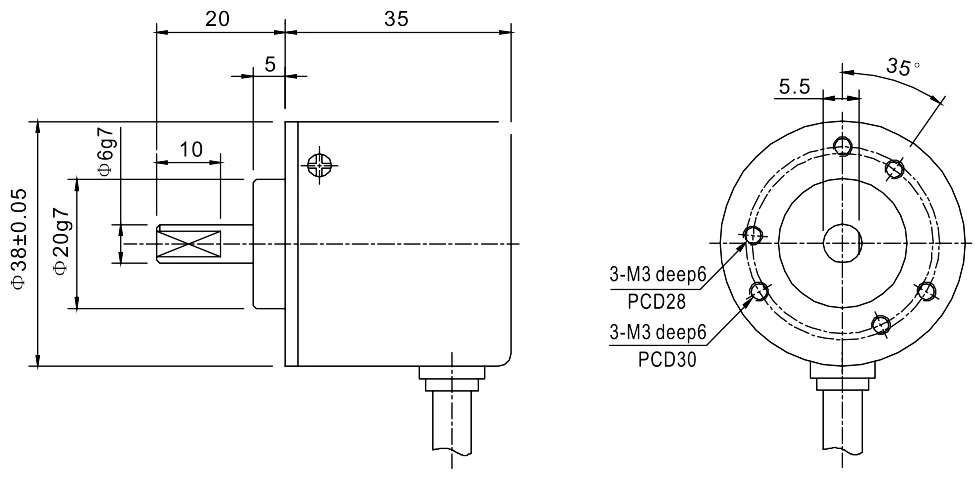

Dimensions(mm)
