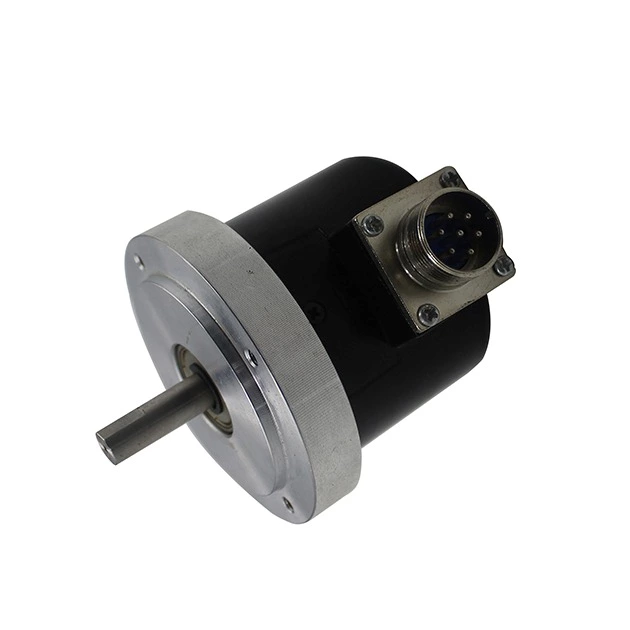

ISC7008 Outer diameter 70mm Solid Shaft Incremental rotary encoder
- Model:
- ISC7008
● Application in heavy duty, especially on CNC machine tools spindle
● 2 quadrature output channel (A&B) + index signal
● Resolution up to 3600cpr
● Housing size 70mm, shaft dia. 8mm
Measure the distance and measure the speed,position at CNC tooling machines, robot, X-Y labor ,printing machine and etc.
Note

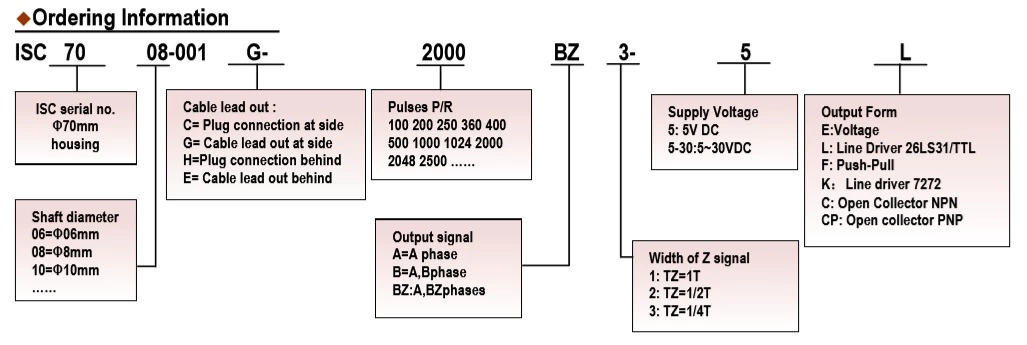

1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5V DC option
Technical Specifications
| Parameter | Value | Note |
| Supply Voltage | DC5V / 7~24V (±10%) | Max. response frequency is gated by max. rotation speed |
| Max. Response Frequency | 100 kHz | |
| Max. Rotation Speed (*1) | 3000 rpm | |
| Max. Current Consumption | 120mA (Unloaded) | |
| Max. Rise-Fall Time | 200ns (Line Driver) | |
| Max. Rise-Fall Time | 1us (Other Output Mode) | |
| Operating Temperature | -20 ~ 85° C (unfrozen) | |
| Storage Temperature | -20 ~ 85° C (unfrozen) | |
| IP Rating | IP54 | |
Connection Table
| Color of Lead Wire | GN | WH | YE | RD | BK | Shield | BN | GY | OG |
| Output-Line Driver | A+ | B+ | Z+ | Vcc | 0V | NC | A- | B- | Z- |
| Output-Other Output | A | B | Z | Vcc | 0V | NC | n/a | n/a | n/a |

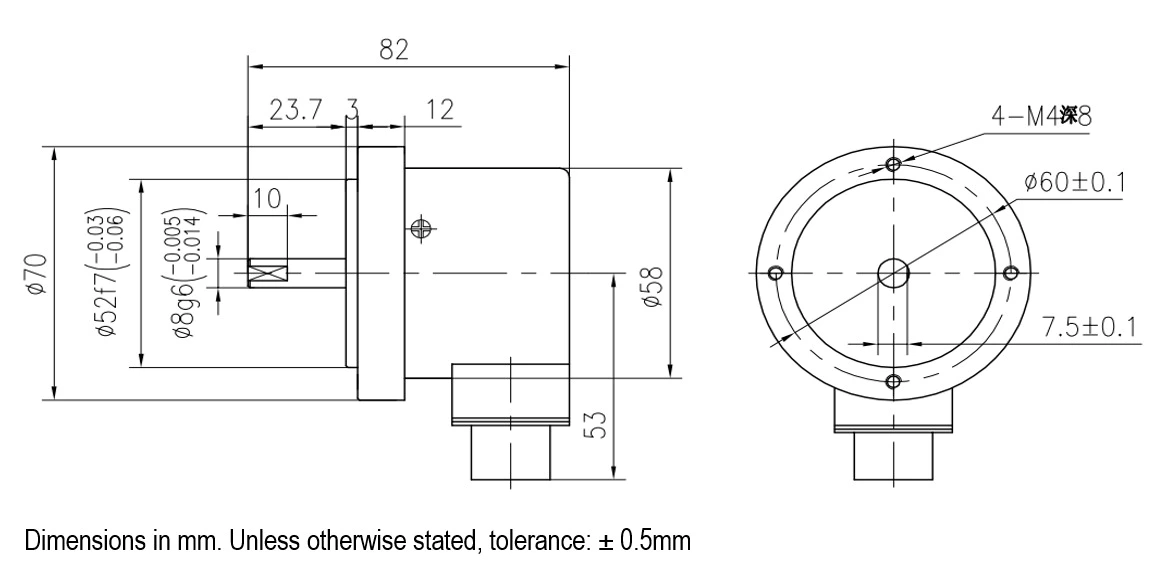

Diamensios

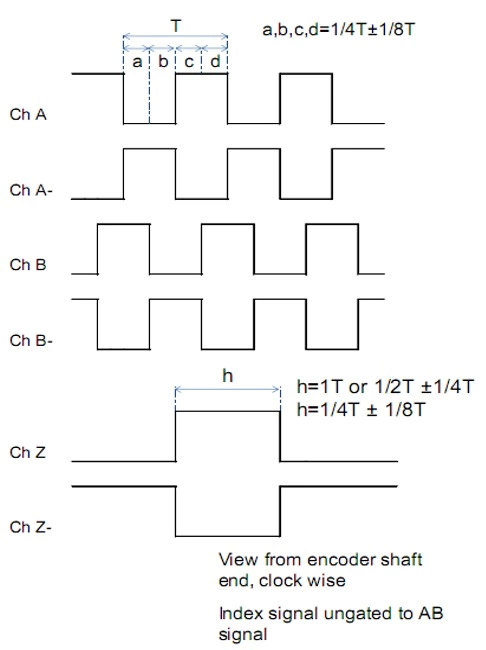

Output Waveform
