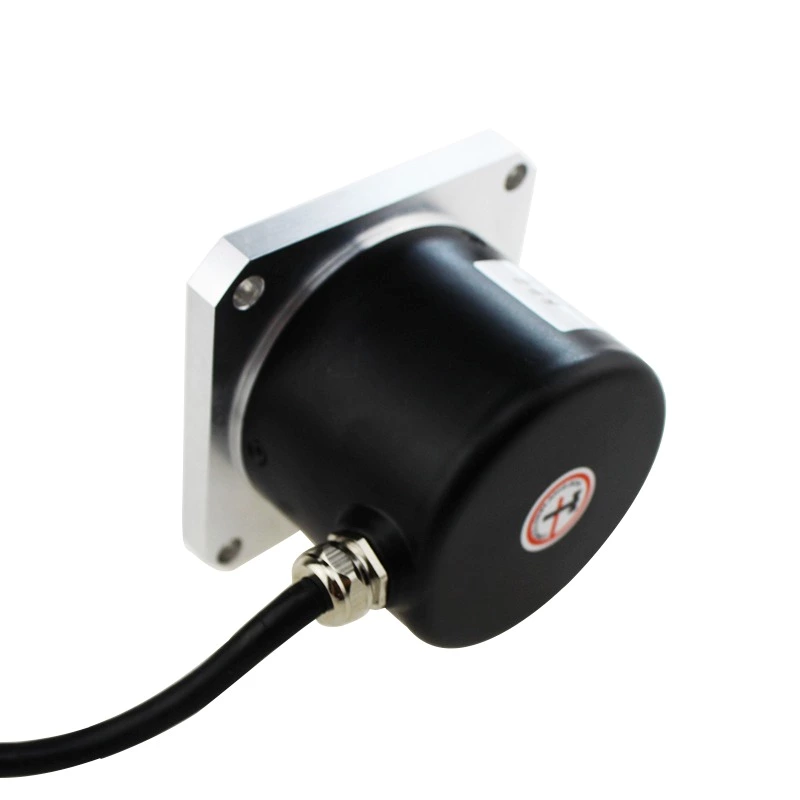

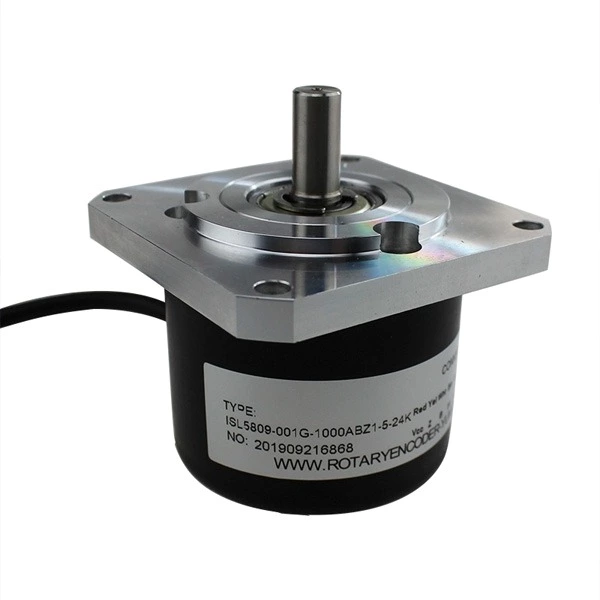

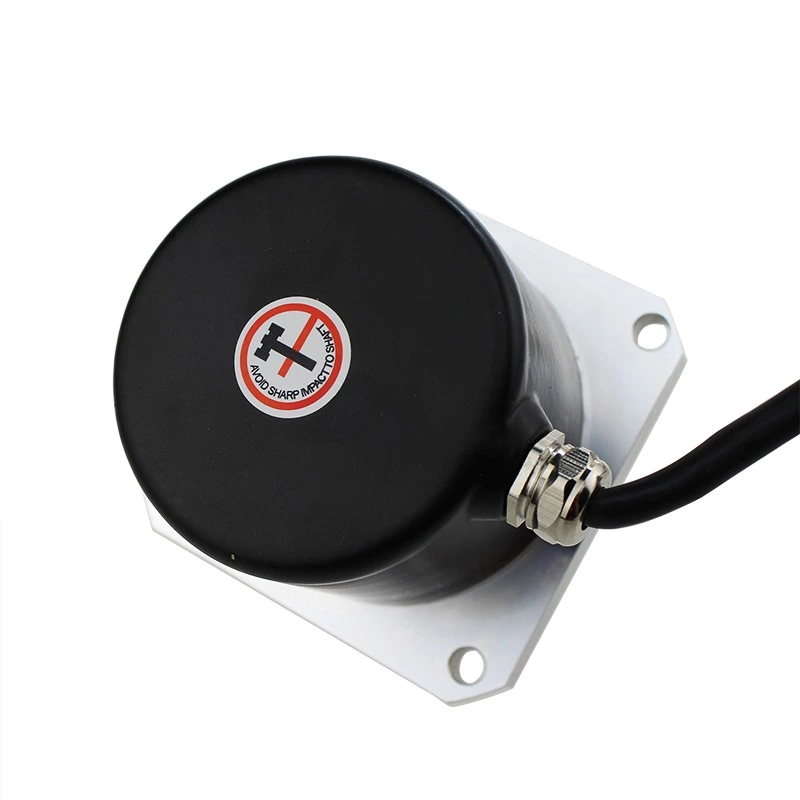

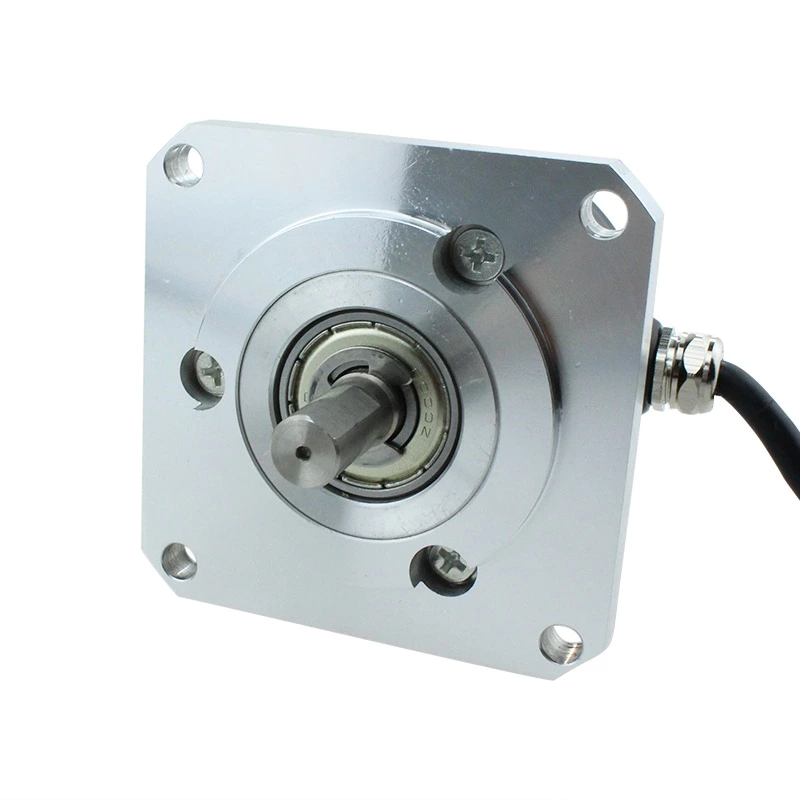

ISL5809 2 Quadrature Output Channel Flange Rotary Encoder

Model:
ISL5809-001G-1000ABZ1-5-24K

◆ Features ● Application in heavy duty, especially on CNC machine tools spindle ● 2 quadrature output channel (A&B) + index signal ● Resolution up to 4096 cpr ● Flange dimension 68*68

ISL5809 2 Quadrature Output Channel Flange Rotary Encoder
ISL5809 2 Quadrature Output Channel Flange Rotary Encoder
ISL5809 2 Quadrature Output Channel Flange Rotary Encoder
ISL5809 2 Quadrature Output Channel Flange Rotary Encoder
