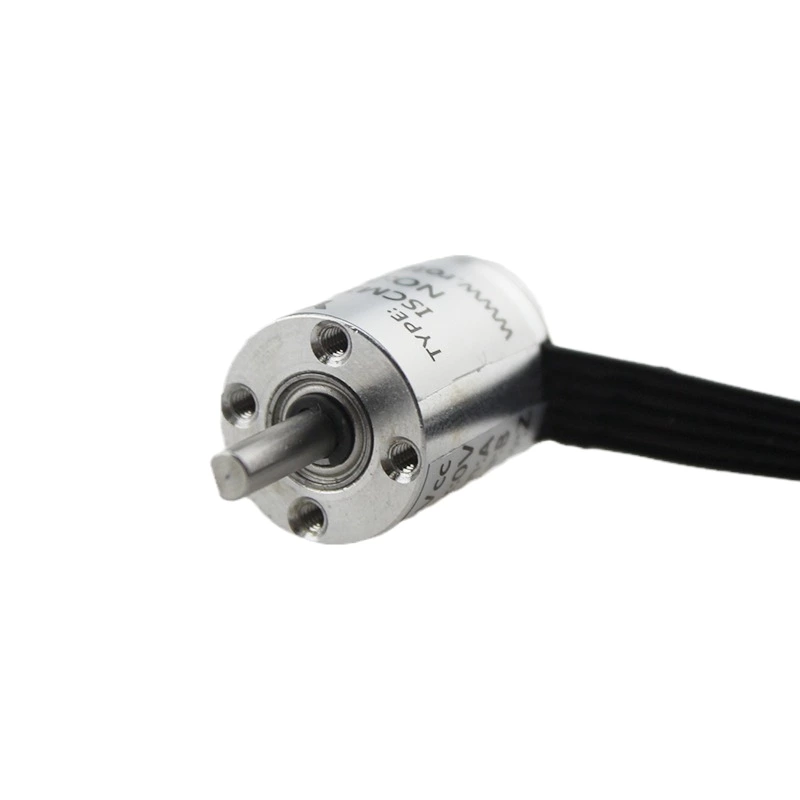

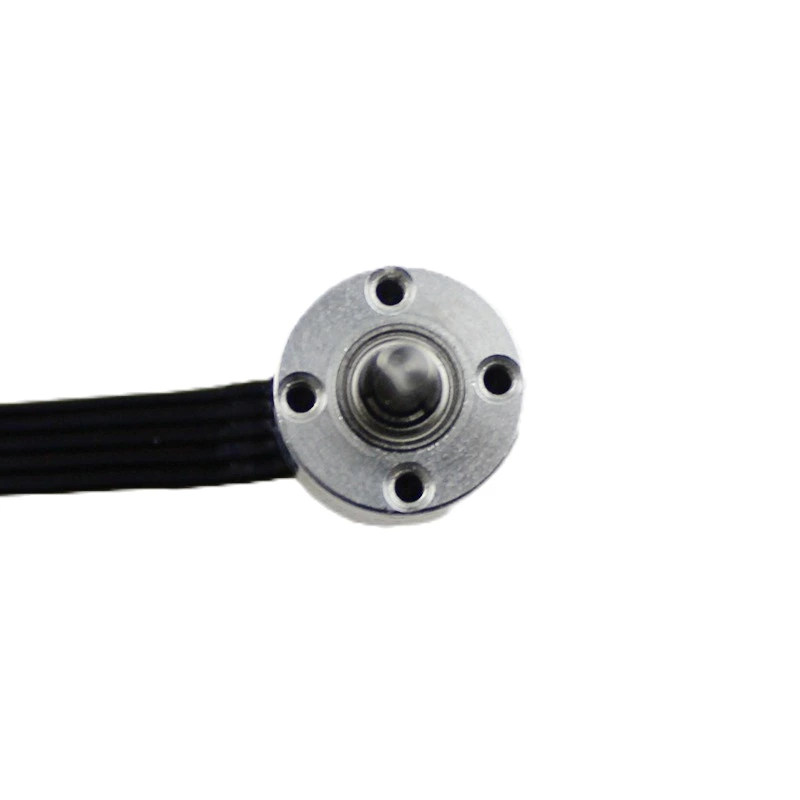

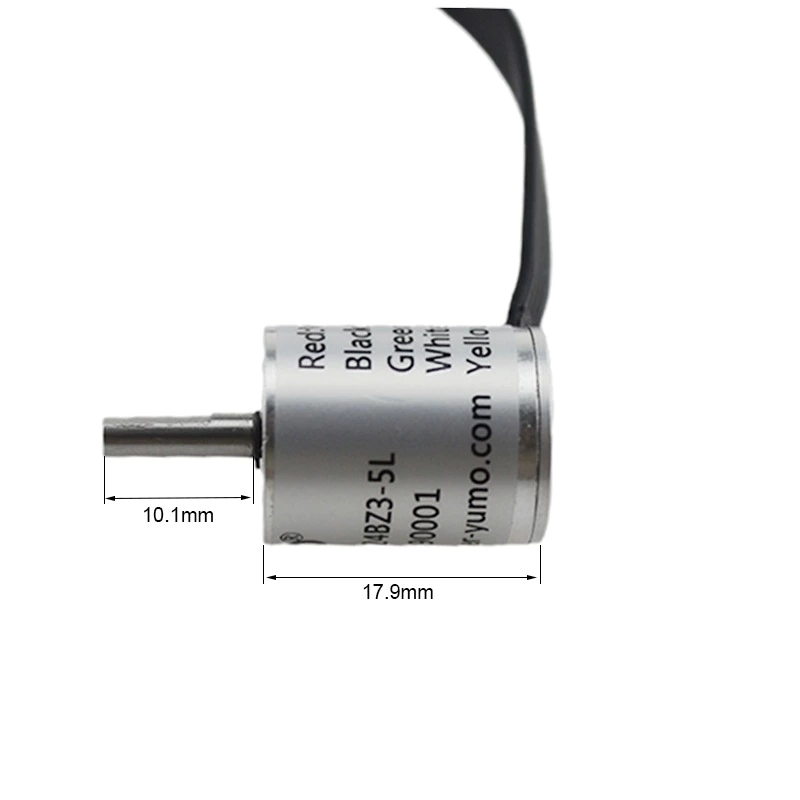

New Small Size Full Function High Frequency Response Rotary Encoder
- Model:
- ISCM14S3-1024BZ3-5L
Small size, full function, high frequency response, stable and reliable performance and long service life. Suitable for medical, detector and small space scenarios
New Small Size Full Function High Frequency Response Rotary Encoder
FEATURES:
1.Small size
2.Full function
3.high frequency response
4.Stable and reliable performance
5.Long service life
| Supply Voltage | 3.3-5V DC |
| Consumptive current | <20mA |
| Shell material | Aluminium |

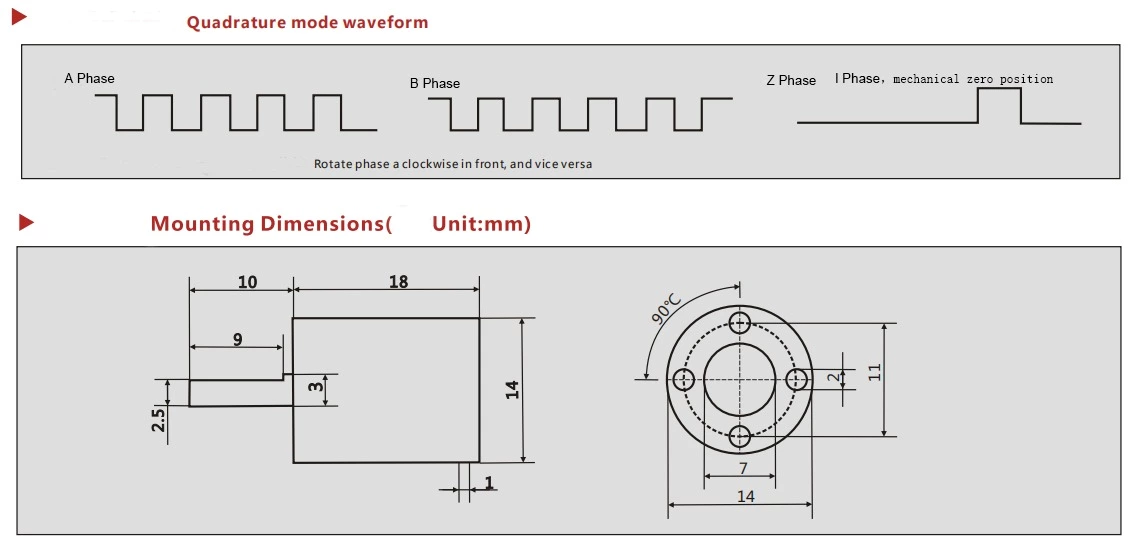

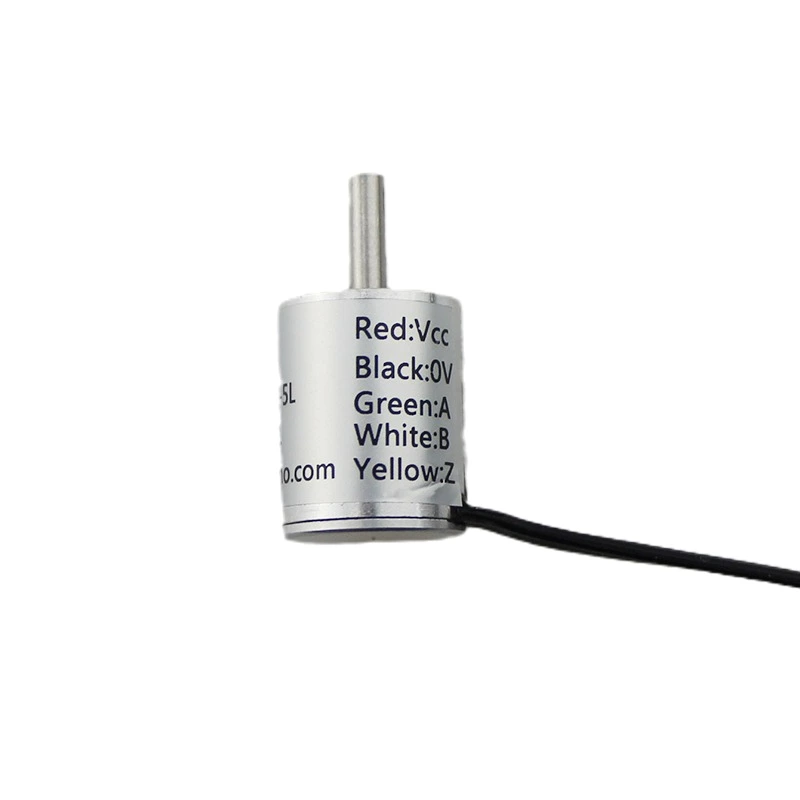

| Output Phas | A / B / Z phase (orthogonal) |
| resolution ratio | 1024P/R |
| Output capacity | <30mA |
| Maximum response frequency | 10000rpm |
| Output phase difference | 90℃±45℃ |
| Response Time | 1.0μS |
