SSR-120DA DC To AC Solid State Relay
- Model:
- SSR-120DA
Used in computer peripheral interface equipment, electric furnace heating, thermostat equipment, CNC machinery, industrial automation equipment, signal lights, stage lighting lighting control equipment instrumentation,Medical equipment, photocopiers, plastic machinery, air conditioners, washing machines, in addition to chemical, coal and other explosion-proof, moisture, anti-corrosion occasions have a large number of use, as a substitute for electromagnetic relay The ideal product for AC contactor

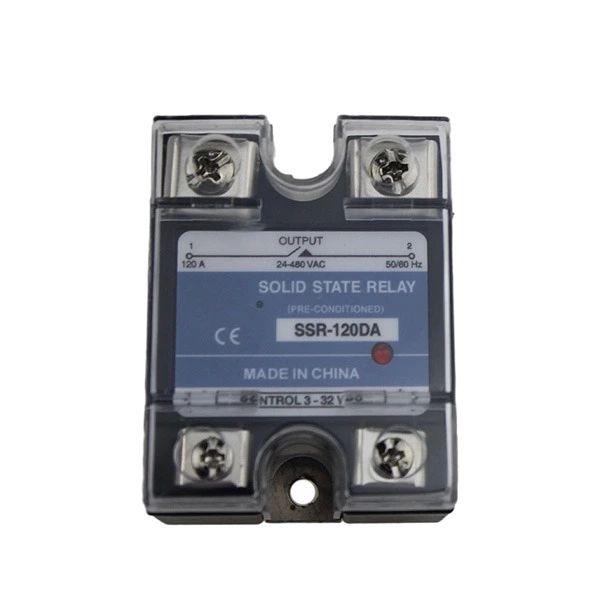

SSR-120DA solid state relay
Features:
*Single phase solid state relay, similar to Omron housing
*Input: 3-32Vdc
*Load: 10-120 amps 480Vac, with maximum load at 24 amps using proper heatsink
*Built-in RC Snubber circuit
*CE comply
*Size 45mm*57mm*31mm
*Mounting, panel mount, DIN rail mount availble with DIN clamps attached to it
*LED status indication. 12 months warranty,
*Private label service avaialble, we have in house laser printing machine ,we can print your logo and item number on the housing.
Technical Parameters:
| SSR-120DA | |
| Load Current | 120A |
| Load Voltage | 24-480VAC |
| Control Voltage | 3-32VDC |
| Control Current | DC3-25mA |
| On voltage | ≤1.5V |
| Off Leakage Current | ≤2mA |
| On-off Time | ≤10ms |
| Dielectric Strength | 2500VAC |
| Insulation Resistance | 1000M/500VDC |
| Ambient Temperature | -30~+75 |
| Mounting Methods | Bolting |
| The work instructions | LED |
| Weight | 100g |
