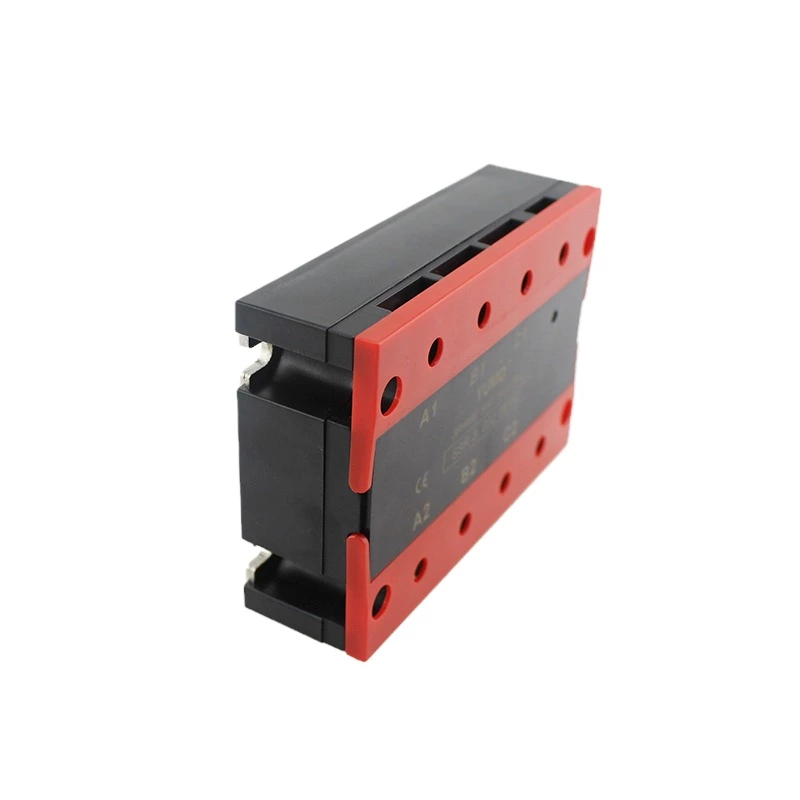

Three Phase Solid State Relay Aluminum Base Black Body with Red Cover
- Model:
- SSR-3 032 3810Z
Solid state relay product application: Used in computer peripheral interface equipment, electric furnace heating, thermostat equipment, CNC machinery, industrial automation equipment, signal lights, stage lighting lighting control equipment instrumentation,Medical equipment, photocopiers, plastic machinery, air conditioners, washing machines .
Three Phase Solid State Relay Aluminum Base Black Body with Red Cover
Product performance and characteristics
1. Wide input voltage range, small control current, less than or equal to 10mA;
2. No mechanical action parts, long service life and high reliability;
3. Fast switching speed, zero voltage on, zero current off, low RF interference;
4. Built in resistance capacitance absorption to protect the impact of the product on the starting instant current;
5. Photoelectric isolation between input and output circuits, with insulation withstand voltage of 2500V;
6. The product is small in size and filled with epoxy resin, which is shockproof, moisture-proof and corrosion-resistant
| Model | SSR-3 032 3810Z |
| Input | DC3-32V |
| Output | AC380V |
| Rated output current | 10A |
| Dielectric Strength | Input - output - floor ≥2500VAC |
| Insulation Resistance | 1000M/500VDC |
| Ambient Temperature | -30℃~+75℃ |
| Box Size | 11*8*4cm |
