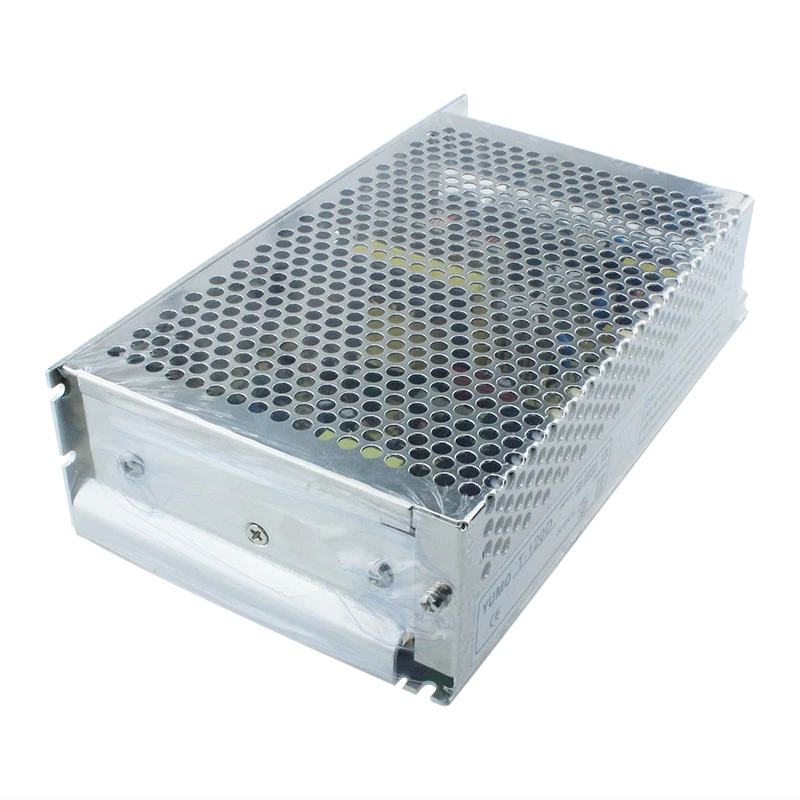

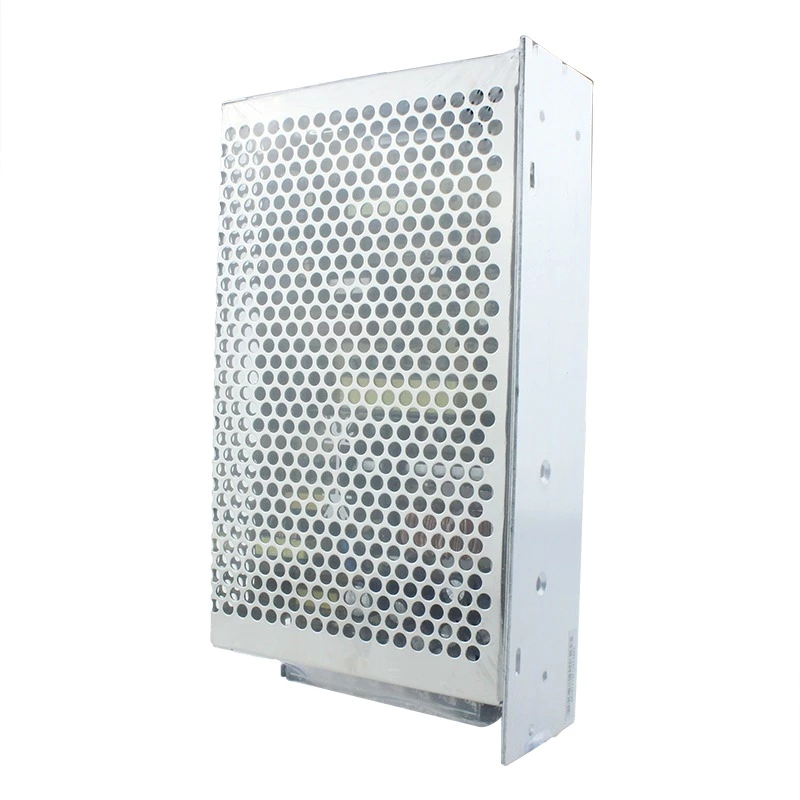

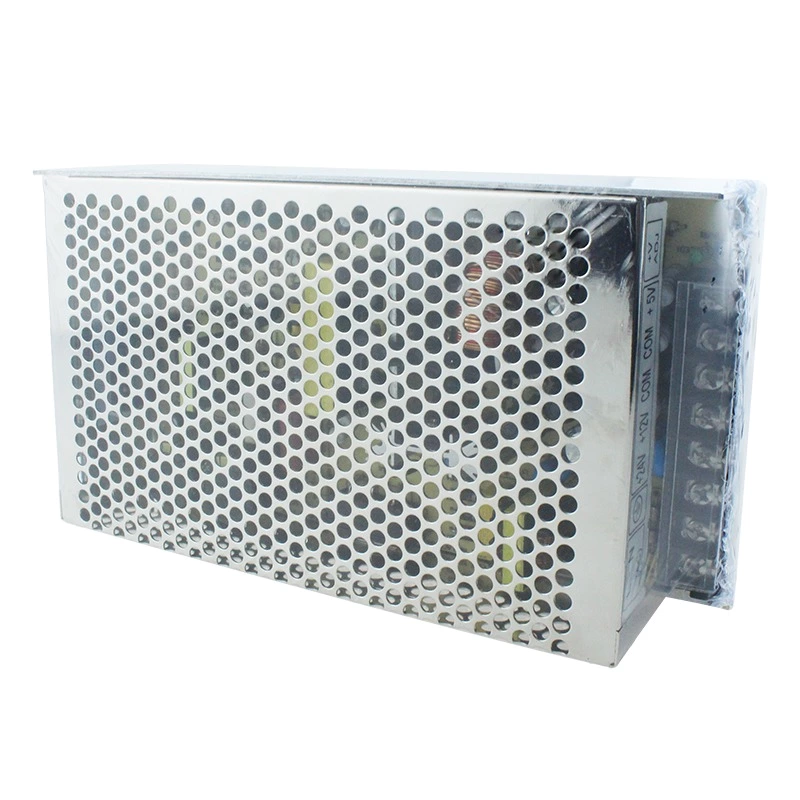

T-120D 120W Triple Output Smps 15amp Ac Switching Power Supply
- Model:
- T-120D
Switch Mode Power Supply (SMPS), also known as switching power supply and switch converter, is a high-frequency power conversion device and a kind of power supply. Its function is to convert a standard voltage into the voltage or current required by the user through different forms of architecture. The input of switching power supply is mostly AC power supply (such as mains power) or DC power supply, while the output is mostly equipment requiring DC power supply, such as personal computer, and the switching power supply converts the voltage and current between the two.
| Model | T-120D | ||
| CH1 | CH2 | CH3 | |
| DC output voltage, current | 5V 2-12A | 12V 0.2~0.5A | 12V 0.2~2A |
| Wave and noise | 80mVp-p | 120mVp-p | 180mVp-p |
| Inlet wire stability | ±0.5% | ±1% | ±1% |
| Load stability | ±0.5% | ±5% | ±5% |
| Efficiency | 80% | ||
| Adjustable range for DC voltage | CH1:±10% | CH1:±5% | CH1:±5% |
| Input voltage range | 90~ 132VAC/180~ 264VAC by switch 254 ~ 370VDC 47 ~ 63Hz | ||
| Impact current | Cold start current 30A/1 15VAC 60A/230VAC | ||
| Overload protection | 105% ~ 150% cut off the output, automatic recovery | ||
| Over voltage protection | CH1:115~ 135% shut down O/P voltage, re-power on to recover | ||
| Setup, rise, hold up time | 200ms, 50ms, 16ms/230VAC at full load | ||
| Withstand voltage | I/P- -O/P: 1.5kV I/P. -FG:1 .5kV O/P-FG: 0.5kV 1minute | ||
| Isolation resistance | I/P- -O/P I/P- -FG O/P- FG: 500VDC/100MQ | ||
| Working temperature | -10°C~ +50°C | ||

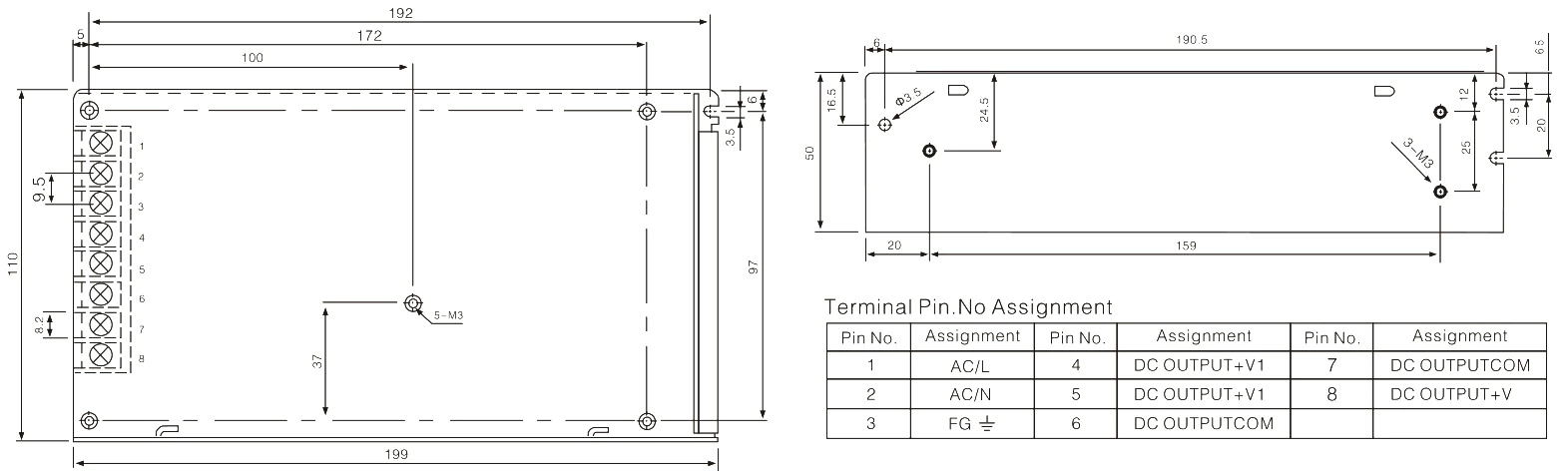

| Overall dimension(mm) | |||
 |
|||
