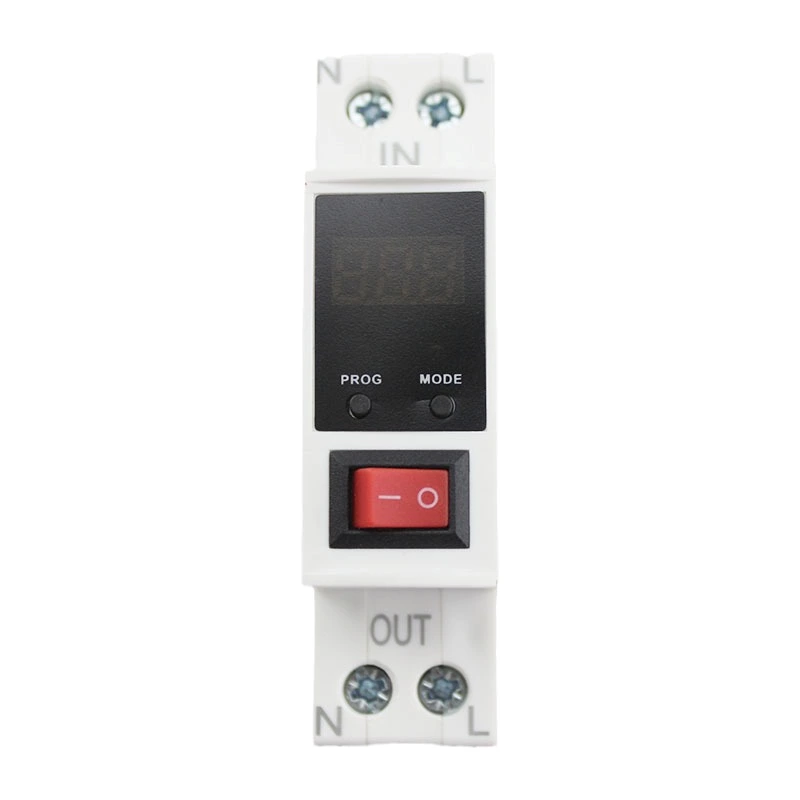

NP1-A OVERVOLTAGE AND UNDERVOLTAGE PROTECTOR 40/63A 185~300VAC
- Model:
- NP1-A
An OVERVOLTAGE AND UNDERVOLTAGE PROTECTOR is an electrical equipment protection device that triggers a protection mechanism when voltage exceeds or falls below a preset value. It is mainly used to prevent voltage fluctuations from damaging electrical equipment or causing safety hazards.In power systems, voltage fluctuations are always inevitable. In the case of overvoltage, equipment may suffer electrical shock or burnout, while in the case of undervoltage, equipment may fail to operate. The OVERVOLTAGE AND UNDERVOLTAGE PROTECTOR can automatically monitor voltage and trigger a protection mechanism when the voltage exceed the set range, cutting off the circuit and protecting the electrical equipment.The OVERVOLTAGE AND UNDERVOLTAGE PROTECTOR is widely used in various fields, such as power systems, industrial automation, building automation, and traffic signal control systems. It is characterized by easy installation, convenient operation, high sensitivity, fast response and efficient equipment protection, preventing voltage fluctuations from damaging electrical equipment.
NP1-A OVERVOLTAGE AND UNDERVOLTAGE PROTECTOR
Technical Parameter
| Rated supply voltage | AC 220V |
| Rated frequency | 50/60Hz |
| Reset/Start Delay | 1~600S |
| Rated Insulation Voltage | 400V |
| >U And <U Trip Delay | 0.5S |
| Output contact | 1NO |
| Mechanical life | 1000000 |
| Pollution Degree | 3 |
| Proection Degree | IP20 |
Product Description:
The OVERVOLTAGE AND UNDERVOLTAGE PROTECTOR is an essential tool for any business looking to protect their valuable equipment and machinery from electrical damage caused by voltage fluctuations. This device provides reliable and effective protection against overvoltage and undervoltage, ensuring that your equipment operates safely and efficiently.
Features:
- High accuracy protection against overvoltage and undervoltage
- Easy installation and user-friendly interface
- Robust construction for long-lasting performance
- Ideal for a wide range of applications, including manufacturing, automation, and power distribution
Benefits:
- Protects your equipment from electrical damage caused by voltage fluctuations
- Improves equipment efficiency and prolongs its lifespan
- Reduces downtime and maintenance costs
- Ensures safety for your employees and the workplace
- Boosts productivity and profitability
Applications:
- Manufacturing processes
- Automation systems
- Power distribution systems
- Medical equipment
- HVAC systems
- And more!
Upgrade your business and protect your valuable equipment with the OVERVOLTAGE AND UNDERVOLTAGE PROTECTOR. Contact us today to learn more!
