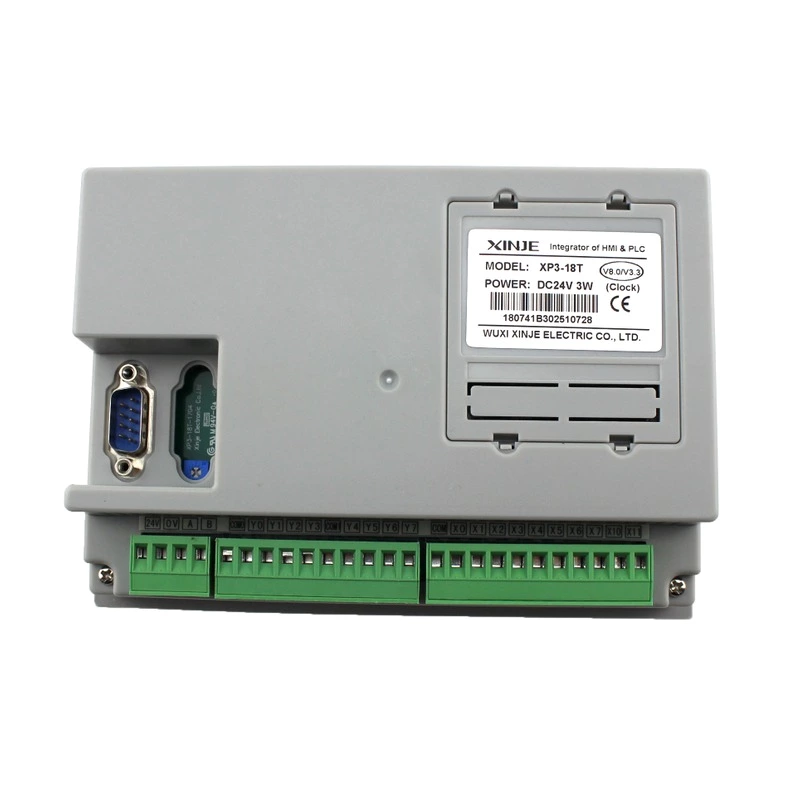

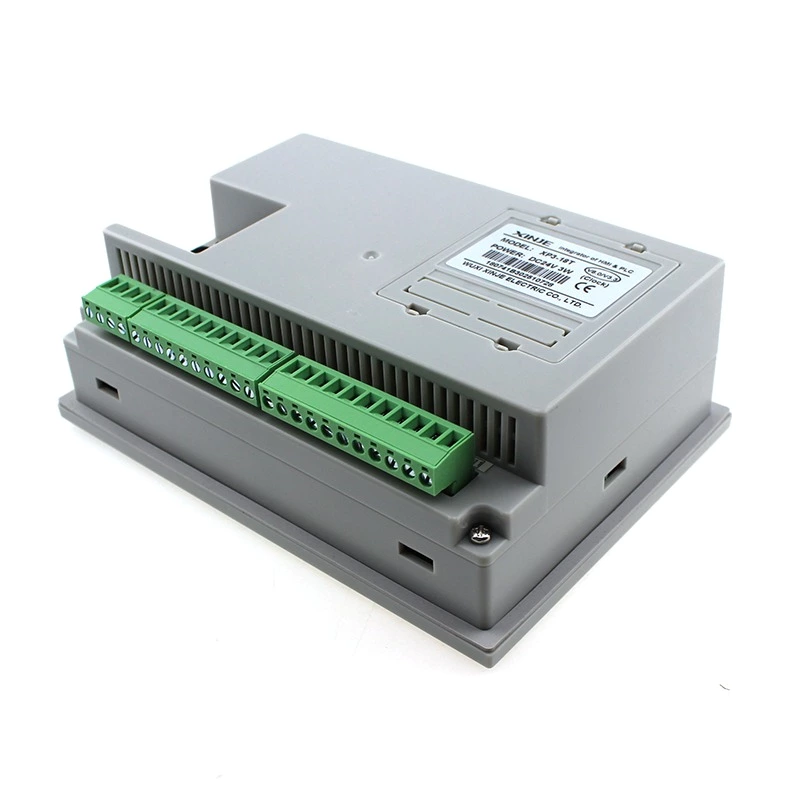

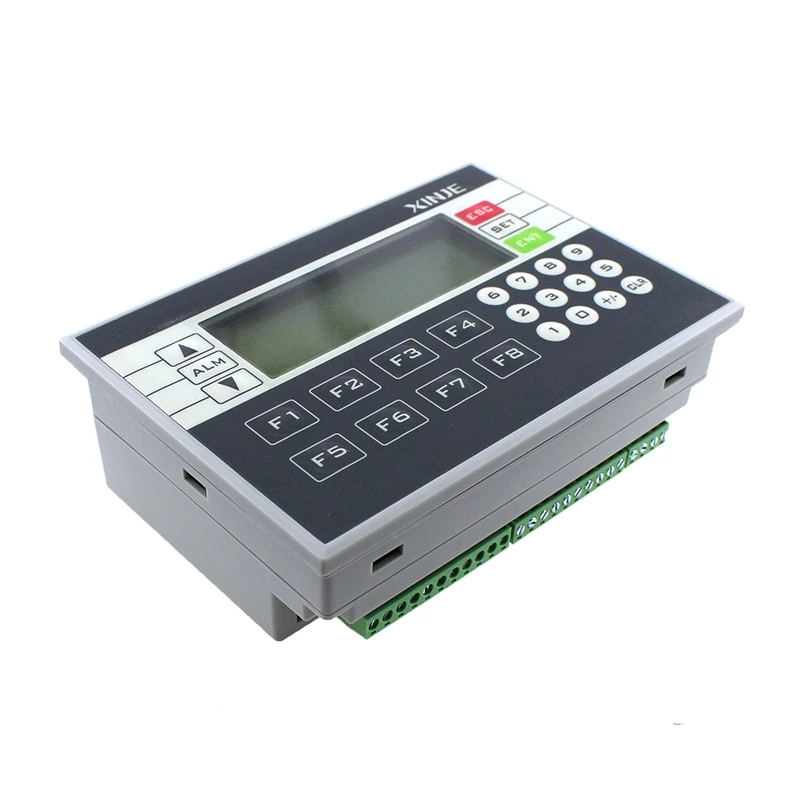

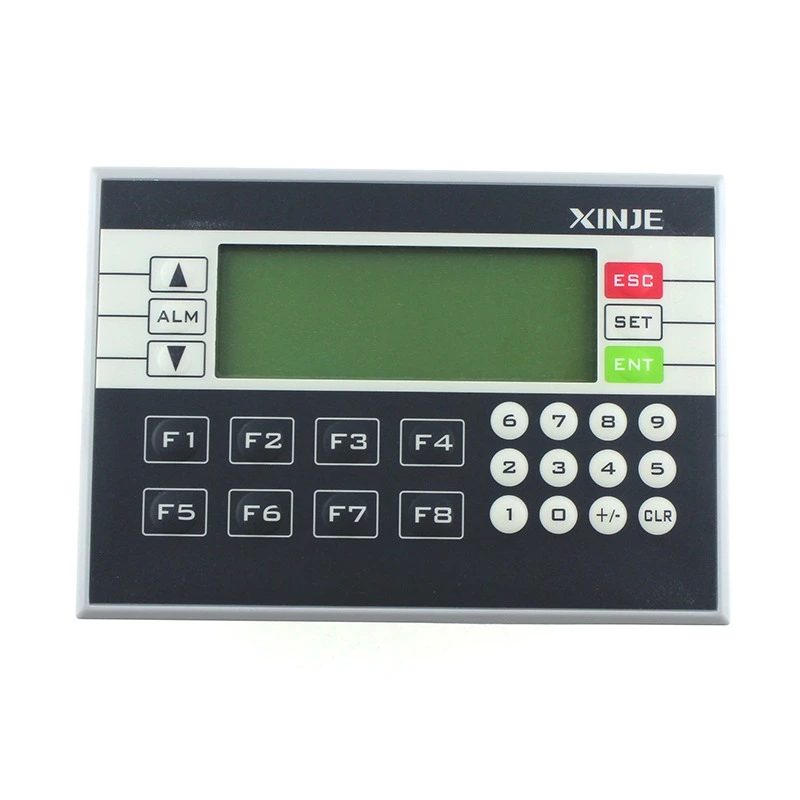

XP3-18t Xinje Series Programming Interface Text Panel PLC+HMI
- Model:
- XP3-18RT
- Brand:
- XINJE
Integrated PLC & HMI, owns the same functions as XC3 series, 3.7 inch blue LCD Digital input:10 points/optical couple isolated Digital output: 8 points/(relay,transistor) Easy edit, abundant functionsv LCD display: 192×64 pixel use life up to 20000 hours Functional keys up to 26 Delicacy and precise keys Use the same cable to Compile for HMI and PLC Compact configure, save more space
Specifications:
| Input voltage | DC12V-DC24V |
| Current Consumption | Less than 10W (TYP2.0W) |
| Allowable Momentary Power-cut | Less than 20ms |
| Voltage Endurance | AC1000V-10mA 1 minute (signal and ground) |
| Insulated Resistance | DC500V-about 10MΩ (signal and ground) |
| Operation Temperature | 0~50ºC |
| Storage Temperature | -10~60ºC |
| Ambient Humidity | 20~85%(Non-condensing, dry bulb) |
| Vibration Resistance | 10~25Hz (X,Y,Z directions for 30 minutes 2G) |
| Interference Rejection | Noise voltage: 1000Vp-p |
| Atmosphere | Free of corrosive gas |
| Protect Configuration | IP65F |
Series Model:
XMP2-32T-E
XMP2-32RT-E
XMH3-30RT-E
XP1-18R-C
XP1-18RT-C
XP1-18T-C
XP2-18RT
XP3-18RT
XP3-18R
XP3-18T-C
XP3-16RT
XP3-16RT-E
XP-4AD2DA-BD2
XP-4AD-BD
XP-3AD3PT-BD2
XP3-2AD2PT-BD
