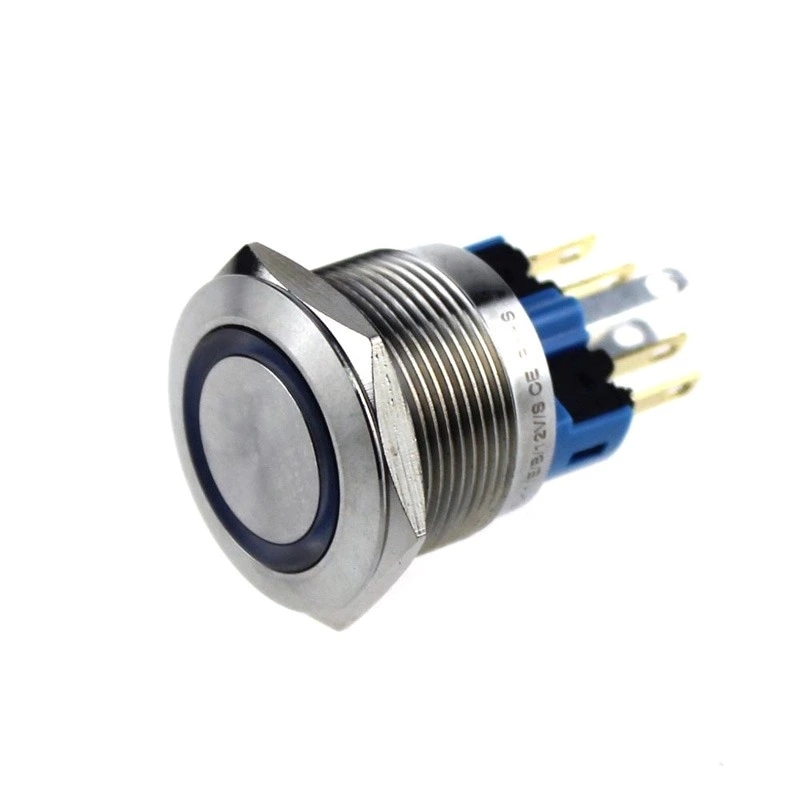

22mm install size ABS22S-P11Z-E latching IP67 push button switch
- Model:
- ABS22S-P11Z-E
Metal Switch Features
-
With the stability of the connection performance,the use of security equipment.
-
Beautiful,high end ,fashion design
-
Medical grade imported stainless stell material,environmental is beautiful with no rust.
-
Protection performance IP67,waterproof,dust can be competent for the harsh environment.
-
Compact design,compact size,can be used for any small equipment.
22mm install size ABS22S-P11Z-E latching IP67 push button switch
| ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
| Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
| 08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
| 12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
| 16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
| 19mm | C:Power mark | W:White | 24V | ||||
| 22mm | 00:Four bit terminal | 36V | |||||
| 25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
| 110V | |||||||
| P:Plastics | 120V |
| Parameter | ABS22S-P11Z-E |
| Diameter | 22mm |
| Switch Rating | 5A/250VAC |
| Contact Configuration | 1NO |
| Operation Type | Latching |
| The Front Shape | flat |
| The Crust Material | Stainless steel/ Copper plating |
| IP Degree | IP67, IK10 |
