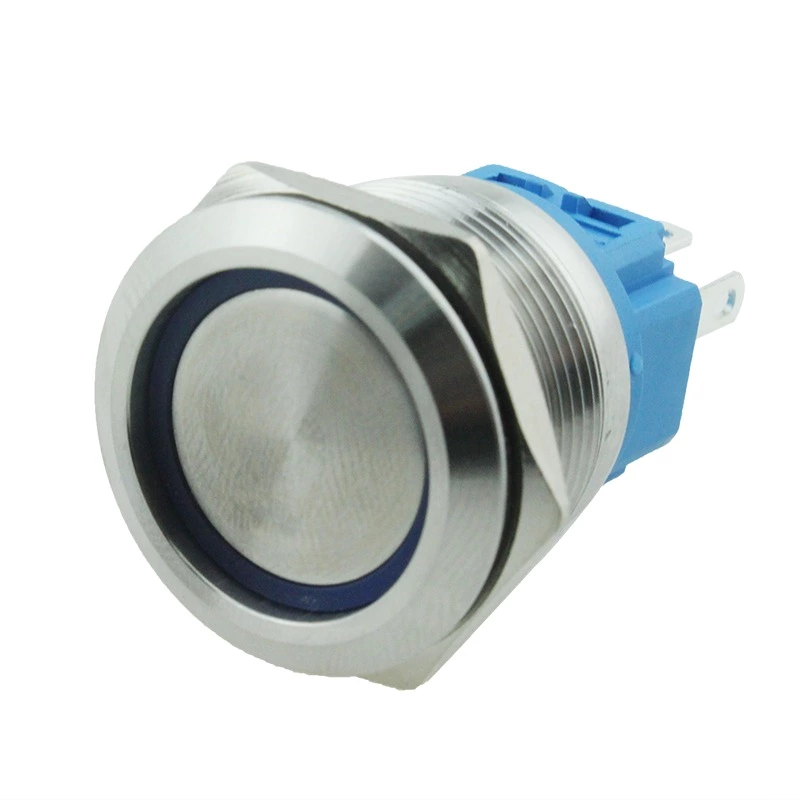

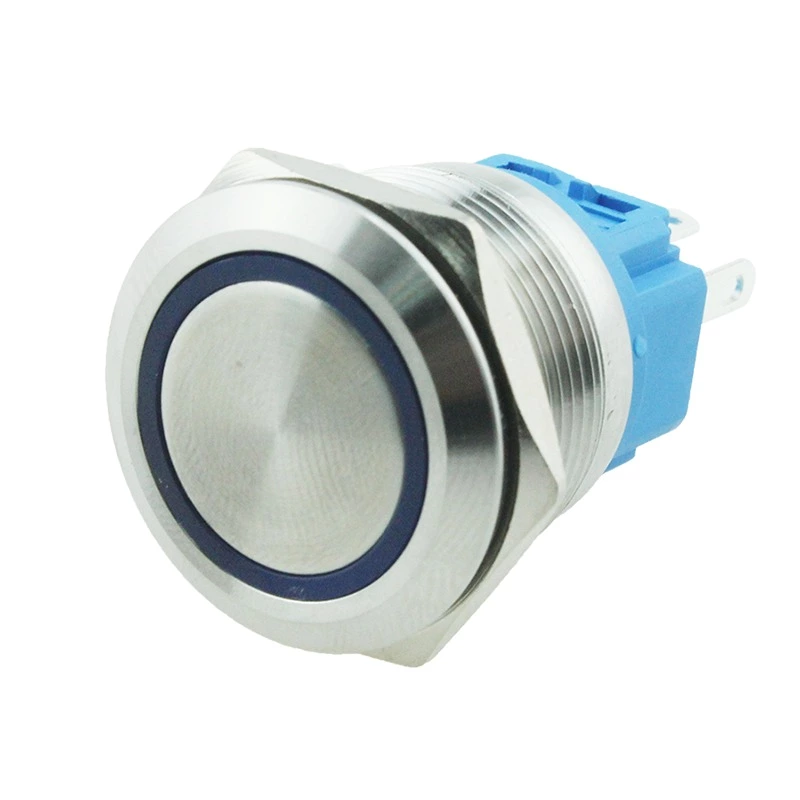

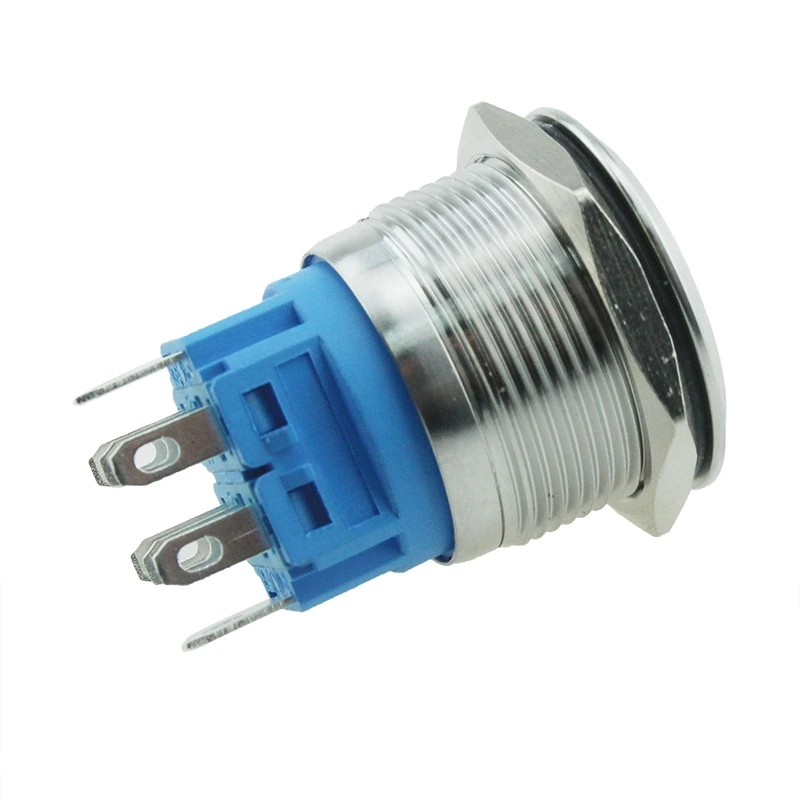

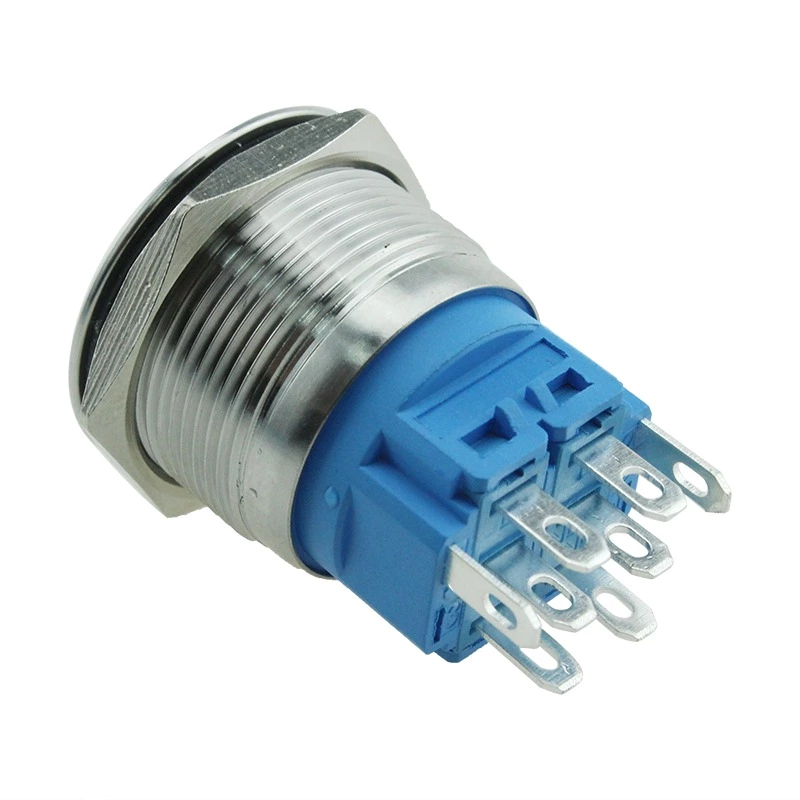

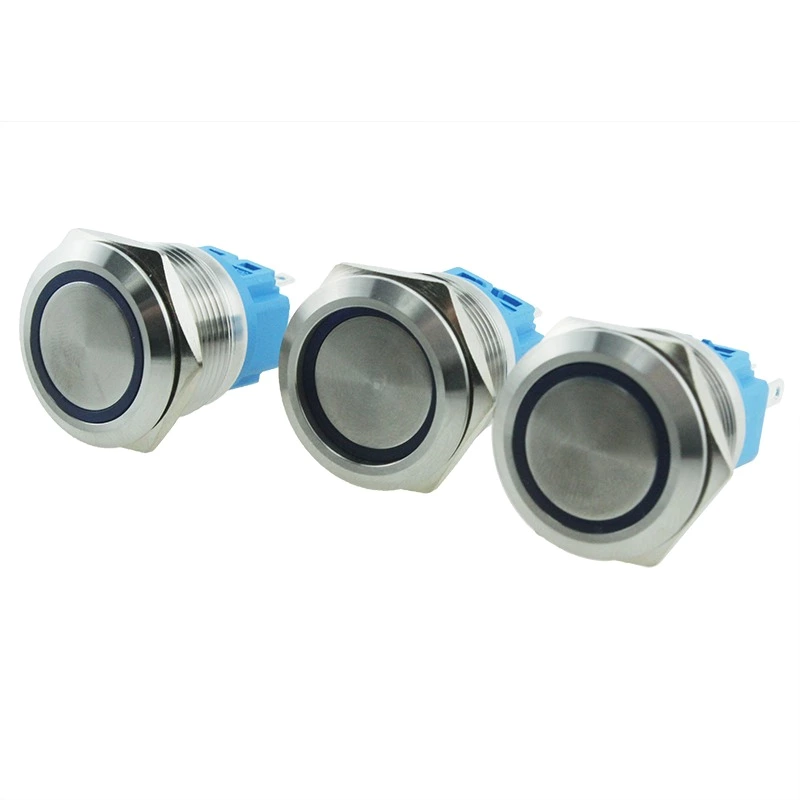

ABS22 IP67 22mm Stainless Steel Maintain Waterproof Ring Led Illuminated Metal Push Button Switch
- Model:
- ABS22S-P22-E-B-5Z
Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
| ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
| Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
| 08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
| 12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
| 16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
| 19mm | C:Power mark | W:White | 24V | ||||
| 22mm | 00:Four bit terminal | 36V | |||||
| 25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
| 110V | |||||||
| P:Plastics | 120V |
| Switching Operation | |||
| Type | Diagram | sign | Explanation |
| 1NO |  |
 |
Double breakpoint slow moving contact switch with two terminals |
| 1NO 1NC |  |
 |
Single breakpoint snap change contact switch with three terminals |
| 1NO 1NC |  |
 |
Double breakpoint snap change contact switch with four terminals |

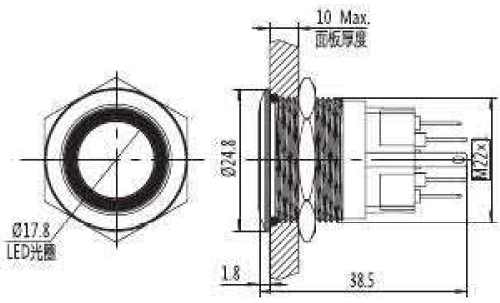

| Parameter | Dimensions(mm) | |
| Diameter | φ22mm |  |
| Color | R G Y O B W P | |
| Switch Rating | 5A/250VAC | |
| Contact Configuration | 2NO 2NC | |
| Operation Type | Momentary/Maintained(Z) | |
| The Front Shape | Flat | |
| Lamp type | Ring Illuminated(LED) | |
| The Crust Material | Stainless steel | |
| IP Degree | IP67,IK10 | |
