Metal Button Switch Metal Push Button Switch ABS22S-M11
- Model:
- ABS22S-M11
1.16A/250VAC,
2. Optional connector to ensure contact performance and reduce labor waste
3. Super metal texture and high-end appearance design, improve the ability to resist welding deformation
4. Mechanical life: up to 300,000 times, can work at -40℃~80℃
5. Has applied for a number of patents, CE certification
Features:
-
22mm diameter
-
Switch Rating:5A/250VAC
-
Contact Configuration:1NO1NC
-
Operation Type:Push-LockTurn-reset
-
The Front Shape:Ball
-
The Crust Material:Stanless Steel
-
IP Degree:IP65IK10

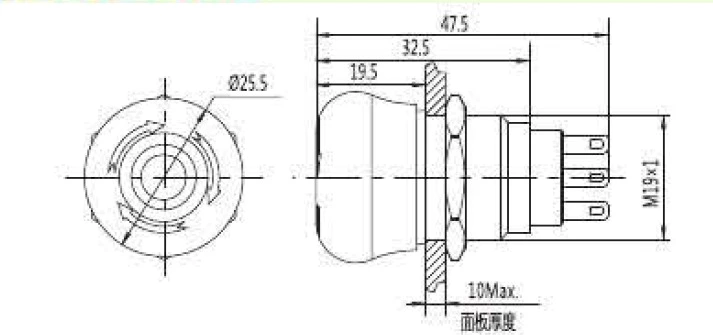

Dimemsions:
Technical Specifications
| Diameter | 22mm |
| Switch Rating | 5A/250VAC |
| Contact Contiguration | 1NO1NC |
| The Crust Material | S/Stainless steel |
| Operation Type | Push-LockTurn-reset |
| The Front Shape | Ball |
| Color | Red |
| Lightway | Arrow |
| Warranty | 1 year |
