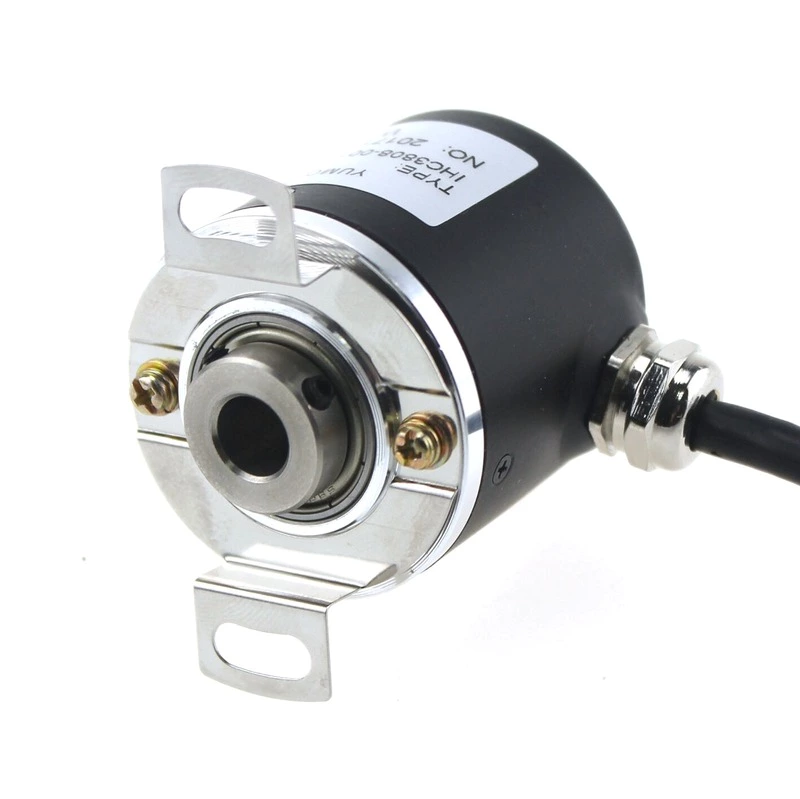

AHC3806 10bit 13bit output SSI hollow shaft Absolute Encoder
- Model:
- AHC3806
It is suitable for automated measurement and automatic control system. it can measure angular displacement and placed speed. And can be measured values in circulation binaries or natural binaries to output
◆ Application
● Automated measurement and automatic control system . Measure the angular displacement and placed speed. The measured value could be output with naturel binaries by the encoder.
◆ Features
● High strong anti-interference , won’t be affect by power off or system shut off and start
● Dust proof, and moisture proof, high shock and vibration resistance

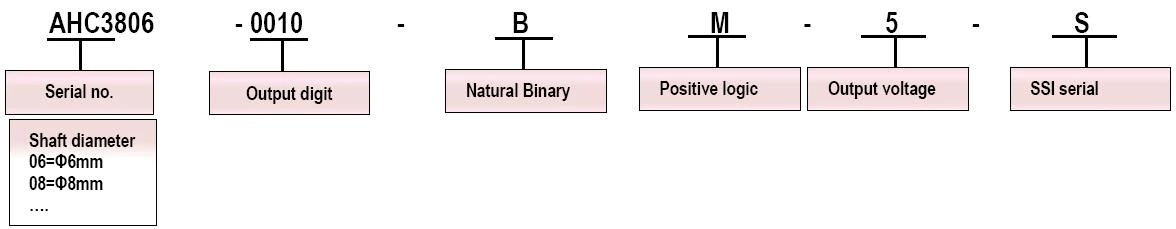

◆Code specification:
◆Specification parameter:
| code | Bit | Point for Round | Angle Distinguish | Output Code | Carry Direction | Accuracy |
| AHC3808-S01G0013 | 13 | S192 | 360°/213 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
| AHC3808-S01G0012 | 12 | 4096 | 360°/212 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
| AHC3808-S01G0011 | 11 | 2048 | 360°/211 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
| AHC3808-S01G0010 | 10 | 1024 | 360°/210 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
◆Electrical parameters：
| Classification project |
power voltage | Outcoming signal | current consumption | output Waveform | Rise/Fall Time | Response Frequency | Insulation Resistance | ||
| High level(v) | Low level(v) | permissible Injection current | ＜100mA | ＜US | 0-1m | ＞100mΩ | |||
| Absolute Code | 5 | ≥2.5 | ≤1 | mA | |||||
◆CONNECTION TABLE
| Cable color | Red | Bla | Green | White | Yellow | Brown | Grey | orange | Shield |
| Signal(voltage) | Vcc | ov | Clock | Date | Spare | - | - | Spare | shell |
| Signal(Drive TTL) | Vcc | ov | Clock | Date | Spare | - | Spare | shell |
◆Mechanical characteristics：
| Permissible mechanical revolution | Starting torque25° | Axial load | |
| 0-6000r/min | 2×10-3N/m | Axial direction | Radial direction |
| 10N | 20N | ||
◆Environmental parameter：
| Working temperature | Storage temperature | Relative humidity | Shock resistance | Vibration proof |
| -25～80℃ | 30～85℃ | 30～85％ | 30m2/s(10-200Hz,x,y,z) | 30m2/s(11ms,x,y,z) |

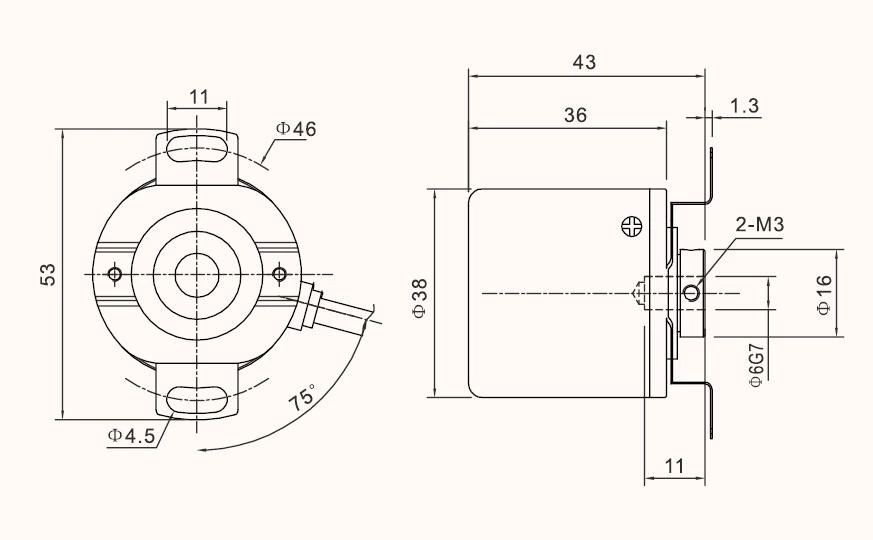

◆Drawing：
