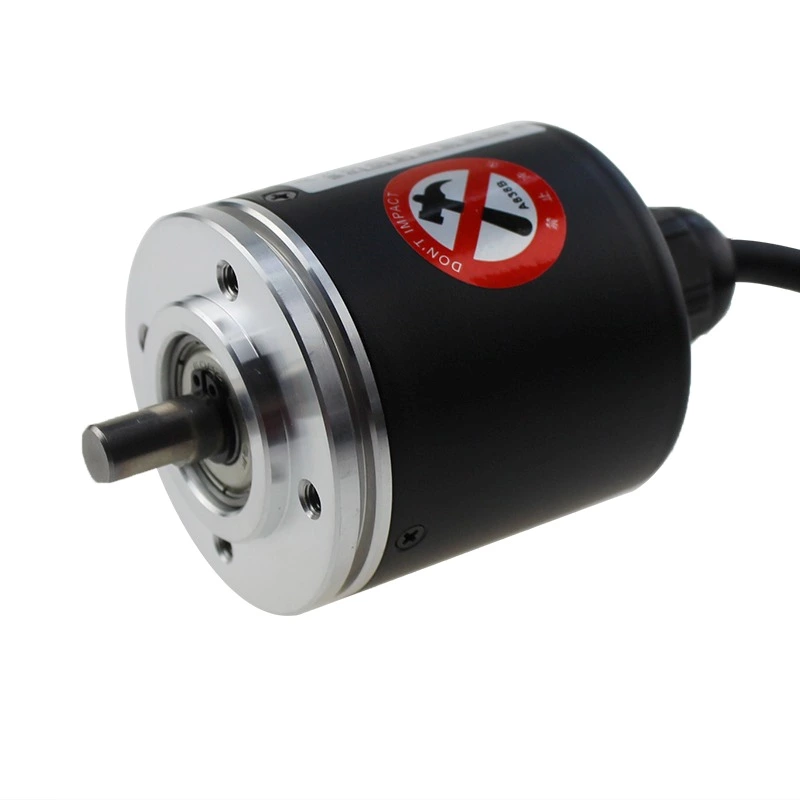

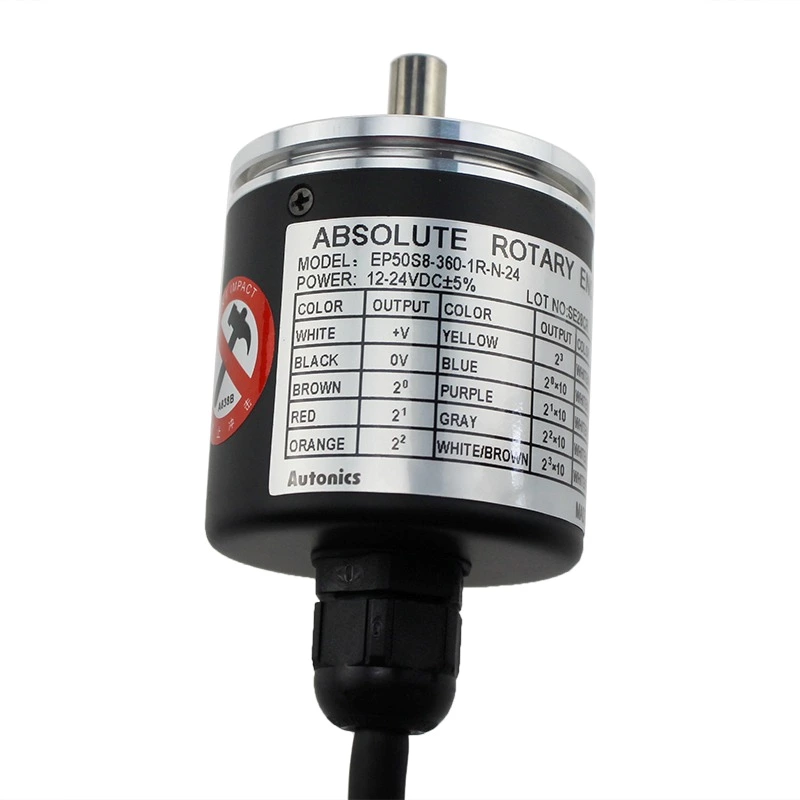

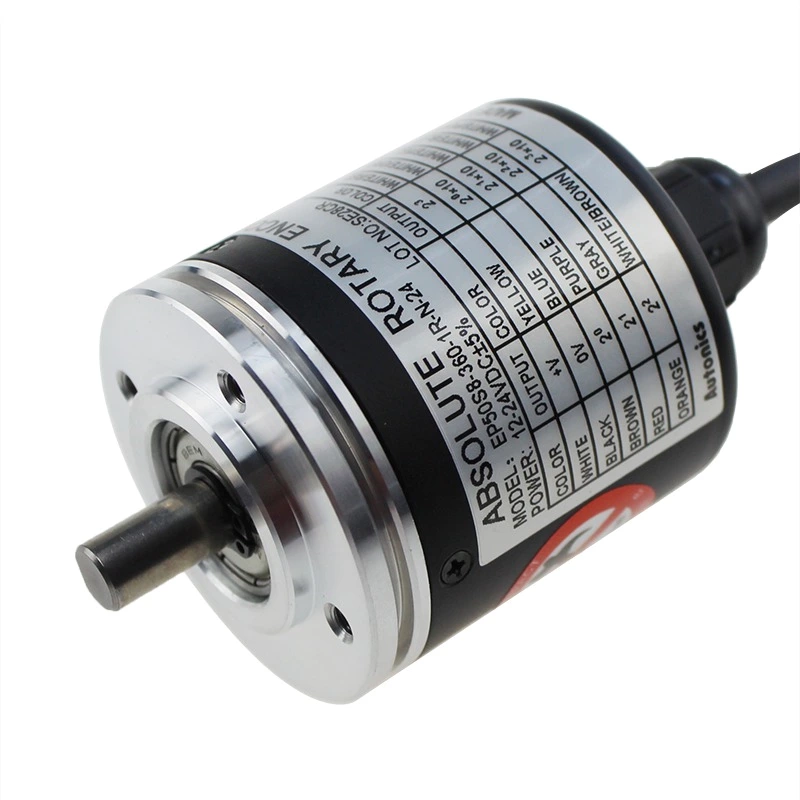

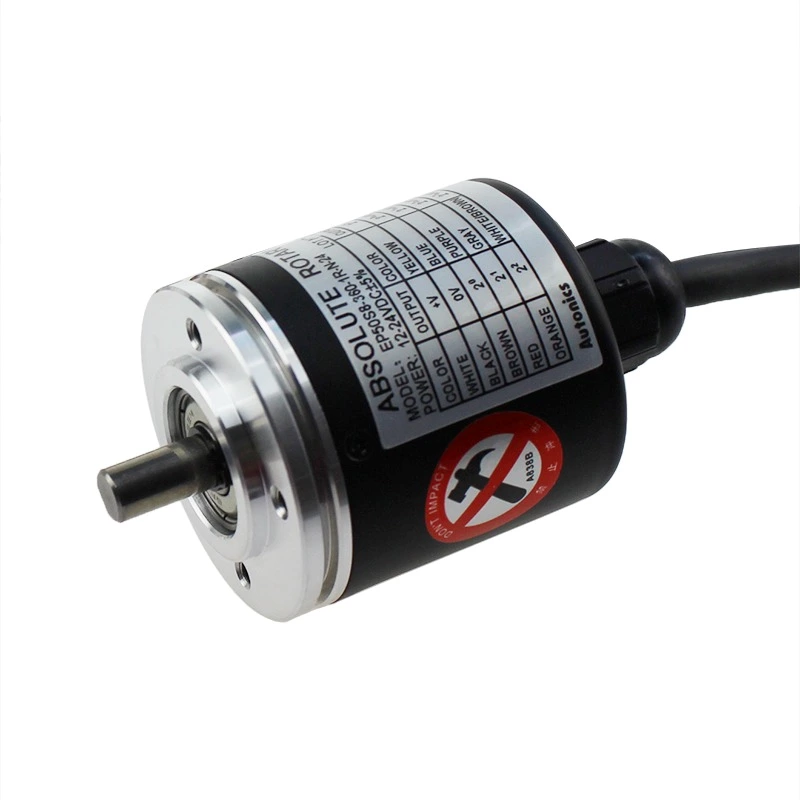

EP50S8 Diameter 50mm 360ppr IP64 Shaft Type Absolute Rotary Encoder
- Model:
- EP50S8-360-1R-N-24
- Brand:
- Autonics
Compact size of external diameter ø50mm Various output code: BCD, Binary, Gray code Various and high resolution(720, 1024 divisions) Protection structure IP64(Dust-proof, Oil-proof)
| Specifi cations | |
| Series | Diameter ø50mm, shaft type |
| Shaft diameter | ø8mm |
| Pulse/ 1Revolution | 360ppr |
| Output code | BCD Code |
| Revolution direction | Output value increase at CCW direction |
| Output | NPN open collector output |
| Power supply | 12-24VDC±5% |
| Ambient temperature | -10~70℃, Storage: -25~85℃ |
| Protectio | IP64 |

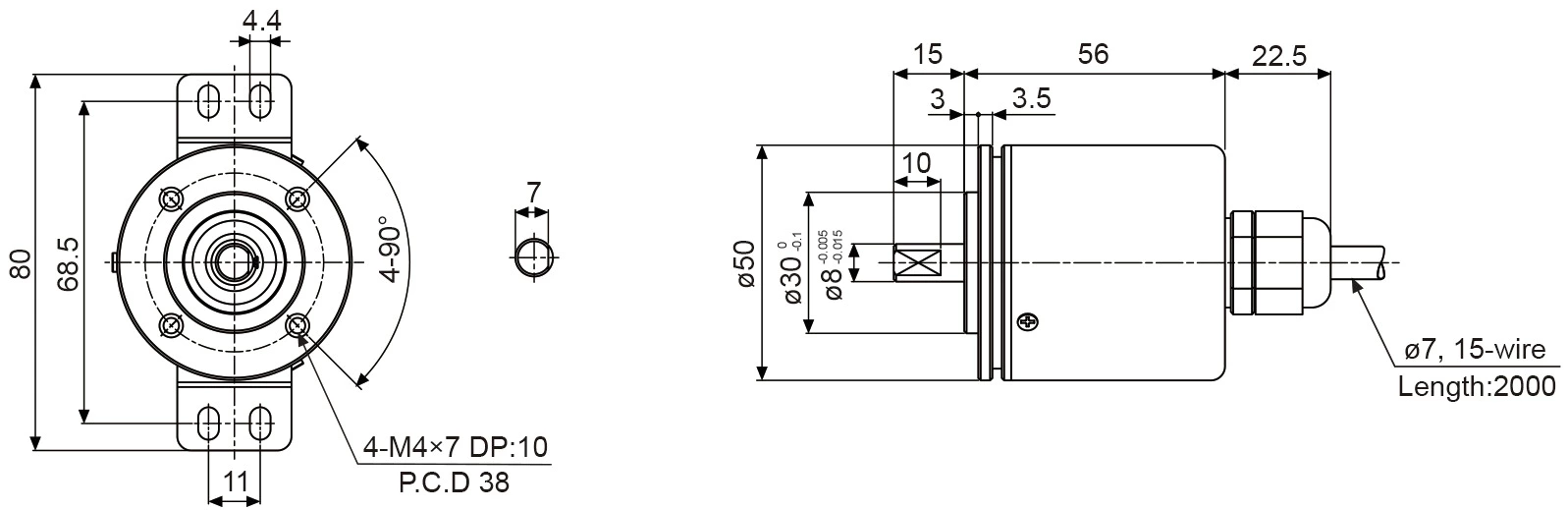

| Dimensions (mm) | |
 |
|
