KS-C2G 4 Wires Photoelectric Color Mark Sensor
- Model:
- KS-C2G
KS series color mark sensor will emit light rays to scan the detected surface,and can identify the different color marks through receiving different intensity of light reflected back from different colors on the surface. Coaxial optical design,more adaptable to surfaces of high-reflectance(such as Aluminum foil) With light sources of blue,green,red,and various other colors for selection,more accurately to identify various colors. Small light spot,excellent resolution. Short response time of 0.1~1ms,can adapt to control demand of various packaging machines,bagging machines and printing machines. Outstanding internal circuit design that can resist various electromagnetic and optical interference,has stability and no error action. With sensitivity adjustment knob,need no tool to adjust.

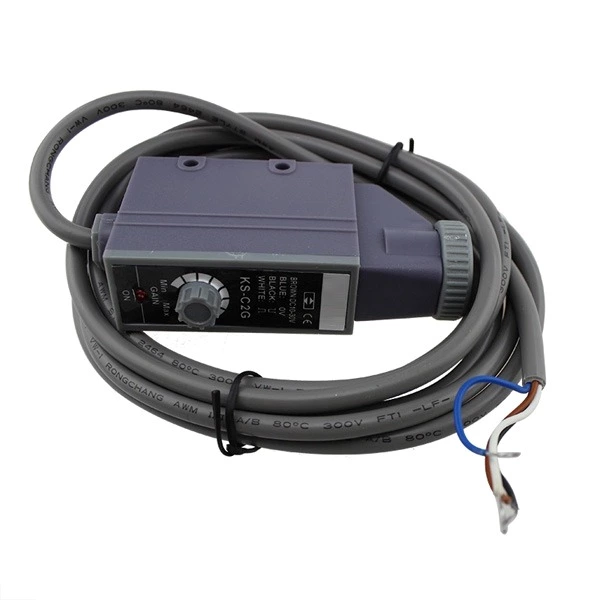

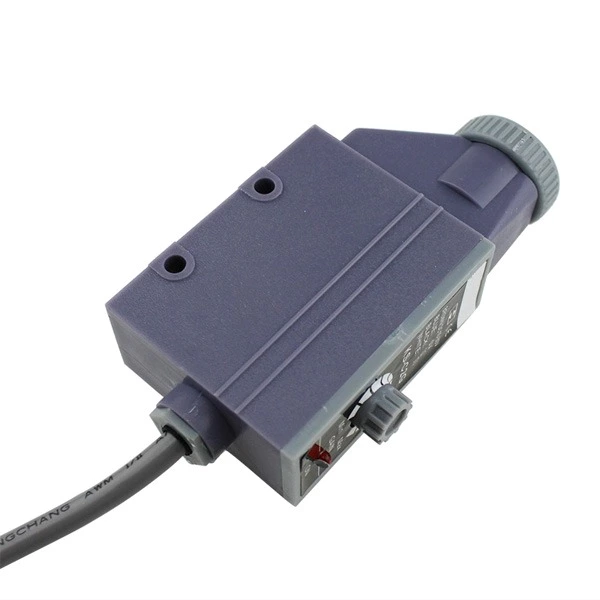

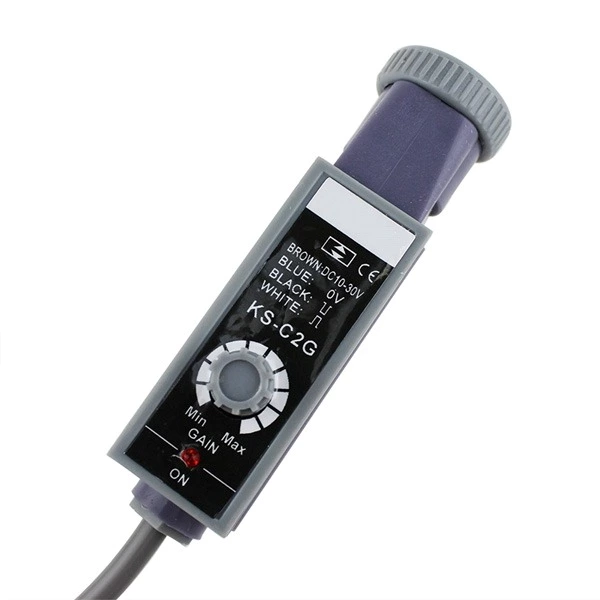

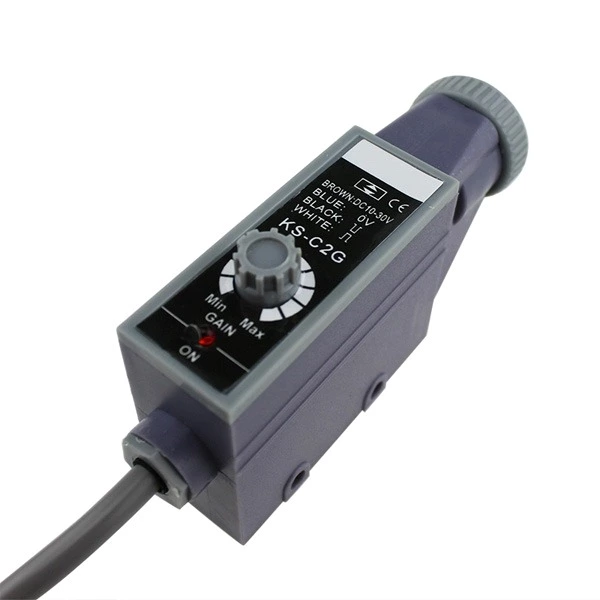

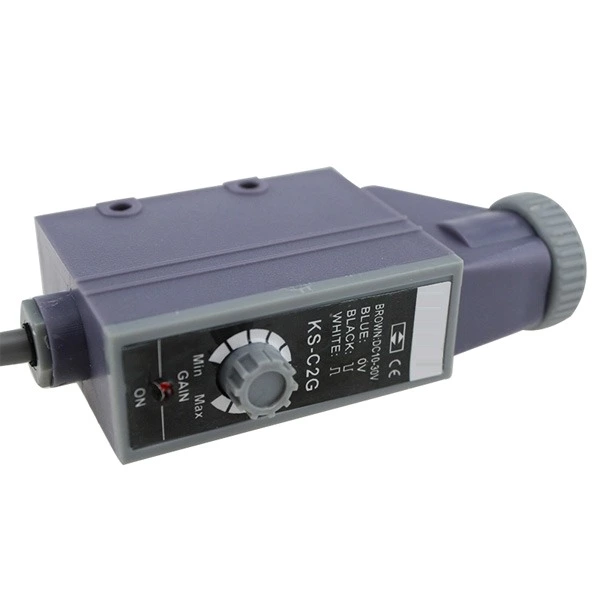

KS-C2G 4 wires photoelectric color mark sensor
Main Feature:
1.Cast a light white and green
2.Coaxial reflection type optical design
3. The light spot is small, the detection accuracy.
4.The output circuit protection design.
5.The power supply voltage :10-30VDC.
Specifiction
| KS-C2W | KS-C2G | KS-C2R | KS-C2R/G | KS-C2W/G | |
| Light source | White | Green | Red | Red/green | White/green |
| Detection | coaxial reflective type | ||||
| Detection distance | 10mm±2mm | ||||
| Cast bare point | 1.0mm | ||||
| supply voltage | DC10-30V | ||||
| Power consumption | 40mA or less | ||||
| response time | 1mS following | ||||
| Output form | NPN type lights moving / dark dynamic dual output | ||||
| protection function | Supply voltage reverse polarity protection, short-circuit protection | ||||
| Operation instruction | red LED, bright Activity directions | ||||
| Operating ambient | temperature: -5 ° C -50 ° C sunshine<10000Lux incandescent <30000Lux | ||||
| Lead | four-core cable (brown, yellow, white, blue) standard length 2m | ||||
| Dimensions | 90(L)×45(H)×22(W) | ||||
