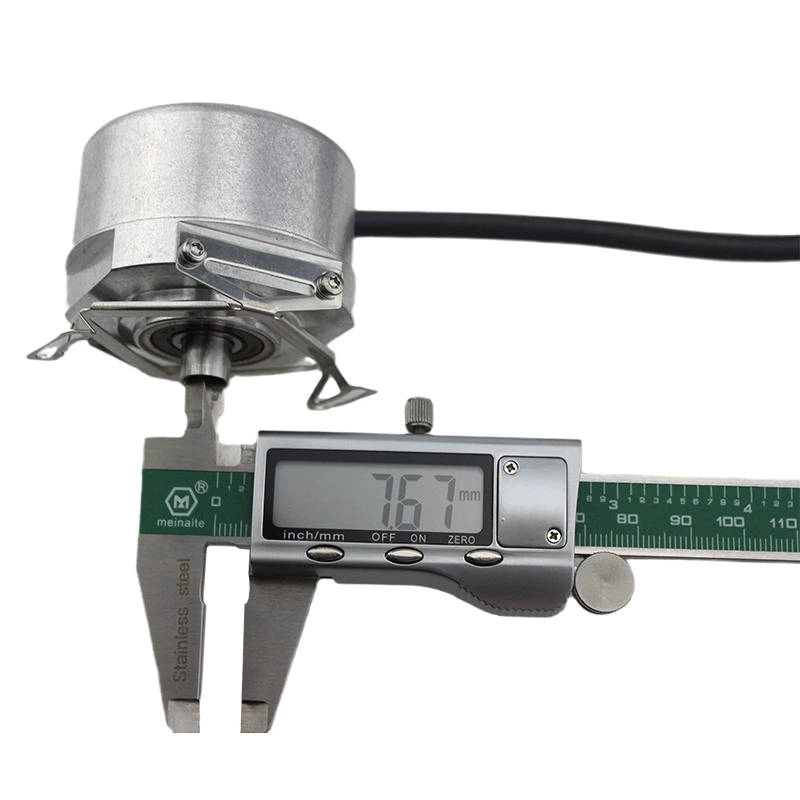

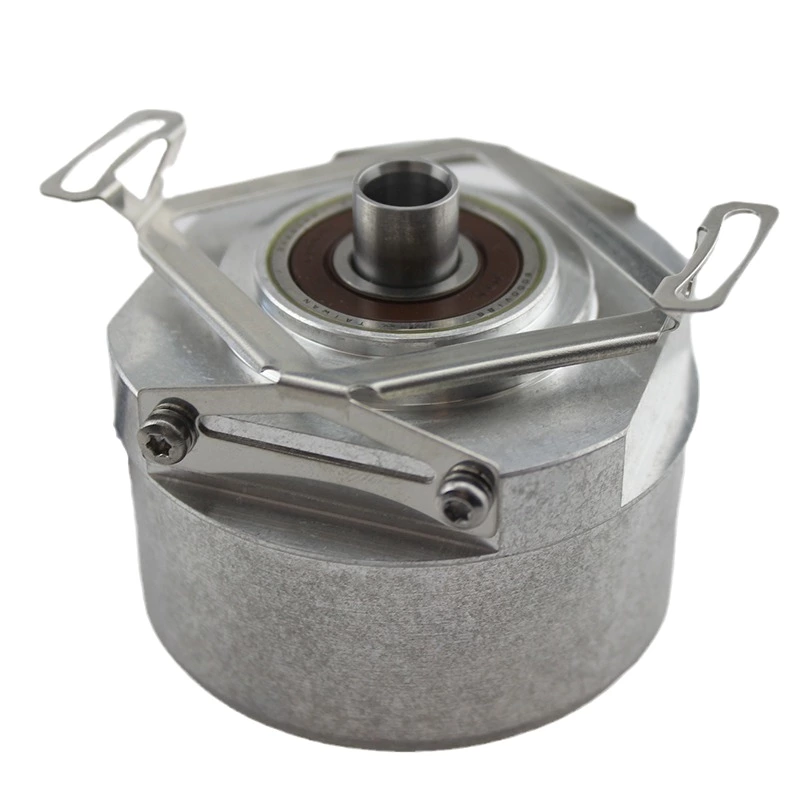

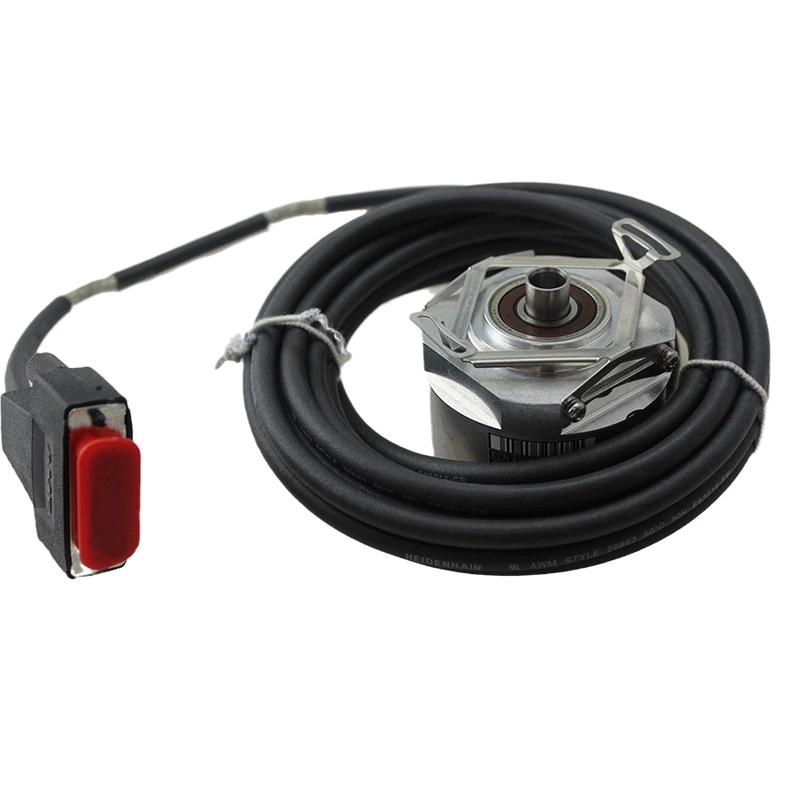

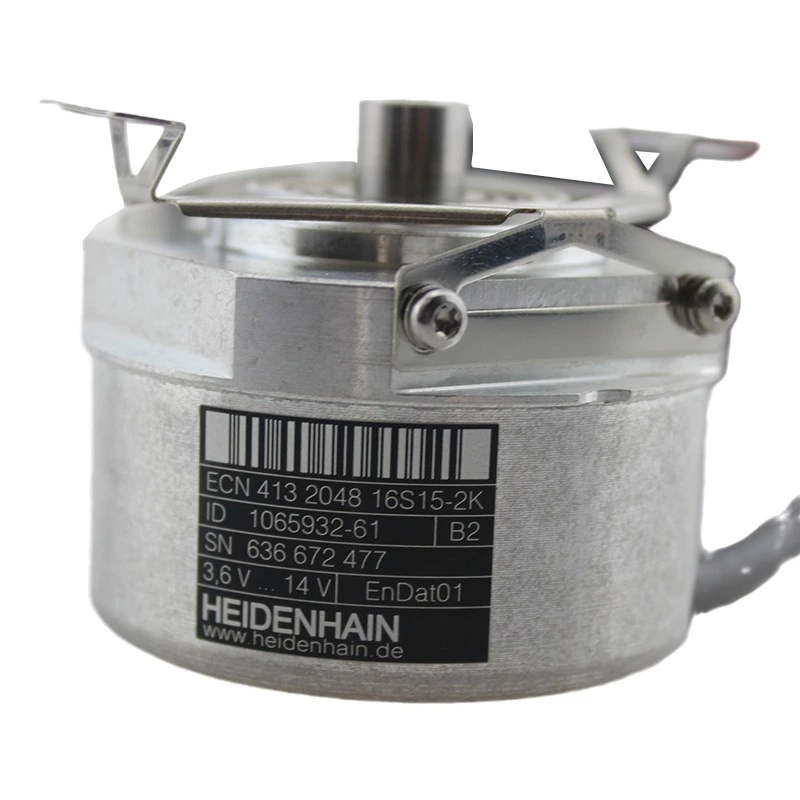

Heidenhain ECN 413 2048 16S15-2K Absolute Taper Shaft Encoder

Model:

ECN 413 2048 16S15-2K

Brand:

HEIDENHAIN

• Absolute rotary encoders for operating temperatures up to 115 °C, incremental rotary encoders for operating temperatures up to 120 °C

• Rotary encoders with mounted stator coupling with high natural frequency—virtually eliminating any limits on the bandwidth of the drive

• Absolute rotary encoders with purely digital data transfer— suited for the HMC 6 single-cable solutions—or complementary sinusoidal incremental signals

• Incremental rotary encoders for digital speed control with sinusoidal output signals of high quality—even at high operating temperatures

• Incremental rotary encoders with additional commutation signal for synchronous motors

• Incremental rotary encoders with TTL-compatible output signals

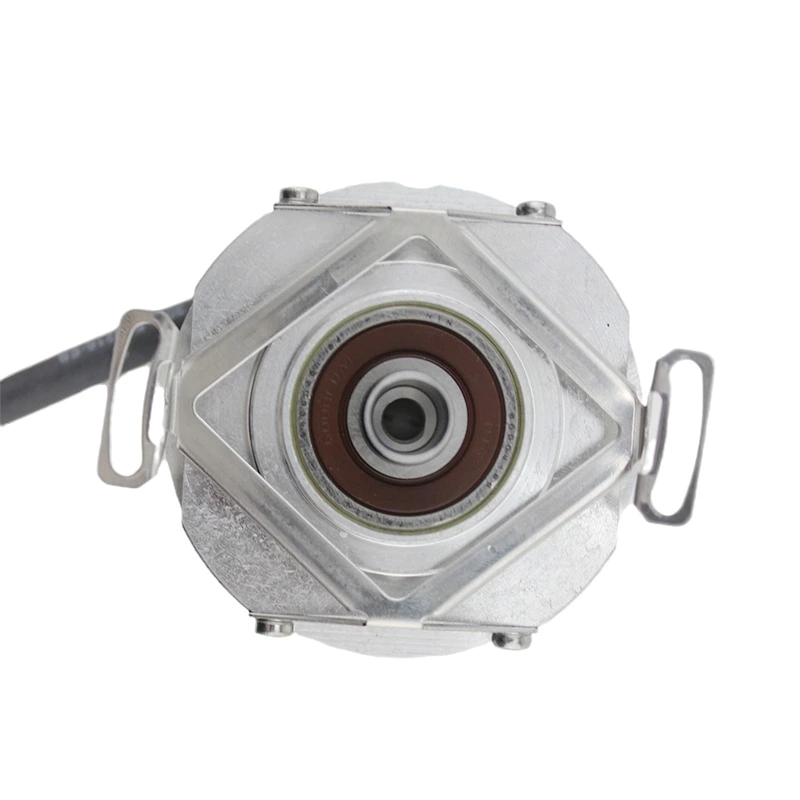

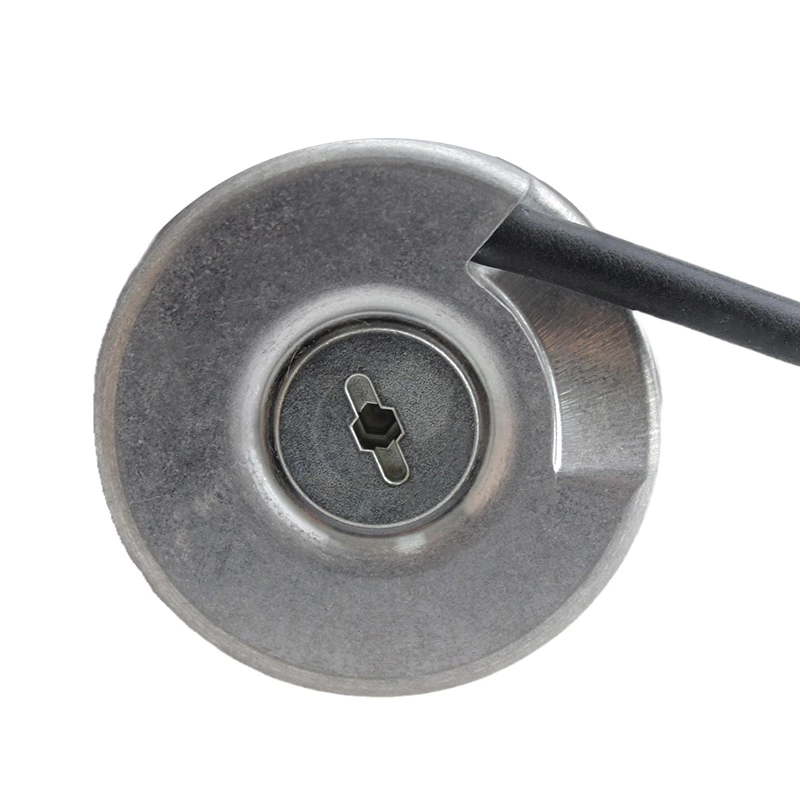

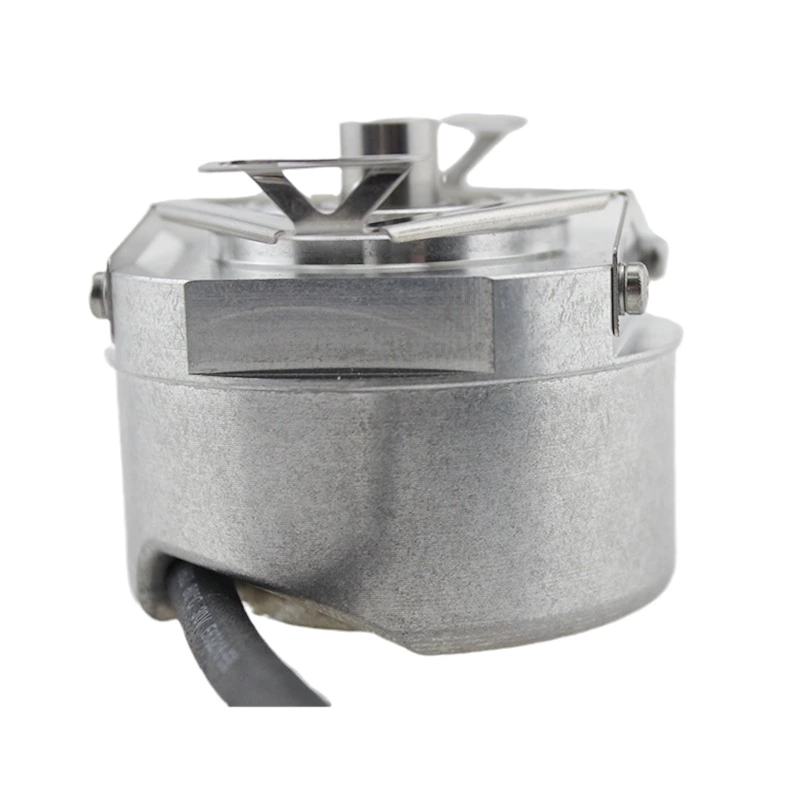

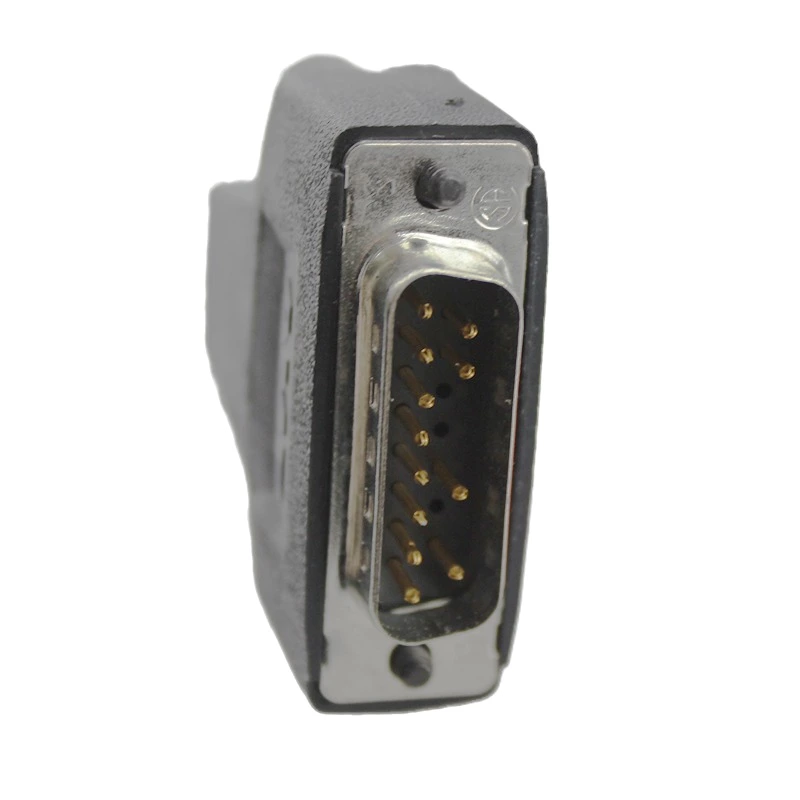

Heidenhain ECN 413 2048 16S15-2K Absolute Taper Shaft Encoder

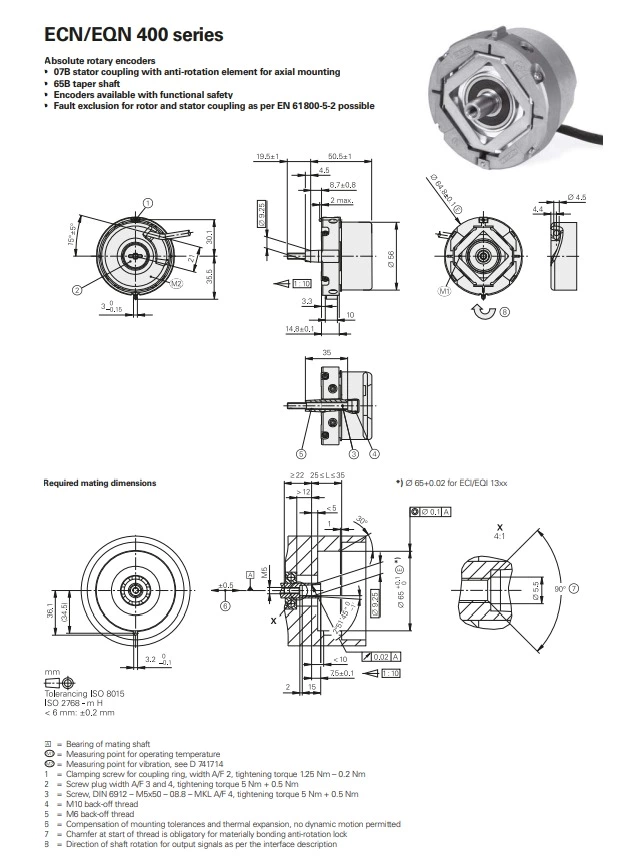

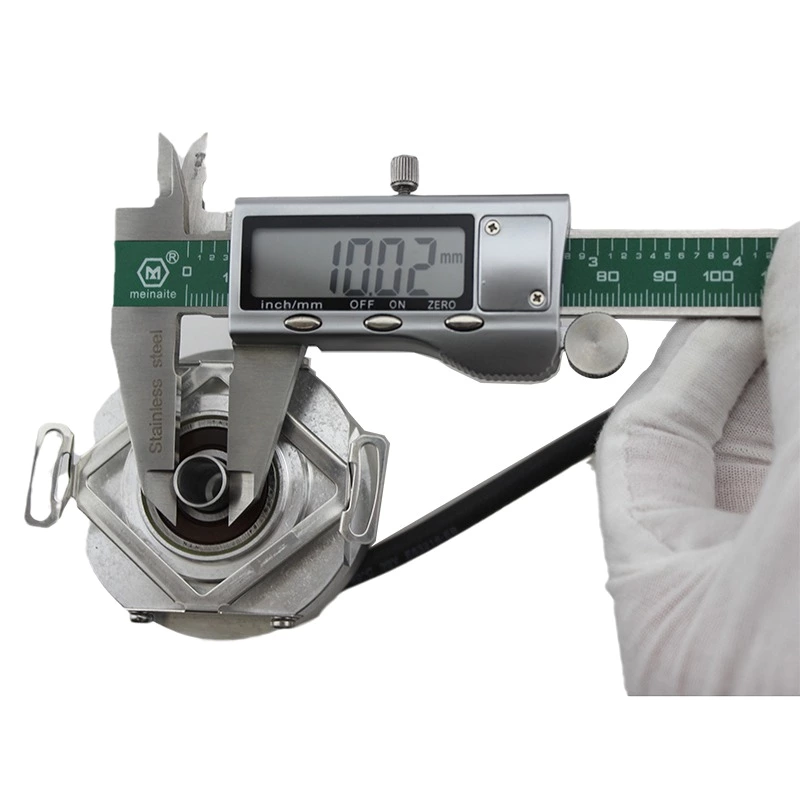

Technical Specifications

ECN 413	Interface	Ordering designation	Position values/revolution	Elec. permissible speed/Deviations	Line count	Cutoff frequency –3 dB	Voltage supply
	EnDat 2.2	EnDat01	8192 (13 bits)	1500 rpm/±1 LSB 12 000 rpm/±50 LSB	2048	≥400 kHz	DC 3.6 V to 14 V
	Power consumption (max.)	Current consumption (typical)	Mech. permiss. speed n	Starting torque	Max. operating temp.	Min. operating temp.	Mass

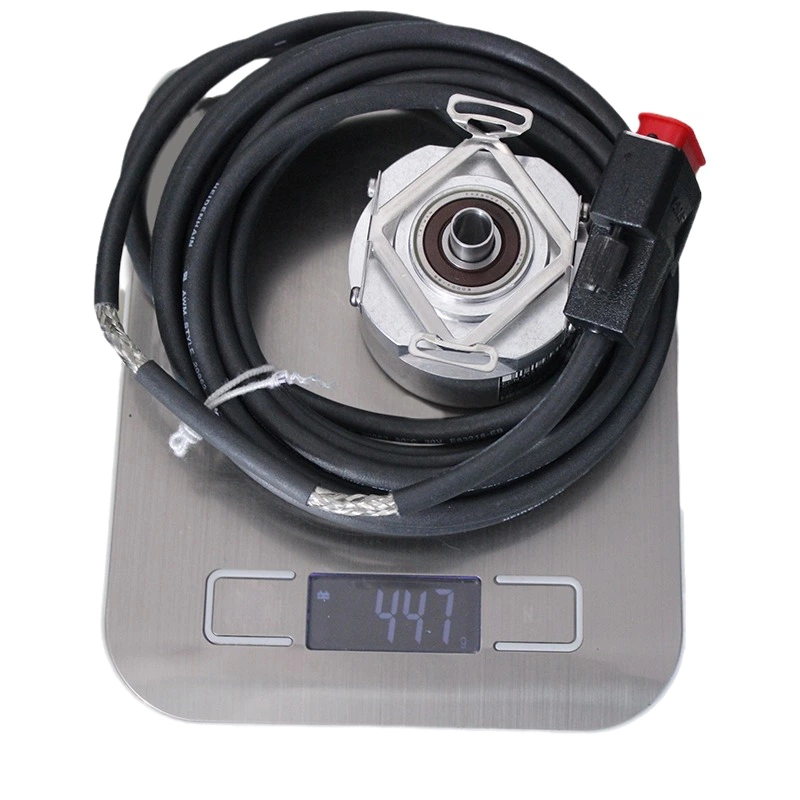

	3.6V:≤0.6W 14V:≤0.7W	5V:85mA (without load)	≤15000rpm	≤0.01Nm(at20°C)	100°C	Fixed cable: –40°C Moving cable: -10°C	0.25 kg
