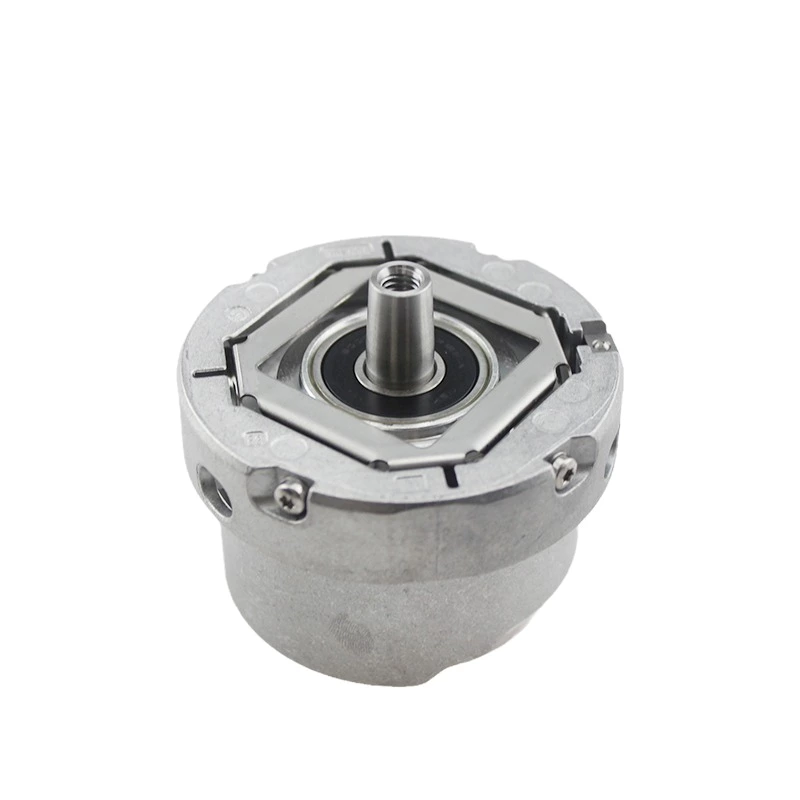

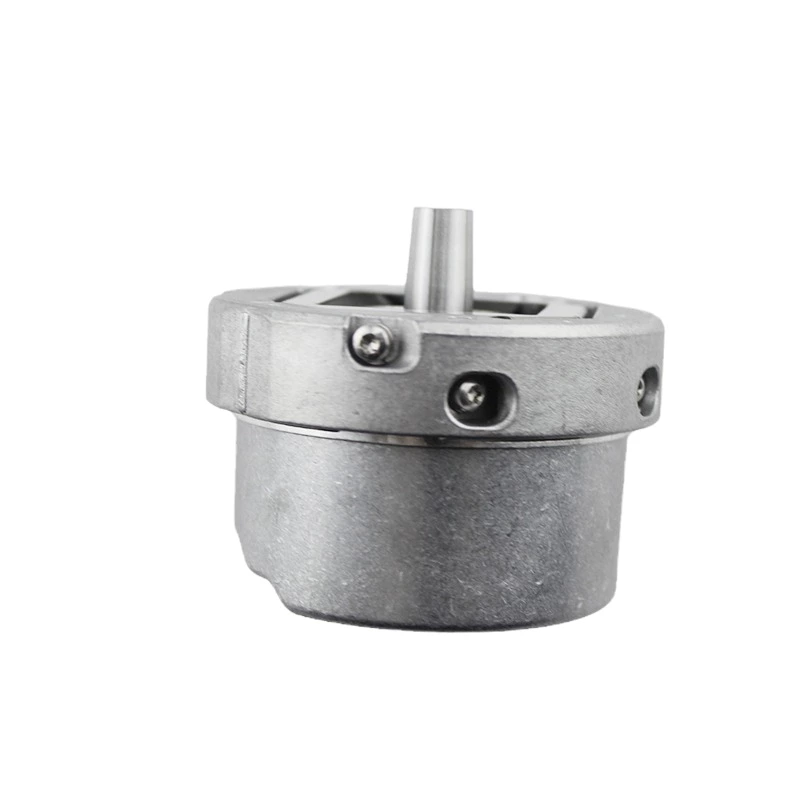

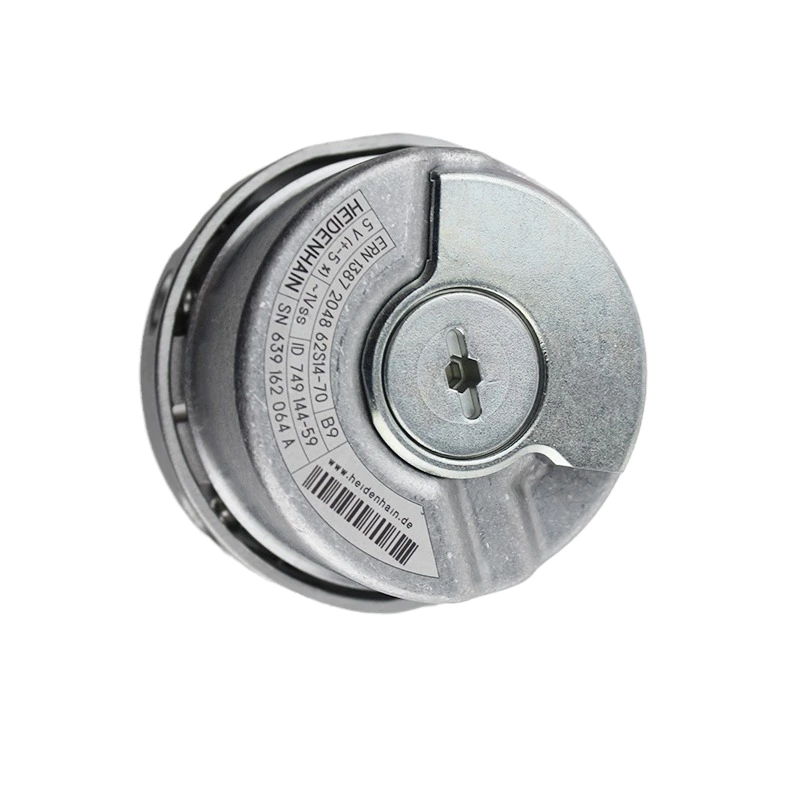

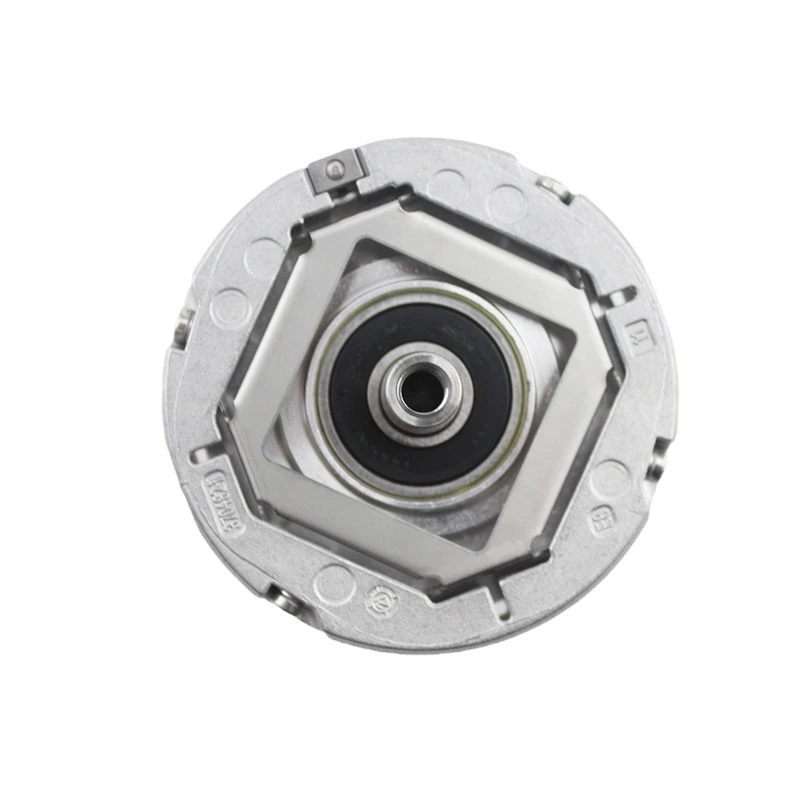

In stock Heidenhain encoder ERN1387escalator elevator encoder

Model:
ERN1387 2048 62S14-70
Brand:
Heidenhain

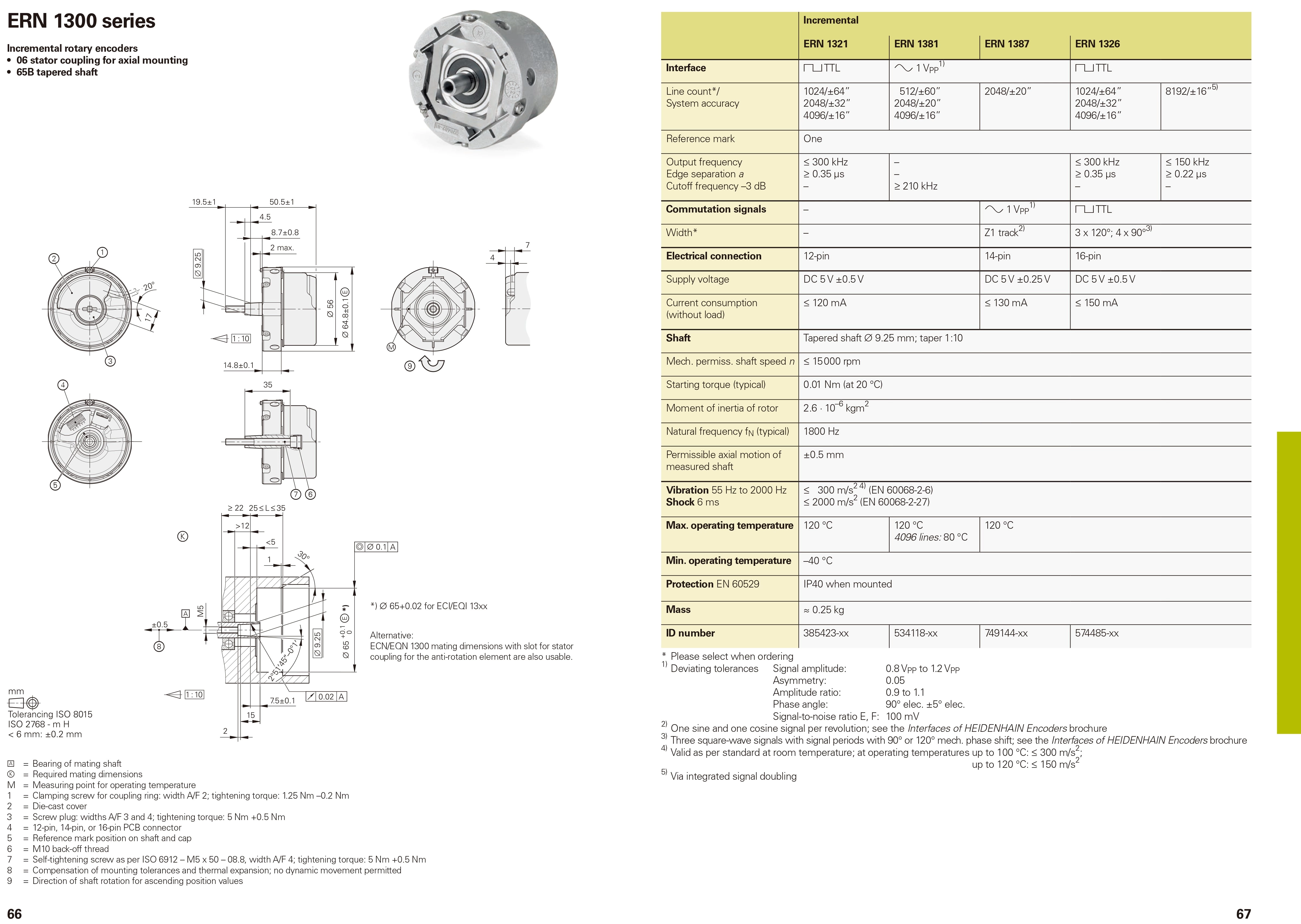

ERN 1300 series
Incremental rotary encoders with integral bearing
High axial tolerance of up to ±0.5 mm
Tapered shaft
Very high positioning accuracy of down to ±16"
Max. operating temperature: 120 °C
Interface: 1 VPP and TTL
Housing diameter ≈ 56 mm

In stock Heidenhain encoder ERN1387escalator elevator encoder
In stock Heidenhain encoder ERN1387escalator elevator encoder
In stock Heidenhain encoder ERN1387escalator elevator encoder
In stock Heidenhain encoder ERN1387escalator elevator encoder
In stock Heidenhain encoder ERN1387escalator elevator encoder
In stock Heidenhain encoder ERN1387escalator elevator encoder

Heidenhain encoder ERN1387escalator elevator encoder

Product Description

Code ERN1387
Position values/revolution Z1 track for sine commutation
Electrical connection

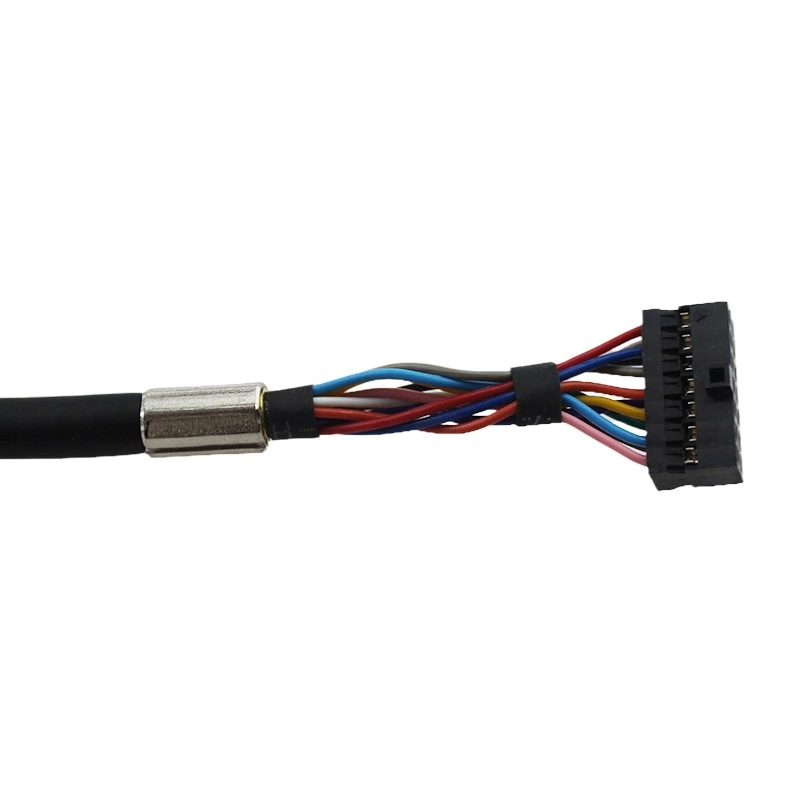

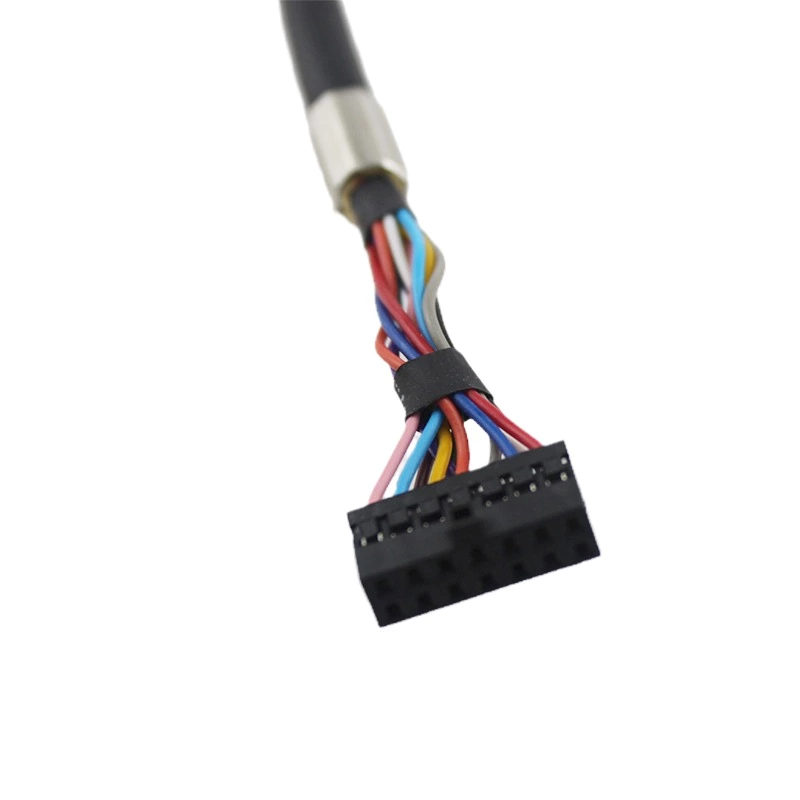

Via PCB connector 		14-pin
Voltage supply DC 5 V ±0.25 V
Current consumption ≤130mA

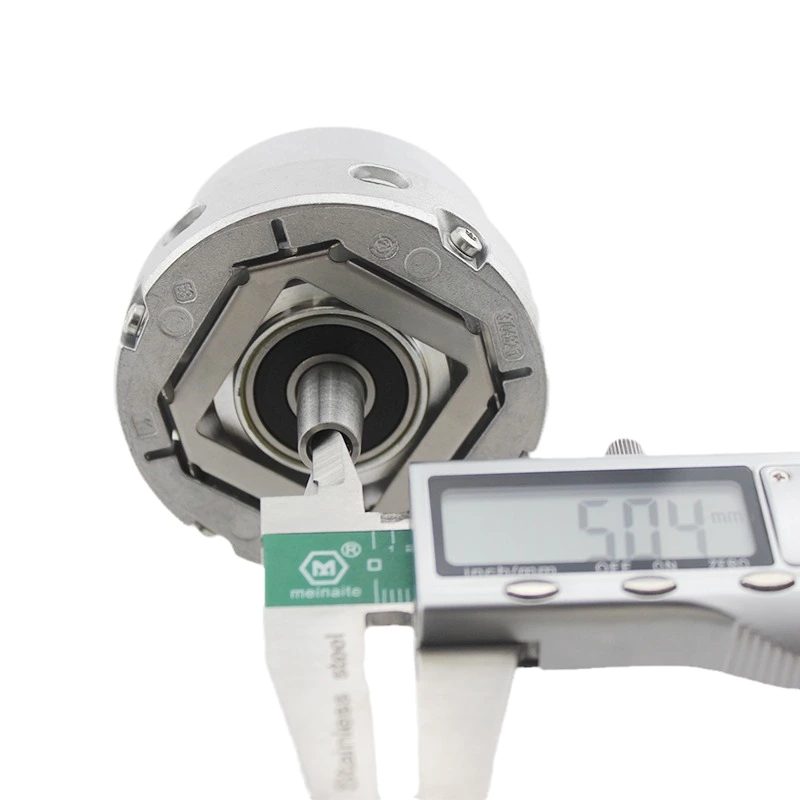

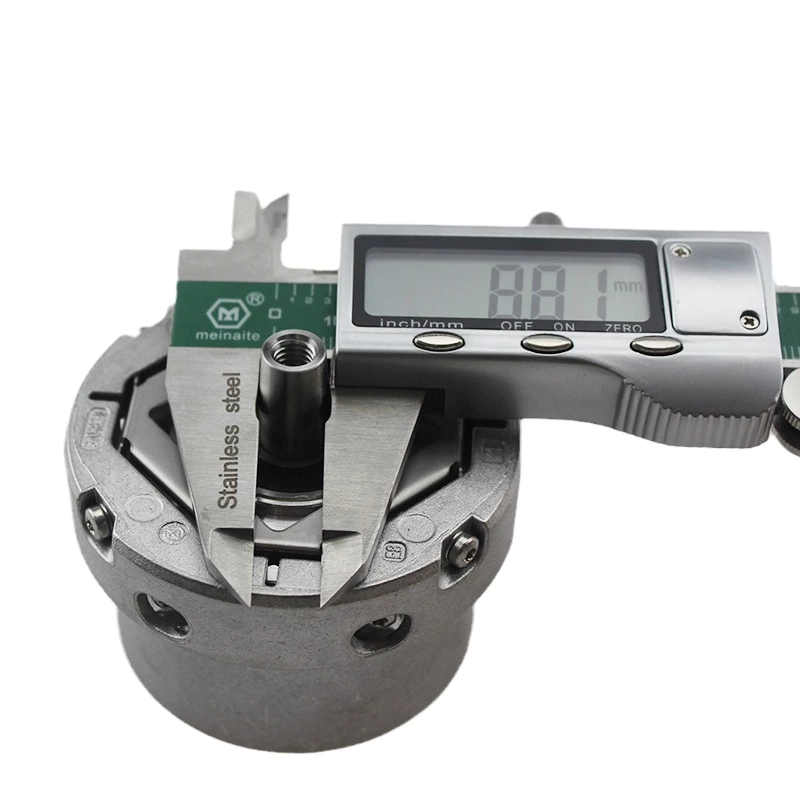

Shaft Taper shaft φ9.25mm;taper 1:10
Operating temperature 120°C
Protection EN 60 529 IP40 when mounted

In stock Heidenhain encoder ERN1387escalator elevator encoder

In stock Heidenhain encoder ERN1387escalator elevator encoder

Product Pictures

In stock Heidenhain encoder ERN1387escalator elevator encoder

In stock Heidenhain encoder ERN1387escalator elevator encoder
