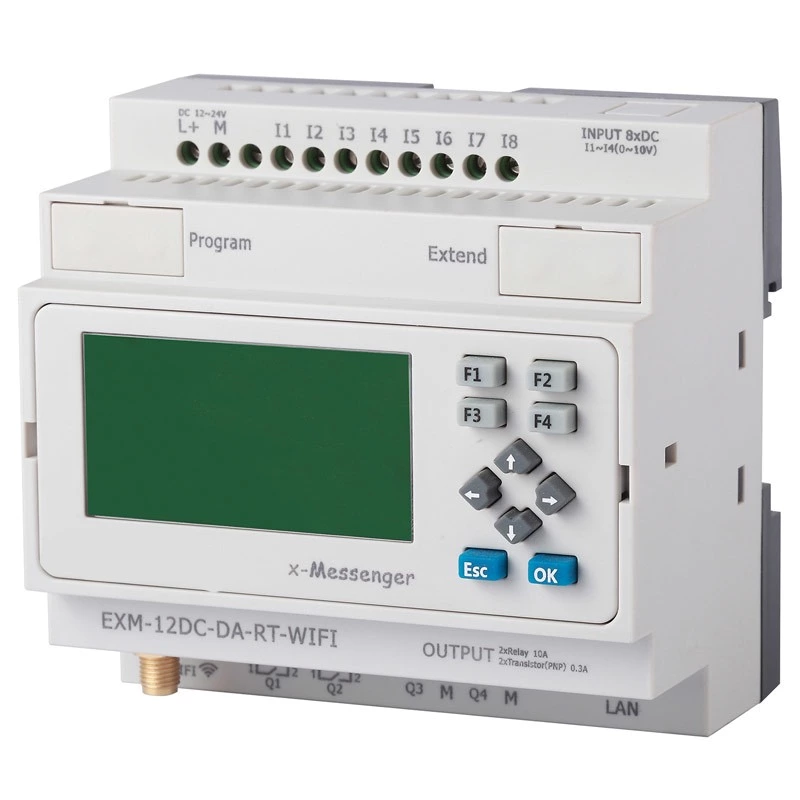

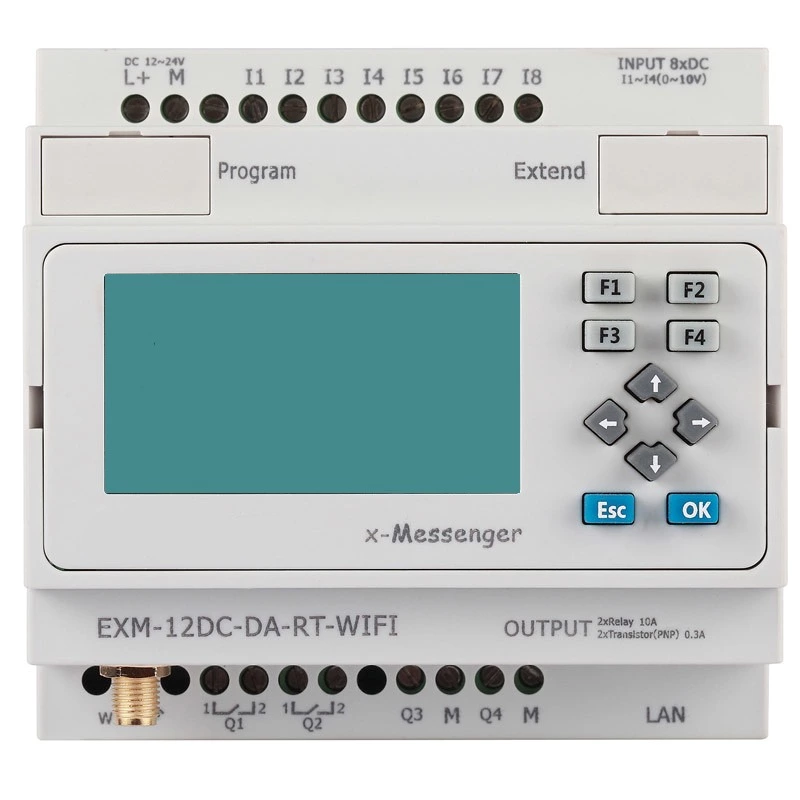

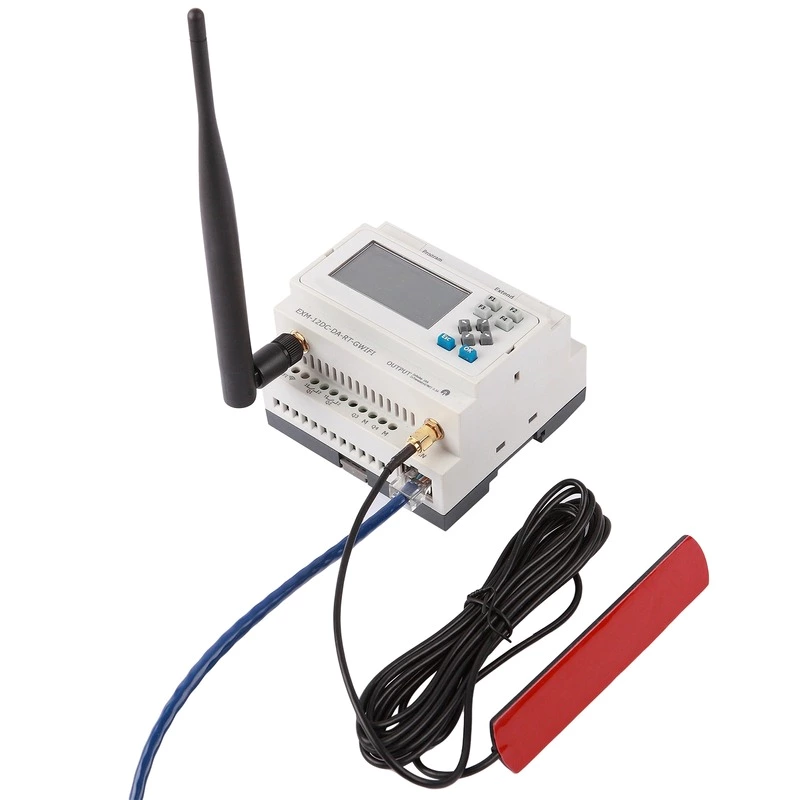

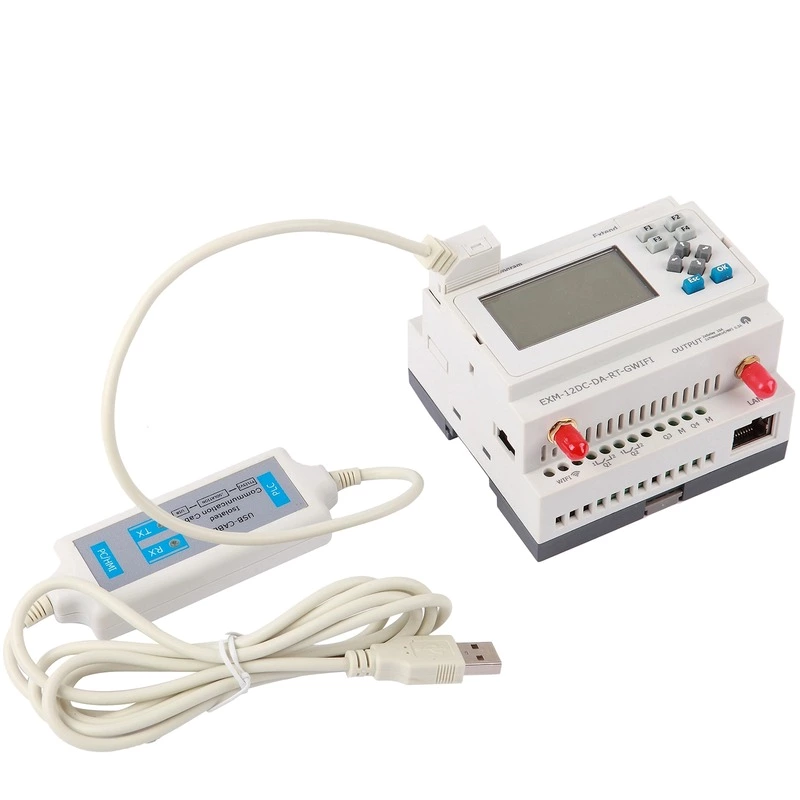

GPRS,SMS,WiFi programmable logic controller for automation control EXM-12DC-DA-RT-WIFI-HMI
- Model:
- EXM-12DC-DA-RT-WIFI-HMI
Incorporates a wide range of CPUs, expansions, various accessories and software, specially designed for GSM/GPRS wireless systems being used for remote measurements, data logging, control, diagnostics and object via short text messages (SMS) or CLIP calls. Configurable messages sending from device with static (text) or dynamic (text) and measured values content are a convenient way of passing important information to the monitoring center, or directly to the defined phone numbers. SMS messages sending or Call out can be triggered by change of binary input state, reaching alarm thresholds, marker state change, counters and clocks.
GPRS,SMS,WiFi programmable logic controller for automation control EXM-12DC-DA-RT-WIFI-HMI
Timers : 512
Counters : 512
SMS Message input:32
SMS Message output:64
SMS Message input output:12
Function Blocks: 512
Operation temp.: -20℃-55℃
Storage temp:-40℃-70℃
Protection: IP20(Non-waterproof)
RTC accuracy: MAX ±2S/day
RTC Backup at 25 °C: 20 days
Program and settings Backup :10 years
Data Power-off retentivity: 10 years
Dimensions: 95*90*67 (Unit, mm)
Certificate: CE
Installation: 35mm-DIN rail or screw for installation
Expansion capacity: 8 modules(EXM-E-8)
Modify parameters via keypad LCD: yes
Password protection : 4-digit number password protection or disable program upload function
Communication interface : 1 RS232 port/TTL ,the extension port can be worked as RS485 port, if no IO extension used with CPU.
Communication protocol : Modbus RTU/ASCII
Technical Index
| Power supply: | |
| Nominal voltage | DC 12-24V |
| Operating limits | DC 10.8-28.8V |
| Immunity from micro power cuts | Typ.5 ms |
| Max. Startup current | Max. 0.25A |
| Max. absorbed power | 3.5 W (10.8V dc) ; 4 W (28.8V dc) |
| Protection against polarity inversions | Yes |
| Input parameters: | |
| Input No | 8 ( I1-I8 ) |
| Digital input | 6 ( I1-I2,I5-I8 ) |
| Analogue input | 4( I1-I4)(0..10V DC) |
| Digital inputs( I5-I8 ) | |
| Input voltage | DC0-28.8V |
| Input signal0 | < 5V DC;<1mA |
| Input signal1 | > 8 V DC;>1.7mA |
| Input current | 2.3mA @ 10.8V dc 2.6mA @ 12.0 V dc 5.2 mA @ 24 V dc 6.3 mA @ 28.8 V dc |
| Response time | 0 to 1 :<1 ms ;1 to 0 :<1 ms |
| Maximum counting frequency | 60k Hz(I7--I8) |
| Sensor type | Contact or 3-wire PNP |
| Input type | Resistive |
| Isolation between power supply and inputs | None |
| Isolation between inputs | None |
| Inputs used as digital inputs( I1-I4 ) | |
| Input voltage | DC0-28.8V |
| Input signal0 | < 5V DC;<0.1mA |
| Input signal1 | > 8 V DC;>0.3mA |
| Input current | 0.4mA @ 10.8V dc 0.5mA @ 12.0 V dc 1.2mA @ 24 V dc 1.5mA @ 28.8 V dc |
| Response time | 0 to 1 :Typ. 1.5 ms ;1 to 0 :Typ. 1.5 ms |
| Maximum counting frequency | Typ.:4 HZ |
| Sensor type | Contact or 3-wire PNP |
| Input type | Resistive |
| Isolation between power supply and inputs | None |
| Isolation between inputs | None |
| Inputs used as analog inputs( I1-I4 ) | |
| Measurement range | DC 0---10V |
| Input impedance | Min, 24KΩ ; Max. 72KΩ |
| Input voltage | 28.8 V DC max |
| Resolution | 10bit ,0.01V |
| Accuracy at 25 °C | ± (Max.0.02)V |
| Accuracy at 55 °C | ± (Max.0.04)V |
| Isolation between analog channel and power supply | None |
| Cable length | 10 m max. shielded and twisted |
| Output parameters: | |
| Output No. | 4 (Q1-Q4) |
| Output type | 2Relay output+2Transistor(PNP) output |
| Continuous current | (Q1-Q2)Resistive load 10A/Inductive load 2A (Q3-Q4)Max. 0.3 A per channel |
| Max. breaking voltage | (Q1-Q2) AC 250 V DC 30 V (Q3-Q4) ≤ Supply voltage |
| Max. Allowable Power Force | (Q1-Q2)1250VA 300W (Q3-Q4)9W |
| Electrical durability Expectancy | 105 Operations at Rated Resistive Load |
| Mechanical life | 107 Operations at No Load condition |
| Response time | Operate Time : 15 mSec. Max. Release Time : 10 mSec. Max. |
| Built-in protections | Against overloads and short-circuits: No Against overvoltages (*): No |
| Galvanic isolation | None |
| PWM frequency(Q3-Q4) | 1K HZ |
| PWM cyclic ratio(Q3-Q4) | 0 to 100 % |
| PWM accuracy at 120Hz(Q3-Q4) | < 0.5 % (20 % - 80 %) load at 10 mA |
| Max. Breaking current PWM(Q3-Q4) | 50 mA |
| Switch frequency: | |
| Mechanism | 10Hz |
| Resistor/light load | 2Hz |
| Sensitive load | 0.5Hz |
| Built-in wireless parameters: | |
| Support 802.11b/g/n wireless standards | |
| Support TCP/IP/UDP network protocols | |
| Support work as STA/AP mode | |
| Support Router/Bridge mode networking | |
| Support Transparent/Agreement Transmission Mode(Transparent used by EXM CPU) | |
| Support Friendly Web Configuration Page or configuration by eSmsconfig | |
| Outdoor 100m with 3dBi antenna and indoor 40m | |
| FCC/CE Certificated | |
| GSM parameter: | |
| Type of mobile wireless service | SMS, GPRS |
| Operating frequency | 850MHz,900MHz,1800MHz,1900MHz, |
| for GPRS transmission/with downlink/maximum for GPRS transmission / with uplink / maximum | 80 kbit/s 40 kbit/s |
| Other parameters: | |
| Ethernet port: | Built-In(10M/100M) |
| Xlogic-Xlogic(byWifit) | 1 xlogic works as server can connect 32 client xlogics. |
| Xlogic-Etherne/Internet: | xlogic works as TCP server or TCP client |
| Weight | Approx.300g |
