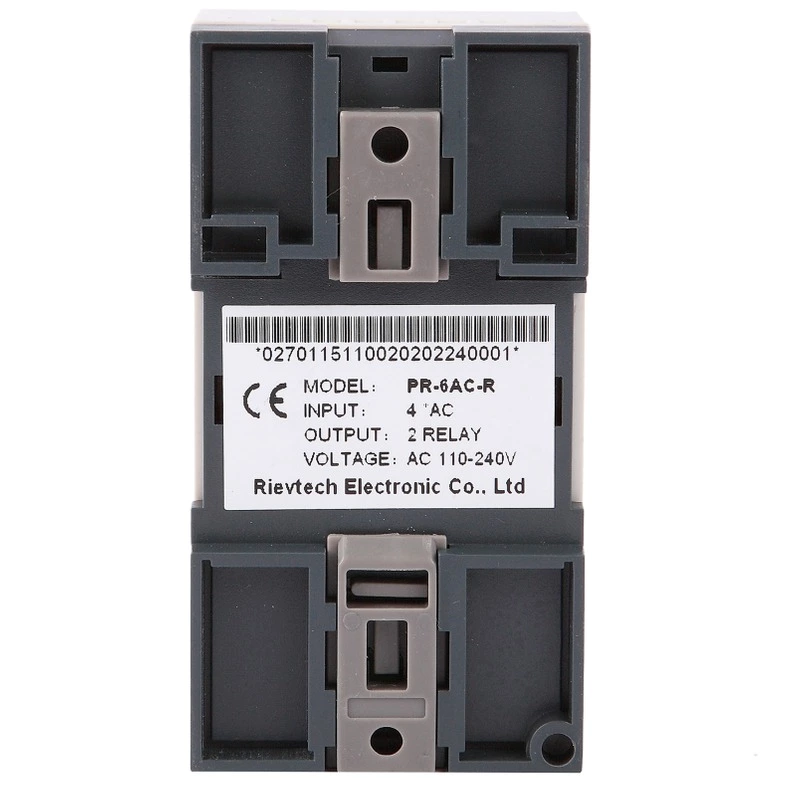

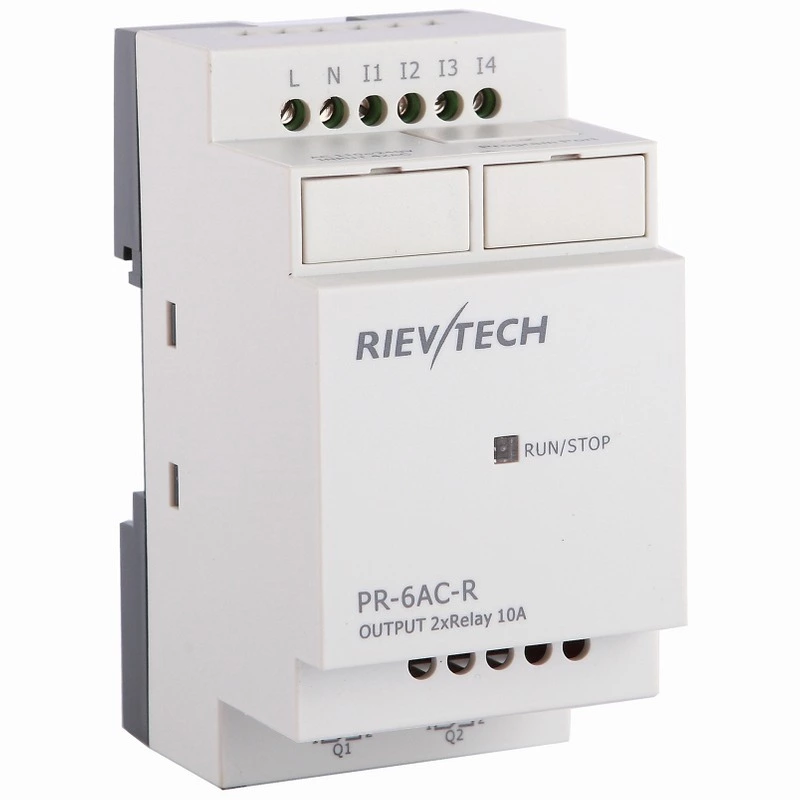

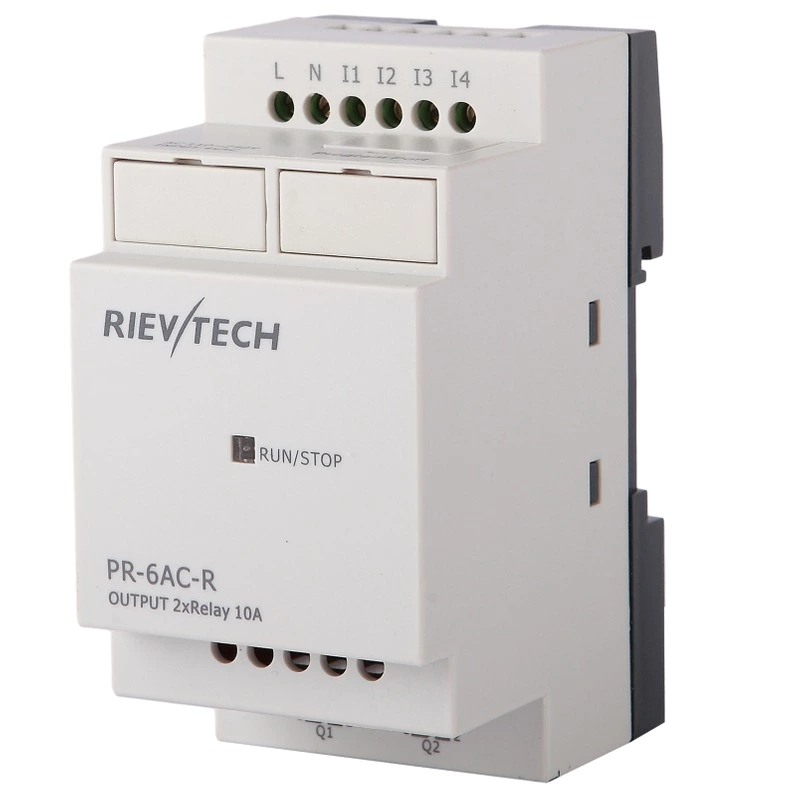

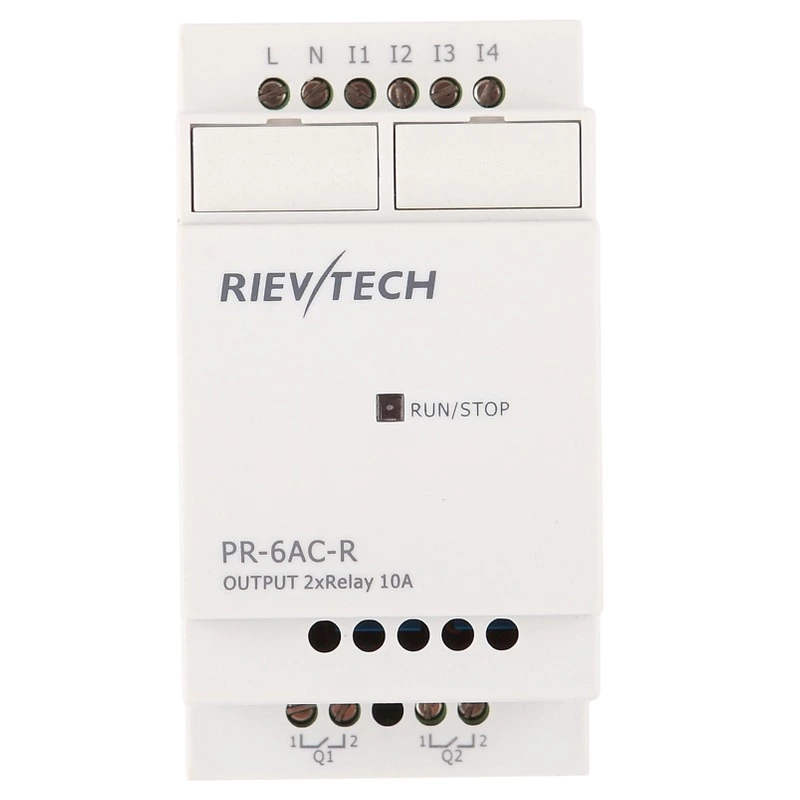

Programmable Relay Micro PLC PR6 Series Small Relay with Mini PLC
- Model:
- PR-6AC-R
- Brand:
- RIEVTECH
PR-6 Series(Smart Relay) is the entry level model of xLogic Micro PLC family, able to process up to 64 function blocks in a single program, also is the perfect maintenance product, and yet can adequately control a new process from the start.PR-6 Series is capable of replacing many of the discrete components(such as multiple timers, relays, contactors and counters etc) used in conventional systems, opening up a whole new range of possibilities for economical simple control solutions. PR-6 Series exclude expansion feature , NO keypad panel , NO PWM output & High Speed pulse counting capabilities, merely incorporating digital,analog IO, clock with calendar, counters , timers, and available in 120/240VAC or 12V/24VDC versions,Easy to configure with drag-and-drop function blocks using FREE xLogicSoft software.
| PR-6 Series CPU | |||||||||
| Model | Expansion | Supply volt | Inputs | Outputs | High-speed count | PWM | HMI | RTC | G . W(G) |
| PR-6AC-R | NO | AC 110～240V | 4 DI | 2 relays(10A) | NO | NO | NO | YES | 180 |
| PR-6DC-DA-R | NO | DC12V-24V |
4 DI(I1-I4) /4(0...10V) |
2 relays(10A) | NO | NO | NO | YES | 180 |
GENERAL SPECIFICATIONS
Timers : 64
Counters : 64
Function Blocks : 64
Operation temp. : -20℃-55℃
Storage: -40℃-70℃
Protection : IP20
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C : 20 days
Program and settings Backup :10 years
Data Power-off retentivity : No
Cycle time: typ. 0.6ms to 8.0ms
Dimensions : 48*90*64 (Unit, mm）
Certificate : CE,ROHS
Installation: 35mm-DIN rail or screw for installation
Expansion capacity : No
Password protection : 4-digit number password protection or disable program upload function
Communication interface : TTL interface , 1 Program/RS232 port
Communication protocol : Modbus RTU/ASCII , only can serve as slaves
Technical Index
| Power supply: | |
| Nominal voltage | AC110V-240V |
| Operating limits | AC85 - 265 V |
| The main frequency range | 47-63Hz |
| Max. absorbed power |
34 mA (85V AC) 26 mA (265V AC) |
| Isolation voltage | 1780V AC |
| Protection against polarity inversions | Yes |
| Input parameters: | |
| Input No | 4 ( I1-I4 ) |
| Digital input | 4 ( I1-I4 ) |
| Analogue input | None |
| Input voltage | AC110-240V |
| Input signal0 | AC0-40V；<0.03mA |
| Input signal1 | AC79-240V； >0.06mA |
| Input Response Time |
Delay time at 0 to 1： 120V AC ：Typ. 50 ms 240V AC ：Typ. 30 ms Delay time at 1 to 0： 120V AC ：Typ. 90 ms 240V AC ：Typ.100 ms |
| Maximum counting frequency | Typ. 4Hz |
| Sensor type | Contact or 3-wire PNP |
| Isolation between power supply and inputs | None |
| Isolation between inputs | None |
| Protection against polarity inversions | Yes |
| Output parameters: | |
| Output No. | 2 (Q1-Q2) |
| Output type | Relay output |
| Max. Allowable Power Force | CE: 10A,250V AC/DC30V |
| Electrical durability Expectancy | 105 Operations at Rated Resistive Load |
| Mechanical life | 107 Operations at No Load condition |
| Response time |
Operate Time : 15 mSec. Max. Release Time : 10 mSec. Max. |
| Built-in protections |
Against short-circuits: None Against overvoltages and overloads: None |
| Switch frequency: | |
| Mechanism | 10Hz |
| Resistor/light load | 2Hz |
| Sensitive load | 0.5Hz |
| Other parameters: | |
| Weight | Approx.180g |

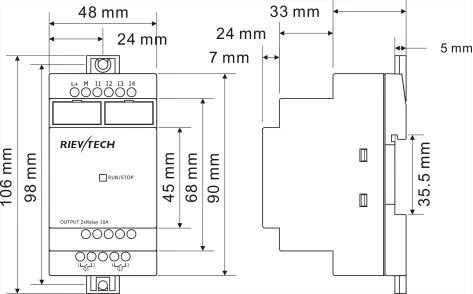

Installation Dimensions

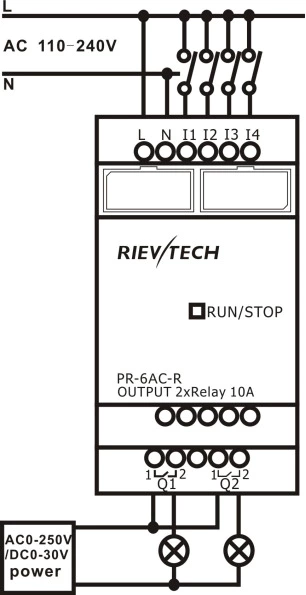

Wiring Diagram
Input&Output
